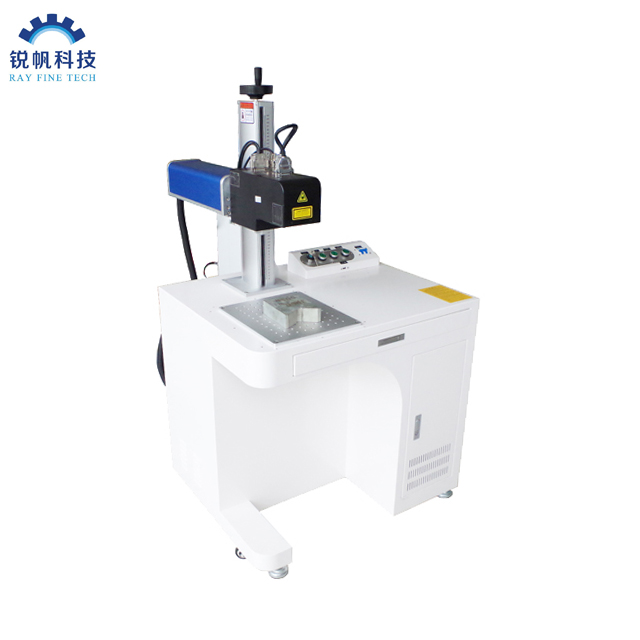

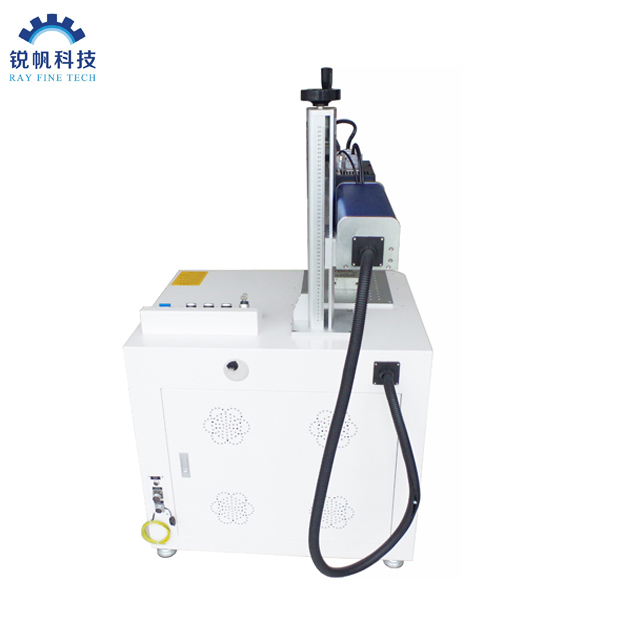

3D Dynamic Focus 30w 50w 60w 100w 120w Fiber Laser Marking Machne for Curved Surface,Relief Marking, 3D Marking

Quantity:
  • RF-F-30W ,RF-F-50W,RF-F-60W,RF-F-100W,RF-F-120W
  • Ray Fine Tech

3D Dynamic focus mainly funtion is  Mainly usd for marking on curved surface(can mark on curved surface directly, no need to use rotary axis ); Relief marking ; 3D marking.


动态聚焦MOPA 100W 22


relief Marking samples:

relief marking

3D marking sample:

3d

3d1



Model

RF-F-30W

RF-F-50W

RF-F-60W

RF-F-100W

RF-F-120W

Fiber laser source brand

Raycus

Raycus

JPT

JPT

JPT

Fiber laser source type

Q switch fiber laser

Q switch fiber laser

Pulse adjustable

MOPA

Pulse adjustable

MOPA

Pulse adjustable

MOPA

Fiber laser source model

RFL-P30Q

RFL-P50Q

YDFLP-60W-LM1-L1

YDFLP-100W-LM1-L1

YDFLP-120W-LM1-L1

Output power

30W

50W

>60W

>100W

>120W

Laser beam quality M2

<1.5

<1.6

<1.3

<1.8

<1.8

Max single pulse energy

1MJ

1MJ

1.5MJ

1.5MJ

1.5MJ

Full power frequency range



40~1000KHZ

67~1000KHZ

80~1000KHZ

Frequency adjustable range



1-1000KHZ

1-1000KHZ

1-1000KHZ

Pulse duration

90~130NS

90~150NS

10~350NS

10~350NS

10~350NS

Center Wavelength

1064nm

Cooling type

Air cooling

Marking Area

200*200mm(optional)

How to get focus

Auto Focus

One time marking Depth

0.03-0.08mm

Marking speed

8000mm/s

Repeat Accuracy

<20μrad

Min. linear width

0.01mm

Min. Character size

0.2mm

Supply voltage

AC220/110V±10%  50/60hz

Control program

Genuine LenMark-3DS  control system

Operation temperature

0~40℃
