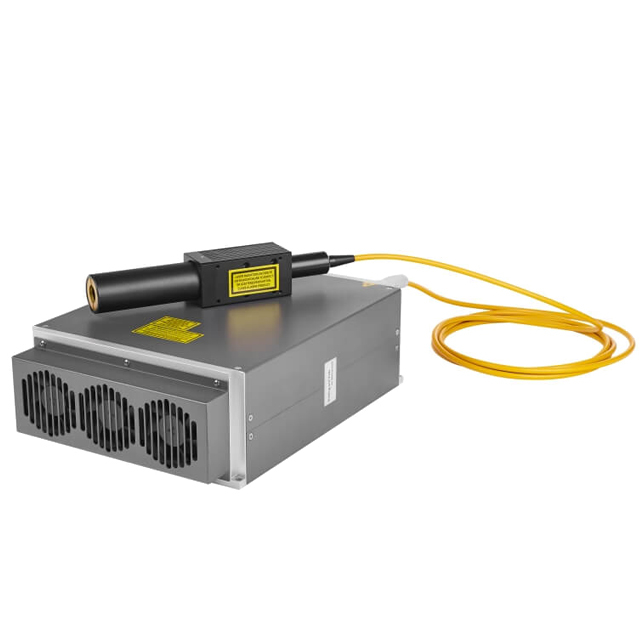

JPT MOPA M1+ 20w 30W Fiber Laser Source Pulse Duration Adjustable 1064nm Fiber Laser Source

JPT M1+ series pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration, and show excellent laser performance as well as high level of temporal pulse shaping controllability. As compared to the Q-switching technology, the pulse repetition frequency (PRF)and pulse width can be controlled independently in MOPA configuration, through adjusting different combination of the above parameters, the peak power of laser can be well maintained. And enable JPT laser suitable for more material processing which Q-switch limited.

Quantity:
  • YDFLP-20-M1+-S YDFLP-30-M1+-S
  • RAY FINE TECH

 JPT MOPA M1+ 20w 30W Fiber Laser Source pulse duration adjustable 1064nm Fiber Laser source

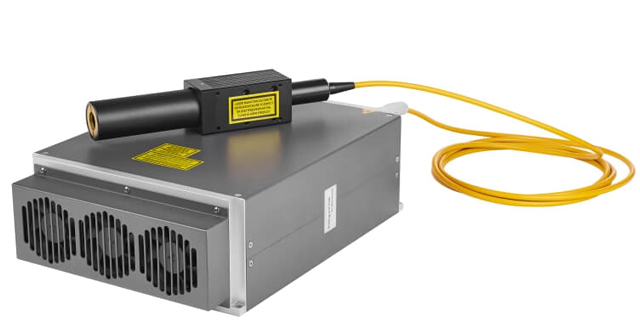

640x640 激光器 小


Application Advantages:
- Metal surface processing, peeling coating
- Aluminum black marking
- Semi-conductor&electronics industry applications
- Large area engraving
- Excellent marking effect on plastic or other sensitive material
- Black marking on stainless steel

Parameter:

Laser Type

Unit

MOPA

Product Model

YDFLP-20-M1+-S

YDFLP-30-M1+-S

M2

<1.3

Delivery Cable Length

m

2

Nominal Average Output Power

W

>20

>30

Maximum Pulse Energy

mJ

0.5

Full Power Repetition Range

kHz

401000

601000

Pulse Repetition Rate Range

kHz

11000

Pulse Duration

ns

6250

Longtime Average Power stability

%

<5

Cooling Method

Air Cooling

Supply DC Voltage (VDC)

V

24

Current Consumption

A

<8

<10

Current Supply Consumption

A

>8

>10

Power Consumption@20

W

<192

<240

Central Emission Wavelength

nm

1064

Emission Bandwidth@3dB

nm

<15

Polarization

Random

Anti-Reflection Protection

Yes

Output Beam Diameter

mm

7±0.5

Output Power Tuning Range

%

0100

Operation Temperature

040

Storage Temperature

-1060

Weight

KG

NG: 8  G.W:9.75

Dimension W×D×H

mm

315×220×99

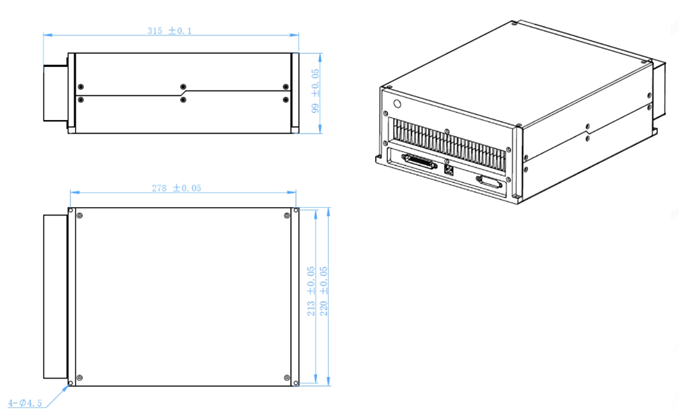

  Dimensions


M1+ 20 30W
