Two heads 1310 1610 300W hybrid CO2 laser cutting machine 80W CO2 laser engraving machine

5 0 Reviews
Availability:
Quantity:
Inquire Add to Basket

  • RF-1390 RF-1310 RF-6090

  • RAY FINE

  • 845611

Two heads 1310 1610 300W hybrid CO2 laser cutting machine 80W CO2 laser engraving machine

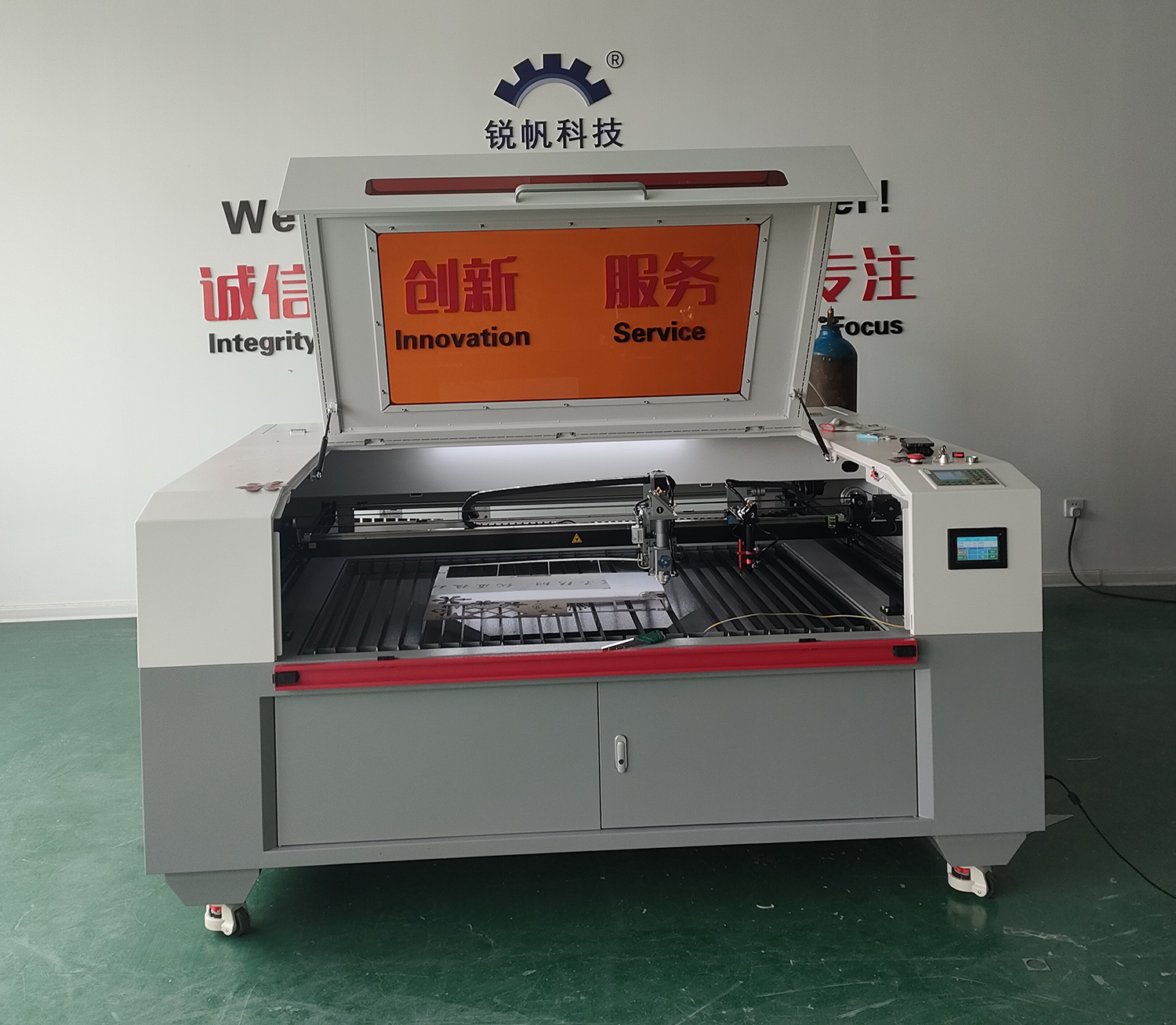

IMG20230217154419(1)

003

Technical parameter

Applicable materials: wood,MDF,acrylic,plastic,plexiglass,crystal,rubber,fabric,paper, stainless steel etc.
Model
YJ-CO2-1390
Focus lens
USA imported D20mm/FCL63.5mm
Power supply
AC220/110V±10% 50/60hz
Working area
1300*900mm
Laser heads quantity
2
Laser power
80-300W(optional)
Max moving speed
500mm/s
Laser energy control
by LCD panel or software
Working table
Up&down Aluminum knife +Honeycomb table
Locating precision
<0.01mm
Min shaping character
letter 0.5mm, Chinese 0.5mm
Operating temperature
-5℃-35℃
Resolution ratio
4500dpi
Control program
RDWORKS
Data transfer interface
USB
System environment
Win7/8/10
Cooling way
Chiller CW5200 with protection system
Graphic format supported
The file which CorelDraw, Photo shop, Auto-CAD can identify
Compatible software
CorelDraw, Auto-CAD etc.
Cutting thickness
0-25 mm (depends on different materials)
Color separation
Separation of cutting up to 256 colors
Red dot pointer
yes
Open door safety
yes
Packing
Plywood
Net weight
350kgs
gross weight
450kgs

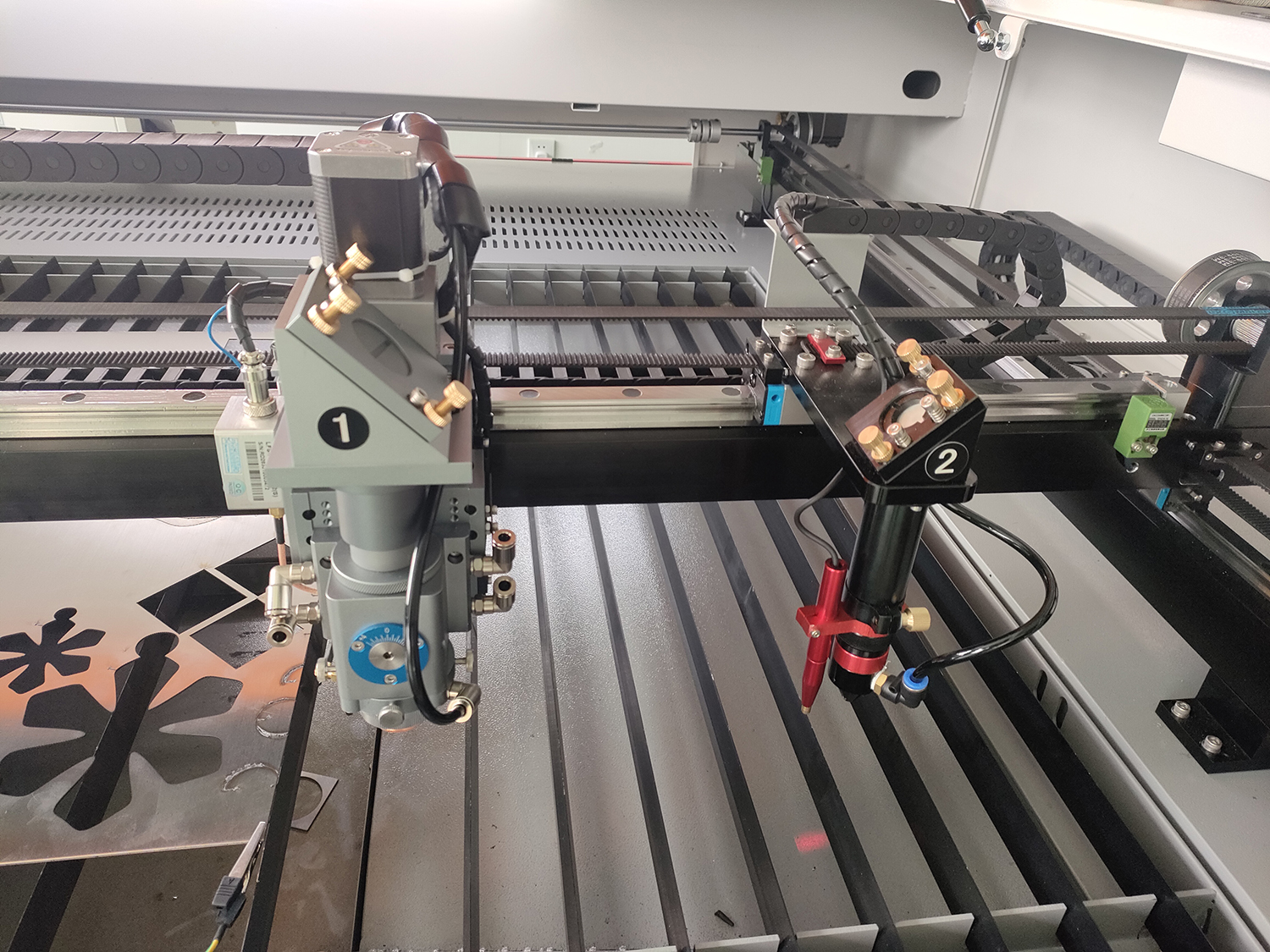

Machine details




三个大尺寸亚克力窗口

Hiwin PMI Liner railfor big work piece pass through

door protective sensor

monitor of amp and voltage

controller

001
