IPG MOPA 30W Galvo Fiber Laser Marking Machine for fine marking on metals and anodized aluminium

Share to:

IPG MOPA 30W Galvo Fiber Laser Marking Machine for fine marking on metals and anodized aluminium

YLPN nanopulse fiber lasers offer a wide range of pulse widths in the nanosecond range. The YLPN-1-1x200 models offer adjustable pulse waveforms from 1 to 200 ns. The laser power is adjustable over a wide range of pulse repetition frequencies, independent of pulse energy. These compact, air-cooled, maintenance-free modules are designed for OEM applications. A wide range of operating parameters can be used for fine processing and surface treatment of thin metal foils and coatings. Ideal for applications such as micromachining, modulating, photovoltaic, scribing, texturing, and marking.

Quantity:


Inquire Add to Basket

Model: RF-F-20W RF-F-30W
Brand: RAY FINE TECH

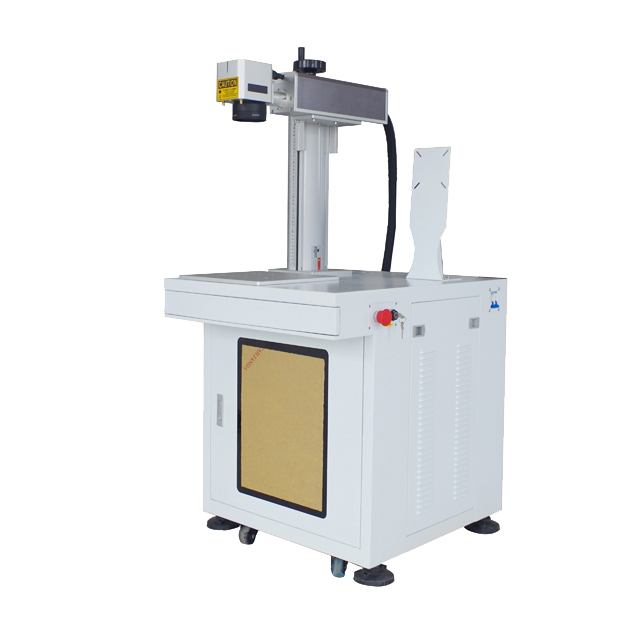

IPG MOPA 30W Galvo Fiber Laser Marking Machine

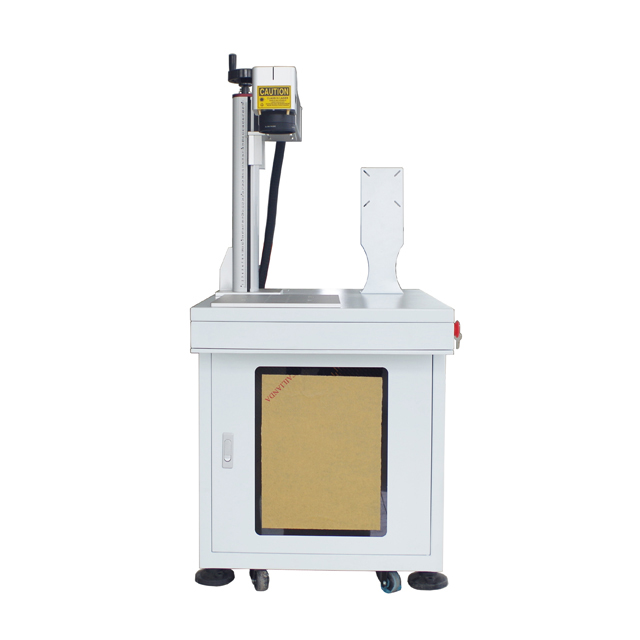

茂可星台式 640x640mm 1 无标

Application:

Fine marking on metal;

black and color marking on Stainless steel;

white and black marking on anodized aluminium ;

Marking on some plastics;

Features of our fiber laser marking machine:

1. Double red dots more easy to get focus.

2. Quality Taiwan Mean Well power supply and high quality AC conductor and switch
3.It adopts top quality fiber laser source IPG MOPA fiber laser source
4. Best quality digital scan head, Have double red light and alarm lamp function.
5. Genuine EZCAD control program compatible with win7/win8/win10 system with USB cable;

6.Working speed is 8m/s

7.Whole machine warrantied 2 years; the laser source warrantied 3 years

Samples:

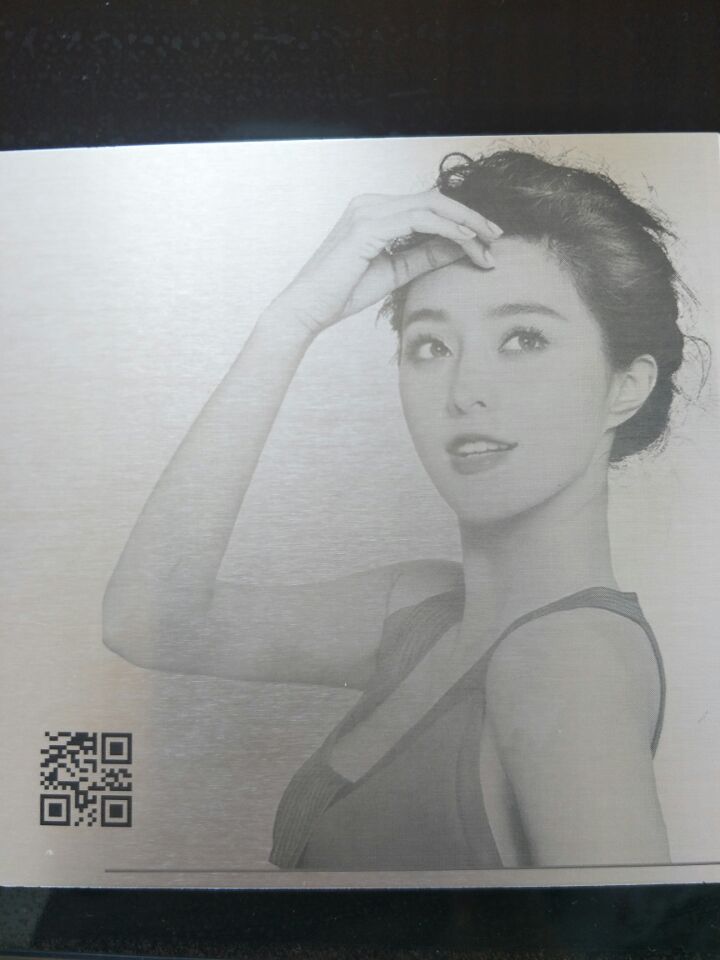

Fine black and white marking on anodized aluminium:

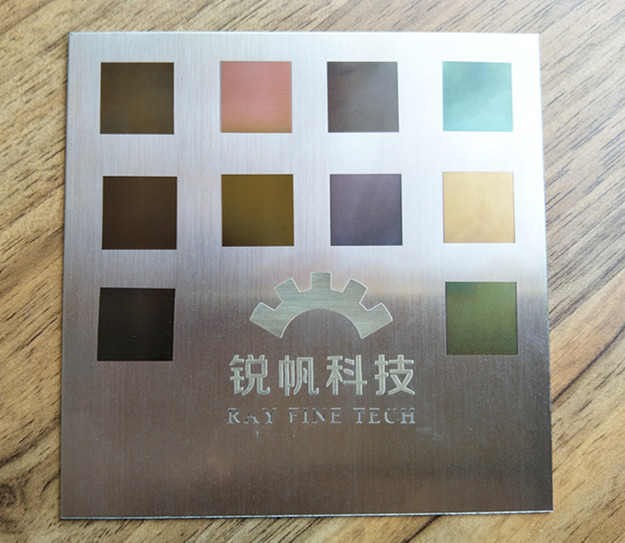

Black and color marking on Stainless steel:

锐帆不锈钢打彩 (3)

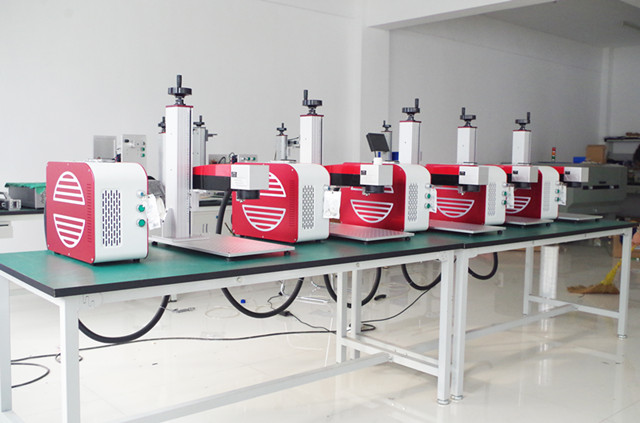

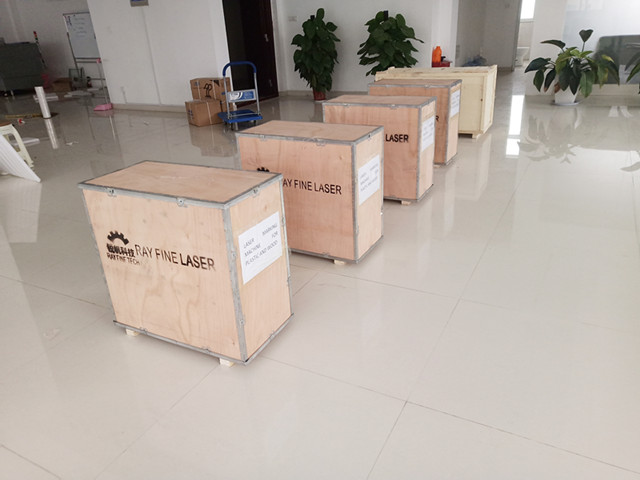

Factory photos:

imgp4376副本_副本

qq图片20181205151615副本_副本

*Verify Code

Related Products

JPT M6 Mopa CNC Fiber Laser Marking Machine 20W 30W 70W

Ray Fine Full Closed JPT MOPA M7 20W 80W 100W 150W 200W Galvo Fiber Laser marking engraving Cutting Machine with Auto focus and cyclops camera position system

JPT M6 Mopa Portable Split Mini Fiber Laser Marking Machine 30W with Auto Focus And Cyclops Camera Position

JPT M6 Mopa portable split Fiber Laser Marking Machine 20W 30W 70W

JPT LM1 60w 100w 120w Color Mopa Fiber Laser Marking Machine for Deep Engraving And Thin Metal Cutting

Cyclops Camera Position Fiber Laser Marking System

Mopa Fiber Laser Marking Machine JPT M1+ 20W 30W

Desk Type Mopa 100W Fiber Laser Marking Machine

Model	RF-F-20W	RF-F-30W
Fiber laser source	YTTERBIUM pulsed fiber laser YLPM-1-4x200-20-20	YTTERBIUM pulsed fiber laser YLPN-1-4x200-30-M
Output power	>20W	>30W
Laser beam quality M2	<2.0	<2.0
Max single pulse energy	1mJ	1 mJ
Out power adjustment range	10~100%	10~100%
Extended pulse repetition rate	1.6~1000KHZ	1.6~2000khz
Selectable Pulse duration	2~200 NS	2~200 NS
Center Wavelength	1064nm	1064nm
Out beam diameter	6~9mm	6~9mm
Cooling type	Air cooling	Air cooling
Marking Area	200*200mm	200*200mm
How to get focus	Double red dots	Double red dots
One time marking Depth	0.03-0.08mm	0.03-0.08mm
Marking speed	8000mm/s	8000mm/s
Repeat Accuracy	<20μrad	<20μrad
Min. linear width	0.01mm	0.01mm
Min. Character size	0.2mm	0.2mm
Supply voltage:	AC220/110V±10% 50/60hz	AC220/110V±10% 50/60hz
Control program	Genuine EZ-CAD(BJJCZ) control system Compatible with win7/8/10	Genuine EZ-CAD(BJJCZ) control system Compatible with win7/8/10
Power consumption	≦600w	≦600w

Model	RF-F-20W	RF-F-30W
Fiber laser source	YTTERBIUM pulsed fiber laser YLPM-1-4x200-20-20	YTTERBIUM pulsed fiber laser YLPN-1-4x200-30-M
Output power	>20W	>30W
Laser beam quality M2	<2.0	<2.0
Max single pulse energy	1mJ	1 mJ
Out power adjustment range	10~100%	10~100%
Extended pulse repetition rate	1.6~1000KHZ	1.6~2000khz
Selectable Pulse duration	2~200 NS	2~200 NS
Center Wavelength	1064nm	1064nm
Out beam diameter	6~9mm	6~9mm
Cooling type	Air cooling	Air cooling
Marking Area	200*200mm	200*200mm
How to get focus	Double red dots	Double red dots
One time marking Depth	0.03-0.08mm	0.03-0.08mm
Marking speed	8000mm/s	8000mm/s
Repeat Accuracy	<20μrad	<20μrad
Min. linear width	0.01mm	0.01mm
Min. Character size	0.2mm	0.2mm
Supply voltage:	AC220/110V±10% 50/60hz	AC220/110V±10% 50/60hz
Control program	Genuine EZ-CAD(BJJCZ) control system Compatible with win7/8/10	Genuine EZ-CAD(BJJCZ) control system Compatible with win7/8/10
Power consumption	≦600w	≦600w
