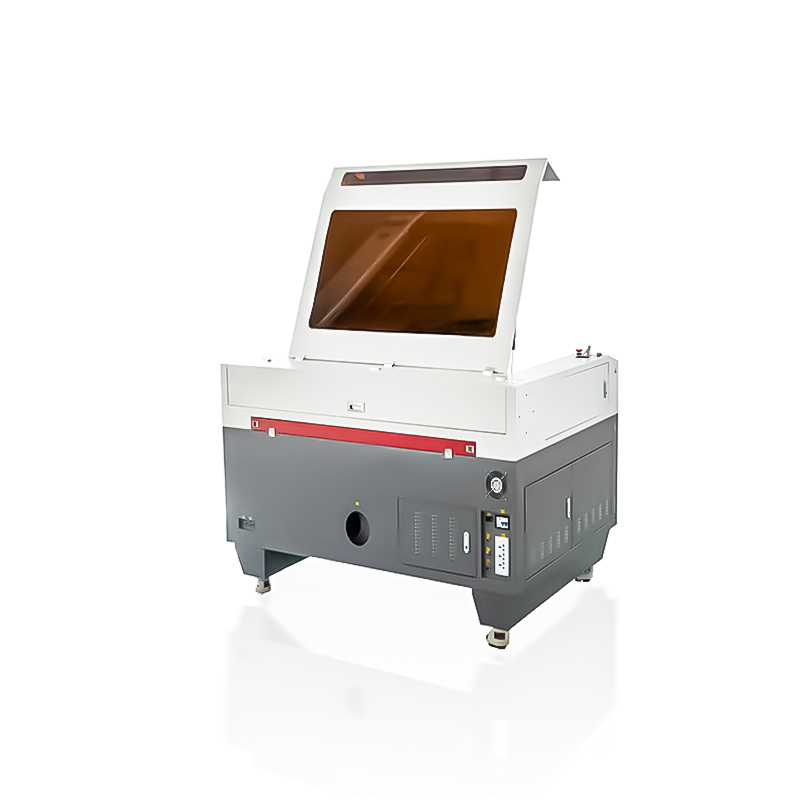

RF-6090
RAY FINE TECH
845611
High quality parts and Special designs of this laser cutting engraving machine as following>>>>
1. MACHINE BODY >>>
This laser cutting machine could be split into two layers and could pass through 85cm door.
2. FOMA WHEEL >>>
Quiet ,easier to move,strong load-bearing capacity (can be up to 2000kgs) and long service life
3.1 FRONT AND BACK ACCESS DOOR >>>
The front and back access door can be opened ,and the materials can pass through the door ,so that it is very convenient for processing longer materials.

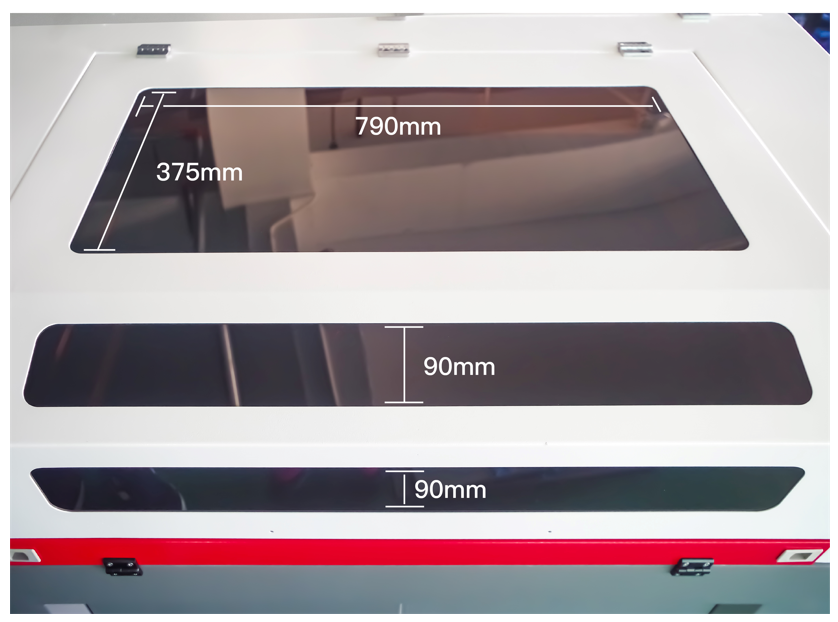

3.2 WINDOWS >>>
Specially designed 3 acrylic transparent windows, which greatly facilitates users to check the working condition of the laser cutting machine.
4. CONTROL SYSTEM >>>
DSP offline laser engraving & cutting controller RDC6445G; Smart touch screen panel, Full functioning,Convenient and efficient ,Easy to use
5. LASER HEAD >>>
High-quality laser head, adopting flight light path design, unique optical structure design, small optical path deviation, high stability and convenient adjustment.
Auxiliary blowing system, which quickly reduces the temperature of the material cutting part and prevents the material from smearing and cutting the deformation

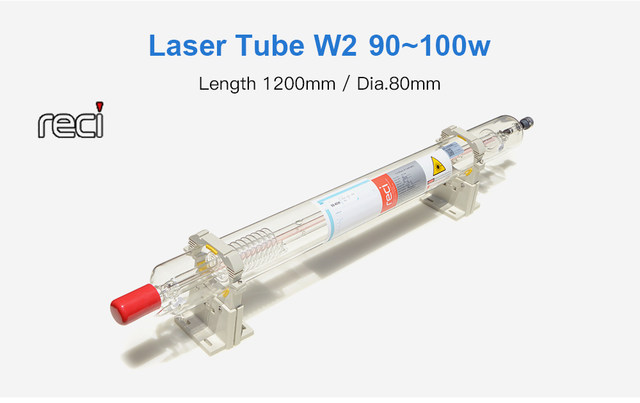

6. LASER TUBE >>>
High Quality W2 90~100W RECI LASER TUBE with 10000 hours life time: Available for global warranty;

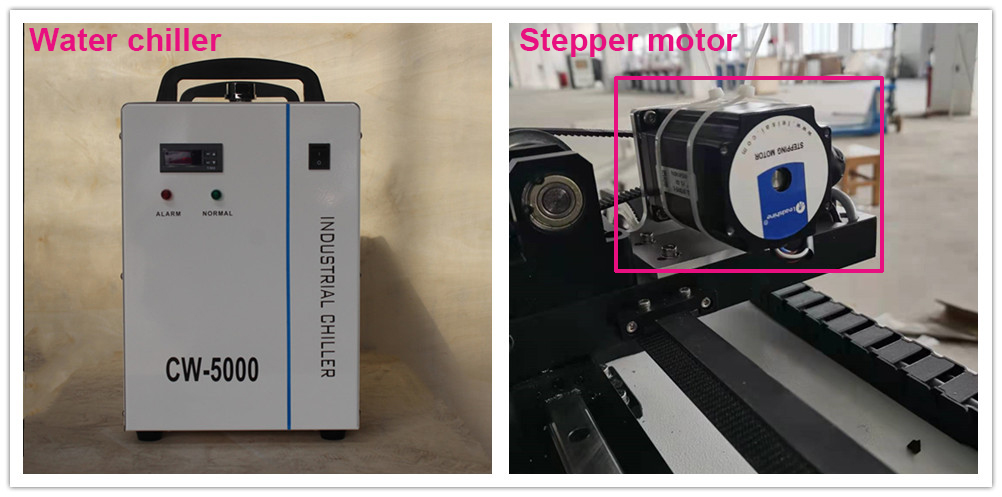

7. WATER CHILLER >>>
CW5000 water chiller efficient refrigeration ,effectively cooling the laser tube ,ensuring the safe operation of the laser tube and prolonging the service life of the laser tube
8. STEPPER MOTOR >>>
Leadshine 3 phase stepper motor , stable and safe performance,high torque ,high precision, low noise and low heat .
9.FOCUS LENS >>>
Diameter:20mm, focus Length:63.5mm
US imports of substrates,Edge polishing, high light transmittance,Reinforced coating process, durable and difficult to remove film,After focusing, the spot is fine, and the cutting and engraving effect is very good.
10. LINEAR GUIDE RAILS>>>>
TAIWAN made liner guide rails ,Rugged and durable, low friction, low running resistance,Can effectively improve work efficiency,Low environmental requirements ,Works in harsh environments
11.DOUBLE MOTOR DRIVE ELECTRIC LIFTING PLATFORM >>>>
Double stepper motor which supply strong power for up and down the worktable (worktable can be up and down >25cm), Suitable for workpieces processing at different heights, with a wider processing range The electric focusing speed is fast, which improves work efficiency. Belts electric lifting, high precision and low noise.
According to different processing materials, this laser machine is equipped with two common work tables, which are convenient for customers to use for multiple purposes.
12. HONEYCOMB TABLE>>>>
Suitable for soft and small material processing,such as leather, clothes, fabric, paper ect
13. ALUMINIUM BLADE WORKTABLE >>>>
Suitable for hard and large materials, such as acrylic wood act.
14. 1 LED LIGHT >>>>
Install LED lights above the work platform, Illuminate the work area, it can see the work situation more clearly, and it is beneficial to control the work progress and processing quality.
14. 2 RED LIGHT POSITIONING >>>>
Use red light as an indicator to confirm the location of the working
14.3 LIMIT SWITCH >>>>
A limit switch is installed at the end of the X Y axis to prevent collision and protect the machine.
15. ELECTRONIC DEVICES AND WIRING>>>
The layout of electronic devices is scientific and reasonable to prevent mutual interference with each other;
The wiring is professional and firm, clean and tidy, and the conduction quality is high.
16.1 EMERGENCY STOP SWITCH>>>>
The machine has abnormal operation, it can start the emergency stop switch, stop the work, and protect the machine.
16.2 COOLING FAN>>>>
Dissipate heat for the distribution box and protect electrical components
16.3 LEAKAGE PROTECTOR >>>>
Leakage protector to ensure work safety;
16.4 MULTIPLE SOCKETS>>>>
Multiple sockets for powering exhaust fans, air pumps and water chiller, making it more convenient to use
17.FUNNEL WASTE COLLECTION DRAWER>>>>
Waste materials fall into the drawer, easy and quick to clean up
Standard accessories of 600*900mm CO2 laser cutting machine >>>>>
CW5200 Water Chiller 550W Exhaust Fun Air Pump Smoking Pipe USB flash drive
Limited Switch USB Cable Sensor cable for chiller Power Cable Inner Hexagon wrench
Network cable Ruler Water Pipe Clamp Focal length Ruler
Documents Bag Double-sided adhesive and Acrylic sheetsfor light path adjustment
Samples of 6090 Laser Engraving machine >>>>
High quality parts and Special designs of this laser cutting engraving machine as following>>>>
1. MACHINE BODY >>>
This laser cutting machine could be split into two layers and could pass through 85cm door.
2. FOMA WHEEL >>>
Quiet ,easier to move,strong load-bearing capacity (can be up to 2000kgs) and long service life
3.1 FRONT AND BACK ACCESS DOOR >>>
The front and back access door can be opened ,and the materials can pass through the door ,so that it is very convenient for processing longer materials.
3.2 WINDOWS >>>
Specially designed 3 acrylic transparent windows, which greatly facilitates users to check the working condition of the laser cutting machine.
4. CONTROL SYSTEM >>>
DSP offline laser engraving & cutting controller RDC6445G; Smart touch screen panel, Full functioning,Convenient and efficient ,Easy to use
5. LASER HEAD >>>
High-quality laser head, adopting flight light path design, unique optical structure design, small optical path deviation, high stability and convenient adjustment.
Auxiliary blowing system, which quickly reduces the temperature of the material cutting part and prevents the material from smearing and cutting the deformation
6. LASER TUBE >>>
High Quality W2 90~100W RECI LASER TUBE with 10000 hours life time: Available for global warranty;
7. WATER CHILLER >>>
CW5000 water chiller efficient refrigeration ,effectively cooling the laser tube ,ensuring the safe operation of the laser tube and prolonging the service life of the laser tube
8. STEPPER MOTOR >>>
Leadshine 3 phase stepper motor , stable and safe performance,high torque ,high precision, low noise and low heat .
9.FOCUS LENS >>>
Diameter:20mm, focus Length:63.5mm
US imports of substrates,Edge polishing, high light transmittance,Reinforced coating process, durable and difficult to remove film,After focusing, the spot is fine, and the cutting and engraving effect is very good.
10. LINEAR GUIDE RAILS>>>>
TAIWAN made liner guide rails ,Rugged and durable, low friction, low running resistance,Can effectively improve work efficiency,Low environmental requirements ,Works in harsh environments
11.DOUBLE MOTOR DRIVE ELECTRIC LIFTING PLATFORM >>>>
Double stepper motor which supply strong power for up and down the worktable (worktable can be up and down >25cm), Suitable for workpieces processing at different heights, with a wider processing range The electric focusing speed is fast, which improves work efficiency. Belts electric lifting, high precision and low noise.
According to different processing materials, this laser machine is equipped with two common work tables, which are convenient for customers to use for multiple purposes.
12. HONEYCOMB TABLE>>>>
Suitable for soft and small material processing,such as leather, clothes, fabric, paper ect
13. ALUMINIUM BLADE WORKTABLE >>>>
Suitable for hard and large materials, such as acrylic wood act.
14. 1 LED LIGHT >>>>
Install LED lights above the work platform, Illuminate the work area, it can see the work situation more clearly, and it is beneficial to control the work progress and processing quality.
14. 2 RED LIGHT POSITIONING >>>>
Use red light as an indicator to confirm the location of the working
14.3 LIMIT SWITCH >>>>
A limit switch is installed at the end of the X Y axis to prevent collision and protect the machine.
15. ELECTRONIC DEVICES AND WIRING>>>
The layout of electronic devices is scientific and reasonable to prevent mutual interference with each other;
The wiring is professional and firm, clean and tidy, and the conduction quality is high.
16.1 EMERGENCY STOP SWITCH>>>>
The machine has abnormal operation, it can start the emergency stop switch, stop the work, and protect the machine.
16.2 COOLING FAN>>>>
Dissipate heat for the distribution box and protect electrical components
16.3 LEAKAGE PROTECTOR >>>>
Leakage protector to ensure work safety;
16.4 MULTIPLE SOCKETS>>>>
Multiple sockets for powering exhaust fans, air pumps and water chiller, making it more convenient to use
17.FUNNEL WASTE COLLECTION DRAWER>>>>
Waste materials fall into the drawer, easy and quick to clean up
Standard accessories of 600*900mm CO2 laser cutting machine >>>>>
CW5200 Water Chiller 550W Exhaust Fun Air Pump Smoking Pipe USB flash drive
Limited Switch USB Cable Sensor cable for chiller Power Cable Inner Hexagon wrench
Network cable Ruler Water Pipe Clamp Focal length Ruler
Documents Bag Double-sided adhesive and Acrylic sheetsfor light path adjustment
Samples of 6090 Laser Engraving machine >>>>

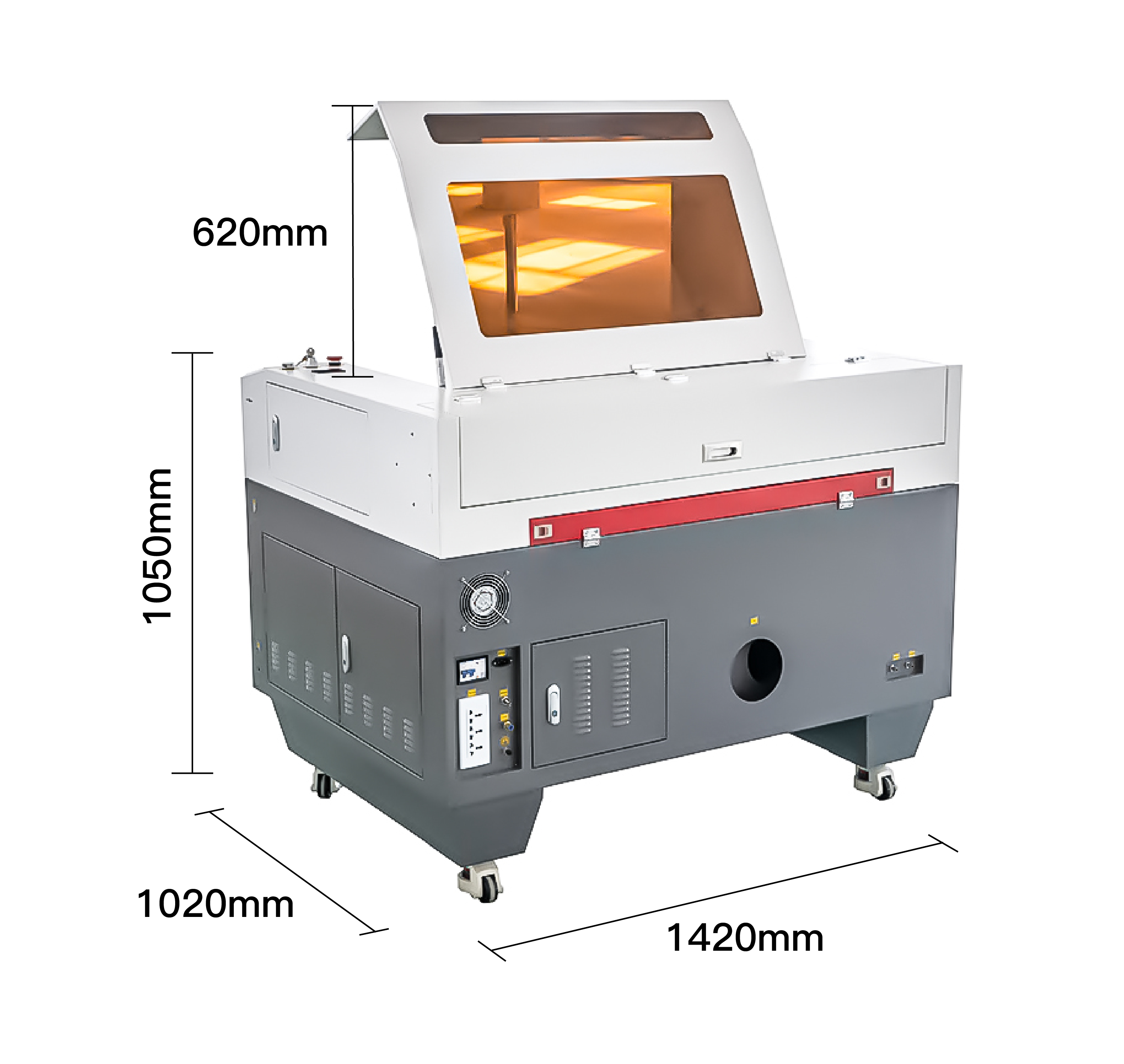

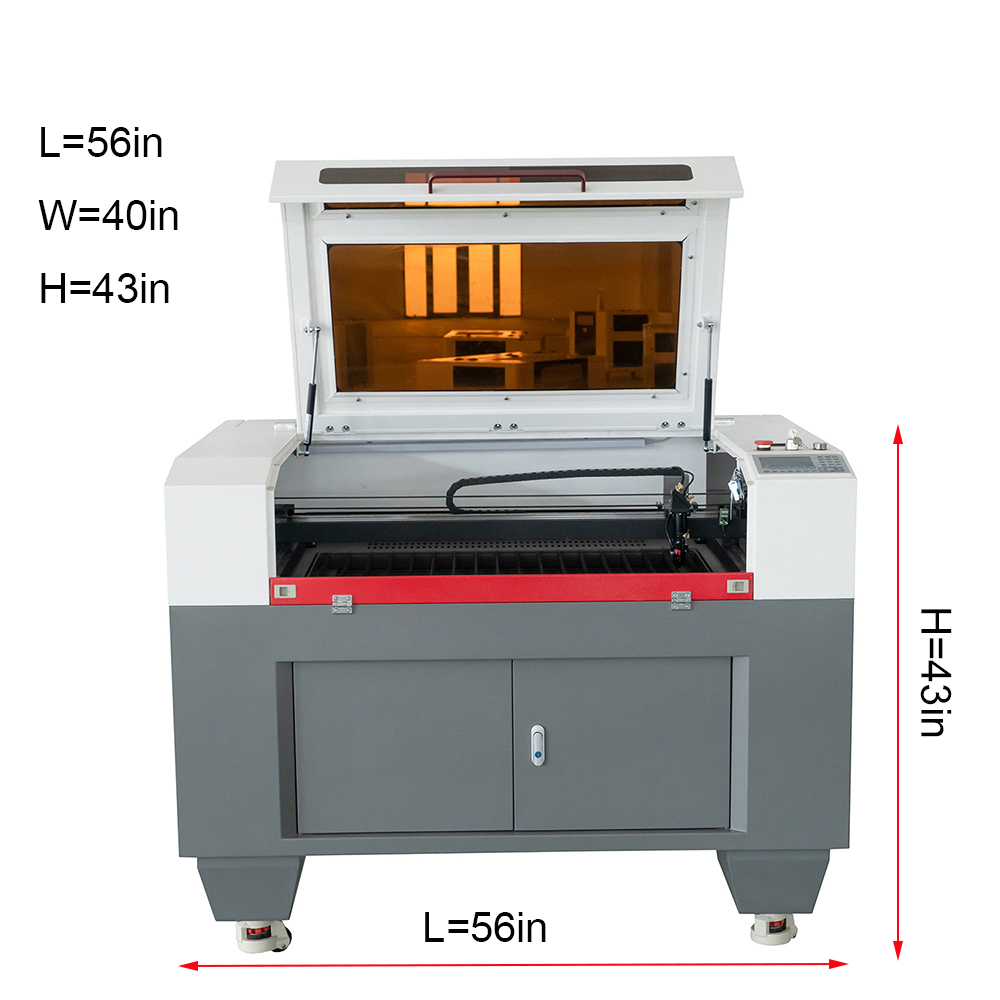

Mchine dimension>>>
Technical Parameter>>>
Model | RF-6090 |
Focus lens | USA imported D20mm/FCL63.5mm |
Power supply | AC220/110V±10% 50/60hz |
Working area | 35.43"X25.62" (900x600mm) |
Laser heads quantity | 1 |
Laser power | RECI W2 90W~100W |
Max moving speed | 1000mm/s |
Laser energy control | 1-100% set by hand or software |
Working table | Aluminum knife table or honey comb working table |
Motorized up and down working table | yes |
Locating precision | <0.01mm |
Min shaping character | letter 0.5mm, Chinese 0.5 mm |
Operating temperature | -5℃-35℃ |
Resolution ratio | 4500dpi |
Control program | RDCAM(LASERWORK) |
Data transfer interface | USB |
System environment | Win7/8/10 |
Cooling way | professional water Chiller with protection system |
Graphic format supported | The file which Corel Draw, Photo shop, Auto-CAD can identify |
Compatible software | Corel Draw, Auto-CAD |
Cutting thickness | 0-20 mm (depends on different materials) |
Color separation | Separation of cutting up to 256 colors |
Sloping engraving | yes |
Red dot pointer | yes |
Open door safety | Optional |
Packing | Plywood case |
Package dimension | 1440x1040x1300mm |
Net weight | 300kgs |
gross weight | 400kgs |
Features>>>
1.heavy duty machine body with good rigidity
2.Taiwan imported linear guide rails with good precision
3.Laser work control program easy study and operation without dongle
4.High precision 3phase leadshine stepping motor and driver
5.USA imported focus lens with good focus effect
6.Quality RECI W2 100w with 10000 hours life time
7.Water chiller CW5000.
Packing List >>>
Item Name | Quantity |
6090 W2 CO2 laser cutting machine | 1 |
CW5000 Water Chiller | 1 |
550W Exhaust Fun | 1 |
Air Pump | 1 |
Smoking pipe | 1 |
Limited switch | 1 |
USB Cable | 1 |
Sensor cable for chiller | 1 |
Power Cable | 1 |
Inner Hexagon Wrench | 1 |
Network | 1 |
Ruler | 1 |
Water Pipe | 1 |
Clamp | 1 |
Focal length Ruler | 1 |
Documents Bag | 1 |
Double-sided adhesive and Acrylic sheetsfor light path adjustment | 1 |

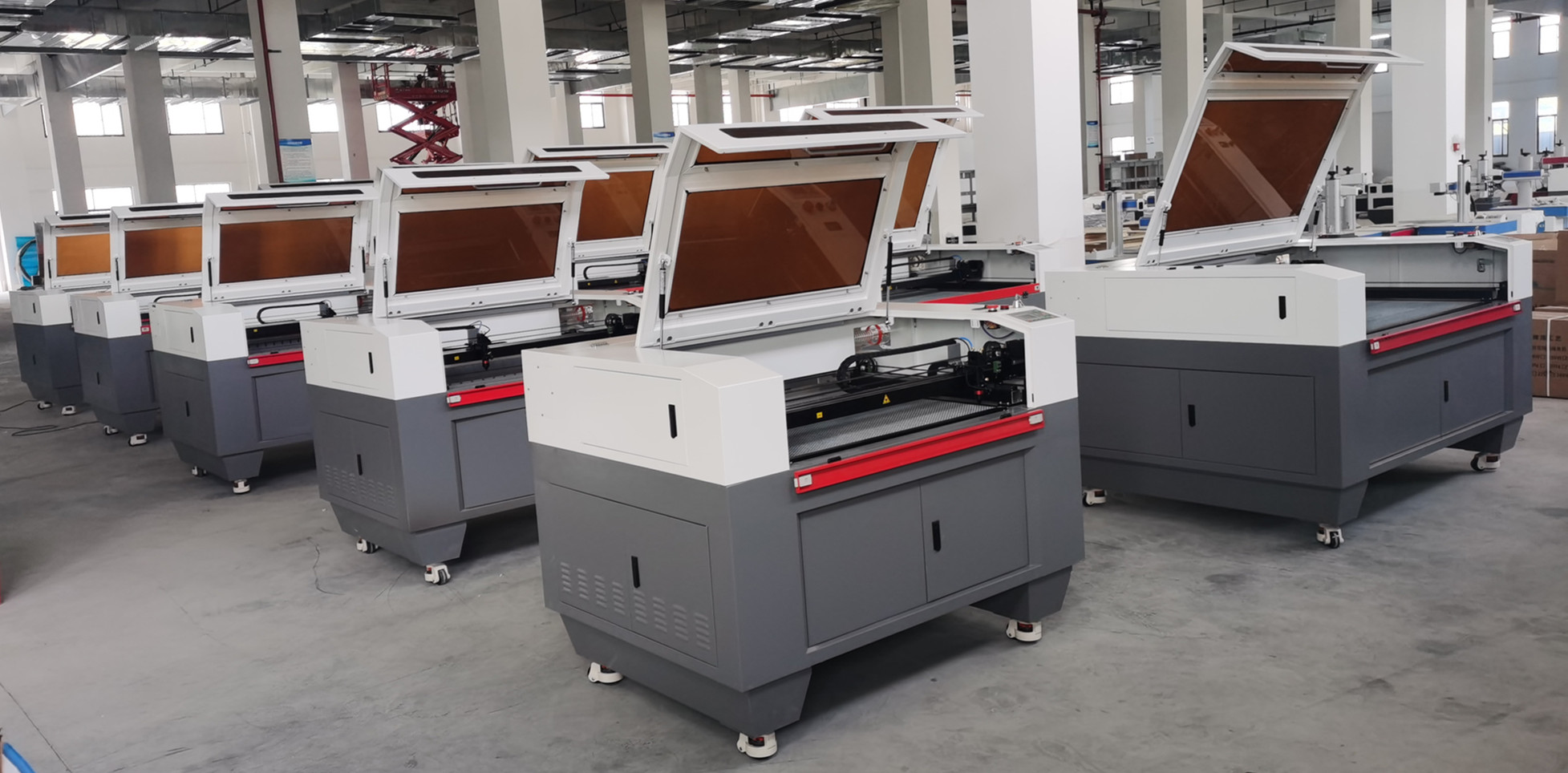

FACTORY>>>>
