Dynamic Focus 3D 3W 5W 10W 15W JPT Huaray UV Laser Marking Engraving Cutting Machine

5 0 Reviews
High quality and high precision 3D UV laser, can be used for plane marking, curved marking, high power laser can be used for cutting thin materials.
High quality large area marking (such as 200x200mm,300x300mm)
Availability:
Quantity:
  • 3W 5W 10W 15W

  • Ray Fine Tech

  • 845611

3D Dynamic Focus UV Laser Marking Machine for Curved Surface

*3D Dynamic Focus Laser Marking Machine not only can marking on flat surface , but also can engraving on Undulating surface,Curved Surface .

*Compared with the ordinary laser marking machine system, the dynamic focusing system makes each marking point at the correct focal length, so the laser beam energy is stronger and more delicate, and the marking effect is better.

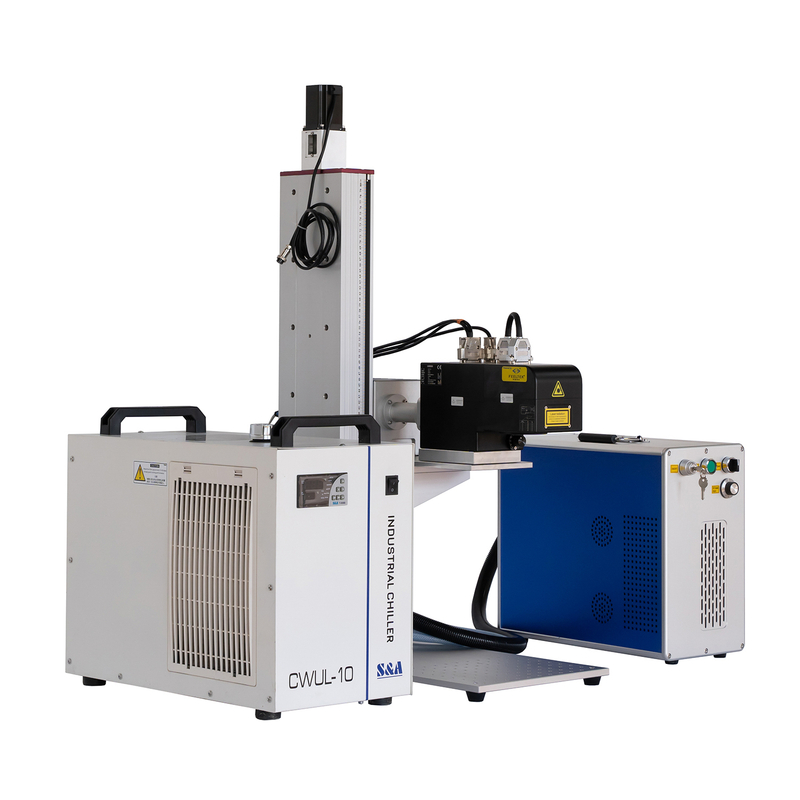

Machine Photos

DSC01243



DSC01267

Famous brand UV laser soure with water cooling

DSC01256DSC01270

3D UV laser scanning head

DSC01259

Motorized z axis and control switch

DSC01262DSC01253


3D marking  and curved surface marking

QQ图片20180821153229802

General 2D marking and engraving

应用和样品








Model

RF-UV-3W

RF-UV-5W

RF-UV-10W

RF-UV-15W


Laser source brand

JPT

JPT

JPT

JPT

optional

Laser source type

UV

UV

UV

UV


Center Wavelength

355nm

Cooling type

Air cooling  (10W 15W water cooling)

Marking Area

Most commonly:100mm / 200mm / 300mm

One time marking Depth

0.03-0.08mm

Marking speed

600character/s @ 100*100mm

Repeat Accuracy

<20μrad

Min. linear width

0.01mm

Min. Character size

0.1mm

Supply voltage

AC220/110V±10%  50/60hz

Control program

LenMark-3DS  control system

Operation temperature

-5~50℃

NOTE: As lasers develop and advance,the date sheet may be adjusted.
