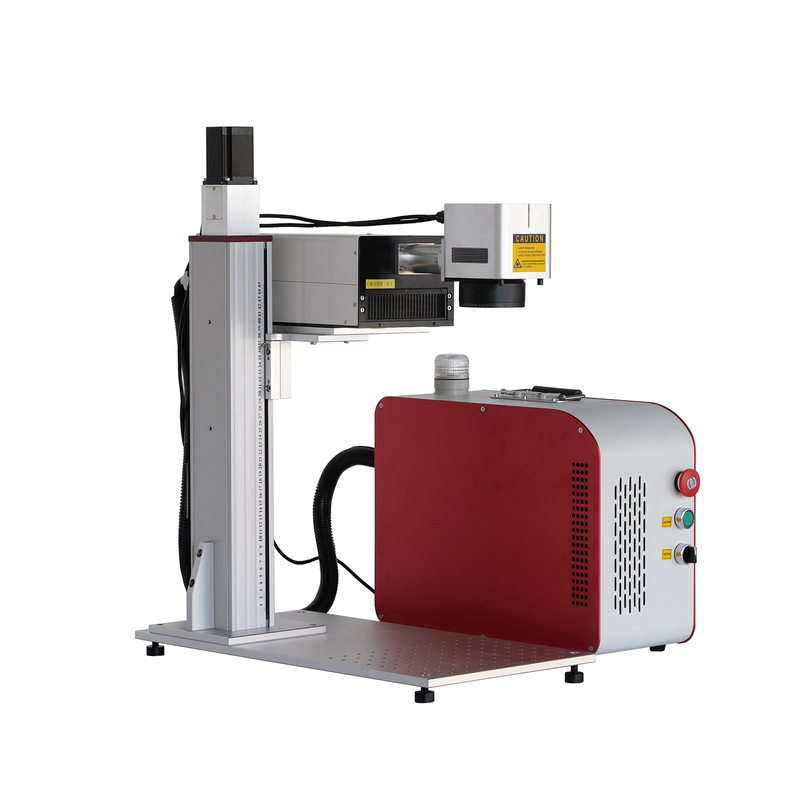

Portable Small 3W 5W UV Laser Engraving Marking Machine Laser Marker with Rotary / XY Table / XYZ Table

5 0 Reviews
*Air cooling system
*No consumables
*Double red light to find the focal length
*UV laser has high marking accuracy than fiber laser
*The processing heat affected zone is small, reduce damage and burns to materials
Availability:
Quantity:
  • RF-UV-3W RF-UV-5W

  • RAY FINE TECH

  • 845611

Product Pictures


Uv laser marking machine feature:

1. UV laser is a professional marking plastic glass and other non-metallic, such like black color marking
2. Uv laser have high laser accuracy, low energy, and low damage to materials
3. Uv laser no harm to the environment

DSC01384

DSC01385

DSC01383

Show Details


*Motorized lift z axis with ruler

DSC01389


* UV laser source with air cooling with smart colling fan

DSC01387


*China high speed galvo head with double dots help you find focal length

DSC01390


**Emergency stop switch  *Laser power switch  *UP/DOWN knob  *Laser work alarm indicator

DSC01391


* High-quality precision alumina workbench with threads for easy fixing of workpieces

DSC01393

UV laser marking show:

IMG_20191226_120947

20210811_141728

996

997

995


Optional Parts


DSC01360

Rotary

DSC013544

XY table / Z table / XYZ table





Model
RF-UV-3W  /  RF-UV-5W



Marking area

70*70mm

100*100mm standard

150*150mm

175*175mm

200*200mm

300*300mm

Marking character0.1mm
Laser wavelength355nm
Laser power>3Watt / >5Watt
Laser beam quality≤1.2
Laser frequency

10~150kHz,single shot to 200kHz

Laser pulse width

<16ns@30kHz

Control softwareEZCAD
Cooling wayair cooling (cooling fan)
Working temperature-5~45℃
Power supplyAC110V 60HZ / AC220V 50HZ   ±10%
Machine weight40 KG
Warranty18 months
