model: | |
---|---|
Availability: | |
Quantity: | |
RF-20W/RF-30W/RF-50W
RayFine

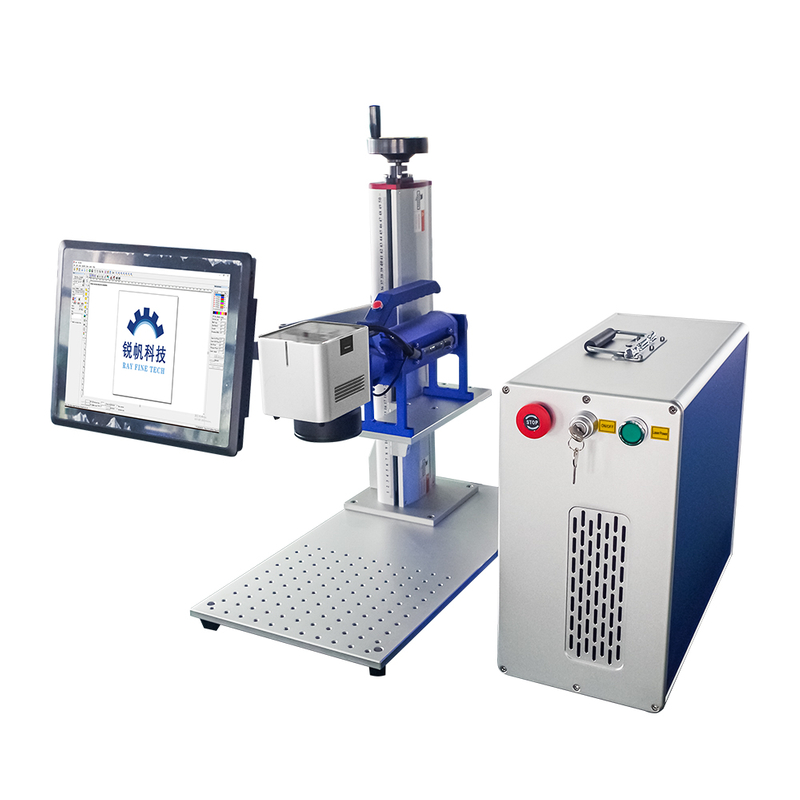

Fiber laser marking machine is used for marking and engraving on metals (stainless steel, aluminum, alloy, brass, sliver, gold, titanium, iron) and nonmetal surface, such as guns, firearms, rings, bearings, gears, automotive parts, hardware and tools, aerospace components, integrated circuit chips,computer accessories, watches, electronics and communications products, home appliances, wire and cable, Jewelry, adornments,necklace, bracelet and many other areas of graphics and text markup.
The fiber laser marking machine can also cut thin metals, such as stainless steel, aluminum, alloy, brass, sliver, gold, titanium,etc.
Configuration details
laser source Brand:JPT Stable, low failure rate and short pulse setup time. | |
Galvo head High quality XY motor with fast response and small deviation. With dual red dots to assist you find the focal length. | |
Control card Genuine BJJCZ control card and system. | |
Field lens Choose field lenses of different formats according to your needs, the types are 70x70mm 110x110mm 150x150mm 175x175mm 200x200mm. | |
Power supply Switching power supply, stable performance. |
Marking sample display
Fiber laser marking machine is used for marking and engraving on metals (stainless steel, aluminum, alloy, brass, sliver, gold, titanium, iron) and nonmetal surface, such as guns, firearms, rings, bearings, gears, automotive parts, hardware and tools, aerospace components, integrated circuit chips,computer accessories, watches, electronics and communications products, home appliances, wire and cable, Jewelry, adornments,necklace, bracelet and many other areas of graphics and text markup.
The fiber laser marking machine can also cut thin metals, such as stainless steel, aluminum, alloy, brass, sliver, gold, titanium,etc.
Configuration details
laser source Brand:JPT Stable, low failure rate and short pulse setup time. | |
Galvo head High quality XY motor with fast response and small deviation. With dual red dots to assist you find the focal length. | |
Control card Genuine BJJCZ control card and system. | |
Field lens Choose field lenses of different formats according to your needs, the types are 70x70mm 110x110mm 150x150mm 175x175mm 200x200mm. | |
Power supply Switching power supply, stable performance. |
Marking sample display
item | value |
Application | Laser Marking |
Working Accuracy | 0.001mm |
Graphic Format Supported | AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT |
Laser Type | Fiber Laser |
Cooling Mode | Air Cooling |
Control Software | EZCAD |
Marking Area | 110mm*110mm |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 2 years |
Core Components | laser source, laser source |
Mode of Operation | continuous wave |
Product name | Fiber Laser Marking Machine |
Laser Power | 20w /30w/ 50w/80w/100w/120w |
Laser source | IPG Raycus Max JPT |
After-sales Service Provided | Online Support |
Marking Depth | 0.01-2mm |
Control system | EZCAD Control System |
Laser wavelength | 1064nm |
Marking Speed | 0-7000mm/s |
item | value |
Application | Laser Marking |
Working Accuracy | 0.001mm |
Graphic Format Supported | AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT |
Laser Type | Fiber Laser |
Cooling Mode | Air Cooling |
Control Software | EZCAD |
Marking Area | 110mm*110mm |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 2 years |
Core Components | laser source, laser source |
Mode of Operation | continuous wave |
Product name | Fiber Laser Marking Machine |
Laser Power | 20w /30w/ 50w/80w/100w/120w |
Laser source | IPG Raycus Max JPT |
After-sales Service Provided | Online Support |
Marking Depth | 0.01-2mm |
Control system | EZCAD Control System |
Laser wavelength | 1064nm |
Marking Speed | 0-7000mm/s |
Q1: I know nothing about this machine, what type of machine should I choose?
A1: We will help you choose the suitable machine and share you the solution; you can share us what material will you marking /engraving and the depth of MARKING/ ENGRAVING.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
A2: We will send operation video and manual for the machine. Our engineer will do training online.
Q3: If some problems happen to this machine, what should I do?
A3: We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts,just let us know, we will give you solutions.
Q4: What’s consumables of laser marking machine?
A4: It does not have consumable. It’s very economical and cost effective.
Q5: What’s package, will it protect the products?
A5: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
Q6: What’s delivery time?
A6: Commonly, the lead time is within 5 working days after receiving the payment.
Q7: What payment terms can you accept?
A7: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.
Q8: How is the shipping method?
A8: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement.
Q1: I know nothing about this machine, what type of machine should I choose?
A1: We will help you choose the suitable machine and share you the solution; you can share us what material will you marking /engraving and the depth of MARKING/ ENGRAVING.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
A2: We will send operation video and manual for the machine. Our engineer will do training online.
Q3: If some problems happen to this machine, what should I do?
A3: We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts,just let us know, we will give you solutions.
Q4: What’s consumables of laser marking machine?
A4: It does not have consumable. It’s very economical and cost effective.
Q5: What’s package, will it protect the products?
A5: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
Q6: What’s delivery time?
A6: Commonly, the lead time is within 5 working days after receiving the payment.
Q7: What payment terms can you accept?
A7: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.
Q8: How is the shipping method?
A8: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement.
