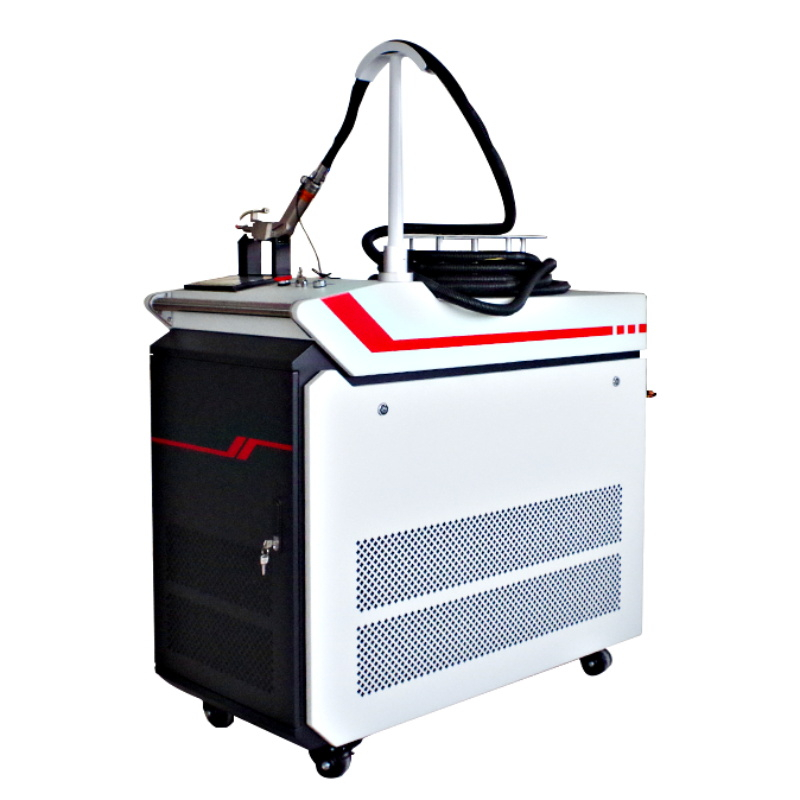

Hot Sale Handheld Fiber Lazer Welder JPT 1000w 1500w 2000w Laser Welding Machine for Metal

5 0 Reviews
The principle of laser welding is to use a high-power laser to melt surface materials and weld them together. Non-contact welding, no external force produces stress and deformation. The welding time is measured in milliseconds, the thermal effect area is only in the beam focus area, and the processing efficiency is high, which is suitable for mass production.

model:
Availability:
Quantity:
  • RF-1000W/RF-1500W/RF-2000W

  • RayFine

6LJFLIFRBJK2F1HJO3JEXIMG20220127155322


JPT Laser source



Fiber laser source, the laser power is stable,,with indicator light and emergency stop button, can more intuitively observe the operation of the laser and make judgments.

Industrial Chiller



Control and adjust the temperature of the laser source and better protect the life of the laser source in bad weather temperature.



Wire Feeder



The portable wire feeder only needs to connect the wire feeder power cable and the wire feeder signal cable to the corresponding interface on the back of the machine, which is easy to connect, and has a touch screen control system, which is simple to control and easy to operate.



Handheld swing head



Feature:Light weight 0.8KG, High quality copper nozzle,Integrated gas protection system.



MACHINE PARAMETER
Model
RF-1000W
RF-1500W
RF-2000W
Laser power
1000W
1500W
2000W
Working model
Continuous and Modulation
Laser power output
10%~100%
Laser type
CW Fiber laser
Laser Wavelength
1070±5nm
Max Line length
8~10 Meter
Welding speed
0~120mm / s
Protective gas
air/argon/nitrogen/CO2
Cooling system
Water cooling - Industrial Chiller
Power supply
220v±10%
220v±10%
380v±10%
Power consumption
<6.5KW
<8KW
<10KW
Machine weight
245KG
250KG
280KG


Samples

运输

1. Collect all accessories and and spare parts together one by one based on the order list ,and check all parts carefully once more to ensure all parts are included.

2. Our packaging standard:

+thick layer of plastic wrap

+ Six-sided pearl cotton

+ high-strength wooden box

+ packing belt and then fix the machine to ensure the safety of the machine during transportation.

3. Stick the shipping mark to ensure the buyer can recognize the right machine easily.

4. Stick the Safety signs can remind transporters to take good care of our equipment during shipping.


Q1: I don't know anything about this machine, what kind of machine should I choose?Very easy to choose.

Tell us what you want to do with your laser machine and let us provide you with professional solutions and advice.


Q2: When I got this machine, I didn't know how to use it. what should I do?

We will send video and English manual to the machine. If you still have questions, we can chat via phone or Skype and email.


Q3: What should I do if there is a problem with the machine during the warranty period?

If there is a problem with the machine, we will provide the parts for free during the machine warranty period. At the same time, we also provide lifetime free after-sales service. So if you have any questions, please let us know and we will give you a solution.
