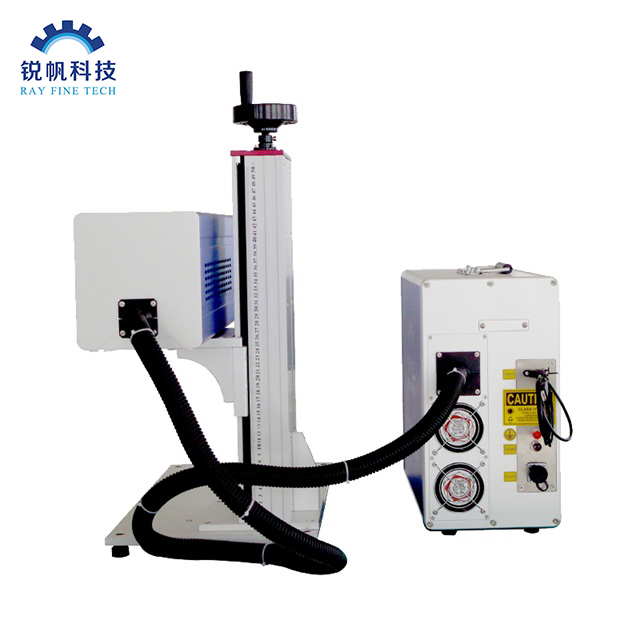

Portable Split RF Metal Tube CO2 Laser Marking Machine 30W 60W

5 0 Reviews
Availability:
Quantity:
  • RF-F-30W,RF-F-60W

  • RAYFINETECH

RF metal tube CO2 laser marking machine 30W 60W For Nonmetal materials marking

分体便携CO2打标机 组图


>>Applicable materials:

Suitable for wood ,paper,leather,cloth,plexiglass,epoxy,acrylic,unsaturated polyester resin and other non-metal materials.

>>Applicable industries:

Widely used in leather , food ,beverage, colth,electronic,meter,communication instruments,package and other industries, can be combined wiith streamline for online marking.


>>Quality parts on our Co2 laser marking machine

>Synrad lasers

Imported from the United States;Nearly perfect beam quality;rapid rise/fall time;Air-cooled;Newly designed compact base;Interface backward compatible;Cost-effective

imgp2304_副本

>Genuine EZCAD control program compatible with win7/win8/win10, easy control software;

>digital type galvo head ;Aperture size: 16mm; Linearity > 99.90%  repeatability<8μrad long term drift over 8 hours<0.5μrad;

>Quality Taiwan mean well power supply ;

>High quality lens;

imgp2263_副本副本_副本






Machine Type

RF-CO2-30W

RF-CO2-60W

 Laser Output Power

synrad Ti30

Synrad Ti60

Output power

30W

60w

Power stability(from cold start)guaranteed

+/-6%

Laser beam quality

M2<1.2

Laser beam diameter

2+/-0.3mm

Wavelength

10.6um

Control system

EZCAD work with win7/8/10

Cooling tye

Air cooling

 Standard Working Area:

175mm×175 mm

Aperture size

16mm

Linearity

99.9%

long term drift over 8 hours

<0.5urad

Repeated Accuracy:

≦8urad

 Minimum Line Width:

0.015mm

Power Supply:

220V/50HZ

Machine Power:

1KW

1500w

Packing size

87*77*160cm

87*77*160cm

Gross weight

150kg

160kg




1.high reliability, long continuous operation time,clear and complete printing.

2.Supported by rich software, enable to collect and manufacture various labels, nono-contact processing

3.Ensure original precision of the surface of work piece to the maximum limit.

4.Suitable for engraving on various materials,long time preser,simple installation and convenient

5.The optical system is fully sealed, it can prevent the dust the entering laser body and reduce the equipment failure rate.
