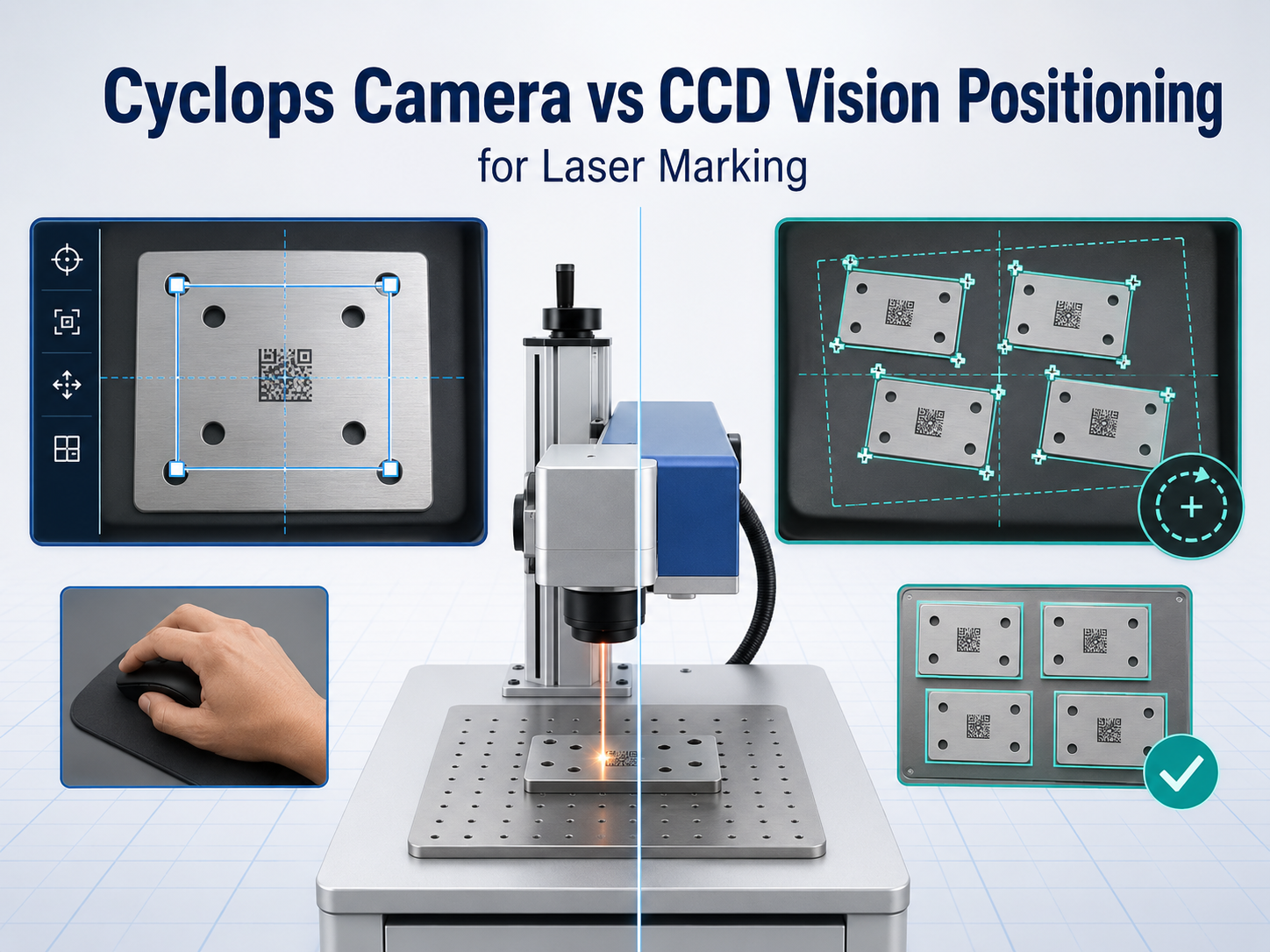

Cyclops Camera vs CCD Vision Positioning for Laser Marking

A Cyclops camera and a CCD vision positioning system can both help place a laser mark on the correct area of a workpiece. However, they do not normally perform the same task.

A Cyclops camera system typically displays the workpiece image in the laser marking software so the operator can position the artwork visually. A CCD vision system is designed to recognize a part or reference feature, calculate its position and angle, and align the marking file automatically.

The correct choice depends less on the camera name and more on whether the production process requires operator-controlled visual alignment or automatic part recognition.

This comparison explains the practical differences, suitable applications, accuracy factors, production requirements, and tests buyers should complete before selecting either system.

Quick Comparison

Neither system is universally better. Cyclops camera positioning offers flexibility and direct visual control, while CCD vision positioning offers greater automation when the part and process are suitable for reliable recognition.

First, Understand What the Names Actually Mean

The terms “Cyclops camera” and “CCD positioning” are not always used consistently across the laser-marking market.

CCD technically refers to one type of image sensor. However, many suppliers use “CCD vision positioning” as a general commercial term for an automatic visual-recognition system. Some systems marketed as CCD may use another sensor technology while still providing automatic positioning.

Therefore, the buyer should not compare the systems by sensor name alone.

In this article:

• Cyclops camera positioning refers to a workflow in which the workpiece is displayed in the marking software and the operator positions the artwork over the image.

• CCD vision positioning refers to a workflow in which the software recognizes the workpiece or a reference feature and automatically calculates the marking coordinates.

The most important purchasing question is not “Does the machine have a CCD camera?” It is:

What does the software do after the camera captures the image?

A camera that displays an image is different from a vision system that identifies a part, measures its position, corrects its rotation, selects a recipe, and starts marking automatically.

How Does Cyclops Camera Positioning Work?

A Cyclops camera system allows the operator to see the workpiece within the laser marking software.

A typical workflow is:

1. The operator places the part in the working area.

2. The camera captures or refreshes the image.

3. The software displays the workpiece and the available marking field.

4. The operator moves, scales, or rotates the artwork over the intended location.

5. The operator confirms the position.

6. The laser marks the part.

This makes the system useful when the marking position must follow a visible product feature but fully automatic recognition is unnecessary.

For example, a logo may need to be placed:

• Inside a recessed area

• Next to a connector

• Between existing printed elements

• Relative to a hole

• Along a product edge

• In the center of a jewelry component

• On a specific section of a valuable finished part

A Cyclops camera laser marking engraving machine gives the operator a visual reference that is more informative than relying only on a red-light outline.

Main Advantages of Cyclops Camera Positioning

Cyclops camera positioning is particularly useful for flexible production.

Its main advantages include:

• Simple visual confirmation before marking

• Fast adjustment when artwork or part shape changes

• Reduced dependence on complex dedicated fixtures

• Easier placement on valuable or irregular parts

• Lower recognition-programming requirements

• Direct operator control over unusual products

• Convenient handling of small or mixed batches

• Easier setup when part appearance varies

The operator can compensate for variations that would be difficult to include in an automatic recognition rule.

Main Limitations of Cyclops Camera Positioning

A basic Cyclops camera workflow should not automatically be assumed to provide:

• Automatic part identification

• Automatic angle correction

• Automatic file selection

• Multiple-object recognition

• Conveyor tracking

• Automatic rejection

• Automatic production counting

• Unattended marking

The operator may still need to position or confirm the artwork for every part.

This means cycle time and consistency can depend on the operator’s training, judgment, and workload.

How Does CCD Vision Positioning Work?

A CCD vision positioning system performs more image analysis than a basic camera background-display system.

A typical automatic workflow is:

1. The part enters or is placed within the camera field.

2. The camera captures an image.

3. The software isolates the workpiece from the background.

4. A template or recognition rule identifies the intended object or feature.

5. The system calculates the part’s X position, Y position, and rotation angle.

6. The marking file is transformed to match the detected position.

7. The system confirms that recognition conditions are acceptable.

8. The laser marks the part automatically.

A CCD visual automatic-positioning fiber laser marking machine is intended for applications such as small electrical parts, IC chips, buttons, pens, reagent-test components, and other products that are difficult to position manually.

Main Advantages of CCD Vision Positioning

A correctly configured CCD vision system can provide:

• Automatic part or feature detection

• Automatic position correction

• Automatic rotation correction

• Consistent recipe execution

• Recognition of multiple parts in one image

• Reduced operator alignment time

• Better suitability for randomly placed parts

• Easier integration with conveyors and sensors

• Repeatable handling of defined production conditions

The main advantage is automation rather than simply having a higher-resolution image.

Main Limitations of CCD Vision Positioning

Automatic recognition depends on controlled and repeatable image conditions.

Performance can be affected by:

• Glare

• Shadows

• Poor background contrast

• Transparent materials

• Variable printing

• Surface scratches

• Dust

• Protective film

• Overlapping parts

• Unstable camera exposure

• Inconsistent product geometry

• Incorrect templates

• Similar-looking parts

• Movement after image capture

CCD vision positioning also requires more setup, validation, and maintenance than a manual background-display workflow.

Cyclops Camera vs CCD: Detailed Differences

1. Manual Alignment vs Automatic Recognition

The most important difference is how the final position is determined.

With Cyclops camera positioning, the operator normally decides where the artwork should be placed. The camera provides visual information, but the operator remains part of the alignment process.

With CCD vision positioning, the software identifies the reference and calculates the required coordinate correction.

This distinction affects:

• Cycle time

• Operator training

• Repeatability

• Error handling

• Product changeover

• Automation potential

If the production process allows an operator to inspect and align every part, a Cyclops camera may be sufficient.

If every part must be detected and positioned without manual adjustment, an automatic CCD system is more appropriate.

2. Product Variety and Changeover

Cyclops camera positioning is often more flexible when product shapes and marking requirements change frequently.

The operator can load a different part, open the appropriate file, and visually position the design without building a complex recognition template for every variation.

This is useful for:

• Custom jewelry

• Personalized gifts

• Nameplates

• Promotional products

• Repair components

• Small-batch metal parts

• Products with frequently changing logos

• Prototype production

CCD vision positioning is more effective when each product type can be defined by a stable recognition rule.

For every product family, the system may require:

• A reference image

• A recognition region

• Size limits

• Angle limits

• Contrast settings

• Confidence thresholds

• A matching artwork file

• A validated product recipe

A factory with ten stable high-volume parts may benefit from automatic recipes. A workshop processing many one-off products may spend too much time creating and validating recognition templates.

3. Random Part Placement and Rotation

A Cyclops camera can display a randomly placed or rotated part, but the operator may need to move and rotate the artwork manually.

This can be practical when only one or a few parts are marked at a time.

An automatic CCD system can be more suitable when:

• Parts arrive at different angles

• Several parts are placed in one field

• Precise fixtures are difficult to build

• Parts move along a conveyor

• Manual correction would limit production speed

However, automatic rotation correction must be confirmed through an actual demonstration. A camera image alone does not prove that the software can calculate orientation.

The buyer should test:

• Small and large rotation angles

• Parts close to the field boundary

• Similar-looking orientations

• Symmetrical parts

• Multiple parts in one image

• Partially obscured parts

• Overlapping products

Symmetrical objects can be difficult to orient automatically unless the vision system can identify an additional asymmetric feature.

4. Production Speed

CCD vision positioning is often described as faster, but the complete production cycle must be measured.

For a Cyclops camera system, cycle time may include:

1. Loading the part

2. Refreshing the image

3. Moving the artwork

4. Adjusting its angle

5. Confirming the position

6. Marking

7. Inspecting

8. Unloading

For a CCD system, the cycle may include:

1. Loading or detecting the part

2. Capturing the image

3. Processing the image

4. Recognizing the part

5. Calculating the coordinates

6. Confirming recognition

7. Marking

8. Handling the result

Automatic recognition can reduce operator alignment time, but its advantage depends on image-processing speed, marking time, loading method, number of parts, and recognition reliability.

For very simple identical parts held in a fast fixture, fixture-based marking may still be faster than either camera workflow.

For high-mix production, Cyclops positioning may reduce changeover time even if individual alignment takes longer.

The correct comparison is therefore not camera speed alone. It is acceptable finished parts per hour.

5. Positioning Accuracy

CCD vision positioning is not automatically more accurate simply because the alignment is automatic.

Final mark-placement accuracy depends on the entire system:

• Camera resolution

• Camera field of view

• Lens distortion

• Calibration quality

• Laser field correction

• Working height

• Reference-feature quality

• Lighting stability

• Part flatness

• Mechanical rigidity

• Software mapping

• Part movement

• Inspection method

A Cyclops system may achieve good placement when a trained operator aligns the mark to a clear visible feature.

A CCD system may provide better automated repeatability when the recognition feature and production conditions are stable.

However, poor CCD recognition can produce a precisely repeated error.

Buyers should distinguish between:

• Camera resolution

• Recognition repeatability

• Laser scanner repeatability

• Final mark-placement accuracy

These are not interchangeable specifications.

The most meaningful test is the measured distance between the required mark location and the actual mark after repeated unloading, repositioning, recognition, and marking.

For recurring offsets and edge errors, please refer to common camera positioning errors in laser marking and how to fix them.

6. Working Height and Part Stability

Both systems depend on a controlled working plane.

If the marking surface moves above or below the calibrated height, the result may show:

• Position offset

• Camera parallax

• Changed image scale

• Defocus

• Edge-mapping errors

• Inconsistent engraving depth

A camera does not prevent the part from:

• Rocking

• Sliding

• Tilting

• Bending

• Moving after image capture

• Sitting at the wrong height

Cyclops positioning may allow an operator to notice obvious movement, but visual alignment cannot correct an unstable focal plane.

A CCD system may detect the outline correctly while the laser mark is still offset because the part is at the wrong height.

Simple supports, stops, nests, or height-control fixtures remain useful with both systems. For a more detailed workflow comparison, please read camera positioning vs fixtures for laser marking small parts.

7. Lighting and Surface Conditions

Image quality is important for both systems, but poor lighting usually creates a greater risk for automatic recognition.

Cyclops Camera

The operator needs an image clear enough to identify the intended placement feature.

Minor reflection or appearance variation may be acceptable if the operator can still judge the correct location.

CCD Vision System

The software must separate the real feature from glare, shadows, background detail, dust, printing, and surface variation.

Automatic systems generally require more controlled:

• Illumination

• Exposure

• Background color

• Camera position

• Lens settings

• Part presentation

Reflective metal parts can create bright areas that appear or disappear as their angle changes. Transparent parts may reveal background features. Black parts on a dark conveyor may have insufficient edge contrast.

Possible improvements include:

• Diffuse lighting

• Backlighting

• Side lighting

• Controlled exposure

• Light shielding

• Contrasting backgrounds

• Polarizing components where appropriate

The required arrangement should be tested on actual production surfaces rather than selected from a generic machine demonstration.

8. Operator Skill and Training

Cyclops camera positioning requires the operator to understand:

• Which marking file to use

• Which camera profile is active

• How to position and rotate artwork

• What reference feature controls placement

• How much adjustment is acceptable

• How to confirm focus and height

• When to reject a part

The workflow is visually intuitive, but operator judgment influences the result.

CCD vision positioning reduces routine alignment work, but it shifts more responsibility to process setup.

Technical personnel may need to understand:

• Template creation

• Recognition regions

• Image thresholds

• Angle and size limits

• Confidence values

• Product recipes

• Error handling

• Lighting control

• Calibration

• Recipe revision control

A CCD system may be easier for the production operator after validation, but more demanding for the engineer who sets up and maintains it.

9. Conveyor and Automation Integration

A Cyclops camera system is normally best suited to operator-loaded workstations.

It may support assisted positioning, but buyers should not assume it can track moving objects or make automatic decisions.

CCD vision positioning can be integrated with:

• Product sensors

• Conveyor belts

• Encoders

• PLCs

• Robotic loading

• Database systems

• Automatic serial-number generation

• Reject mechanisms

• Production counters

• Line-control signals

For continuous production, a laser marking machine with CCD visual positioning and conveyor integration may be more appropriate than a manually aligned camera system.

However, a conveyor-mounted camera does not necessarily provide moving-object tracking.

Confirm whether the machine operates by:

• Stopping each part for image capture

• Indexing the conveyor

• Tracking a moving product

• Using an encoder

• Triggering from a sensor

• Capturing one or several parts at once

The supplier should demonstrate the actual conveyor speed, part spacing, orientation, and marking cycle required by the application.

10. Initial Cost and Total Operating Cost

Cyclops camera positioning usually has lower system complexity.

Potential cost advantages include:

• Simpler software

• Less recognition programming

• Faster setup for changing products

• Fewer automation components

• Lower integration requirements

• Easier maintenance

CCD vision positioning may require a larger initial investment because of:

• Vision-processing software

• Industrial lighting

• Automatic-recognition functions

• Conveyor or sensor integration

• Product-recipe development

• Additional commissioning

• More extensive training

However, purchase price does not show the complete economic difference.

A CCD system may reduce:

• Manual alignment labor

• Fixture changeovers

• Positioning errors

• Rework

• Operator-to-operator variation

• Cycle time in suitable applications

Cyclops positioning may produce a lower total cost for flexible small-batch work because it avoids developing and validating recognition templates for every product.

The better investment depends on production volume, product variety, labor requirements, reject costs, changeover frequency, and expected equipment utilization.

Which System Is Better for Different Applications?

This table should be treated as a starting point rather than a substitute for testing.

When Should You Choose a Cyclops Camera?

Cyclops camera positioning is a strong option when:

• The operator can remain involved in alignment

• Batches are small or medium

• Product shapes change frequently

• Artwork changes frequently

• Visual placement is more important than automatic recognition

• Parts are valuable and require confirmation before marking

• Building a dedicated fixture for every product is impractical

• A red-light outline does not provide enough placement information

• Production speed is not limited by manual alignment

• The marking position follows visible cosmetic features

It is also useful when product variation makes automatic recognition unnecessarily complex.

When Should You Choose CCD Vision Positioning?

CCD vision positioning is a stronger option when:

• Parts must be detected automatically

• Product rotation changes between cycles

• Several parts are placed in one field

• Manual alignment would restrict throughput

• Recognition features are stable

• Lighting and background conditions can be controlled

• Product recipes can be developed and maintained

• Conveyor or line integration is required

• The process requires lower routine operator involvement

• The value of reduced labor and rework justifies the additional complexity

The application should still be tested for false recognition, missed parts, angle errors, and changing surface conditions.

When Is Neither System the Best Choice?

A camera system may not provide enough benefit when:

• Thousands of identical parts fit a simple fast fixture

• Parts cannot be held at a stable height

• The marking area is on a highly curved surface

• Products move unpredictably after image capture

• The required reference feature is not visible

• Surface reflections prevent reliable imaging

• The process requires 3D surface compensation

• The laser wavelength is unsuitable for the material

Camera positioning controls where the design is placed. It does not correct incompatible materials, severe curvature, unstable focus, or uncontrolled part movement.

How to Compare Both Systems Before Buying

A brochure comparison is not enough. Ask the supplier to demonstrate both workflows using actual production parts.

Step 1: Define the Positioning Task

State:

• What feature controls the mark position

• Required X and Y tolerance

• Allowed rotation error

• Number of parts per cycle

• Expected part orientation

• Normal working height

• Required production rate

• Available operator involvement

Avoid descriptions such as “very accurate” or “fully automatic.”

Step 2: Use Actual Parts and Artwork

Send:

• Representative production parts

• Parts from different acceptable batches

• The real logo or code

• Smallest text

• Mark dimensions

• Positioning reference

• Part photographs

• Drawings where available

Generic metal plates cannot reproduce the actual camera, surface, height, or recognition conditions.

Step 3: Test Cyclops Positioning

Ask different operators to:

• Load the same part

• Position the same artwork

• Repeat the operation

• Reload the part

• Mark at the center and edges

• Record the complete cycle time

Measure both accuracy and operator-to-operator variation.

Step 4: Test CCD Recognition

Place the parts at:

• Different X and Y locations

• Different rotation angles

• The center

• The sides

• The corners

• Normal minimum spacing

Where relevant, test multiple parts in one field.

Record:

• Recognition success rate

• False detections

• Missed parts

• Angle calculation

• Measured position error

• Image-processing time

• Total cycle time

• Behavior when confidence is low

Step 5: Introduce Real Production Variation

Test changes in:

• Surface reflectivity

• Coating

• Printing

• Part dimensions

• Protective film

• Background

• Ambient light

• Working height

• Part orientation

A vision system should be tested against acceptable production variation, not only one ideal sample.

Step 6: Confirm Failure Handling

For automatic CCD positioning, determine what happens when the system:

• Cannot find the part

• Finds too many objects

• Detects overlapping parts

• Selects the wrong template

• Measures an unacceptable angle

• Receives a low-confidence result

• Loses the product signal

• Uses the wrong recipe

The system should stop, reject, or request operator confirmation according to the production risk. It should not continue marking an uncertain position without a defined rule.

Step 7: Record the Approved Configuration

The final test report should identify:

• Camera model

• Lens

• Camera field of view

• Laser marking field

• Lighting arrangement

• Working height

• Calibration profile

• Recognition template

• Software version

• Part recipe

• Fixture or support

• Placement tolerance

• Recognition result

• Complete cycle time

If any of these conditions changes, the positioning process may need to be checked again.

For broader machine-selection factors, please read how to choose a fiber laser engraving machine with camera positioning.

Questions to Ask the Supplier

Before ordering, ask:

1. Does the camera only display the part, or does the software recognize it automatically?

2. Can the system calculate X, Y, and rotation?

3. Can it identify several parts in one image?

4. Can it distinguish similar product types?

5. What happens when recognition confidence is low?

6. Can operators manually correct the result?

7. Are separate profiles required for different lenses or fields?

8. How is camera-to-laser calibration completed?

9. What working-height variation is acceptable?

10. What lighting is included?

11. Can the system handle reflective or dark parts?

12. Does conveyor operation use indexing, tracking, or stationary capture?

13. Can the supplier measure final placement accuracy on the actual part?

14. How long does a product changeover take?

15. Who creates and maintains recognition templates?

16. Are recipe permissions and revision controls available?

17. What training is included?

18. What remote support is available for camera and software problems?

The answers should be supported by a live or recorded application test, not only a component list.

Common Misunderstandings

“CCD Always Means Automatic Positioning”

Not necessarily. CCD describes a sensor type, while automation depends on the software, calibration, controls, and recognition functions.

Ask the supplier to demonstrate automatic detection and coordinate correction.

“CCD Is Always More Accurate Than Cyclops”

Automatic recognition can improve repeatability in suitable conditions, but final accuracy still depends on calibration, height, optics, lighting, mechanics, and reference quality.

“More Camera Megapixels Guarantee Better Accuracy”

More pixels can provide more image detail, but physical placement accuracy also depends on field of view, distortion, calibration, working plane, and feature recognition.

“A Camera Eliminates All Fixtures”

A camera can reduce the need for complex positioning tooling. A simple fixture or support may still be necessary to control height, movement, and tilt.

“Automatic Recognition Works on Every Surface”

Highly reflective, transparent, damaged, dirty, or low-contrast parts may require different lighting, backgrounds, or reference features.

“The Camera Can Correct Focus and Curvature”

A 2D camera positions the artwork in the image plane. It does not flatten a curved surface or automatically compensate for three-dimensional geometry.

“One Camera Profile Works for Every Lens”

Changing the marking lens, field size, camera position, or working distance can change the relationship between the image and laser coordinates. Separate calibration profiles may be required.

“CCD Is Always Faster”

Automatic positioning may be faster for repetitive production, but recognition, image capture, loading, marking, and error handling must all be included in the cycle-time test.

Conclusion

Choose a Cyclops camera when the main requirement is flexible, operator-controlled visual placement across changing parts or artwork. Choose CCD vision positioning when the system must recognize parts and correct their position or angle automatically under stable production conditions.

Do not select either system from the camera name, megapixel count, or claimed accuracy alone. Test actual parts, define a measurable placement tolerance, reproduce normal lighting and working height, and compare the complete production cycle.

Ray Fine provides different laser marking machine configurations for designated-position marking, automatic CCD recognition, and conveyor applications. To compare suitable options, contact Ray Fine with the part material, photographs, artwork, positioning reference, tolerance, batch size, and loading method.

Frequently Asked Questions

What is the main difference between Cyclops and CCD positioning?

Cyclops camera positioning normally displays the part so an operator can place the artwork visually. CCD vision positioning normally identifies the part or reference feature and calculates the marking position automatically.

Is a Cyclops camera suitable for random part placement?

It can display randomly placed parts, but the operator may need to align and rotate the design for each part. Automatic random-position correction requires suitable recognition functions.

Can CCD vision positioning recognize part rotation?

Many automatic systems can calculate rotation, but the function and acceptable angle range must be confirmed. Symmetrical or low-contrast parts can make orientation detection difficult.

Is CCD vision positioning suitable only for conveyor systems?

No. CCD positioning can be used at a stationary workstation, with a fixed worktable, or as part of a conveyor line.

Can a CCD system recognize multiple parts at once?

It may be able to do so if the software supports multiple-object recognition and the parts remain separated and visible within the calibrated field.

Which system is better for small batches?

Cyclops positioning is often more practical for small, changing batches because it requires less recognition-template development. The actual choice depends on placement tolerance and available operator time.

Which system is better for mass production?

CCD vision positioning is generally more suitable when parts, lighting, and recognition features are stable and automatic alignment can reduce cycle time.

Does CCD positioning eliminate operators?

No. Operators or engineers are still needed for loading, recipe management, inspection, maintenance, calibration, and handling failed recognition.

Can Cyclops and CCD functions be included in one machine?

Some configurations may provide both manual visual positioning and automatic recognition. The buyer should confirm the exact software modes and request demonstrations of both.

Do reflective metal parts require special lighting?

They often do. Diffuse lighting, controlled exposure, shielding, contrasting backgrounds, or polarizing components may be required to prevent glare from hiding the reference feature.

Which system provides better precision?

Neither name guarantees better precision. Compare measured final mark-placement results using the actual parts, production height, loading method, and required tolerance.

Can a Cyclops system be upgraded to automatic CCD recognition later?

An upgrade may require a different camera, lens, lighting, software, controller, calibration method, and machine integration. It should not be assumed to be a simple software update.

Is a fixture still useful with automatic CCD positioning?

Yes. A fixture can control height and movement while the CCD system corrects fine position and angle variation.

Can camera positioning correct marks on curved surfaces?

A standard 2D camera cannot compensate for complex surface height. A rotary device, controlled support, or 3D dynamic-focus system may be required.
