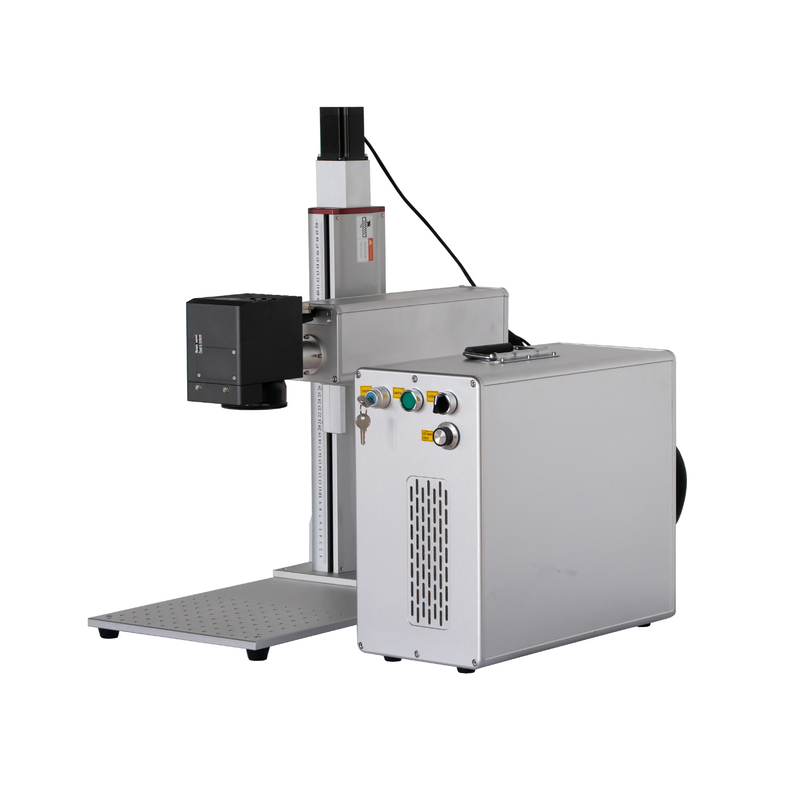

position mark UV/ fiber laser marking machine with cyclops camera for designated place engraving
Technical Parameter | |||
Model | YJ-F-30W | YJ-F-60W | YJ-F-100W |
Fiber laser source brand | JPT | ||
Fiber laser source type | MOPA M7 | ||
Output power | >30W | >60W | >100W |
Laser beam quality M2 | <1.3 | <1.8 | |
Max single pulse energy | 0.8MJ | 1.5MJ | 1.5MJ |
| Pulse duration | 2-350NS | 2-500NS | 2-500NS |
Frequency | 1-4000khz | ||
Center Wavelength | 1064nm | ||
Cooling type | Air | ||
Marking Area | 70x70/110x110/200x200/300x300mm | ||
How to get focus | double red light | ||
marking Depth | 0-2mm | ||
Max positioning speed | 8000mm/s | ||
Min. Character size | 0.2mm | ||
Supply voltage | AC110V 60HZ / AC220V 50HZ | ||
Control program | EZCAD2 from BJJCZ | ||
Package size | 75*41*80cm | ||
Package weight | 65KGS | ||
Machine main parts
Galvo head
Work piece showing in the software
The camera also can be closed for ordinary marking
Optional parts:
More detail request, please feel free to send email to us: sales05@rayfinetech.com, thank you :)
