JPT LM1 60w 100w 120w Color Mopa Fiber Laser Marking Machine for Deep Engraving And Thin Metal Cutting

Fiber laser marking machine is the new generation laser marking system developed with advanced laser technique. It adopts fiber laser to output laser and achieves to marking function after high speed scan ioscillating mirror system. It has higher photoelectric transfer efficiency. This machine adopts air cooling way and the whole machine is small. The output beam is qualified, high reliability.
Availability:
Quantity:
Inquire Add to Basket

  • RF-F-60W, RF-F-100W ,RF-F-120W
  • RAYFINE TECH
  • 845611

JPT LM1 60w 100w 120w  Color Mopa Fiber Laser Marking Machine for Deep Engraving And Thin Metal Cutting

封闭式组合副本


>> Special configuration of fiber laser marking machine

This machine adoppted JPT LM1 60W 100W 120W Mopa fiber laser source .

JPT YDFLP lasers are pulsed, Ytterbium fiber lasers in MOPA configuration, LM1 series has a much higher average output power up to 120W, 8 waveforms optional,max pulse energy > 1.5mJ, meanwhile the beam quality remains excellent (Msup2＜1.8). The 100/120Watts lasers provides top performance as well as high efficiency in a wide range of applications.


>>Application Advantages:

1. Metal deep marking ,thin metal sheet cutting and drilling

2. Mold steel engraving


>> Samples of metal deep marking, thin metal sheet cutting:

 LM1 60w 100W 120W 深雕和切割 和不锈钢打彩 有文字标注 22

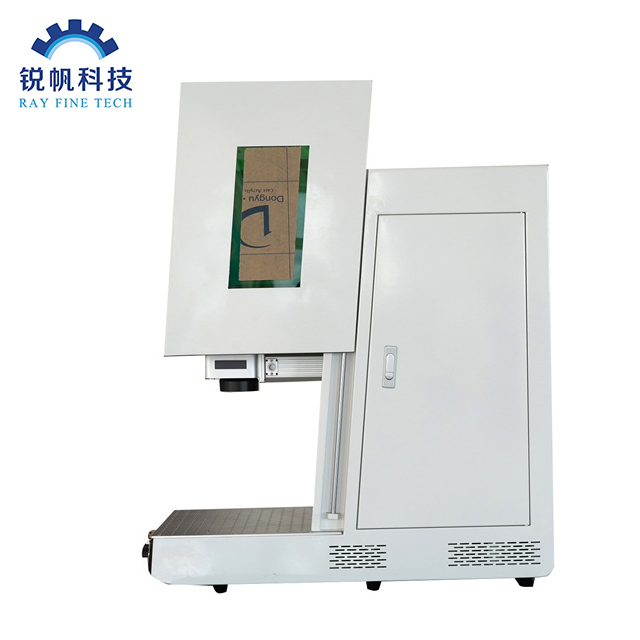

>> Special design OF This Fiber Laser Machine

--Customized Fully enclosed style,more safe

--Increase the Z axis height，300*300mm working area is available.And also rotary attachment can be installed.

--Customize large windows to clearly see the machine's working conditions

--Motorized Z axis, which is more easier to set right focus尺寸图副本 配置图


Features

1. JPT mopa laser with pulse duration adjustable with best laser beam quality

2 .Small size, one unit structure and user-friendly operation.

3. Double red dots more easy to get focus.

4.Maintenance-free and 100 000 hours long life time.

5. Quality electric parts.

6. Best quality digital Galvotech scan head.

7. Genuine EZCAD control program compatible with win7/win8/win10


Model

RF-F-60W

RF-F-100W

RF-F-120W

Fiber laser source (JPT brand)

YDFLP-60W-LM1-L1

YDFLP-100W-LM1-L1

YDFLP-120W-LM1-L1

Output power

>60W

>100W

>120W

Laser beam quality M2

<1.3

<1.8

<1.8

Max single pulse energy

1.5MJ

1.5MJ

1.5MJ

Full power frequency range

40~1000KHZ

67~1000KHZ

80~1000KHZ

Frequency adjustable range

1-1000KHZ

1-1000KHZ

1-1000KHZ

Pulse duration

10~350NS

10~350NS

10~350NS

Center Wavelength

1064nm

Cooling type

Air cooling

Marking Area

175*175mm(optional)

How to get focus

Double red dots

One time marking Depth

0.03-0.08mm

Marking speed

8000mm/s

Repeat Accuracy

<20μrad

Min. linear width

0.01mm

Min. Character size

0.2mm

Supply voltage

AC220/110V±10%  50/60hz

Control program

Genuine EZ-CAD(BJJCZ) control system

Compatible with win7/8/10

Operation temperature

0~40℃
