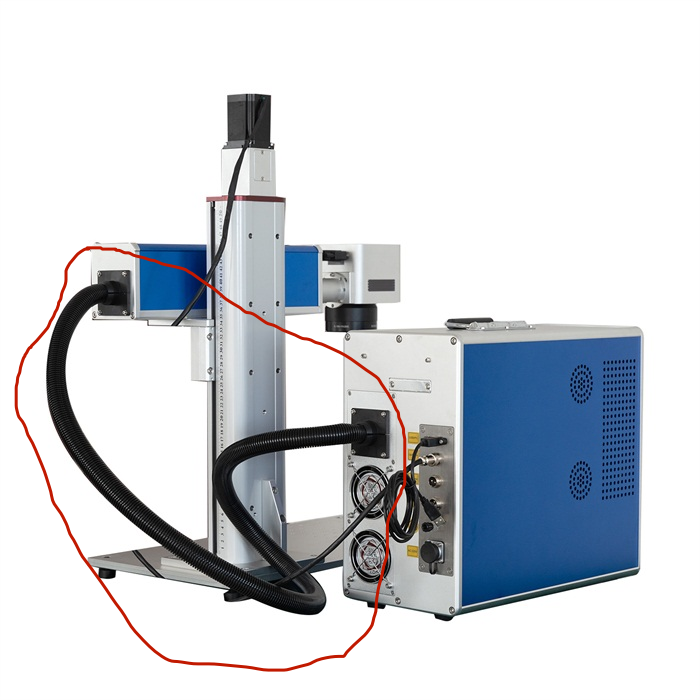

Fiber Laser Marking Machine for Sale Factory Directly Price 30w Mopa Fiber Laser Marking Machine

Laser marking machine adopts international most advanced technology,lifetime can reach 100,000 hours, 8-10 years without any consumables and maintenance. we have 2 years warranty time for our laser source ,The diode coupling with fiber to process pump, the pump light will course the particles reverse which can emit high quality laser beam. This is the best choice for the customers who have special requirements to the smallest & finest laser beam and character.
model:
Availability:
Quantity:
  • RF-20W/RF-30W/RF-50W
  • RayFine

13

The main configuration of the machine

DSC03658

laser source


Brand:JPT
Stable, low failure rate and short pulse setup time.
DSC03647

Galvo head


High quality XY motor with fast response and  small deviation.
With dual red dots to assist you find the focal  length.

DSC03615 Field lens


Choose field lenses of different formats according to your needs, the types are 70x70mm   110x110mm   150x150mm  175x175mm   200x200mm.

It is recommended to choose a small lens when the format requirements are met, because the smaller the lens, the more concentrated the energy and the more delicate the light spot will be.

DSC03677

Control card


Genuine BJJCZ control card and system.
DSC036941

Power supply


Switching power supply, stable performance.


Optional accessories

Rotary table

Multi station marking of surface can be realized

DSC03695
Rotary

Diameter of the chuck is 80mm / 100mm /125mm.




rotary


Jewelry rotary

It is mainly used inside and outside of jewelry rings and jewelry bracelet.

DSC03682

Cyclops camera

It can easily get the mark position on the computer:draw the mark there






cyclops camera


Protective window

Protective window provides better protection

DSC03703

Autofocus

This is a distance sensor, it can focus automatically without manual focusing



autofocus


XY table

Dimeantion(mm):210*150*87

Weight:4.5kg

Screw size on table:M6

Travel size(mm):80*60





XY table


XYZ tableDimeantion(mm):210*150*145

Weight:7kg

Screw size on table:M6

Travel size(mm):80*50*130





XYZ table



Application

3图乘3..

MACHINE PARAMETER

Product name

Laser marking machine

Laser source

JPT

Laser power

LP 20W 30W 50W

MOPA 20W 30W 60W 80W 100W

Laser wavelength

1064nm

Marking area

70x70mm ---- 300x300mm

Marking depth

≤1.5mm (depending on engraving time)

Marking speed

7000mm/s

Minimum marking character

0.1mm visible

Control card

BJJCZ

Control software

EZCAD 2

Control software support

Vector graphics, Bitmap, DXF and other file formats

Control software operation

Windows 7 / 8 / 10

Machine work voltage

AC110V 60HZ , AC220V 50HZ, ±10%

Machine Power consumption

<700W

Machine cooling way

Air cooling

Machine dimension

450*210*390mm

600*305*650mm

Machine weight

20W 30W about 41KG

50W 60W 80W about 45KG
