3D Dynamic Focus 120w 200W 300w CO2Laser Marking cutting Machine for Stripping Paint Layer of Stainless Steel Cup

Quantity:
  • RF-CO2-200w
  • rayfinetech

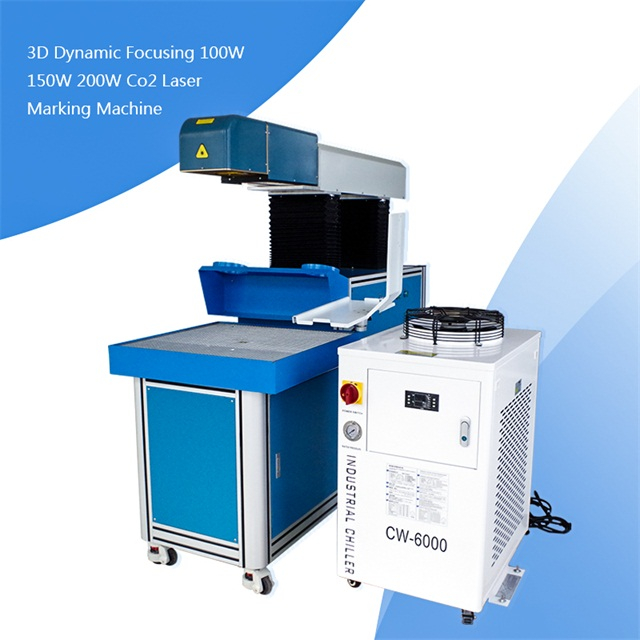

3D Dynamic Focus  120w 200W  300w CO2Laser Marking cutting Machine for  Stripping Paint Layer of Stainless Steel Cup

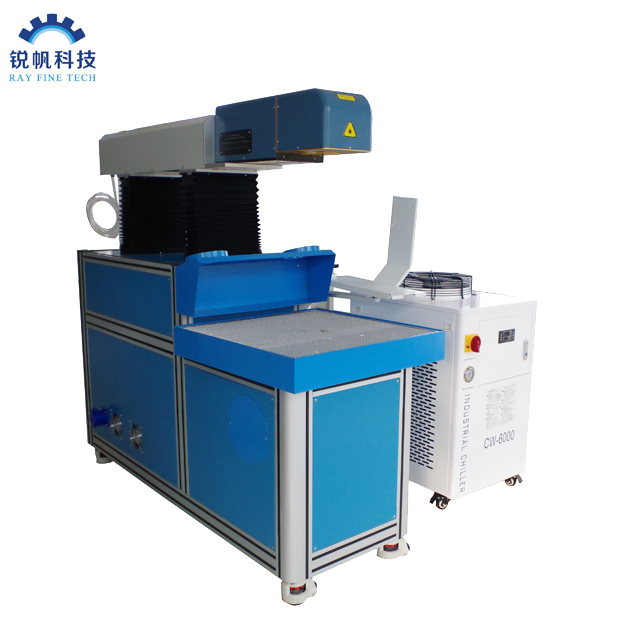

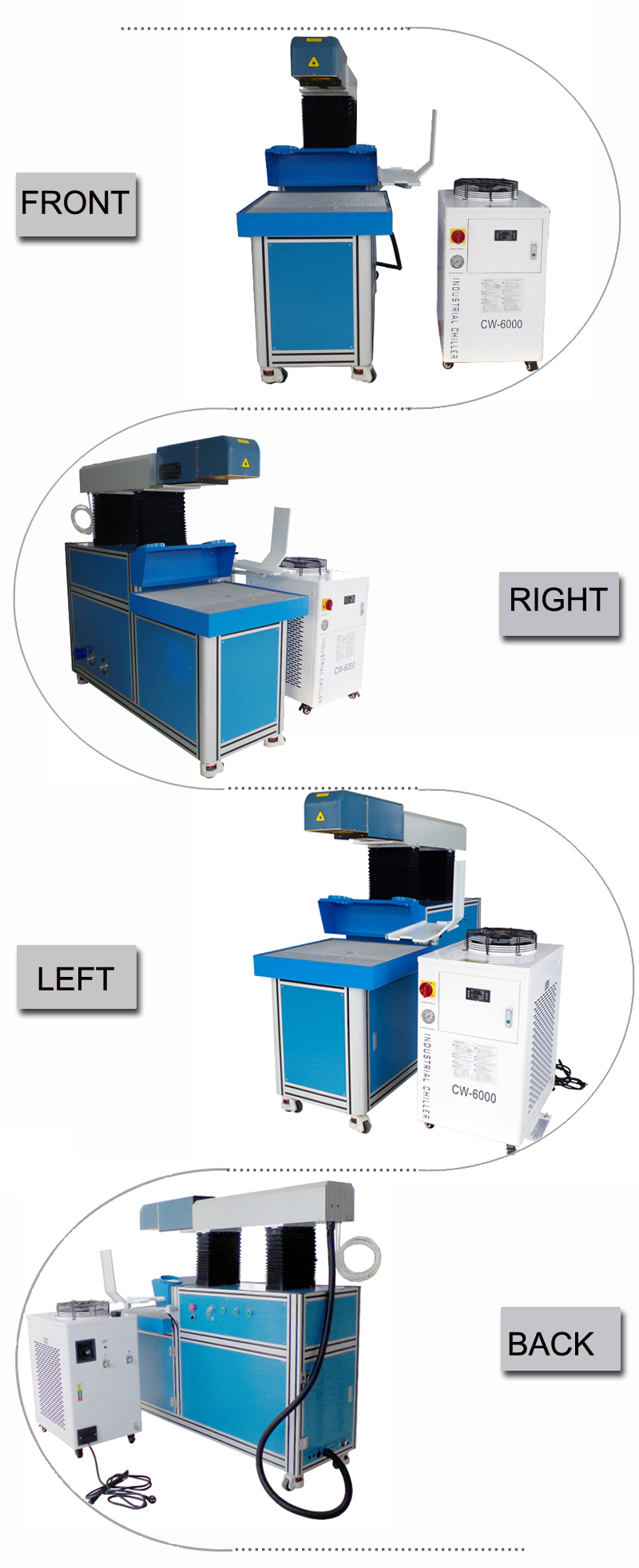

>>Machine photo

co2 200W 相干激光打标机

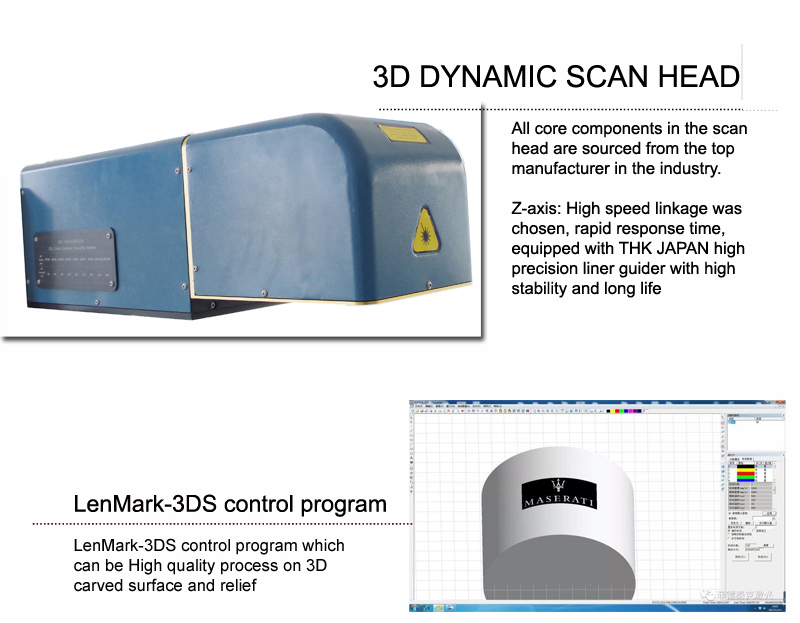

>>>Dynamic Focusing system  is Special configuration of this CO2 laser marking machine

3D Dynamic Focus  co2 Laser Marking Machine not only can marking on flat surface , but also can engraving on Undulating surface,Curved Surface .

The most importance is that this fiber laser can do relief engraving on wood and fast cutting on non-metal materials, like papler ,leather


Compared with the ordinary marking machine system, the dynamic focusing system makes each marking point at the correct focal length, so the laser beam energy is stronger and more delicate, and the marking effect is better.

动态聚焦模板 co2副本2副本22


>>>Quality part on this CO2 laser marking machine

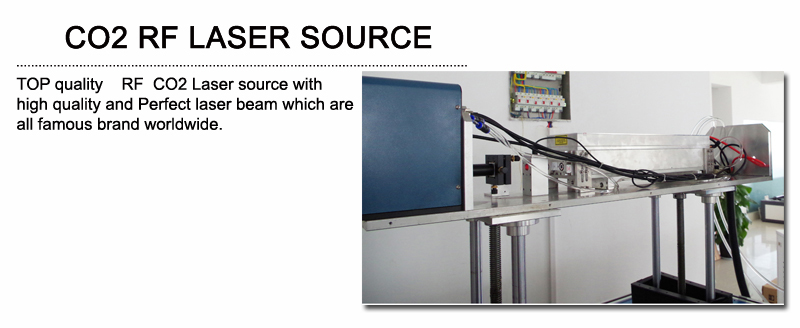

1.TOP quality    RF  CO2 Laser source with high quality and Perfect laser beam which are all famous brand worldwide.

动态聚焦模板 co2副本 133

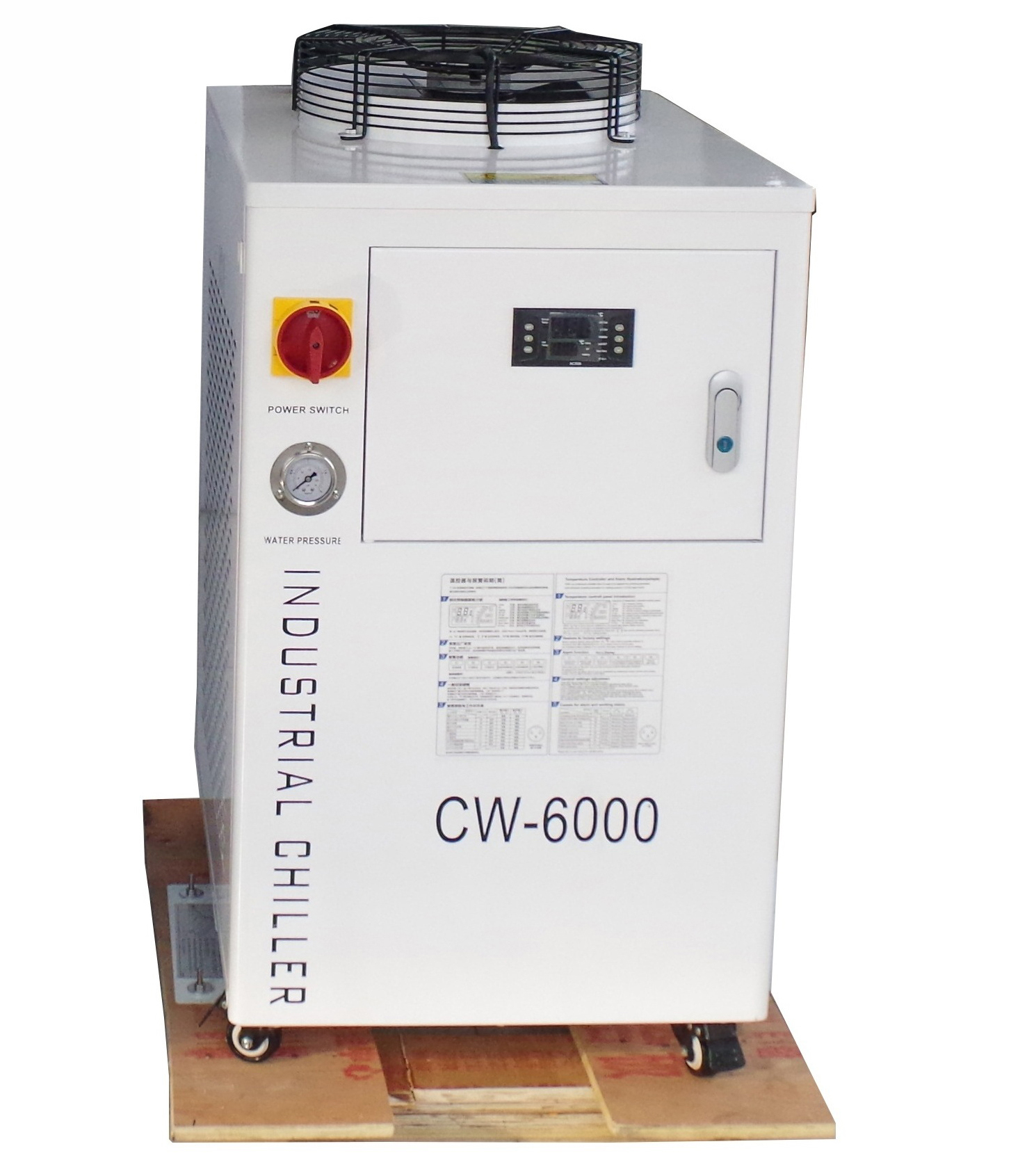

2.Professional intelligent  water chiller can protect the machine to ensure tha machine working  safely and effectively.

任务222

>>>Machine advantages

1. High cut/engrave speed
This series machine adopts advanced US Galvo scanning system. The cutting/engraving speed can reach 7000mm/s.  Fulfill the request of factory mass production.



2. Precise process
With US RF metal laser tube, this machine has finest laser beam, to cut and engrave very precisely. Especially when you cut paper card, the cutting edge is very smooth and thin.



3. Forever lasting marking
Laser is non contact process, there is no distortion. As laser marking is to gasify the surface of material, the marking will laser forever.



4. Flexible process
You just need to change design in software, then all different size/shape pattern can be realized. It is very convenient for sampling or changing products. No need cost for template.



5. Easy operation

Adopting integrated structure with Auto focusing technology and humanized operation design. Making the laser marking as easy as printing.



6. Minimal owner ship cost

 No need any maintenance, long life, small volume, suits for working in atrocious working conditions.



7 Wide application

 This machine can mark, engrave, cut, hollow on almost all non-metal material, like wood, acrylic, plastic, marble, paper, glass, leather, textile, bamboo, PVC, rubber and so on.

It is widely applied in industry like electronic, machinery,  garments, artwork, gifts, greeting card, packing, advertisement ect.

It can process with any pattern, signs, bar code, letters, serial number as request.



Applicable materials:

This machine can perfectly mark/cut on non-metal material like wood, acrylic, paper card, PVC, rubber, plastic,glass,LGP fur, leather, textile, denim with high speed. Suits factory mass production.



Applicable industries:

It is widely applied in industry like electronic, machinery,  garments, artwork, gifts, greeting card, packing, advertisement ect.
It can process with any pattern, signs, bar code, letters, serial number as request.



>>>Samples

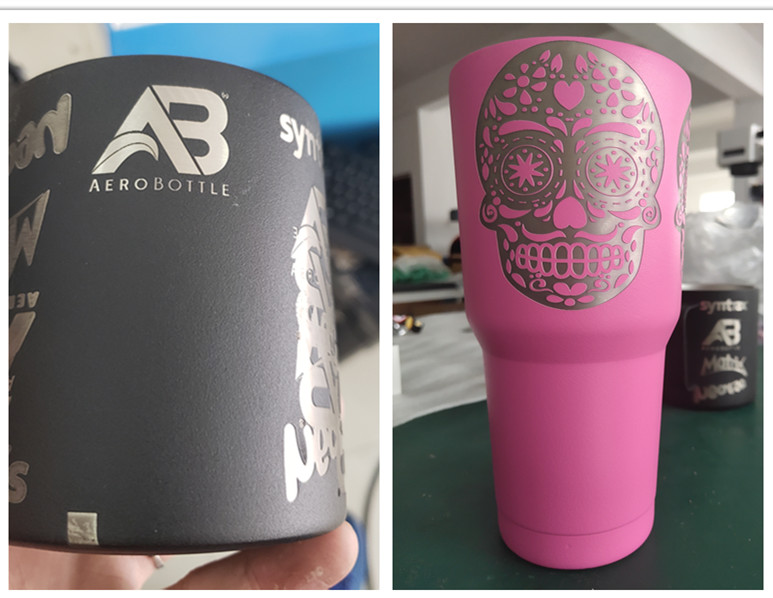

 Stripping Paint Layer of Stainless Steel Cup:

20191012_122227_副本

Paper Cards:

纸切割241351388364_副本

Model

RF-CO2-120W

RF-CC2-200W

RF-CO2-300W

Power

120W

200W

300W

Work size

300*300,350*350,400*400,450*450,500*500,600*600mm,750*750,1000*1000mm,1200*1200mm(the working size  can be adjusted based on your need )

Max Marking Speed

10000mm/s

Power Consumption

< 5kWh

Worktable

Honeycomb working table

Laser source

Amercian  imported Co2 RF metal laser source

Laser wavelength

10.64um

Laser Frenquency

20k-200k Hz

Scanner

Amercian CTI

Repetition Precision

0.01mm

Min.Letter Size

0.3mm

System Support

WIN7/WIN8

Output Compatibility

Auto CAD, Photoshop, CorelDRAW etc

File Formats

PLT, DXP, BMP, JPG, AI etc

Software Character

Integrated Function of Dotting Design, Vector Drawing, Marking, Scribing and Cutting

Power Supply

110V~380V/50Hz~60Hz

Cooling Way

Circulation of Water Cooling

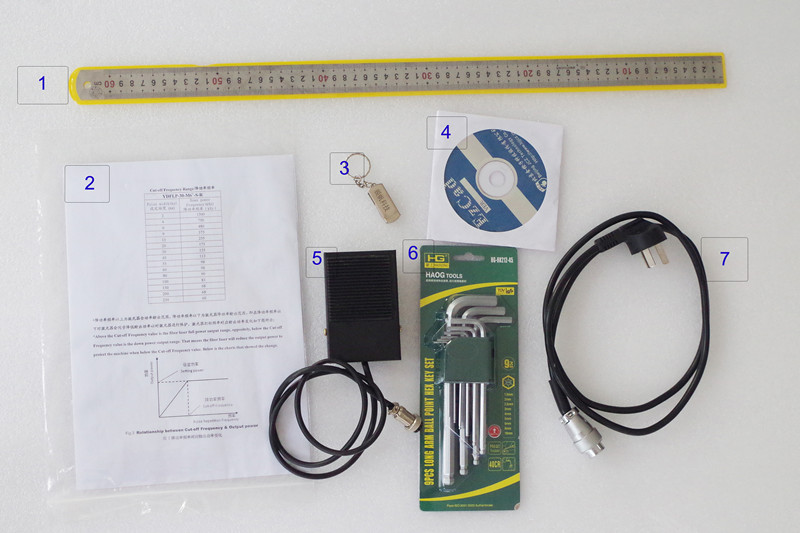

>>>Standard accessories with this CO2 laser marking machine

Item

Name

QUANTITY


Standard accessories



1

Focus ruler

1pcs

imgp3567副本_副本

2

English user manual

1pcs

3

USB flash drive for program quick set up

1pcs

4

CD with EZCAD (BJJCZ))control program

1pcs

5

Foot touch switch

1pcs

6

inner hexagon wrench

1pcs

7

USB Cable

1pcs

8

Water chiller

1 set

任务222

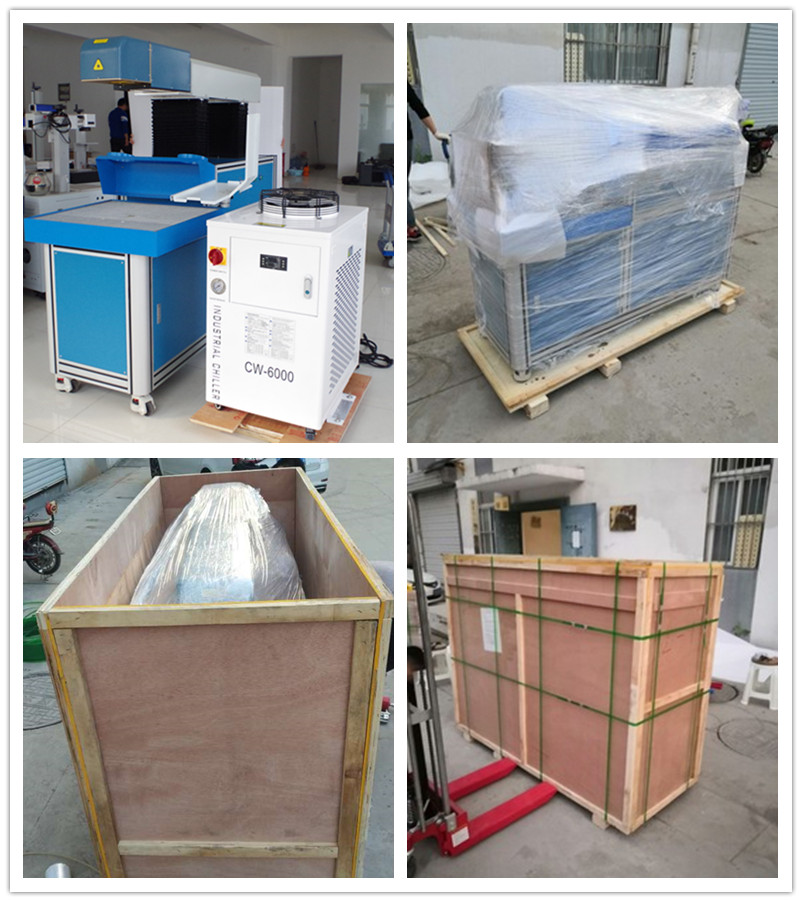

>>Packing

1. Collect all accessories and and spare parts together one by one based on the order list ,and check all parts carefully once more to ensure all parts are included.

2. Our packaging standard:

   +thick layer of plastic wrap,Can be waterproof and moisture proof

   + Six-sided pearl cotton,Protect the machine from collisions

   + high-strength wooden box

   + packing belt and then fix the machine to ensure the safety of the machine during transportation.


3.Stick the shipping mark to ensure the buyer can recognize the right machine easily

4.Stick the Safety signs to remind transporters to take good care of our equipment during shipping

CO2 3D 动态聚焦 机器包装 图片

1. Three Axis dynamic focusing system (Three dimensional dynamic marking system)
2. Large working area, maximum 1200*1000mm
3. Speed increased up 20%
4.TOP quality  CO2 laser generator (worldwide famous brand co2 laser source we adopted ) to ensure the machine quality.
5. Small light spot, strong power, increased up 15%
6. Compact structure, easy operation (the processing area is adjustable )
7. Red light preview
8. Continuously work
