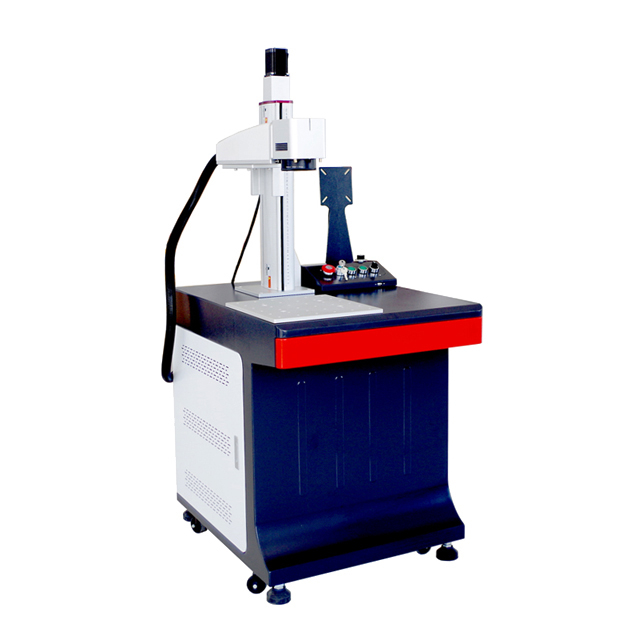

JPT M7 Mopa CNC Fiber Laser Marking Machine 20W 30W 60W 80W 100W 120W 150W 200W
M7+ Series MOPA pulsed fiber laser is a new design product. In addition to the advantages,M7 has boarder pulse width, higher response speed and first pulse usability.
It provides a best choice of fiber laser for highest industrial standards marking and other applications.JPT has complete and strict performance and reliability inspection of every M7+,to guarantee high quality and reliability.
JPT M7 Fiber laser source Application advantages:
- 2ns ~ 250ns wide adjustable pulse width, wider application range of material
- Wide repetition rate for diverse application
- Excellent beam quality, excellent processing performance
- First pulse availability and quicker pulse response speed, good choice for highly precise & fine marking
- No light leaking, safe marking
Application :
1. Metal deep marking ,thin metal sheet cutting and drilling
2. Color marking on stainless steel
3. Black marking on stainless steel and anodized aluminium
4. Mold steel engraving
Samples:
>> More features
1.Motorized Z axis and double red dots work together which is much more save time and effort to find focus.
2.Maintenance-free and 100 000 hours long life time with 3 years warranty
3. Quality electric parts to ensure machine work stable and safe.
4. Best quality digital Galvotech scan head.
5. Genuine EZCAD control program compatible with win7/win8/win10
JPT M7 Mopa CNC Fiber Laser Marking Machine 20W 30W 60W 80W 100W 120W 150W 200W
M7+ Series MOPA pulsed fiber laser is a new design product. In addition to the advantages,M7 has boarder pulse width, higher response speed and first pulse usability.
It provides a best choice of fiber laser for highest industrial standards marking and other applications.JPT has complete and strict performance and reliability inspection of every M7+,to guarantee high quality and reliability.
JPT M7 Fiber laser source Application advantages:
- 2ns ~ 250ns wide adjustable pulse width, wider application range of material
- Wide repetition rate for diverse application
- Excellent beam quality, excellent processing performance
- First pulse availability and quicker pulse response speed, good choice for highly precise & fine marking
- No light leaking, safe marking
Application :
1. Metal deep marking ,thin metal sheet cutting and drilling
2. Color marking on stainless steel
3. Black marking on stainless steel and anodized aluminium
4. Mold steel engraving
Samples:
>> More features
1.Motorized Z axis and double red dots work together which is much more save time and effort to find focus.
2.Maintenance-free and 100 000 hours long life time with 3 years warranty
3. Quality electric parts to ensure machine work stable and safe.
4. Best quality digital Galvotech scan head.
5. Genuine EZCAD control program compatible with win7/win8/win10
Model | RF-F-20W | RF-F-30W | RF-F-30W | RF-F-70W |
Fiber laser source JPT Brand | YDFLP-20W-M6+-S | YDFLP-30W-M6+-L1 | YDFLP-30W-M6+-S | YDFLP-70W-M6+-L1-X |
Power output | 20W | 30W | 30W | 70W |
Beam Quality M2 | <1.3 | <1.8 | <1.3 | <1.8 |
Maximum Pulse Energy | 0.5 MJ | 0.97MJ | 0.5MJ | 1.0 MJ |
Main board and control software | Genuine EZCAD (BJJCZ) which supports XP Win7 /8/10 | |||
Wavelength | 1064nm | |||
Marking speed | 8000mm/s | |||
Marking Area | 110mm×110mm(optional) | |||
Min. linear width | 0.001mm | |||
Min. Character size | 0.2mm | |||
Full power Frequency range(KHZ) | 40~2000 khz | 31~2000khz | 60~2000khz | 70~2000khz |
Frequency adjustable range | 1~2000 KHZ | |||
Pulse Duration | 1~250ns | 2~250ns | 2~250ns | 2~250ns |
Out beam diameter | 7 ±0.5mm | 6 ±0.5mm | 7 ±0.5mm | 6 ±0.5mm |
Supply voltage | AC 110/220V±10%, 50/60Hz | |||
Power cable style | According to your request (Asian /European / American standard) | |||
Focus | Double red dots positioning | |||
Cooling way | Air cooling | |||
Operation temperature | 0~40℃ | |||
Package dimension LxW xH(mm) | 1020x880x700mm
| |||
Package gross weight | 122kgs | |||
FDA /CE Certificate | Approved |
Model | RF-F-20W | RF-F-30W | RF-F-30W | RF-F-70W |
Fiber laser source JPT Brand | YDFLP-20W-M6+-S | YDFLP-30W-M6+-L1 | YDFLP-30W-M6+-S | YDFLP-70W-M6+-L1-X |
Power output | 20W | 30W | 30W | 70W |
Beam Quality M2 | <1.3 | <1.8 | <1.3 | <1.8 |
Maximum Pulse Energy | 0.5 MJ | 0.97MJ | 0.5MJ | 1.0 MJ |
Main board and control software | Genuine EZCAD (BJJCZ) which supports XP Win7 /8/10 | |||
Wavelength | 1064nm | |||
Marking speed | 8000mm/s | |||
Marking Area | 110mm×110mm(optional) | |||
Min. linear width | 0.001mm | |||
Min. Character size | 0.2mm | |||
Full power Frequency range(KHZ) | 40~2000 khz | 31~2000khz | 60~2000khz | 70~2000khz |
Frequency adjustable range | 1~2000 KHZ | |||
Pulse Duration | 1~250ns | 2~250ns | 2~250ns | 2~250ns |
Out beam diameter | 7 ±0.5mm | 6 ±0.5mm | 7 ±0.5mm | 6 ±0.5mm |
Supply voltage | AC 110/220V±10%, 50/60Hz | |||
Power cable style | According to your request (Asian /European / American standard) | |||
Focus | Double red dots positioning | |||
Cooling way | Air cooling | |||
Operation temperature | 0~40℃ | |||
Package dimension LxW xH(mm) | 1020x880x700mm
| |||
Package gross weight | 122kgs | |||
FDA /CE Certificate | Approved |
>>Optional parts
Rotary attachment: used for curved surface marking.
2D worktable:X Y axis adjustable worktable can achieve very small position movement of work-piece via adjust the worktable. So if the work piece's position need very small movement, we no need to move the work-piece, just to adjust the worktable by X and Y axis's handle.
Rotating worktable:
Carry the marking workpiece and at same time rotation then to achieve multi-angle marking.The rotation angle can be set arbitrarily based on you need.
Goggles:Effectively absorbs laser light waves and protects the eyes.
Lens:working area can be 70x70mm/110x110mm/150x150mm 200x200mm/300x300mm for options.
we can choose different size lenses with one machine for different works
Rotary for right :mainly usd for ring marking and the other small workpiece.
3D DYNAMIC FOCUS : Mainly usd for marking on curved surface directly without rotary attachment help; metal Relief marking ; 3D marking,deep marking.
>>Optional parts
Rotary attachment: used for curved surface marking.
2D worktable:X Y axis adjustable worktable can achieve very small position movement of work-piece via adjust the worktable. So if the work piece's position need very small movement, we no need to move the work-piece, just to adjust the worktable by X and Y axis's handle.
Rotating worktable:
Carry the marking workpiece and at same time rotation then to achieve multi-angle marking.The rotation angle can be set arbitrarily based on you need.
Goggles:Effectively absorbs laser light waves and protects the eyes.
Lens:working area can be 70x70mm/110x110mm/150x150mm 200x200mm/300x300mm for options.
we can choose different size lenses with one machine for different works
Rotary for right :mainly usd for ring marking and the other small workpiece.
3D DYNAMIC FOCUS : Mainly usd for marking on curved surface directly without rotary attachment help; metal Relief marking ; 3D marking,deep marking.
