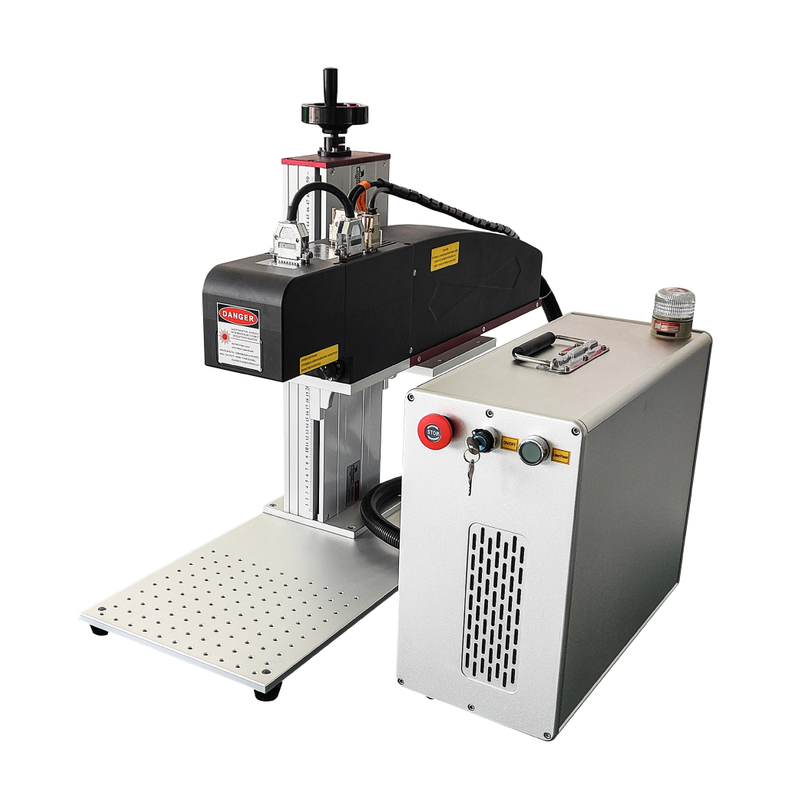

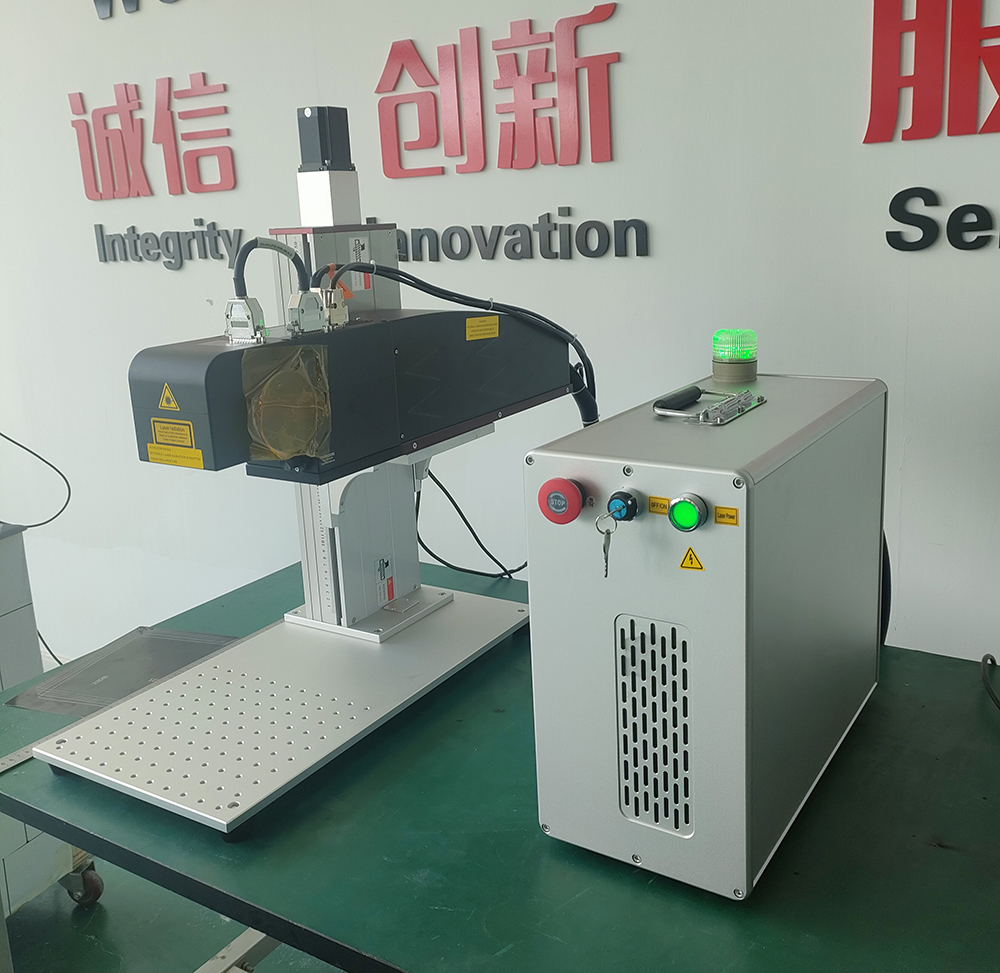

3D Laser Engraving Machine with JPT MOPA M7 100W Laser Source Dynamic Auto Focus Fiber Laser Engraver

*Ordinary surface marking;
*Deep engraving;
* Relief engraving;
* Curved surface marking.

Availability:
Quantity:
  • RF-F-3D 100w

  • RAY FINE

  • 845611


3D Laser Engraving Machine with JPT MOPA M7 100W Laser Source Dynamic Auto Focus Fiber Laser Engraver


Updated version: Software controlled Motorized Z axis for finding focus before engraving.

*Ordinary surface marking;

*Deep engraving;

* Relief engraving;

* Curved surface marking.



IMGP6297


Application:

3D样品_画板 1

IMG20220527082839 02

3D relief engraving

0225

3D relief engraving

cut

3D relief engraving

02

curve surface marking


Model
YJ-F-50W
YJ-F-60W
YJ-F-100W
Fiber laser source brand
JPT
Fiber laser source type
MOPA
Output power
>50W
>60W
>100W
Laser beam quality M2
<1.5
<1.8
Max single pulse energy
1.25MJ
1.5MJ
Pulse duration
200ns
2-500ns
Frequency
1-600khz
1-4000khz
Center Wavelength
1064nm
Cooling type
Air
Marking Area
100x100x30mm/200x200x80mm, if need bigger area, please send message to us
Max positioning speed
8000mm/s
Min. Character size
0.2mm
Supply voltage
AC110V 60HZ / AC220V 50HZ
Control program
Feeltek


3D Galvo head

X Y Z three axis dynamic laser route.

Galvo head

600x600mm working area

01

200x200mm working area




BANKA Machine controler
000000

MOPA laser source

wt

High quality anodized aluminuim working table

pillar

High quality anodized aluminium pillar 17cm width


More question, please conact: sales05@rayfinetech.com, thank you:)
