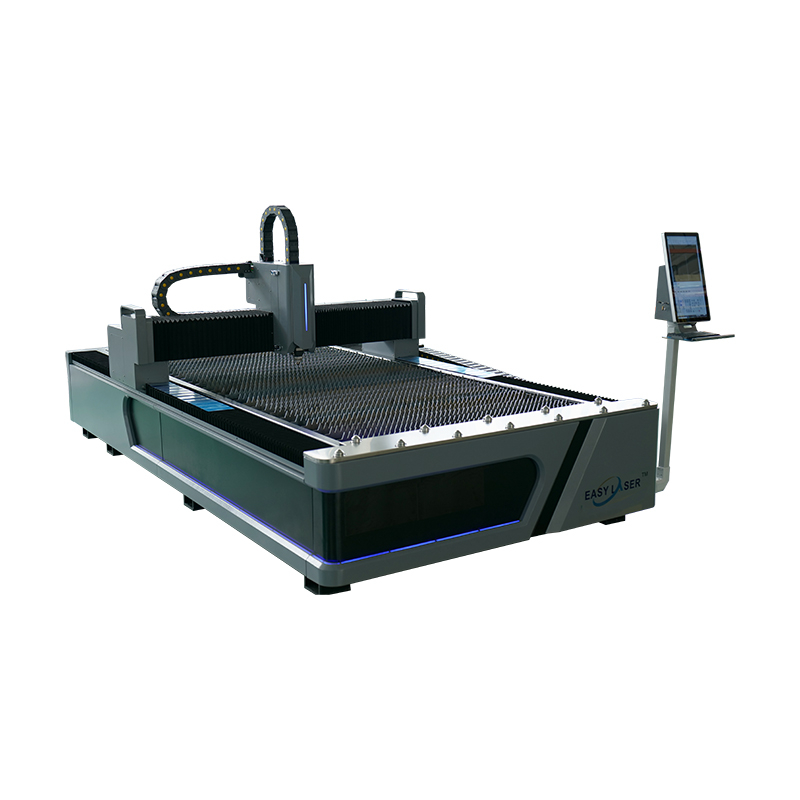

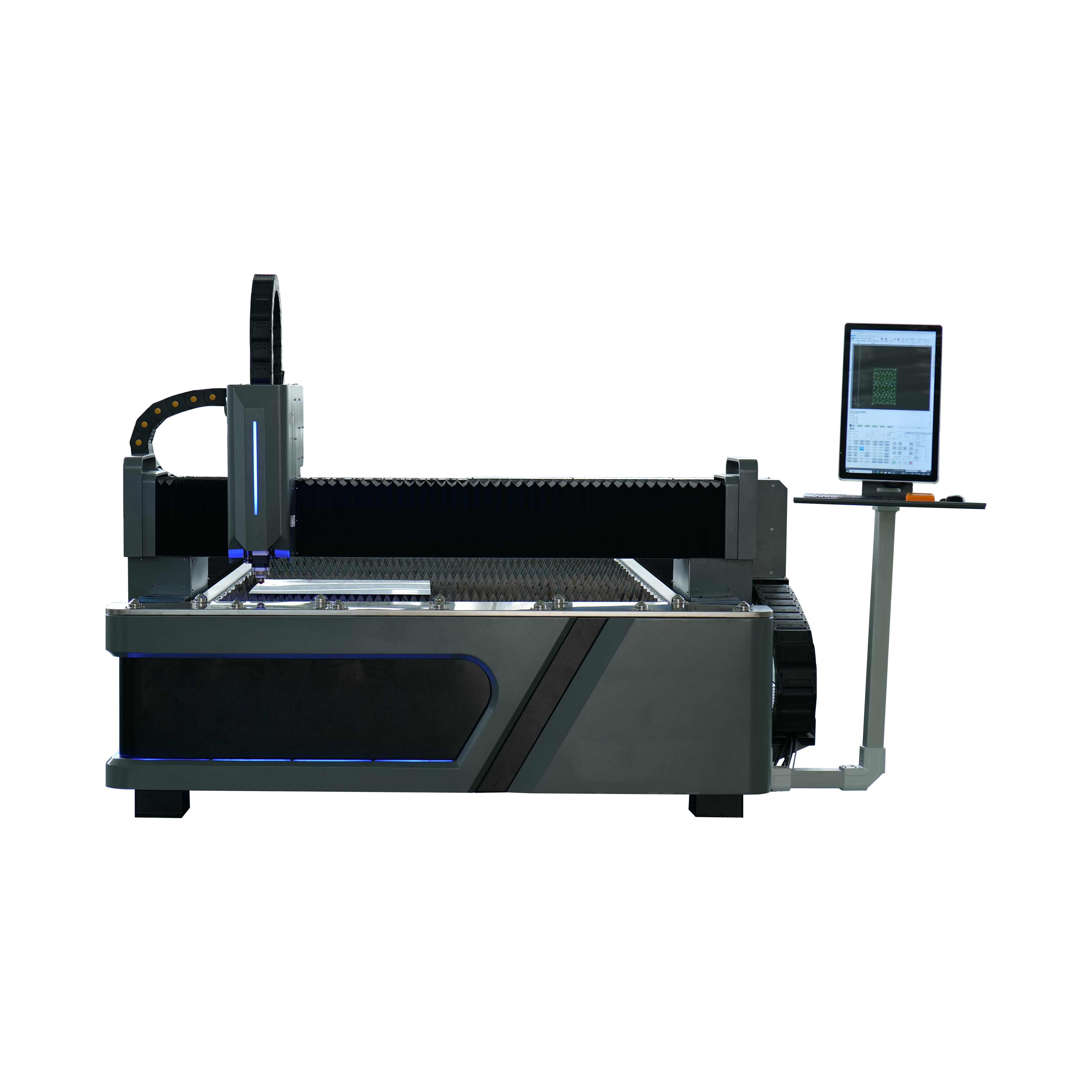

3KW High Efficiency 6KW CNC Fiber Laser Cutting Machine for Metal sheet
Cutting material: Stainless steel, carbon steel, mild steel, galvanized steel, aluminum, copper, brass and other metal sheet and pipe.
| Item | Data |
| Model | LM3015 |
| Laser power | 1500W 2KW 3KW 6KW |
| Dimension | 4600*2450*1700mm |
| Working area for metal sheet | 3000*1500mm |
| Y-axis stroke | 3000mm |
| X-axis stroke | 1500mm |
| Z-axis stroke | 120mm |
| X/Y axis position accuracy | ±0.03mm |
| X/Y axis reposition accuracy | ±0.02mm |
| Max. Moving speed | 80m/min |
| Maximum acceleration | 1.0G |
| Max. Working capacity of sheet table | 900kg |
| Specified voltage and frequency | 220V/380V |
| Continuous working time | 24h |

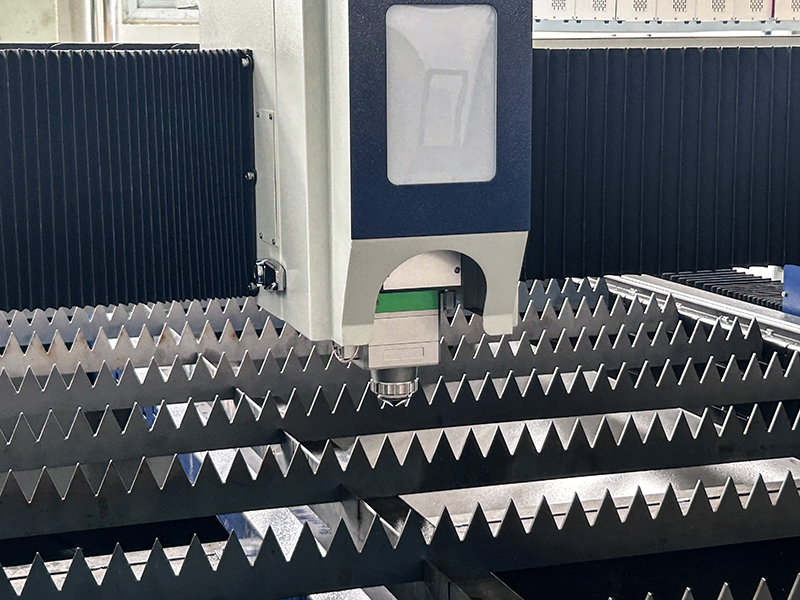

Auto focus cutting head
The laser head has a built-in motor drive unit, and the focusing lens is driven by a linear mechanism to automatically change the position . The user can set continuous focus through the program to complete the rapid perforation of thick plates and automatic cutting of plates of different thicknesses and materials.
Heavy duty machine body
Weight up to 1.3T, when the machine cutting, it can keep the machine run more stable.
Aluminium alloy Gantry
Resistant to deformation and light in weight, allowing the machine to run faster and cut more accurately

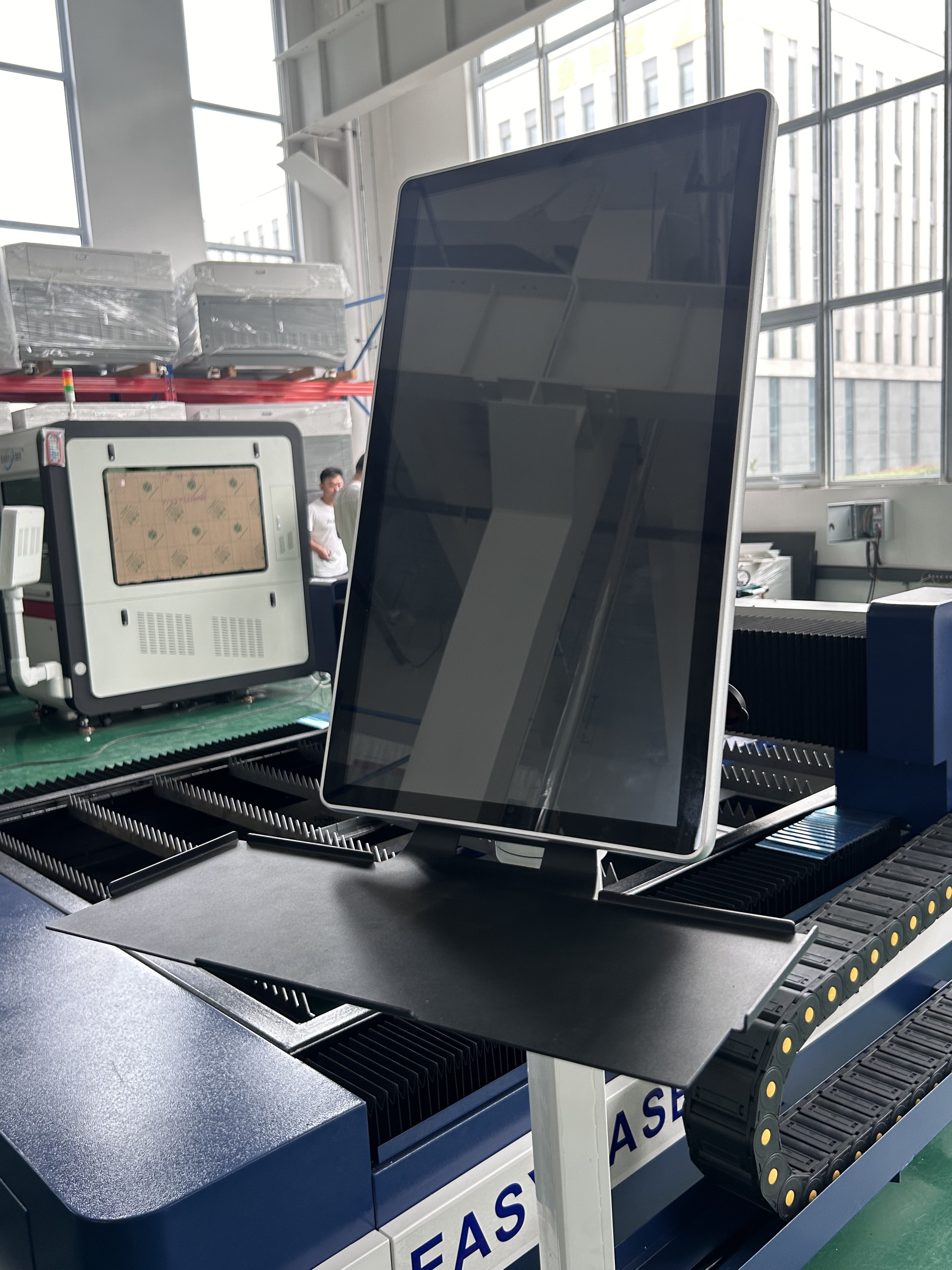

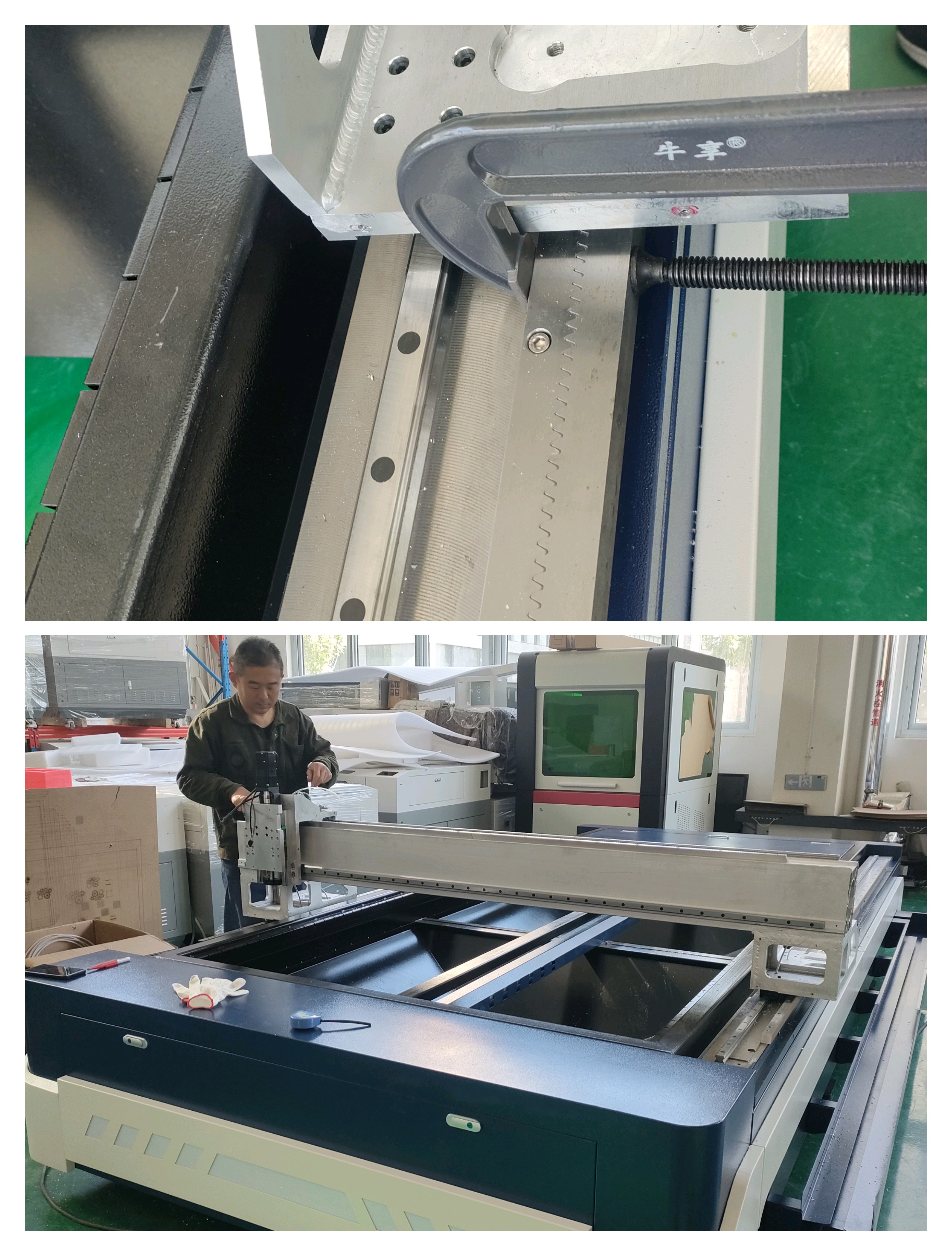

Skilled assembly technician, equipped with industrial grade computer, strictly inspect and calibrate the machine before shipment, customers can use the machine immediately after receiving it

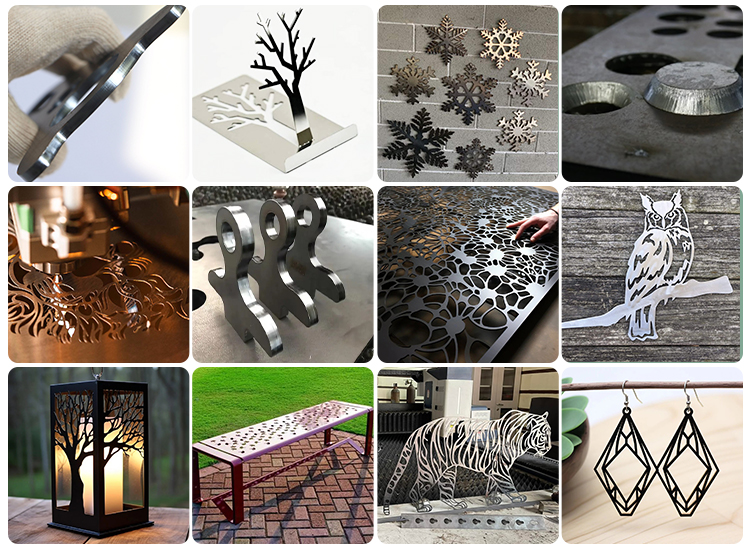

Cutting samples
Any question, please feel free to contact sales05@rayfinetech.com, thank you :)
