Enclosed 1500W 2000W 3000W Laser Cutting Machine Metal High Precision Fiber Laser Cutter 600x600mm 1300x900mm

5 0 Reviews
# High precision
# Servo motor and drive system lead screw and linear guide
# Smooth marble worktable design
# Fully enclosed door protection
# Metal cutting
# Jewelry cutting
# Durable and stable
Availability:
Quantity:
Inquire Add to Basket

  • 6060 1390

  • ray fine tech

  • 845611

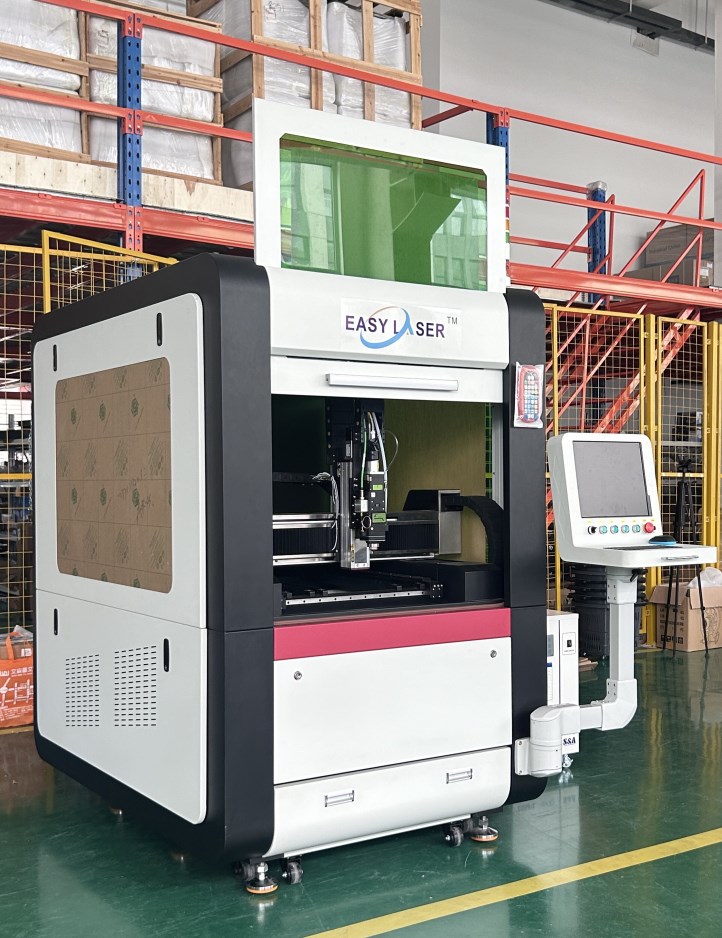

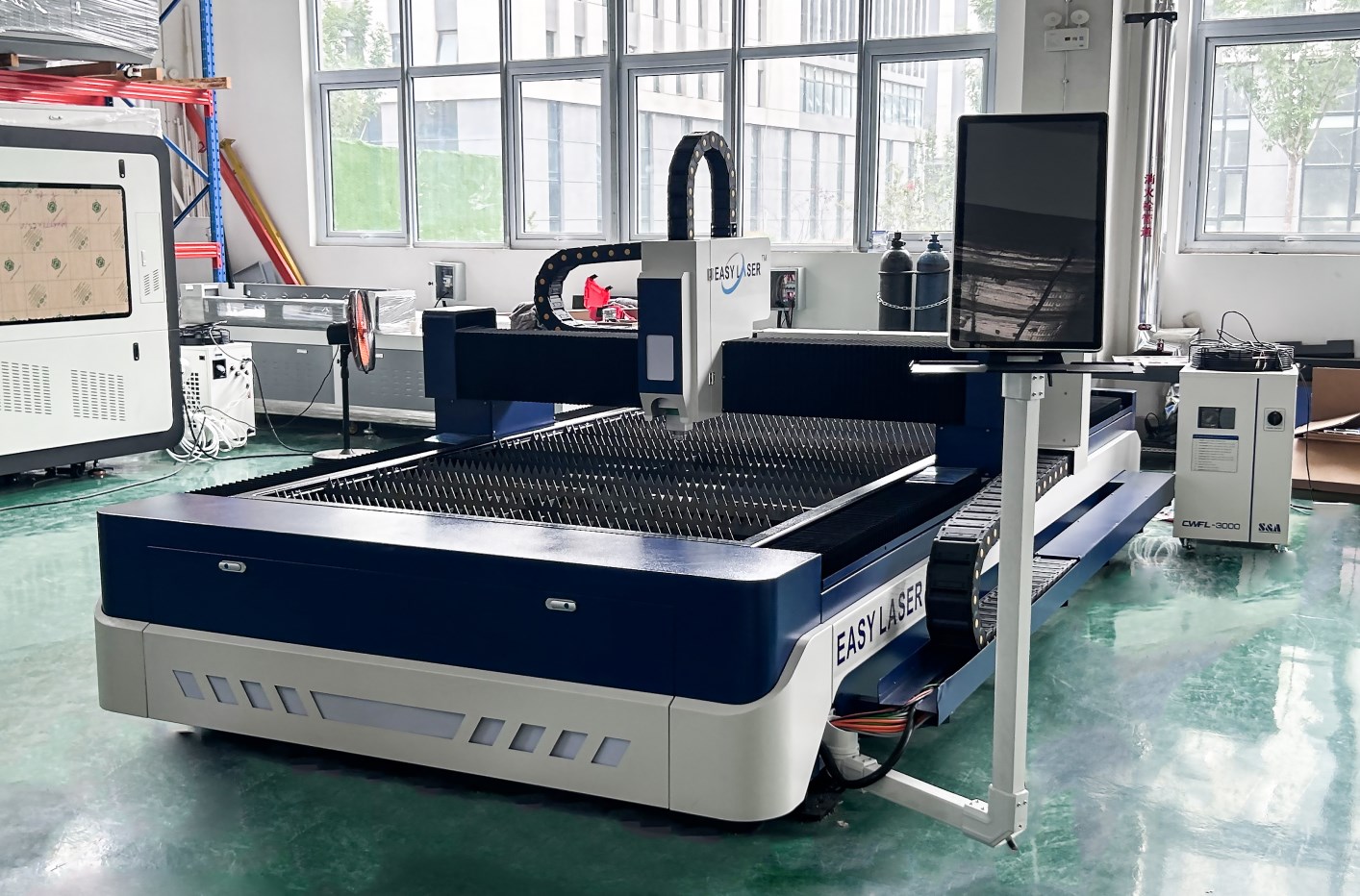

MACHINE PHOTOS

High Precision 1500W 2000W 3000W Fiber Laser Cutting Machine

Dingtalk_20240715141620Dingtalk_20240715141533Dingtalk_20240715141730Dingtalk_20240715141717Dingtalk_20240715141803Dingtalk_20240715141844

PRODUCT SPEC


Machine name Laser Cutting Machine
Model RF 6060
Laser type Fiber laser

Function

 Metal sheet cutting

Cutting area

 600 x 600 mm
Cutting speed 500mm / s
Auxiliary gas oxygen，nitrogen， air
Motor Servo
Transmission Ball screw and liner rail
Repeat position accuracy 0.03mm
Control system Cypcut or Raytools
Cooling way Industrial chiller
Voltage 220V 1500W 200W  / 380V 3000W
Power consumption ＜8KW


DETAILS

Laser source - MAX (RAYCUS/RECI/BWT/JPT we also supply)

(1) High-quality laser output
(2) High power and high efficiency
(3) High reliability and long life

Dingtalk_20240702161203


Industrial chiller ： Temperature control accuracy ±0.3~0.5℃

Dingtalk_20240702155316


Laser head - Raytools high quality and famous brand

微信图片_20240702084823

Dingtalk_20240702091411

Industrial computer with Cypcut control system and wireless handle box, Easy to learn and operate

微信图片_20240702084735

软件


Workbench - Marble
(1) Level and smooth

(2) Pneumatic clamps to fix metal plates

微信图片_20240703084823

微信图片_20240702084812

Transmission: Linear guide and ball screw

微信图片_20240702084818微信图片_20240702084823

SAMPLE

25

414038366O1CN01aLNGGS1mHzY7qTAKC_!!2212951204930O1CN01ZJ4dG51mHzY0B8tz0_!!2212951204930

2
