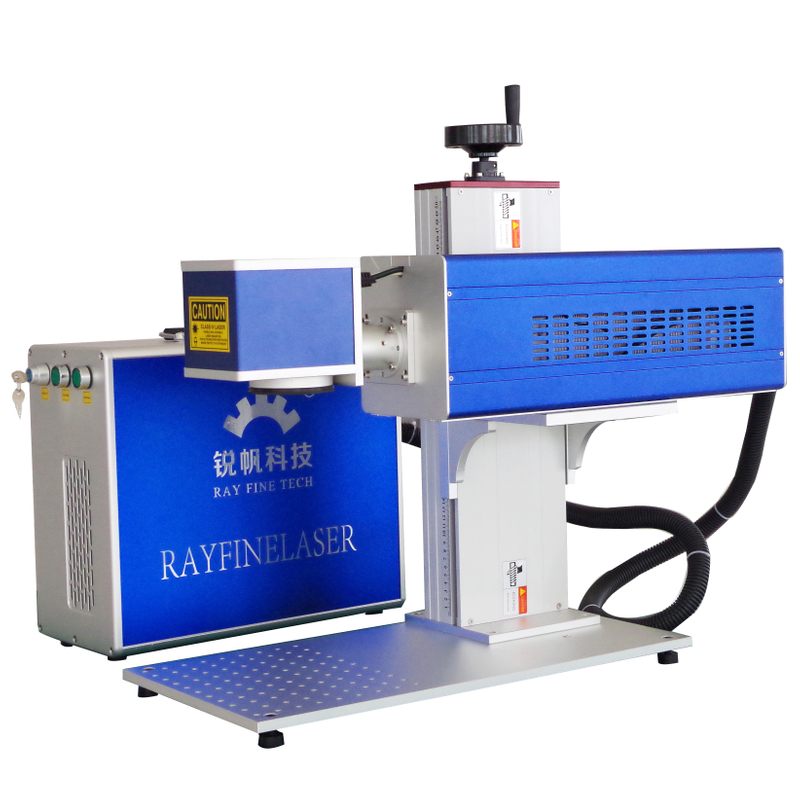

Coherent Synrad 30W CO2 Galvo Laser Marking Machine Non Metal Laser Engraving Machine

* Metal tube CO2 laser source, suit for high precision marking work
* High speed Sino-Galvo laser head and improve marking speed
* Genuine BJJCZ control card with free EZCAD software and operating simple
Availability:
Quantity:
  • RF-CO2-30W
  • ray fine tech
  • 845611

Machine Picture

CO2 laser marking machine

3.

Front

2.

Back


Details Specification

IMGP491520220408_14312520220407_131750


USA CO2 laser source   · Synrad   ·Coherent

• Superior beam quality, power stability and rugged reliability

• Industry leading compact size with integrated RF power supply

• High performance at wavelengths 10.6 µm

• Wide power range with constant wave (CW) or pulse width modulation (PWM) control

• High quality laser processing on a wide range of materials

20220407_131440


Original BJJCZ control card

20220407_131058


Sino-Galvo head

•input aperture 12mm (we also produce more precision 14mm 16mm )

•Small drift, precise repetitive positioning

20220408_142526


F-Theta lens · USA CVD ZnSe high quality lens

ggh


External dual red light to find focal length

20220408_143146


170mm widthened Z tower column

ii


650mm*305*12mm aluminum base plate

DSC01393


EZCAD 2 software

软件1

未标题-2

软件2

软件3


Optional Accessories


82

Application

Wood ,Leather,Acrylic,Rubber,MDF board,  Plastic

99920

Wood

201902115c61307410929

Leather/Cloth

20200729_140608

Plastic

5588

QQ图片20190927143552


NOTE: This specification sheet is an example of 30w co2 laser marking machine.

Model

RF-CO2-30W
Laser wavelength10.6μm

Laser output power

>30W

Cooling type

Air cooling

Marking Area

110mm×110mm  standard

Max working speed

6m/s

Laser beam quality M2

<1.2

Min. Character size:

0.1mm

Repetition Accuracy

<8μrad

Supply voltage:

AC110V 60HZ / AC220V 50HZ  ±10%

Control software

EZCAD

Power consumption

≦700w
Machine weight50~60 KG


We provide free YouTube operation videos and PDF English manuals.

We have professional after-sales technicians who can assist through WeChat, Email, WhatsApp, Teamviewer.

Before packing  in our factory, we do a 24-hour test. When you receive the machine, connect to the computer and you can use the laser directly.

We Provide Free Ezcad Software.
