Full Enclosed 3w 5w 10w 15w 20W CNC UV Laser Marking Machine for Plastic,glass And Metal

Share to:

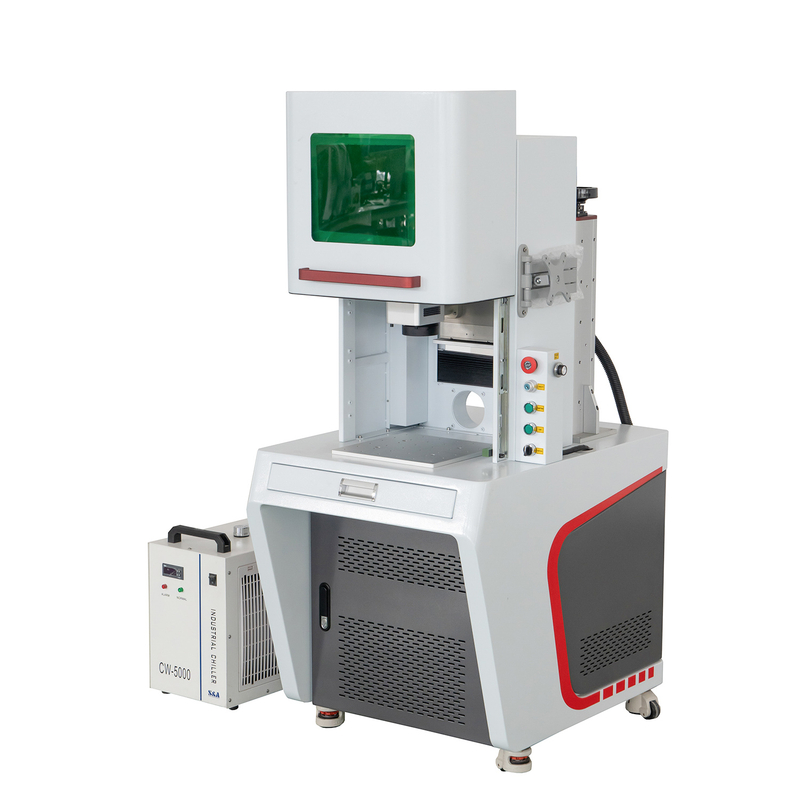

Full Enclosed 3w 5w 10w 15w 20W CNC UV Laser Marking Machine for Plastic,glass And Metal

5 0 Reviews

UV Laser Marking Machine is mainly used in precision processing of high-end market, handicrafts, medicine, cosmetics, video and other polymer materials packaging bottle, the mark is very precise

Availability:

Quantity:



Inquire Add to Basket

Model:
3w 5w 10w 15w 20w
Brand:
RAY FINE TECH

full enclosed 3w 5w 10w 15w 20w UV Laser Marking Machine

>>Laser source Advantages

-Photoelectric Integration,Anti-interference,One-button start

-Fully sealed structure, dust-proof, moisture-proof

-Self-purification-longer lifetime

-Compact size,saving installation space

-Narrower pulse duration

>>Application

- Marking for 3C industry
- Laser rapid prototyping
- Industrial micro machining
- Silicon wafer processing
- LED scribing

>>Makring Samples

HTB1PaDwX.vrK1RjSszfq6xJNVXab

*Verify Code

Related Products

JPT M7 Mopa / LP Portable Split Fiber Laser Marking Engraving Machine 20W 30W 50W 60W 80W 100W

Rotation Worktable for Fiber Laser Marking Machine

Rotary Device for Ring Marking on Fiber Laser Marking Machine

JPT M7 Color Marking Mopa CNC 20w 30w 60w 80w 100w 120w 150w 200w Fiber Laser Marking Machine

Enclosed Type Mini Portable CNC Fiber Laser Marker Engraver Marking Engraving Machine for Metal Plastic

Parameter Unit	Parameter
Model	RF-UV-3W	RF-UV-5W
Wavelength	355ns
Average power	>3w@40KHZ	>5W@60KHZ
Pulse duration	<10ns@40KHZ	<10ns@60KHZ
Pulse Repetition Rate Range	30-200KHZ
Spatial mode	TEM
Beam Quality(㎡)	≤1.2
Beam Circularity	>90%
Beam Full Divergence Angle	≤2mrad
Bean Diameter(1/e²)	Non-expanding:0.7±0.1mm
Polarization Ratio	>100:1
Polarization	Horizontal
Average power stability	RMS≤3%@24hours
Working Temp&RH	10-40℃, <80%
Cooling method	Water cooling
Supply voltage:	AC110V/AC220V
Package dimension	11774150cm
Gross weight	200kgs

Machine	1 set
Standard Accessories
1.Focus ruler	1pcs
2. English user manual	1pcs
3. U-disk for software	1pcs
4.software Setup CD	1pcs
5.Foot switch	1pcs
6.Allen wrench	1pcs
7.Power cable(as per request)	1pcs

Parameter Unit	Parameter
Model	RF-UV-3W	RF-UV-5W
Wavelength	355ns
Average power	>3w@40KHZ	>5W@60KHZ
Pulse duration	<10ns@40KHZ	<10ns@60KHZ
Pulse Repetition Rate Range	30-200KHZ
Spatial mode	TEM
Beam Quality(㎡)	≤1.2
Beam Circularity	>90%
Beam Full Divergence Angle	≤2mrad
Bean Diameter(1/e²)	Non-expanding:0.7±0.1mm
Polarization Ratio	>100:1
Polarization	Horizontal
Average power stability	RMS≤3%@24hours
Working Temp&RH	10-40℃, <80%
Cooling method	Water cooling
Supply voltage:	AC110V/AC220V
Package dimension	11774150cm
Gross weight	200kgs

Machine	1 set
Standard Accessories
1.Focus ruler	1pcs
2. English user manual	1pcs
3. U-disk for software	1pcs
4.software Setup CD	1pcs
5.Foot switch	1pcs
6.Allen wrench	1pcs
7.Power cable(as per request)	1pcs
