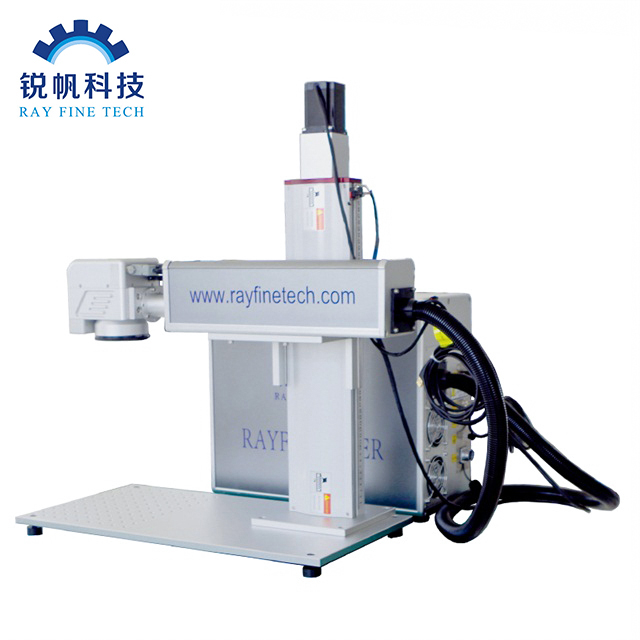

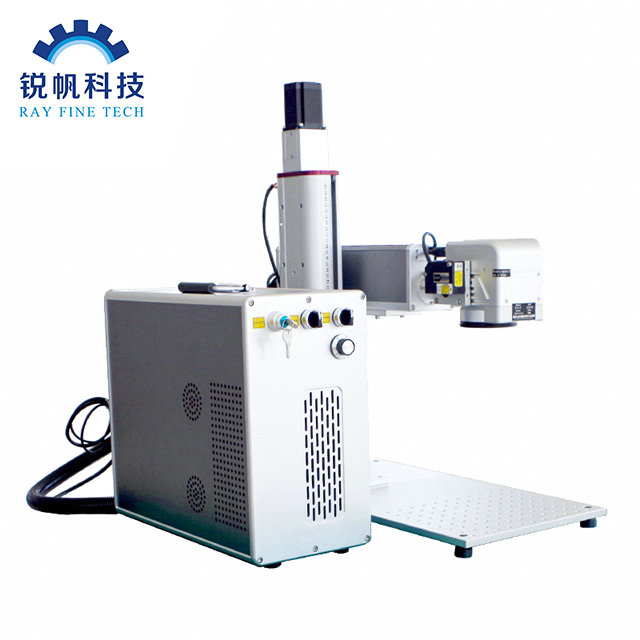

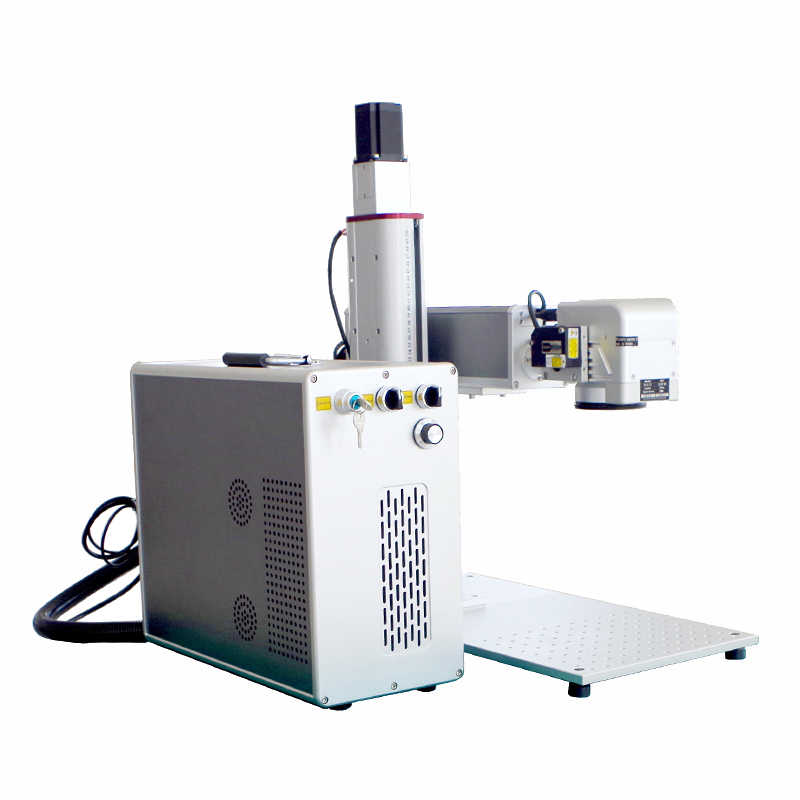

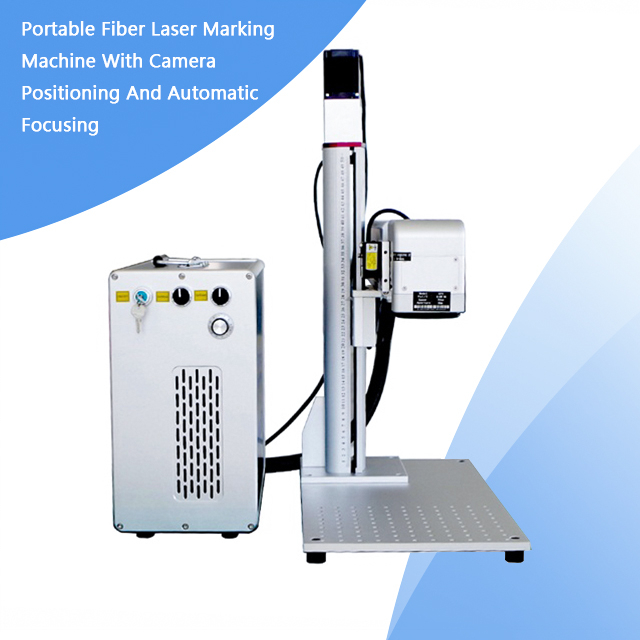

JPT M6 Mopa Portable Split Mini Fiber Laser Marking Machine 30W with Auto Focus And Cyclops Camera Position

Fiber laser marking machine is the new generation laser marking system developed with advanced laser technique. It adopts fiber laser to output laser and achieves to marking function after high speed scan ioscillating mirror system. It has higher photoelectric transfer efficiency. This machine adopts air cooling way and the whole machine is small. The output beam is qualified, high reliability.

Quantity:
  • RF-F-30W
  • RAYFINE TECH

JPT M6 Mopa portable split mini Fiber Laser Marking Machine 30W  with auto focus and cyclops camera position


                      640x640 自动对焦加电动升降 3 无标

Special design

1.Auto Focus :

When we mark work-pieces with different height, the displacement transducer can Automatically sense workpiece height .

Then the machine will be up and down the laser head by itself.

No need move the laser head up and down by hand when marking workpieces with different height.

8自动对焦系


2.Cyclops camera position system:

We can see work-piece in software through the camera.

Then we can set the marking point via software on the photo then we no need to move the work-piece to find the marking place.

That means draw there, mark there



6相机定位系统





M6+ Series MOPA pulsed fiber laser is a new design product. In addition to the advantages of M1+ series,M6 has boarder pulse width, higher response speed and first pulse usability.

It provides a best choice of fiber laser for highest industrial standards marking and other applications.JPT has complete and strict performance and reliability inspection of every M6+,to guarantee high quality and reliability.



JPT M6 Fiber laser source Application advantages:

- 1ns ~ 250ns wide adjustable pulse width, wider application range of material

- Wide repetition rate for diverse application

- Excellent beam quality, excellent processing performance

- First pulse availability and quicker pulse response speed, good choice for highly precise & fine marking

- No light leaking, safe marking


Application :

1. fine marking on Metal and some nonmetal materials

2. Color marking on stainless steel

3. Black marking on stainless steel and anodized aluminium

4. Mold steel engraving

 Samples:

mopa (1)_看图王_副本


1. JPT mopa laser with pulse duration adjustable with best laser beam quality

2 .Small size, one unit structure and user-friendly operation.

3. Double red dots more easy to get focus.

4.Maintenance-free and 100 000 hours long life time with 3 years warranty

5. Quality electric parts.

6. Best quality digital Galvotech scan head.

7. Genuine EZCAD control program compatible with win7/win8/win10


The laser source we can apply brands:

IPG/JPT/RAYCUS/SPI/MAX etc


Model

RF-F-20W

RF-F-30W

RF-F-30W

RF-F-70W

Fiber laser source

JPT Brand

YDFLP-20W-M6+-S

YDFLP-30W-M6+-L1

YDFLP-30W-M6+-S

YDFLP-70W-M6+-L1-X

Power output

20W

30W

30W

70W

Beam Quality M2

<1.3

<1.8

<1.3

<1.8

Maximum Pulse Energy

0.5 MJ

0.97MJ

0.5MJ

1.0 MJ

Main board and control

software

Genuine EZCAD (BJJCZ) which supports XP Win7 /8/10

Wavelength

1064nm

Marking speed

8000mm/s

Marking Area

110mm×110mm(optional)

Min. linear width

0.001mm

Min. Character size

0.2mm

Full power Frequency range(KHZ)

40~2000 khz

31~2000khz

60~2000khz

70~2000khz

Frequency adjustable range

1~2000 KHZ

Pulse Duration

1~250ns

2~250ns

2~250ns

2~250ns

Out beam diameter

7 ±0.5mm

6 ±0.5mm

7 ±0.5mm

6 ±0.5mm

Supply voltage

AC 110/220V±10%, 50/60Hz

Power cable style

According to your request (Asian /European / American standard)

Focus

Double red dots positioning

Cooling way

Air cooling

Operation temperature

0~40℃

Package dimension

LxW xH(mm)

750x410x800 m

Package gross weight

55kgs

FDA /CE Certificate

Approved



1滚轴

2 2D 工作平台

3旋转平台


5聚焦镜

7传送带


1. Rotary advice:used for curved surface marking

2. 2D worktableX Y axis adjustable worktable can achieve very small position movement of work-piece via adjust the worktable.

So if the work piece's position need very small movement, we no need to move the work-piece, just to adjust the

 worktable by X and Y axis's handle

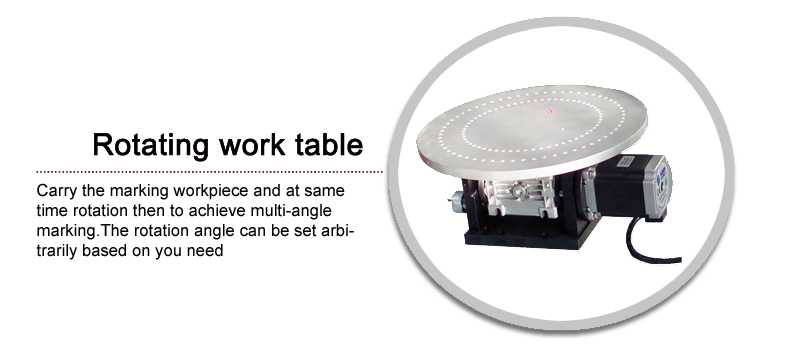

3.Rotating worktable : Carry the marking workpiece and at same time rotation  to achieve multi-angle marking.The rotation angle can be set arbitrarily based on your need

4.Goggles:protect your eyes

5.LENS:working care can be 70x70mm/110x110mm/150x150mm/200x200mm/300x300mm for option .

We can choose different size lenses in one machine for different works.

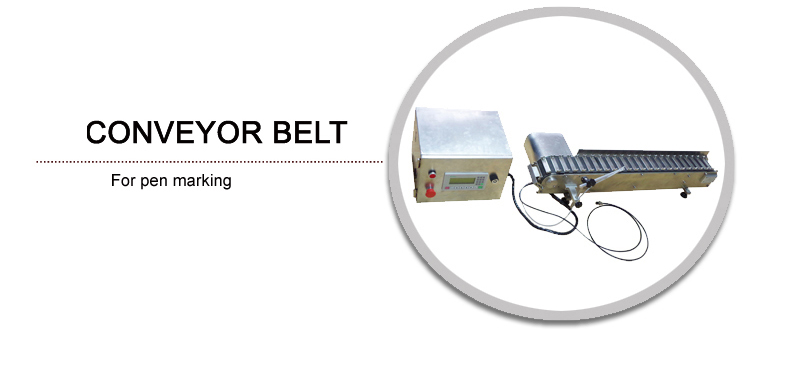

6.Conveyor belts:For pen marking
