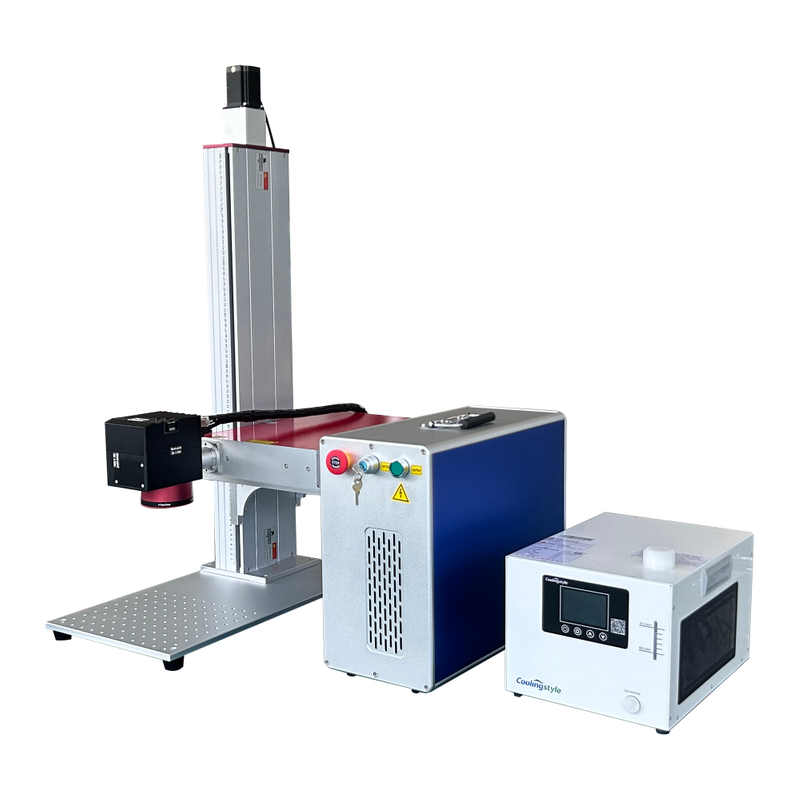

JPT MOPA M8 100W Fiber Laser Marking Machine for Glass Drilling Cutting Engraving
Specially for glass cutting
| Model | YJ-F-100W | ||
| Fiber laser source brand | JPT | ||
| Fiber laser source type | MOPA | ||
| Output power | 100W | ||
| Beam quality | <1.4 | ||
| Max single pulse energy | 0.58mJ@12ns | ||
| Pulse duration | 6-100NS | ||
| Frequency | 1-4000khz | ||
| Center Wavelength | 1064nm | ||
| Cooling type | water | ||
| Marking Area | 70x70/110x110/200x200/300x300mm | ||
| How to get focus | double red light | ||
| Beam diameter | 3 +-0.5mm | ||
| Max positioning speed | 8000mm/s | ||
| Min. Character size | 0.2mm | ||
| Supply voltage | AC110V 60HZ / AC220V 50HZ | ||
| Control program | EZCAD2 from BJJCZ | ||
Machine main parts

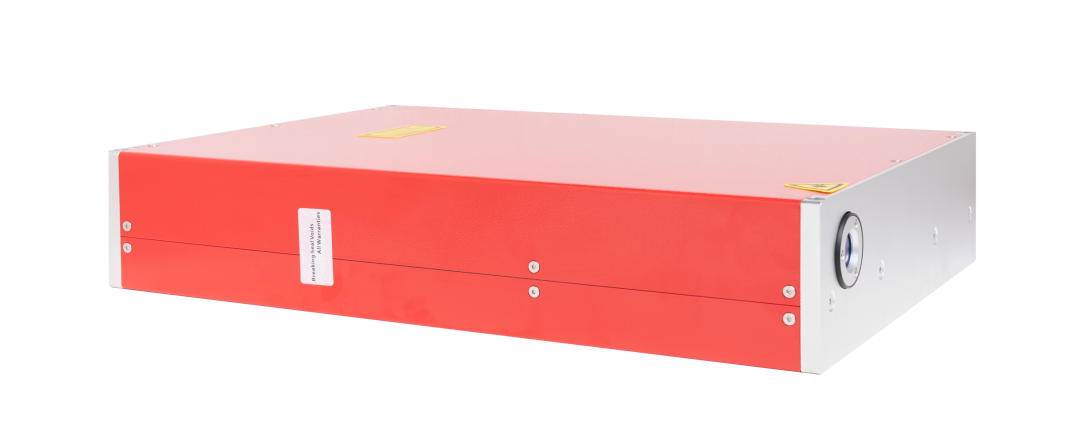

Laser source
JPT M8 series laser adopts MOPA (Main Oscillation Power Amplification) structure, which can support independent adjustment of pulse width and pulse repetition rate. The M8 series optimizes the pulse peak power and beam quality on the basis of maintaining the performance of the original series. It can maintain excellent beam quality under high-power working conditions, and the maximum peak power is greater than 50 kW. It is especially suitable for glass drilling and other applications that have high requirements on peak power and brightness.
Whole machine body adopts the leading machining and oxidation process.
Motorized Z axis
For finding focus by motorized lifting
Standard control card EZCAD2
Optional control card EZCAD3
Samples:
glass engraving
glass cutting
Optional parts:
More detail request, please feel free to send email to us: sales05@rayfinetech.com, thank you :)
