100W
ray fine tech
845611
JPT M8 Laser Marking Machine
JPT M8 laser source

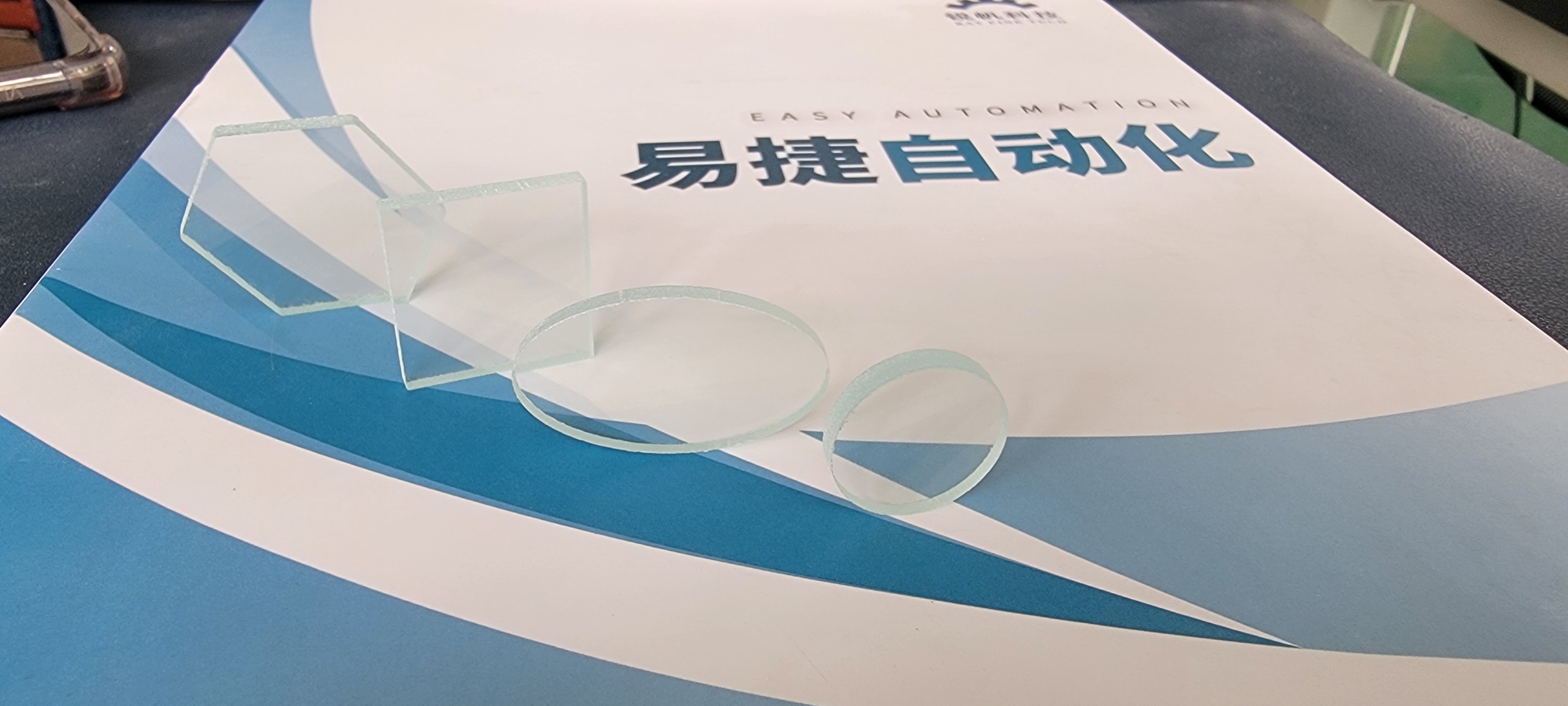

#Glass drilling
#Thin plate cutting
#Thin plate drilling
#Anode stripping, coating stripping
#Marking and engraving
#Stable working performance
Good quality JCZ galvo head with Quick speed response
Quartz / sico F-theta lens with excellent transmittance

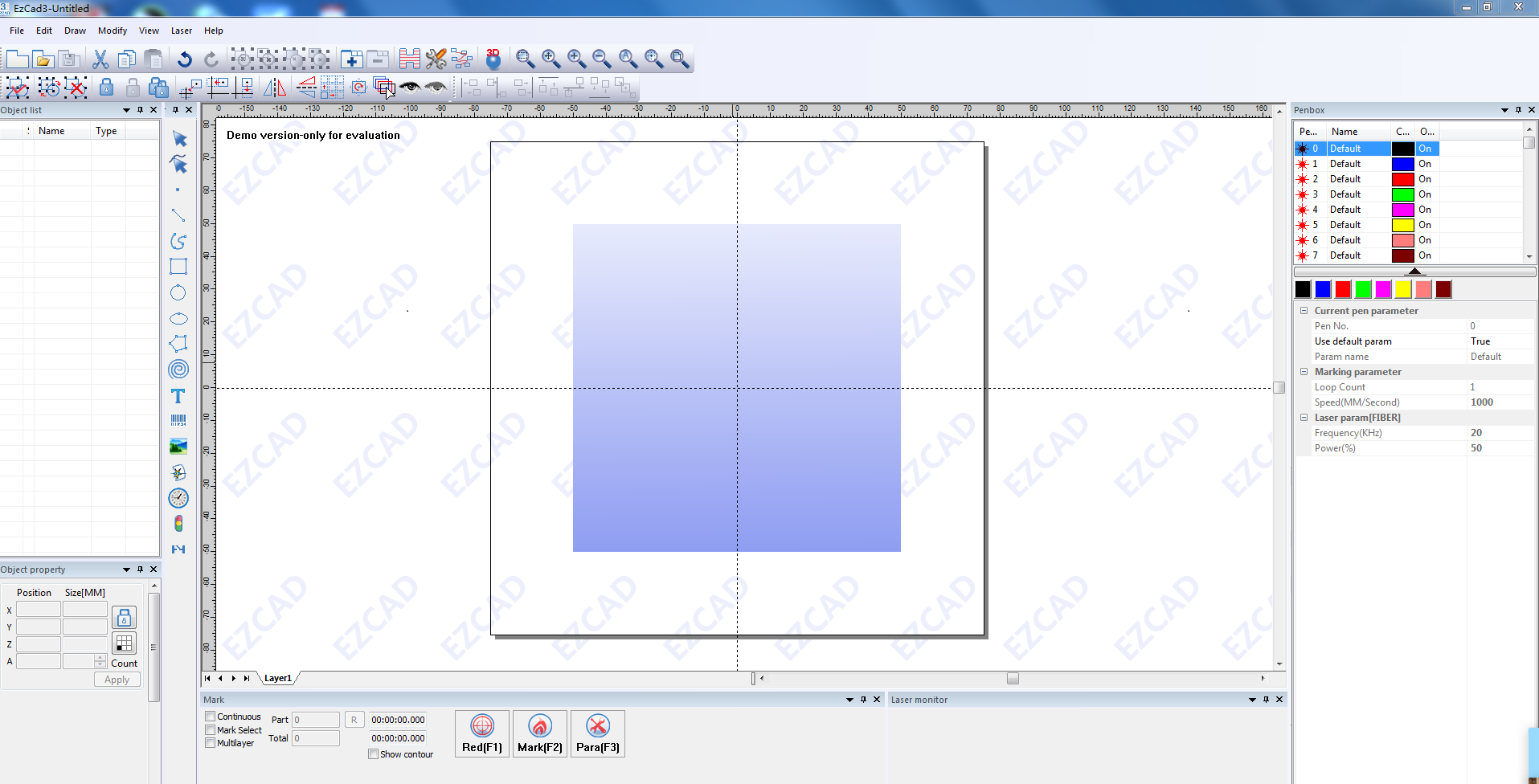

EZCAD3 software and Galss cut special software
Precision industrial chiller
LASER MARKING MACHINE DATASHEET
| Machine name | Laser Marking Machine |
| Laser power | 100W |
| Laser type and brand | Fiber laser |
| Laser frequency | 1-4000kHz |
Laser wavelength | 1064nm |
Marking area (optional) | 70X70mm 110x110mm 150x150mm 175x175mm 200x200mm 220x220mm 250x250mm 300x300mm |
| Cutting glass thickness | ＜4.0mm depend on engraving time |
| Marking speed | 8000mm/s |
| Minimum marking character | 0.1mm visible |
| Control software | EZCAD 3 and Glass cut software |
| Control software support | Vector graphics / Bitmap / DXF and other file formats |
| Control software operation | Windows computer |
| Machine work voltage | AC110V 60HZ, AC220V 50HZ ±10% |
| Machine power consumption | ＜800W |
| Machine cooling way | Water cooling |
-We provide free YouTube operation videos and PDF English manuals.
-We have professional after-sales technicians who can assist through WeChat, Email, WhatsApp, Teamviewer.
-Before packing in our factory, we do a 24-hour test. When you receive the machine, connect to the computer and you can use the laser directly.
-We Provide Free Ezcad Software.
We produce laser marking machine, laser Engraving Machine, laser cutting machine, laser welding machine, a variety of laser equipment. Types include fiber laser, CO2 laser, UV laser, 3D laser, MOPa laser. We look forward to working with you.
Sample show: Metal surface marking, plastic surface marking, metal deep engraving, metal cutting, metal cleaning, metal drilling. From 20W to 200W.
