Portable Split Style 355nm Wavelength 3W 5w 10w UV Laser Marking Machine

5 0 Reviews
* Water cooling system
* 3W 5W 10W 15W laser power optional
* High-precision marking on glass,plastic,Silicone, ceramic, 3C, medical equipment
Availability:
Quantity:
  • RF-UV-3W / 5W / 10W / 15W

  • RAY FINE TECH

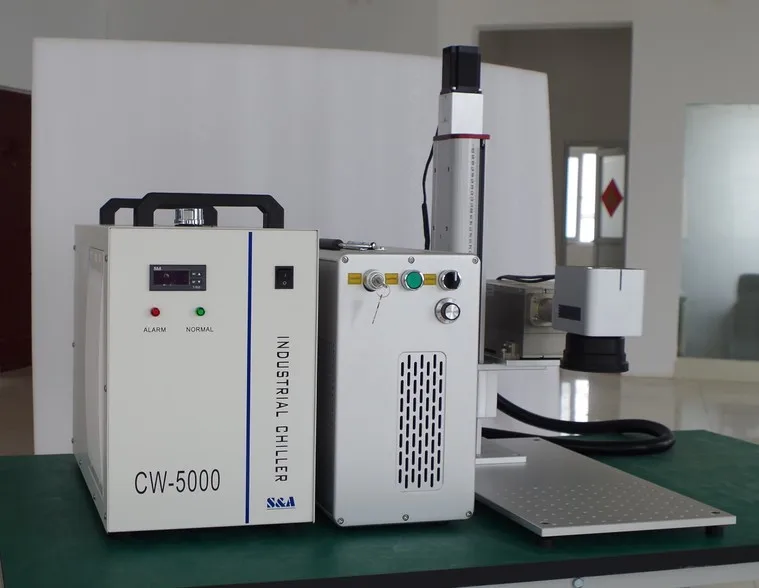

Portable Split Style 355nm  Wavelength 3W 5w 10w 15w UV Laser Marking Machine

产品展示

Show Details

 Laser source Advantages

- Photoelectric Integration,Anti-interference,One-button start

- Fully sealed structure, dust-proof, moisture-proof

- Self-purification longer lifetime

- Compact size,saving installation space

- Narrower pulse duration


IMGP5733

Application and Sample Display


1. Plastic , Glass
2. Gold plating, silver and other surface marking
3. oil plastic material surface marking,eg: samsung panel, melamine
4. Mark the surface of dehalogenated elemental materials, eg: IPHONE charger, connection wire and other peripheral products
5. Daily necessities (beverage packaging, food packaging)
6. Marking of cables and cables
7. Various pipe surface marks

8. Flexible materials and carbon fiber cutting

应用和样品



Technical Parameter

Parameter Unit

Parameter

Model

RF-UV-3W

RF-UV-5W

Wavelength

355ns

Average power

>3w@40KHZ

>5W@60KHZ

Pulse duration

<10ns@40KHZ

<10ns@60KHZ

Pulse Repetition Rate Range

30-200KHZ

Spatial mode

TEM

Beam Quality(㎡)

≤1.2

Beam Circularity

                        >90%

Beam Full Divergence Angle

≤2mrad

Bean Diameter(1/e2)

Non-expanding:0.7±0.1mm

Polarization Ratio

>100:1

Polarization

Horizontal

Average power stability

RMS≤3%@24hours

Working Temp&RH

10-40℃, <80%

Cooling method

Water cooling

Supply voltage:

AC110V/AC220V

Package dimension

117*74*150cm

Gross weight

200kgs

>>Packing list

Machine

1 set


Standard Accessories


1.Focus ruler

1pcs

2.English user manual

1pcs

3.U-disk for software

1pcs

4.software Setup CD

1pcs

5.Foot switch

1pcs

6.Allen wrench

1pcs

7.Power cable(as per request)

1pcs


>> Package


1. Collect all accessories and and spare parts together one by one based on the order list ,and check all parts carefully once more to ensure all parts are included.

2. Our packaging standard:

   +thick layer of plastic wrap,Can be waterproof and moisture proof

   + Six-sided pearl cotton,Protect the machine from collisions

   + high-strength wooden box

   + packing belt and then fix the machine to ensure the safety of the machine during transportation.

3.Stick the shipping mark to ensure the buyer can recognize the right machine easily

4.Stick the Safety signs to remind transporters to take good care of our equipment during shipping
