Best Price 3mm Aluminum Handheld Laser Welding Machine for Metal Pipe Tank

1000W/1500W/2000W handheld laser welding machine with wire feeder
1. High precision and easy operation, one person can complete handheld welding work
2. Fiber laser high electro-optic conversion efficiency, low energy, consumption low consumable cost, low maintenance cost.
3. Smaller heat-affected zone and thermal deformation, reduce the damage to the substrate and improve the appearance of the weld seam.
4. Application metal materials, stainless steel, carbon steel, copper, alloy, galvanized sheet, iron, aluminum, alloy metals.
model:
Availability:
Quantity:
  • RF-1000W/RF-1500W/RF-2000W
  • RayFine

焊接机3

Specification

Model
RF-F-1000W
RF-F-1500W
RF-F-200W
Control software
Touch screen
Touch screen
Touch screen
Laser power
1000W
1500W
2000W
Laser type
Fiber laser
Fiber laser
Fiber laser
Beam diameter
0.2~3.0mm
0.2~3.0mm
0.2~3.0mm
Protective gas
air/argon/nitrogen/CO2
air/argon/nitrogen/CO2
air/argon/nitrogen/CO2
Line length
10 meter
10 meter
10 meter
Wire feeder
0.8/1.0/1.2/1.6/2.0mm
0.8/1.0/1.2/1.6/2.0mm
0.8/1.0/1.2/1.6/2.0mm
Machine Power supply
AC220V
AC220V
380V
Machine cooling system
industrial water chiller
industrial water chiller
industrial water chiller
Machine weight
220KG
250KG
280KG
Machine power
5KW
6.5KW
8KW

Application material(suggestion)
1000W
1500W
2000W
stainless steel
2mm
3mm
4mm
carbon steel
2mm
3mm
4mm
galvanized sheet
2mm
2.5mm
3mm
aluminum
1.5mm
2mm
2.5mm
brass
1.5mm
2mm
2.5mm
Product Description

photobank (11)

JPT Laser source
Fiber laser source, the laser power is stable,,with indicator light and emergency stop button, can more intuitively observe the operation of the laser and make judgments.
With an internal control interface, the operating status of the laser can be monitored in real time through the internal control software.

Different levels of voltage and frequency can be selected according to local electricity demand.

photobank (12)

Industrial Chiller
Control and adjust the temperature of the laser source and better protect the life of the laser source in bad weather temperature.

IMGP8779

Control System
The control board has a shell, which can effectively prevent debris or dust from entering, protect the stability of the control system, and is equipped with a regulated power supply to make the power supply of the control system more stable.

送丝3

Wire Feeder
The portable wire feeder only needs to connect the wire feeder power cable and the wire feeder signal cable to the corresponding interface on the back of the machine, which is easy to connect, and has a touch screen control system, which is simple to control and easy to operate.

枪

Handheld swing head
Feature:Light weight 0.8KG, High quality copper nozzle,Integrated gas protection system.


Packaging & Shipping

Shipping way : FedEx / TNT / DHL , air shipping to door
- Free accessories
- Clean the machine and disinfect it
- Wrap the machine with a waterproof membrane
- Wrap the machine with pearl cotton
- Plywood wooden case packing machine

运输

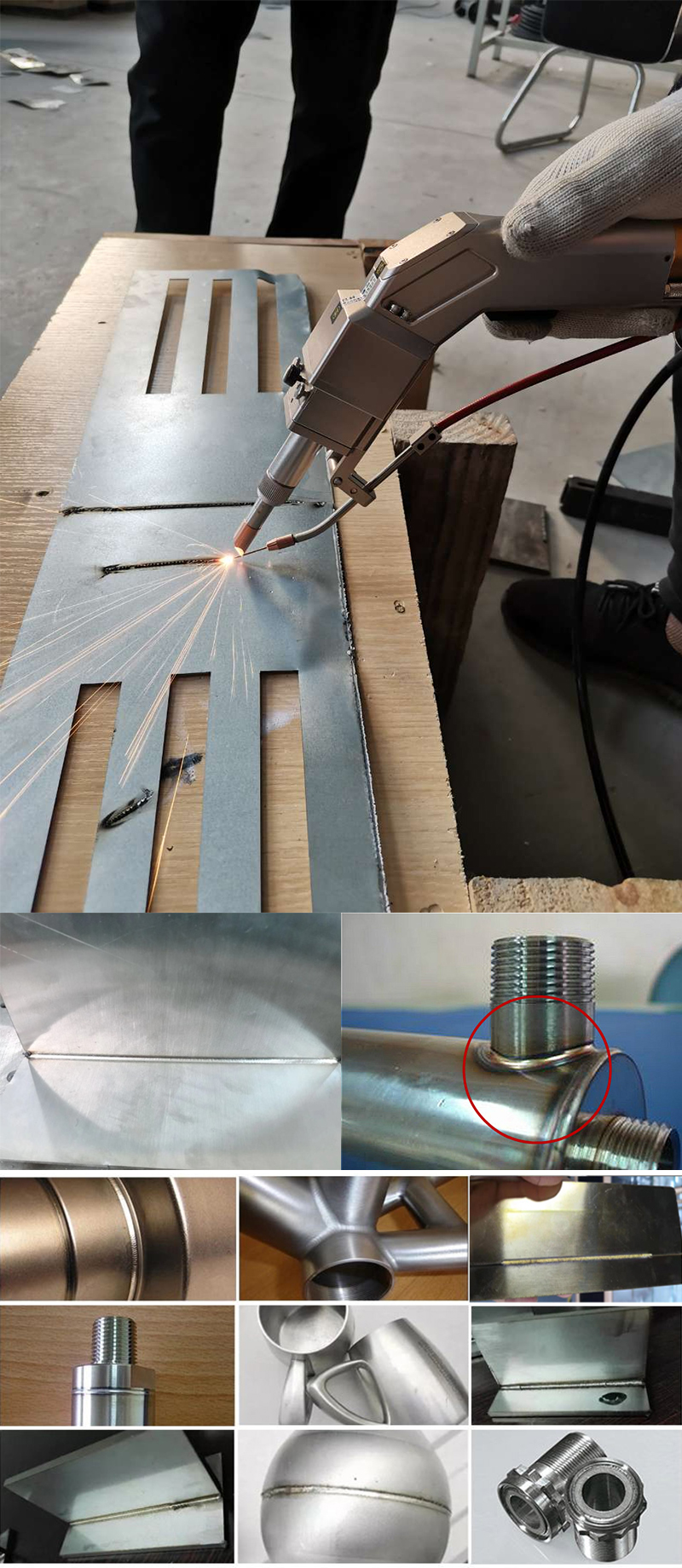

Sample Show

Laser Welding Machine is widely used in mobile phone battery shell, electronic components, mobile communication, precision equipment, hardware products, automotive accessories, glasses, clocks, jewelry, medical equipment, thermal cups, wine pots, kitchens and other industries.

4

FAQ

Q1: I know nothing about this machine, what type of machine should I choose?
A1: We will help you choose the suitable machine and share you the solution; you can share us what material will you welding.

Q2: When I got this machine, but I don’t know how to use it. What should I do?
A2: We will send operation video and manual for the machine. Our engineer will do training online.

Q3: If some problems happen to this machine, what should I do?
A3: We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts,just let us know, we will give you solutions.

Q4: What’s package, will it protect the products?
A4: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.

Q5: What’s delivery time?
A5: Commonly, the lead time is within 5 working days after receiving the payment.

Q6: What payment terms can you accept?
A6: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.

Q7: How is the shipping method?
A7: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement.
