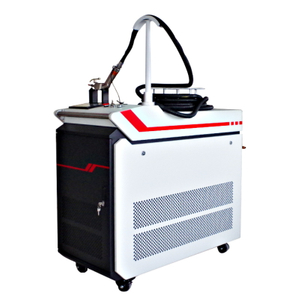

Small 1000W 1500W 2000w 3000W Laser Welding Machine Handheld Portable Metal Aluminum Stainless Steel Fiber Laser Welding Machine

model:
Availability:
Quantity:
  • RF-1000W/RF-1500W/RF-2000W
  • RayFine
ADVANTAGES

   1. Handheld welding head is flexible and convenient, which can realize outdoor welding.
   2. High welding efficiency, 2 to 10 times faster than conventional welding.
   3. The operation mode of the handheld torch enables the work piece to be welded at any angle in any part.
   4. It is suitable for spot welding of various complex welded joints and various equipment.
   5. Compared with traditional welding, the weld seam is flat and beautiful, with very few defects, deeper welding depth and
   smaller thermal stress deformation.
   6. New appearance and new function, which can be cut or welded.
   7.Suitable for stainless steel, carbon steel and other metal materials.

6LJFLIFRBJK2F1HJO3JEX

Item
Parameter
Machine model
laser weld&cut machine
Laser source
JPT
laser power
1000w,1500w, 2000w
laser wave length
1070nm
operate mode
continuation/ modulate
Welding speed range
0~120 mm/s
Laser pulse width
0.1-20ms
Cooling chiller
Industrial water chiller
Working environment temperature range
15~35 ℃
Humidity range of working environment
< 70% No condensation
Welding thickness recommendations
0.5-3mm
Welding gap requirements
≤0.5mm
working voltage
220v



JPT Laser source

Fiber laser source, the laser power is stable,with indicator light and emergency stop button, can more intuitively observe the operation of the laser and make judgments.


Industrial Chiller

Control and adjust the temperature of the laser source and better protect the life of the laser source in bad weather temperature.


Wire Feeder

The portable wire feeder only needs to connect the wire feeder power cable and the wire feeder signal cable to the corresponding interface on the back of the machine, which is easy to connect, and has a touch screen control system, which is simple to control and easy to operate.


Handheld swing head

Feature:Light weight 0.8KG, High quality copper nozzle,Integrated gas protection system.

运输

Shipping way :  FedEx / TNT / DHL , air shipping to door

- Free accessories

- Clean the machine and disinfect it

- Wrap the machine with a waterproof membrane

- Wrap the machine with pearl cotton

- Plywood wooden case packing machine
