Air Cooling JPT 300W 500W Pulsed Handheld Laser Cleaning Machine

Share to:

Air Cooling JPT 300W 500W Pulsed Handheld Laser Cleaning Machine

Pulsed laser cause minimal damage to materials; portable and easy to move; the machine weighs only 60KG+; air-cooled design eliminates the need for industrial refrigeration units;

Availability:

Quantity:



Inquire Add to Basket

Model:
ES-300CL ES-500CL

Product Description

Handheld Laser Cleaning Machine

Model: ES-CL

Laser Power: 300W, 500W, 1000W

Laser Source: JPT MOPA

Laser Wavelength: 1064nm

Maximum Pulse Energy (Customizable): 1.5mJ, 5mJ, 15mJ

Cleaning width: Lens (110*110mm 130*130mm 160*160mm 200*200mm)

Power Adjustment Range: 0%-100%

Cooling Method: Air Cooling/Water Cooling

Voltage: AC110V±10%/AC220V±10%

Total Power: <2KW

Operation Method: Handheld

Cable Length: 5 meters (10 meters customizable)

Cleaning Gun Weight: 0.8 kg

Gas Requirements: Air

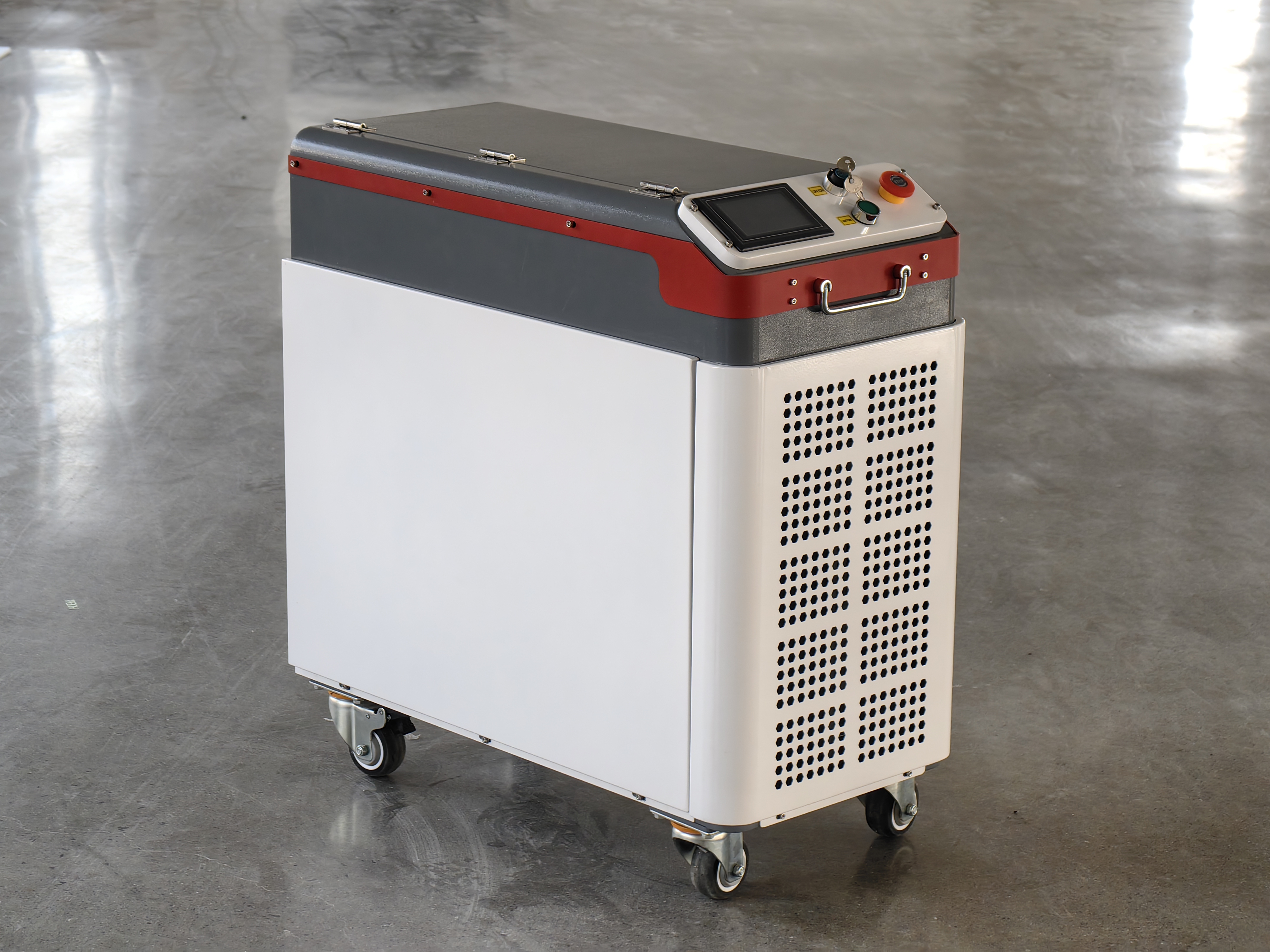

Machine Real Photos

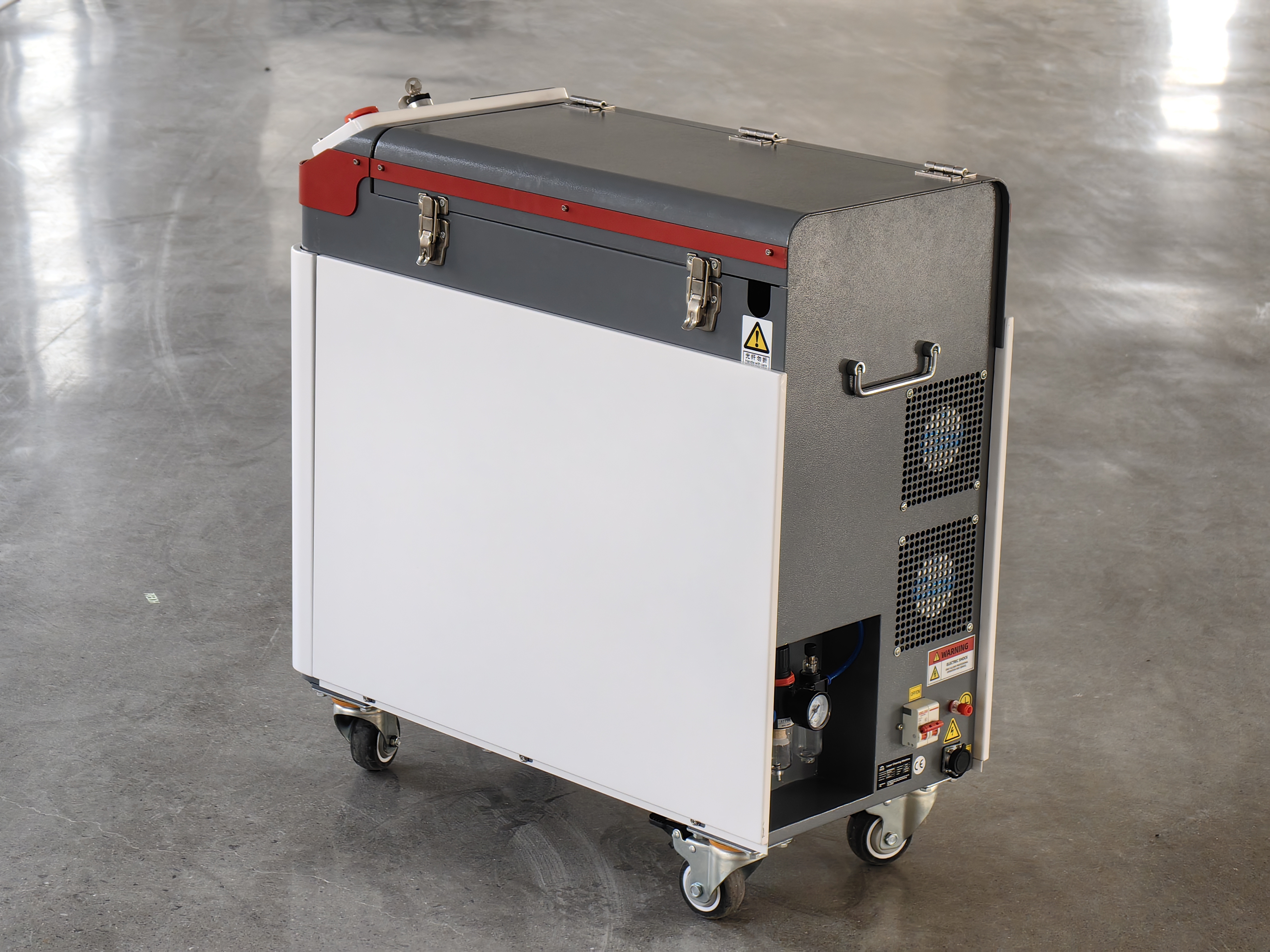

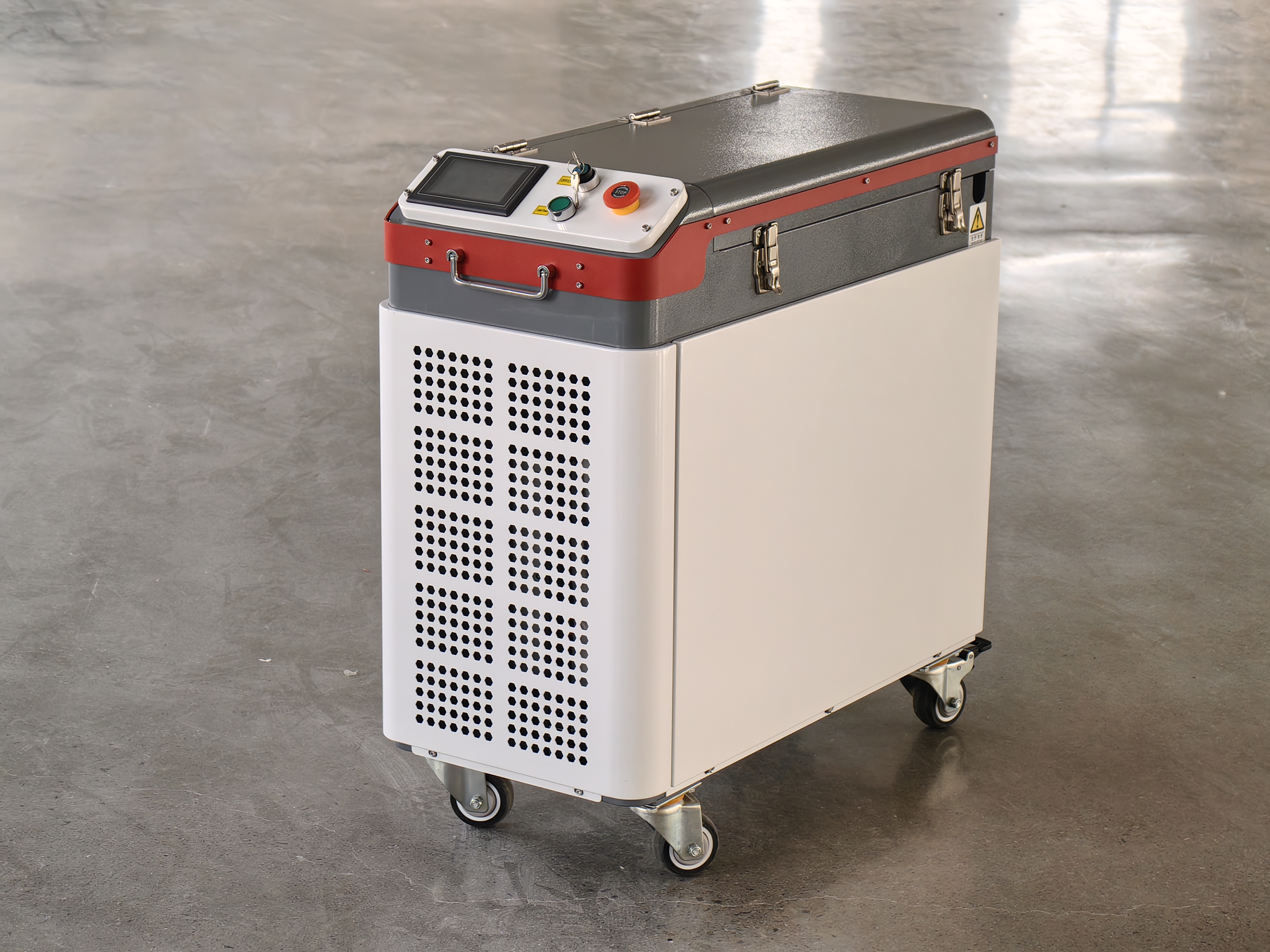

IMG_20260417_162553 IMG_20260417_162758

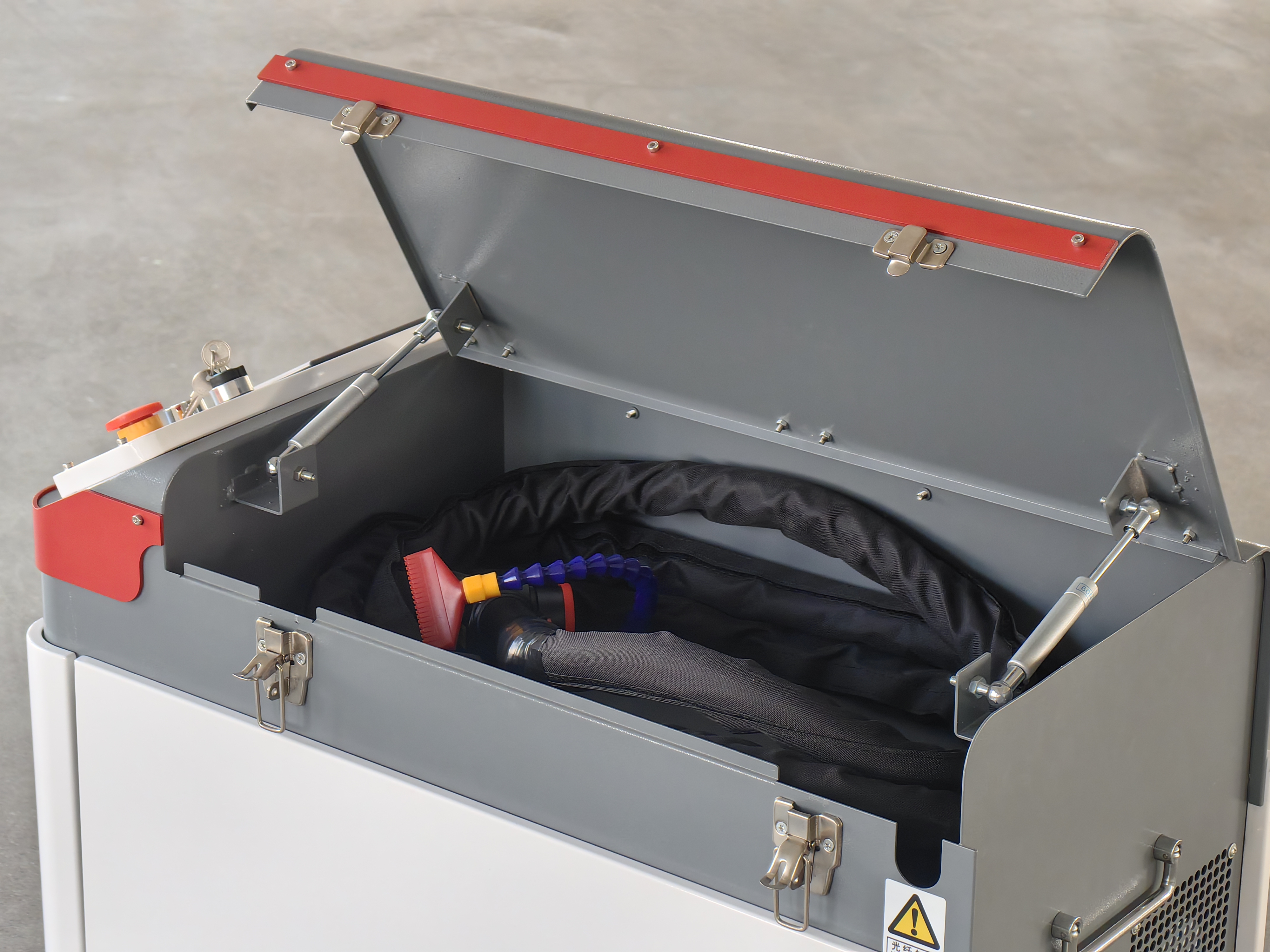

5 Meter cable with enclosed storage box (10 meters customizable)

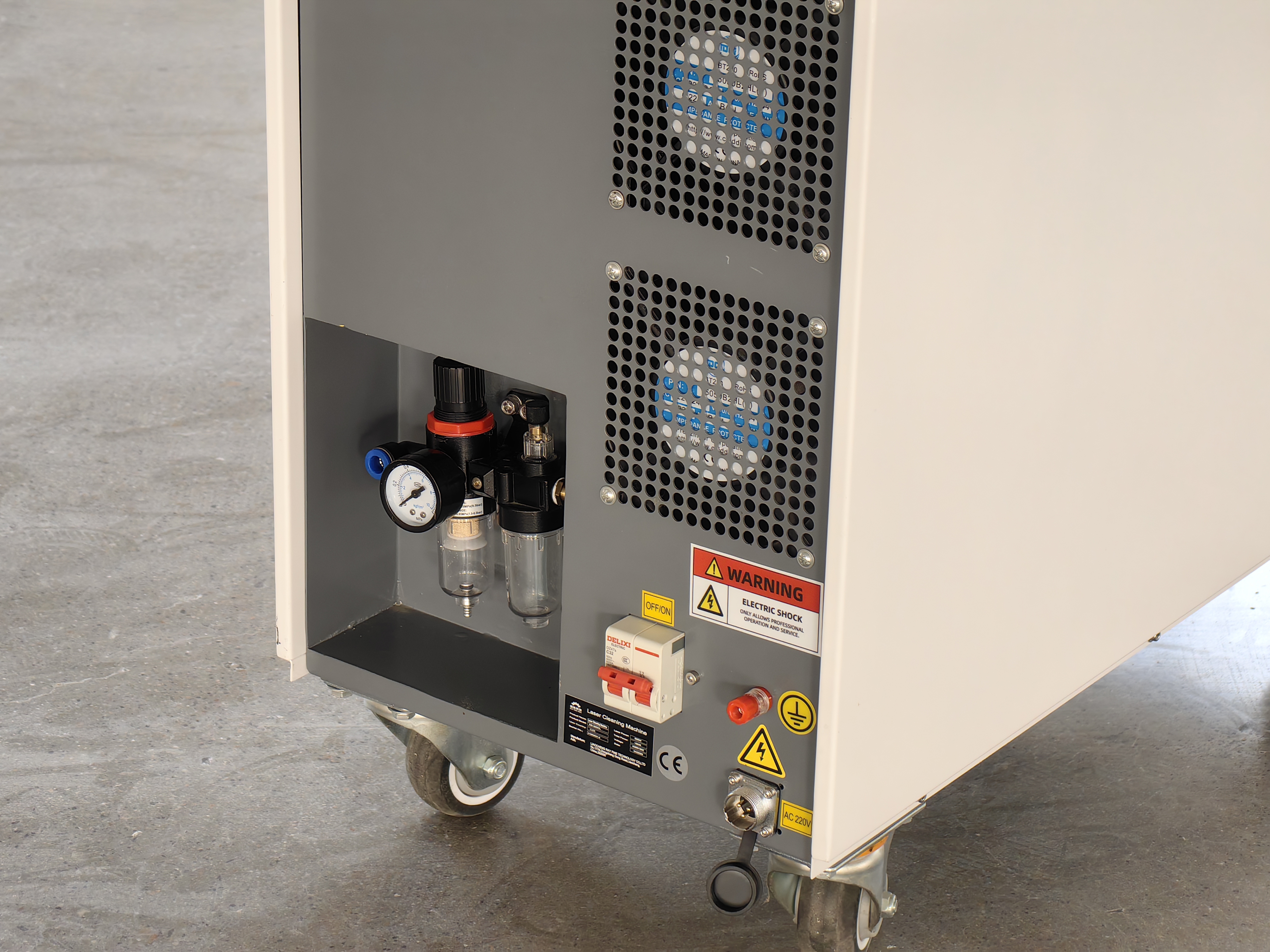

IMG_20260417_162832

Oil-water separator filters moisture and impurities from the air, better protecting the internal lenses of the laser head.

IMG_20260417_163011

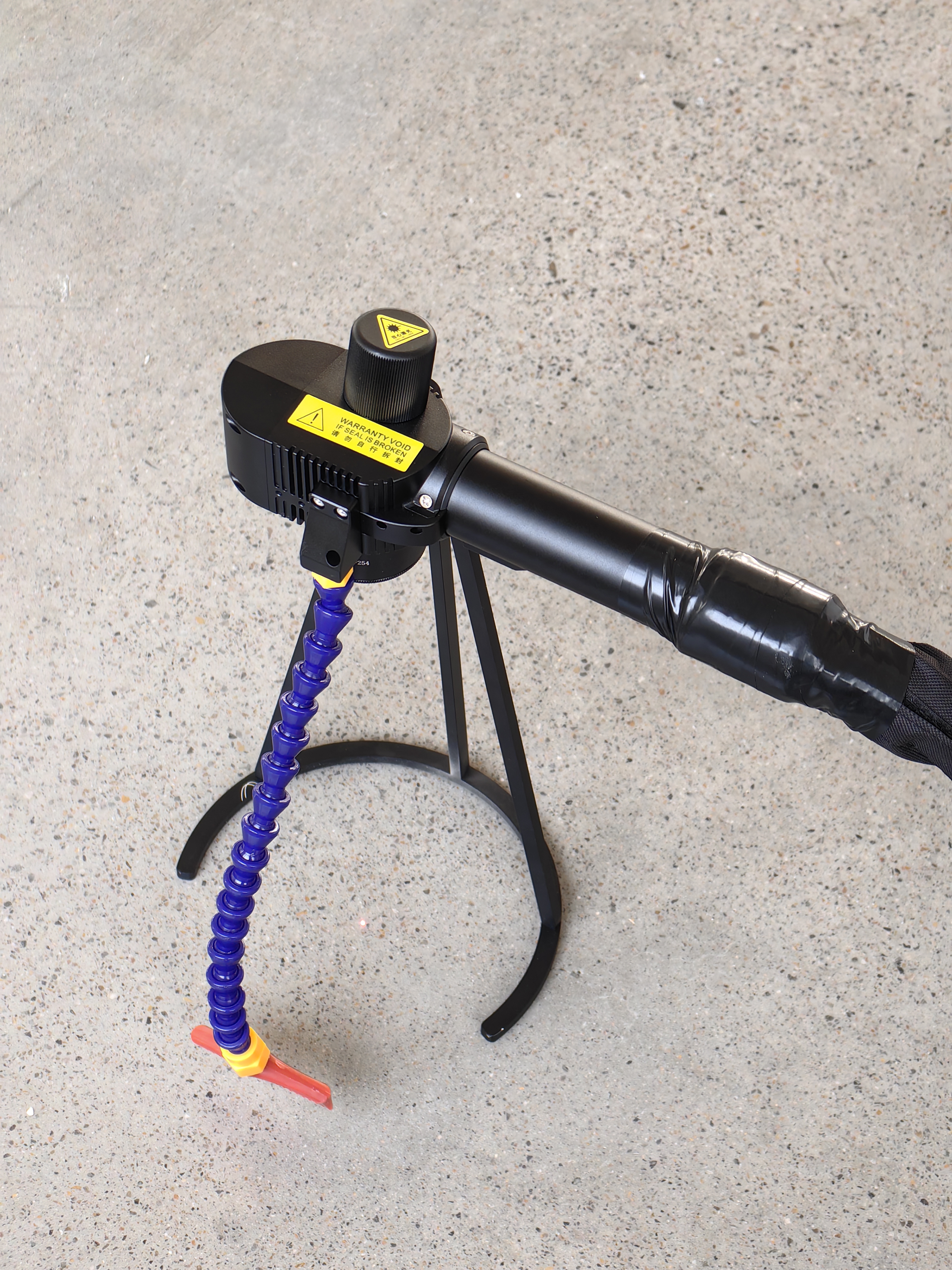

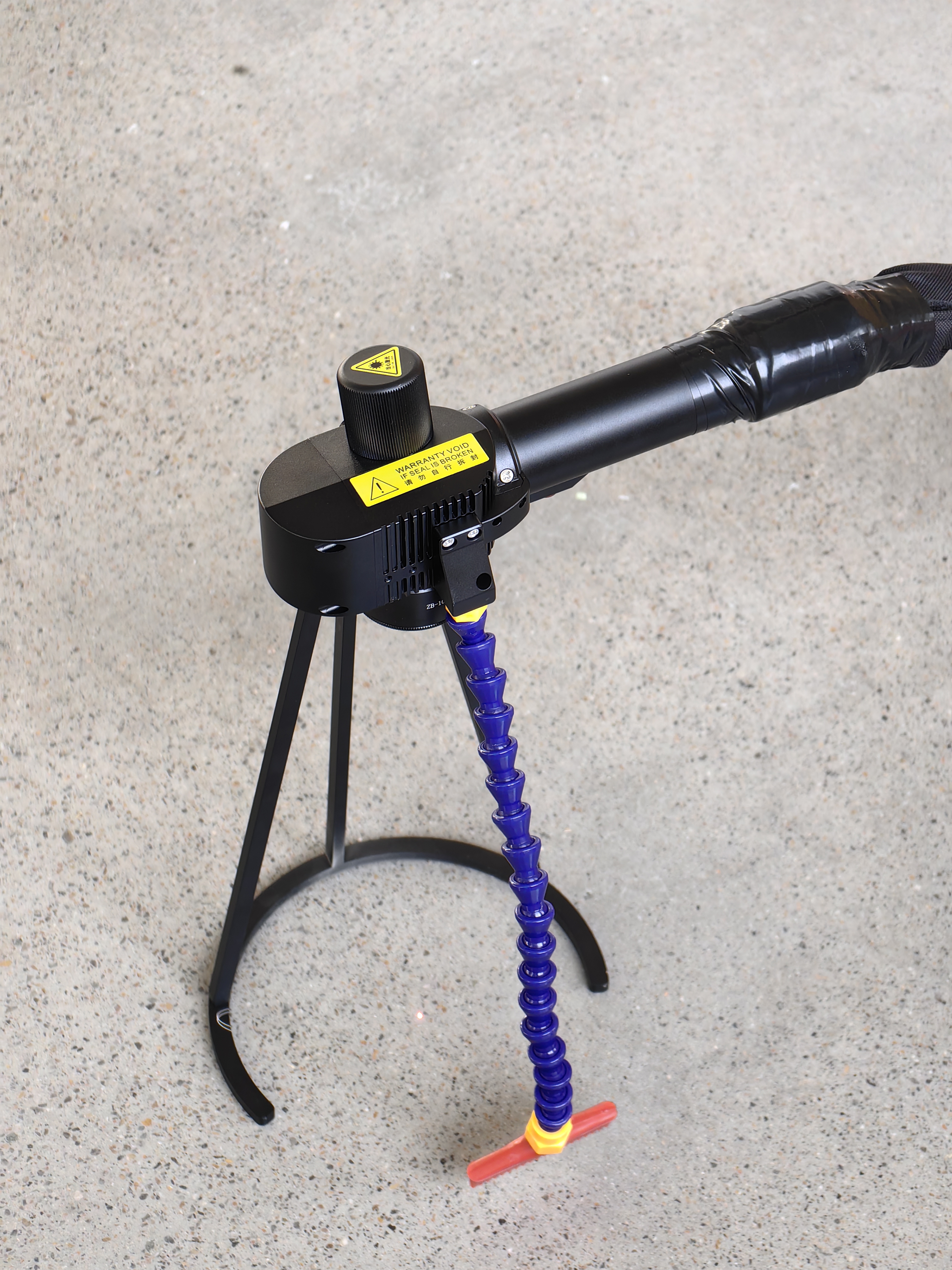

Lightweight handheld laser head with air blowing function and focus mount.

IMG_20260417_151822

300w head laser

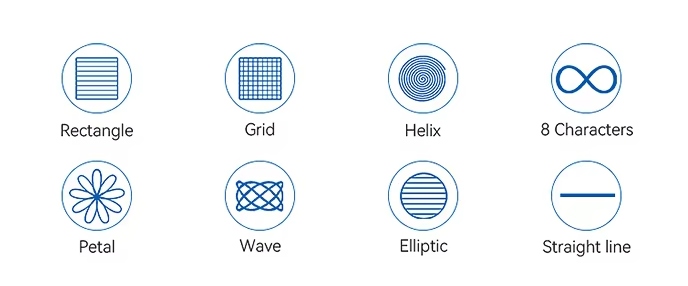

Multiple cleaning patterns

Application

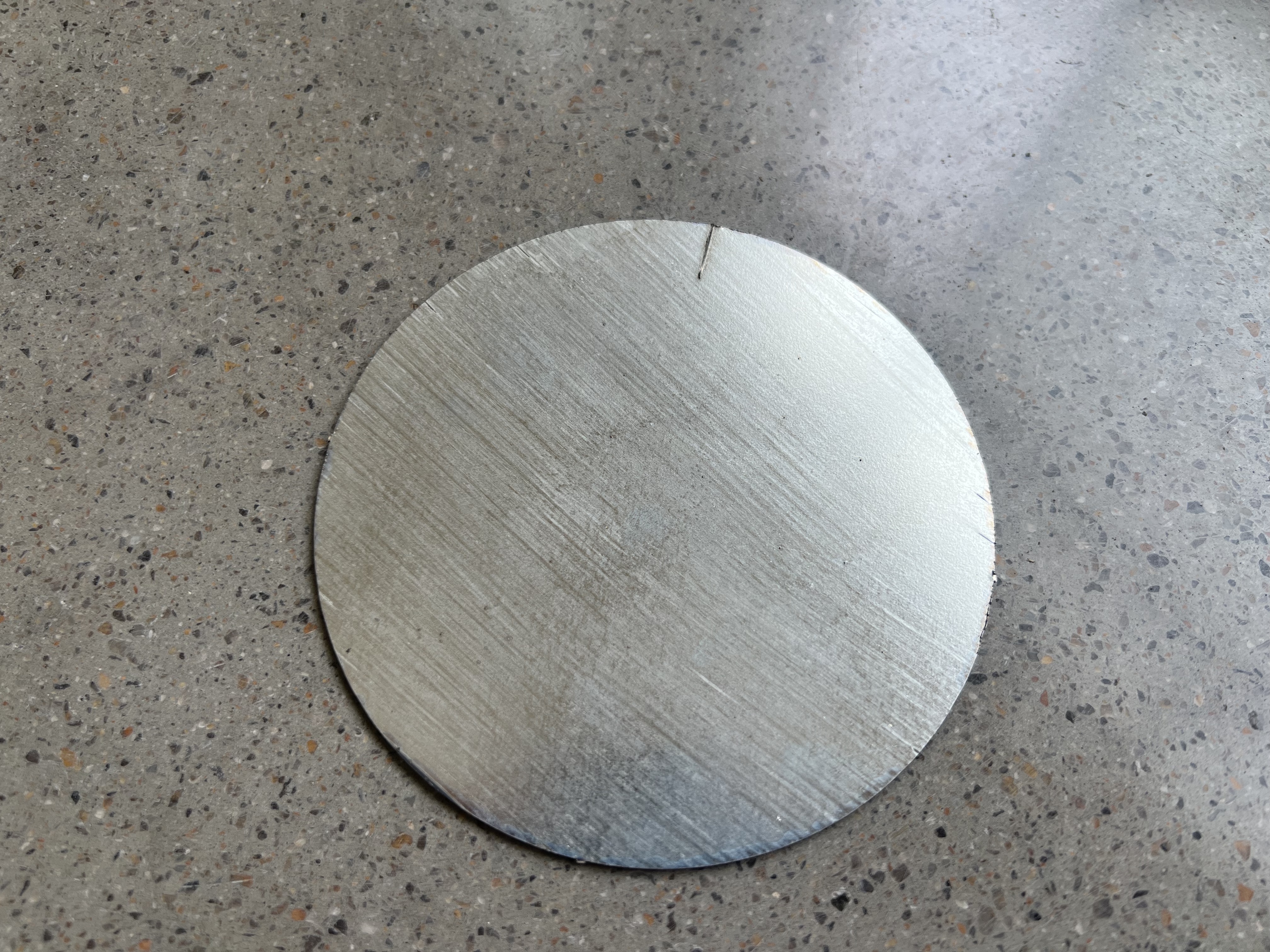

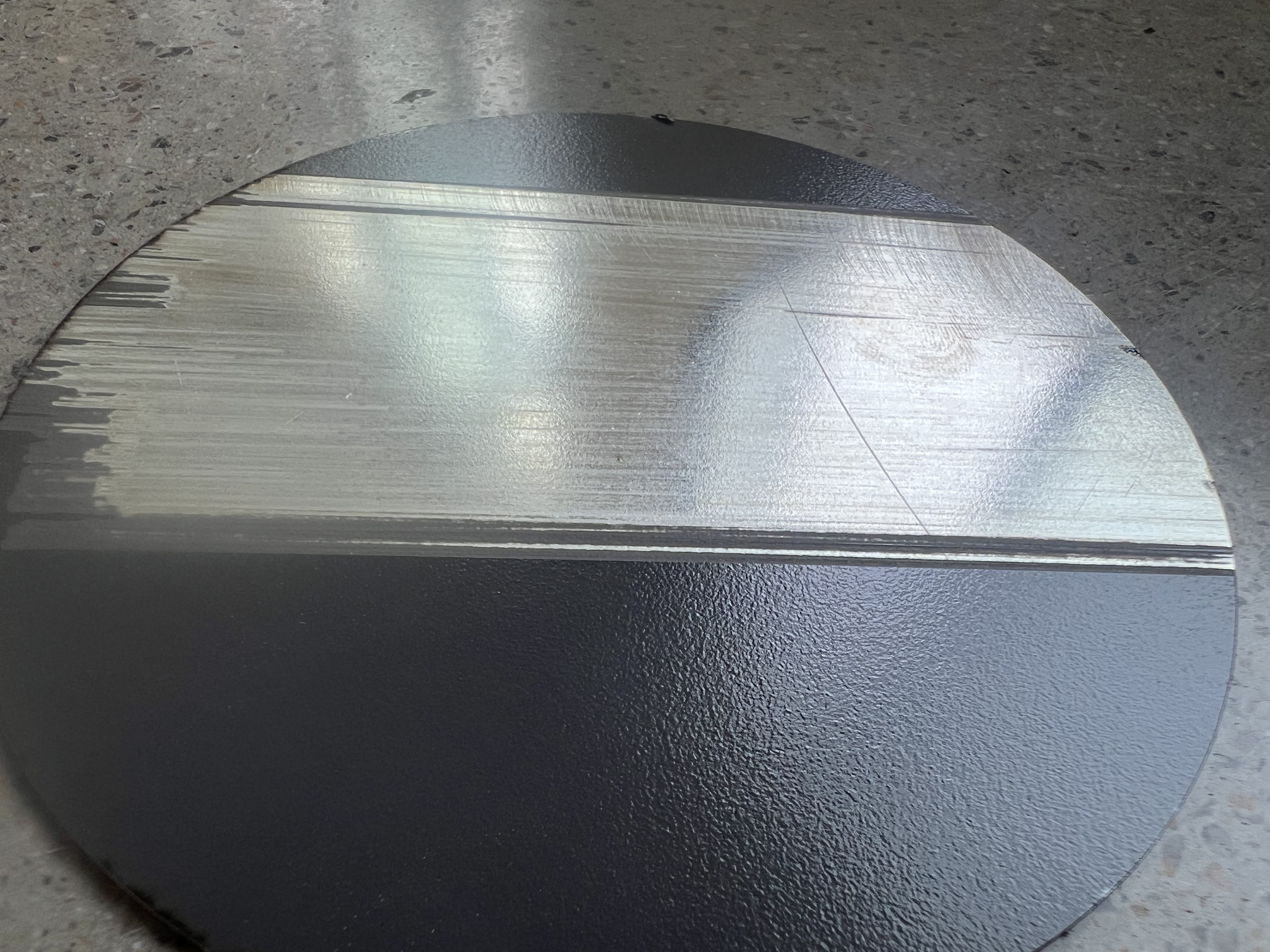

Metal paint removal, oil stain cleaning, rust removal, stone cleaning, high-precision mold cleaning, wood cleaning, artifact cleaning, Oxide layer cleaning, welding cleaning.
