800*800mm 1000*100mm Fiber Mopa Laser Marking Machine for Engraving Large Area / Laser Splicing Marking

This machine installed the motorized XY ball guides, which can achieve high-precision movement and complete splicing work, even 800x800mm marking area.
Availability:
Quantity:
Inquire Add to Basket

  • 20W 30W 50W 60W 80W 100W 120W

  • ray fine tech

  • 845611


主图_画板 1

主图_画板 1 副本 4

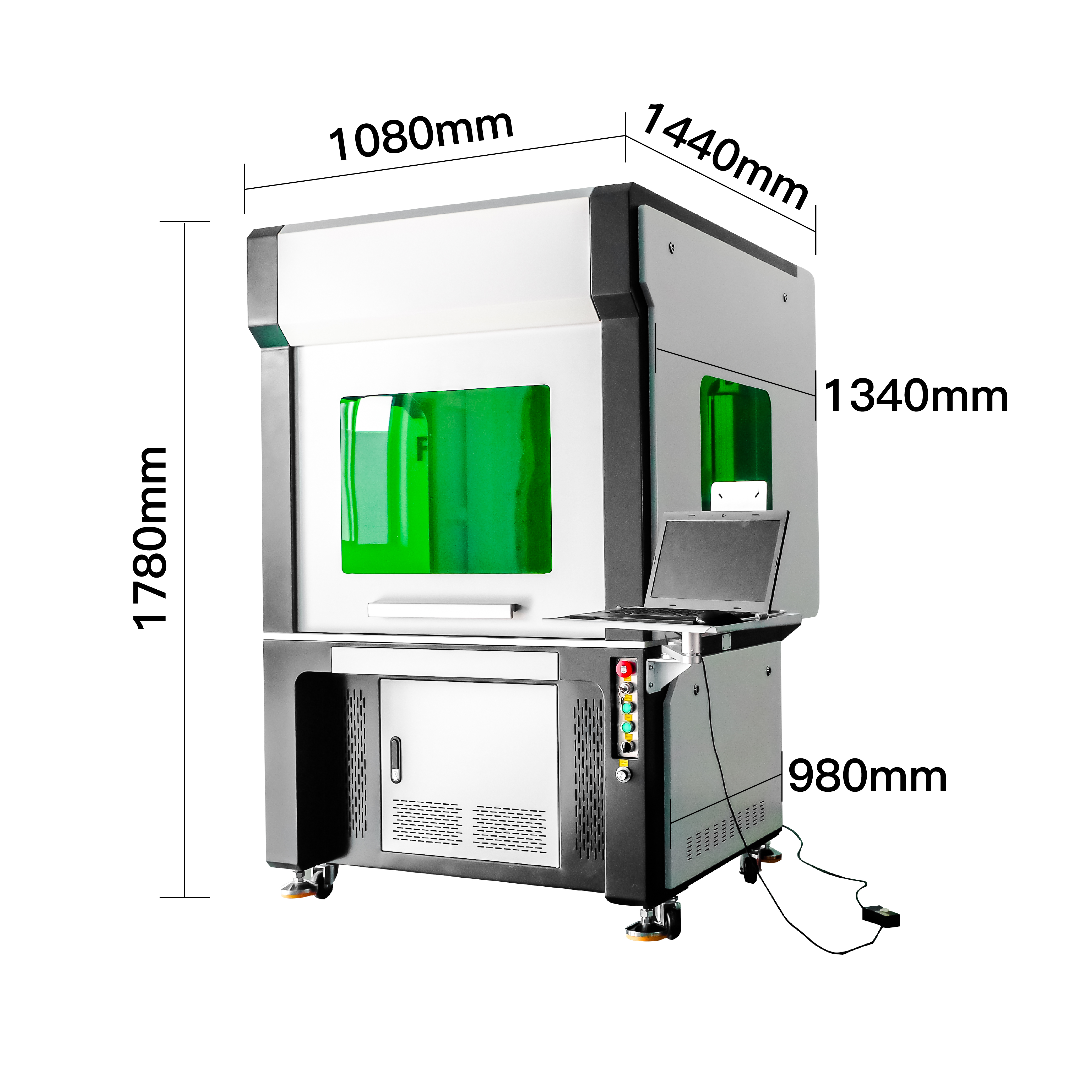

Dimension

尺寸图_画板 1

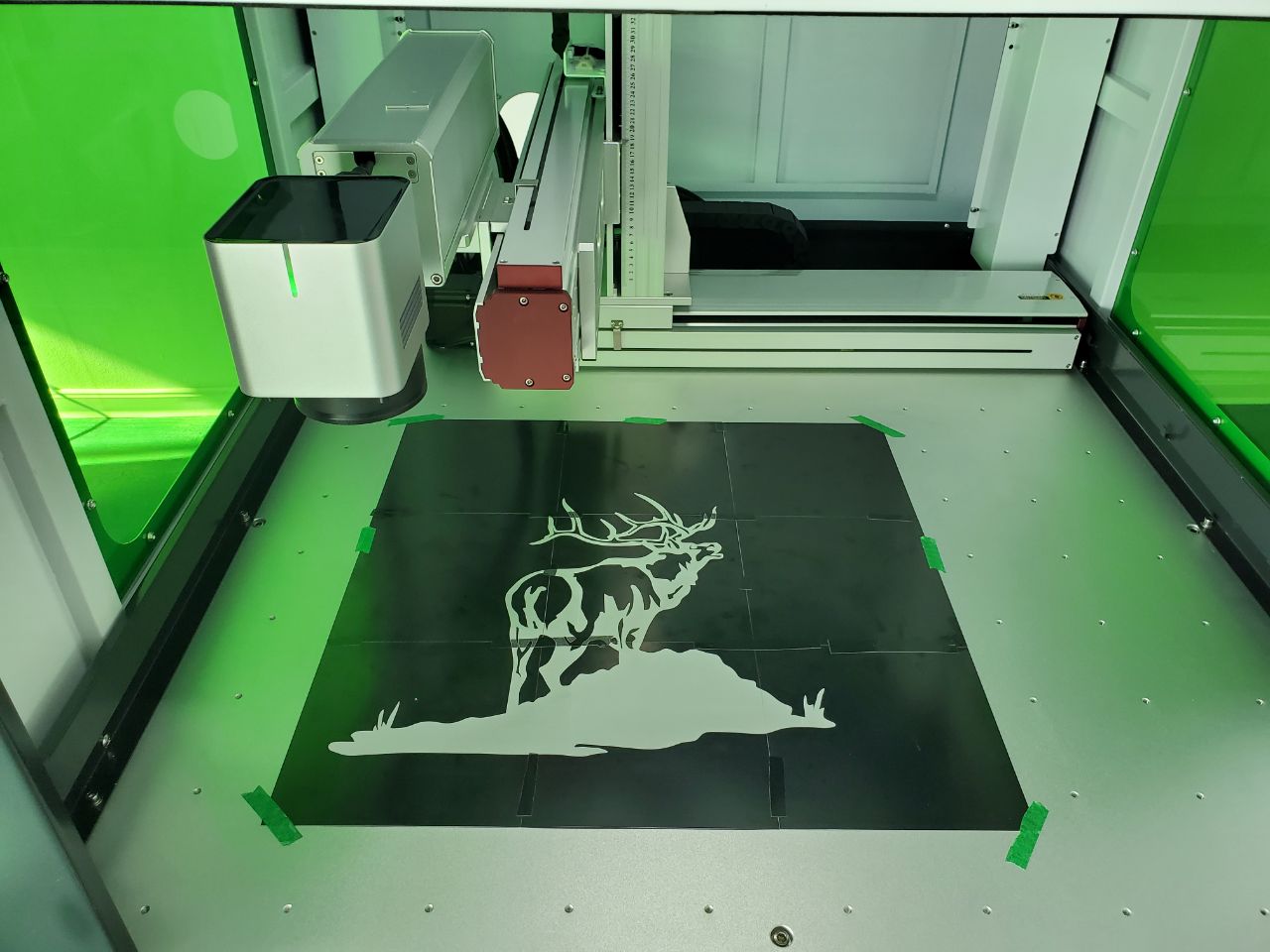

XY rail ：The length support customization

20211218_114931

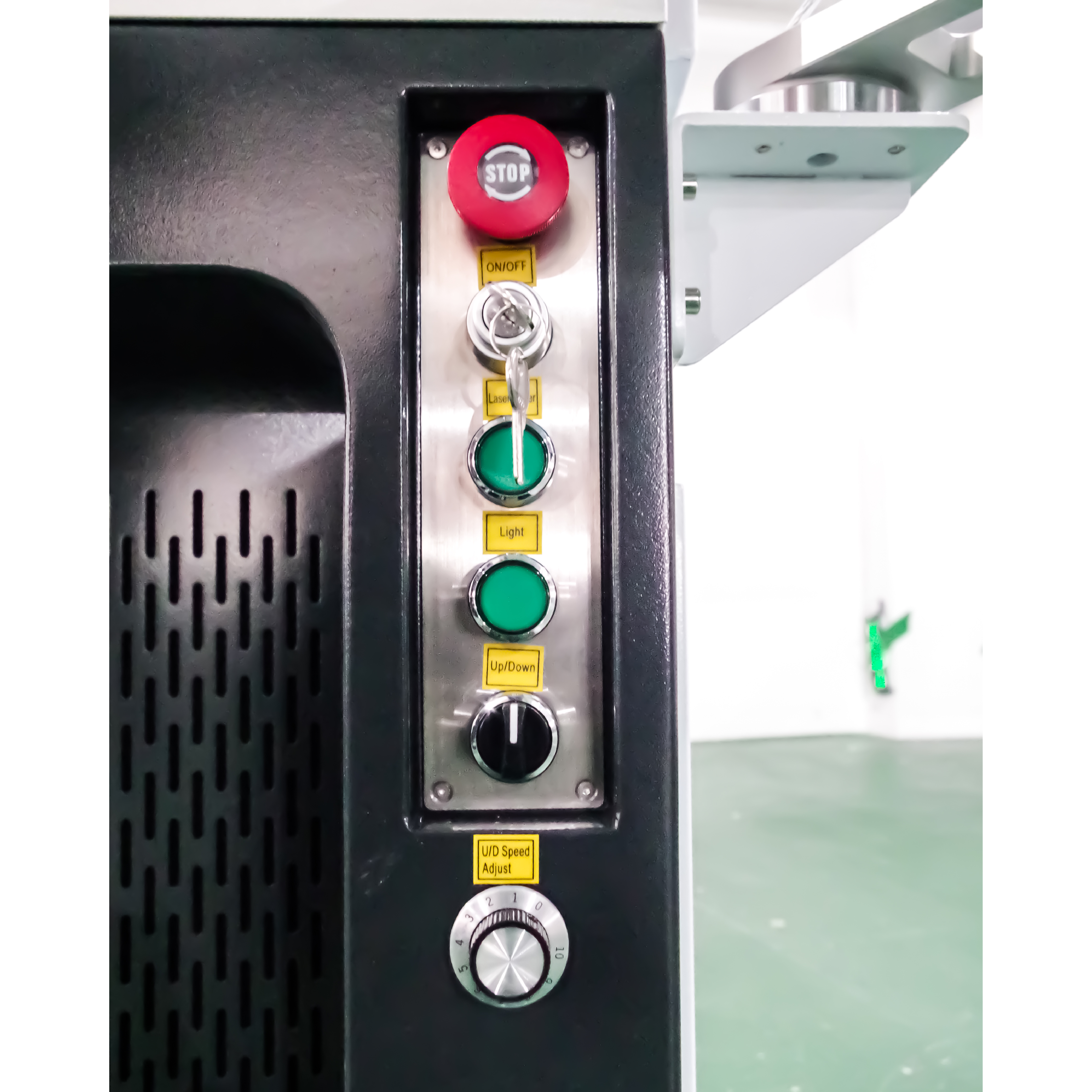

Control switch

主图_画板 1 副本 6


Genuine UMC4 control system and MM control software lALPGojJ8JtORRPNBA_NB30_1917_1039.png_720x720q90g


Sample Show

20190823_165621

7d898e1

3x53x33231


NOTE: This specification sheet is an example of JPT 50w fiber laser marking machine.

Model

50W
Laser wavelength1064nm

Laser output power

>50W

Max pulse energy

1.25mj

Pulse duration

200ns

Pulse repetition rate range

1-600kHZ

Cooling type

Air cooling

Marking Area

100mm×100mm  standard

Max working speed

8m/s

Laser spot

27.5μm  when 100*100mm area

Laser beam quality M2

<1.8

Min. Character size:

0.1mm

Repetition Accuracy

<8μrad

Supply voltage:

AC110V 60HZ / AC220V 50HZ  ±10%

Control software

MarkingMate

Power consumption

≦1000w


--We provide free YouTube operation videos and PDF English manuals.

--We have professional after-sales technicians who can assist through WeChat, Email, WhatsApp, Teamviewer.

--Before packing  in our factory, we do a 24-hour test. When you receive the machine, connect to the computer and you can use the laser directly.

--We Provide Free Ezcad Software.
