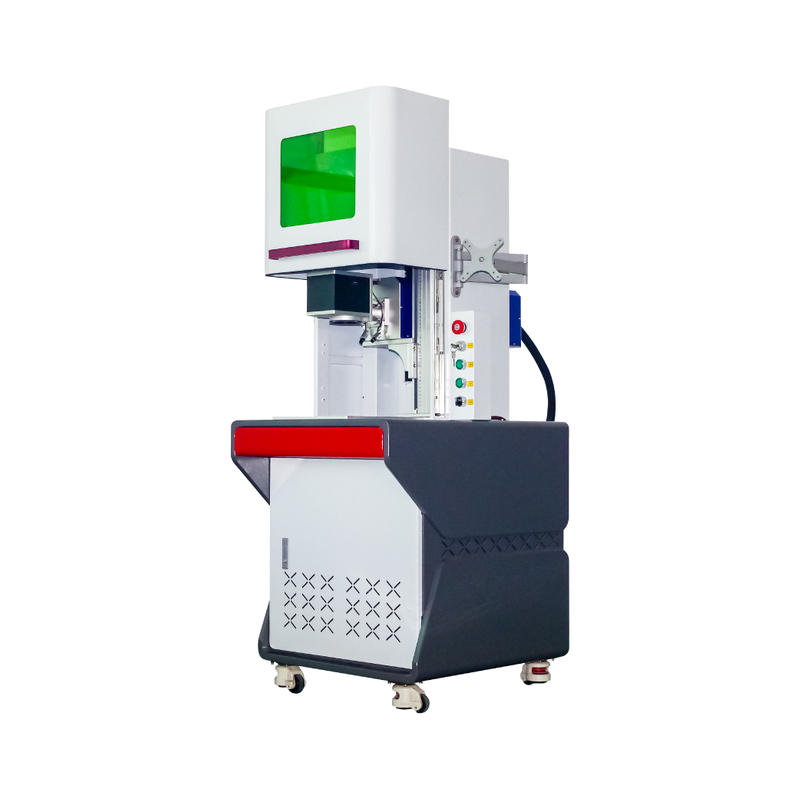

Enclosed 30W 35W 60W Metal Tube CO2 Laser Engraving Marking Machine DAVI Laser Marker for Plastic Acrylic Paper Leather Wooden Product

* Closed enclosure design
* Provide high quality metal tube lasers: Chinese brand DAVI or American brand Synrad

Availability:
Quantity:
  • 30W 35W 60W
  • ray fine tech
  • 845611

Machine pictures

主图_画板 1 副本 3

主图_画板 1 副本 8

Machine Detailed

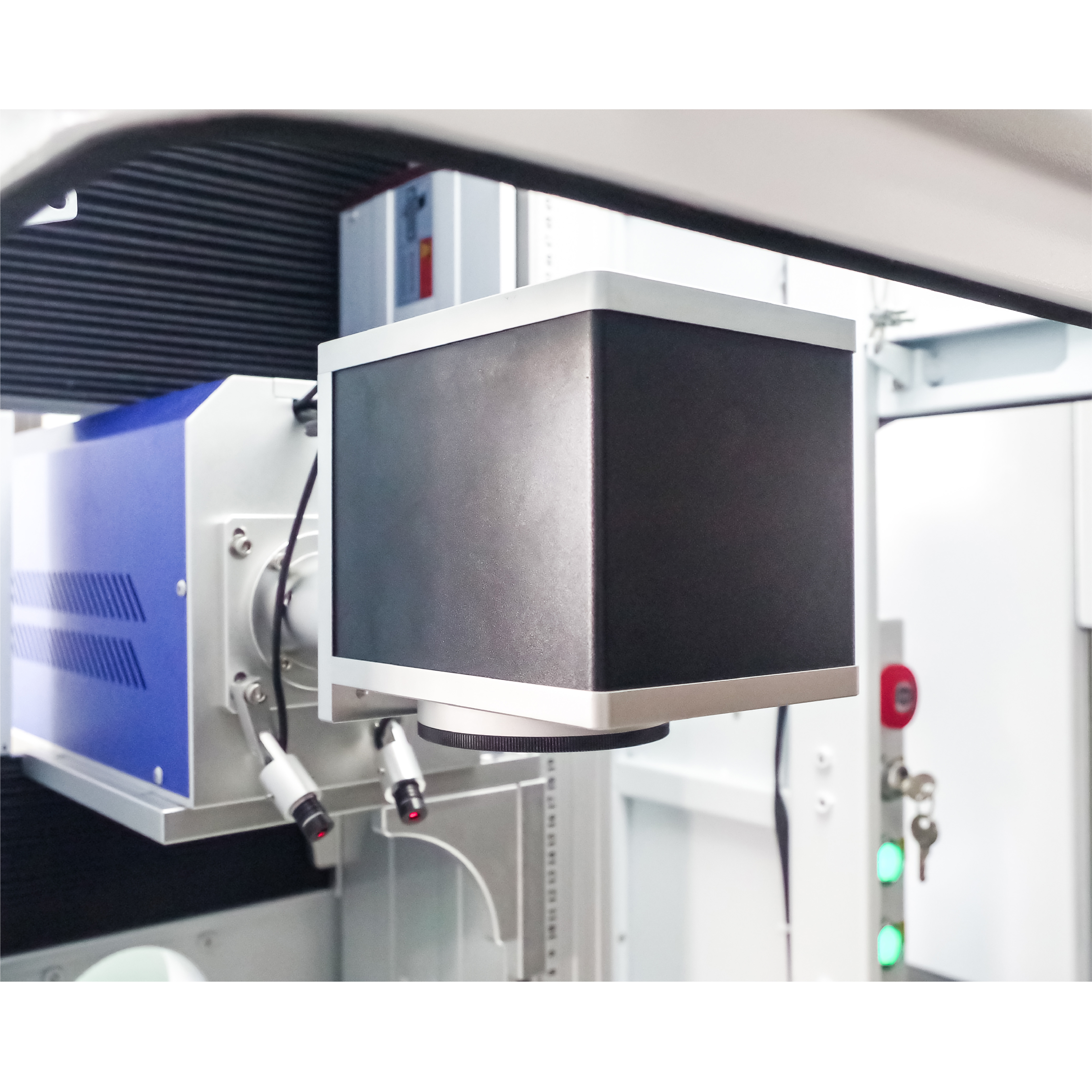

Famous brand SINO-GALVO scan head with 12mm incident spot diameter  (14mm / 20mm optional)

主图_画板 1 副本 6

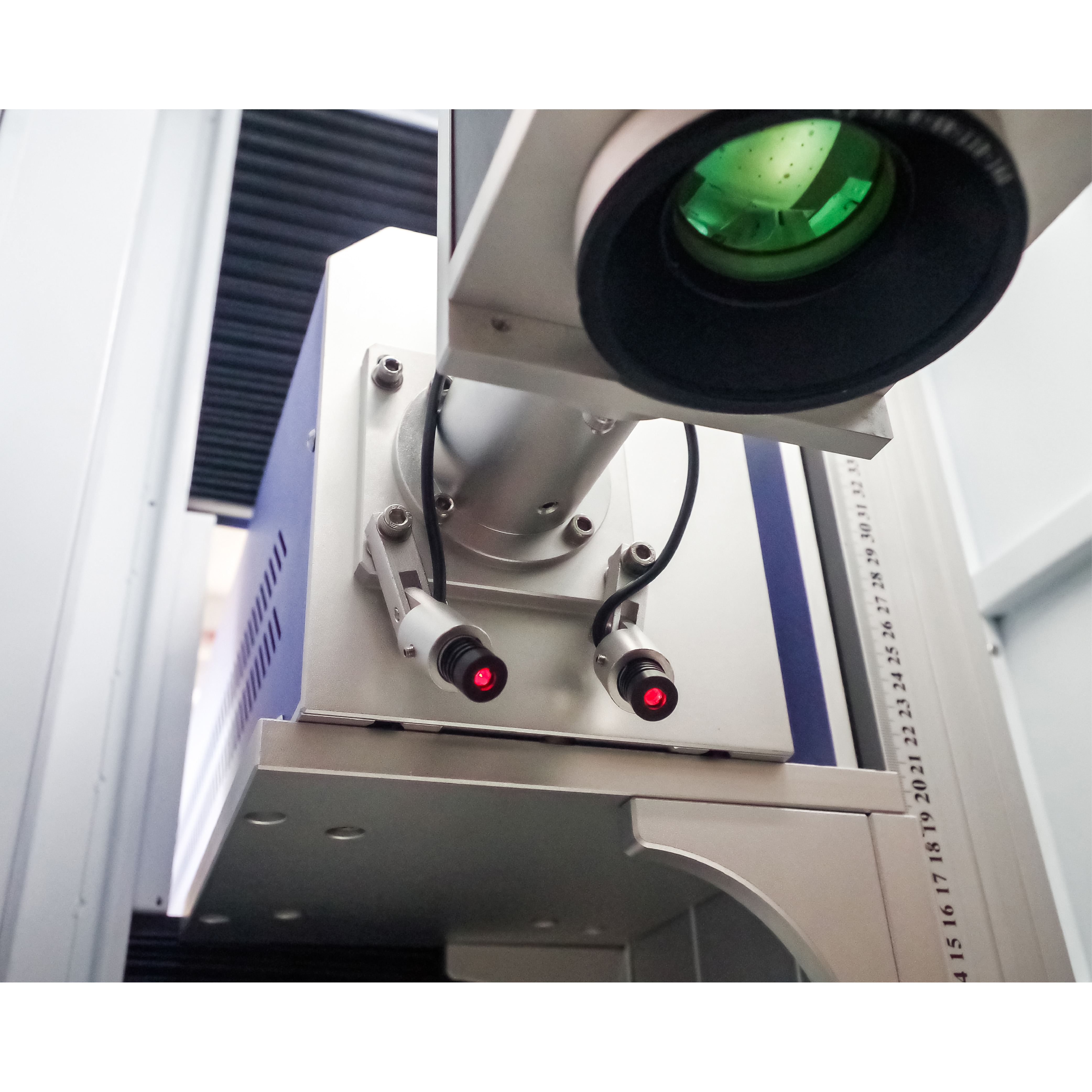

Double red lights help you find the focus length.

主图_画板 1 副本 4

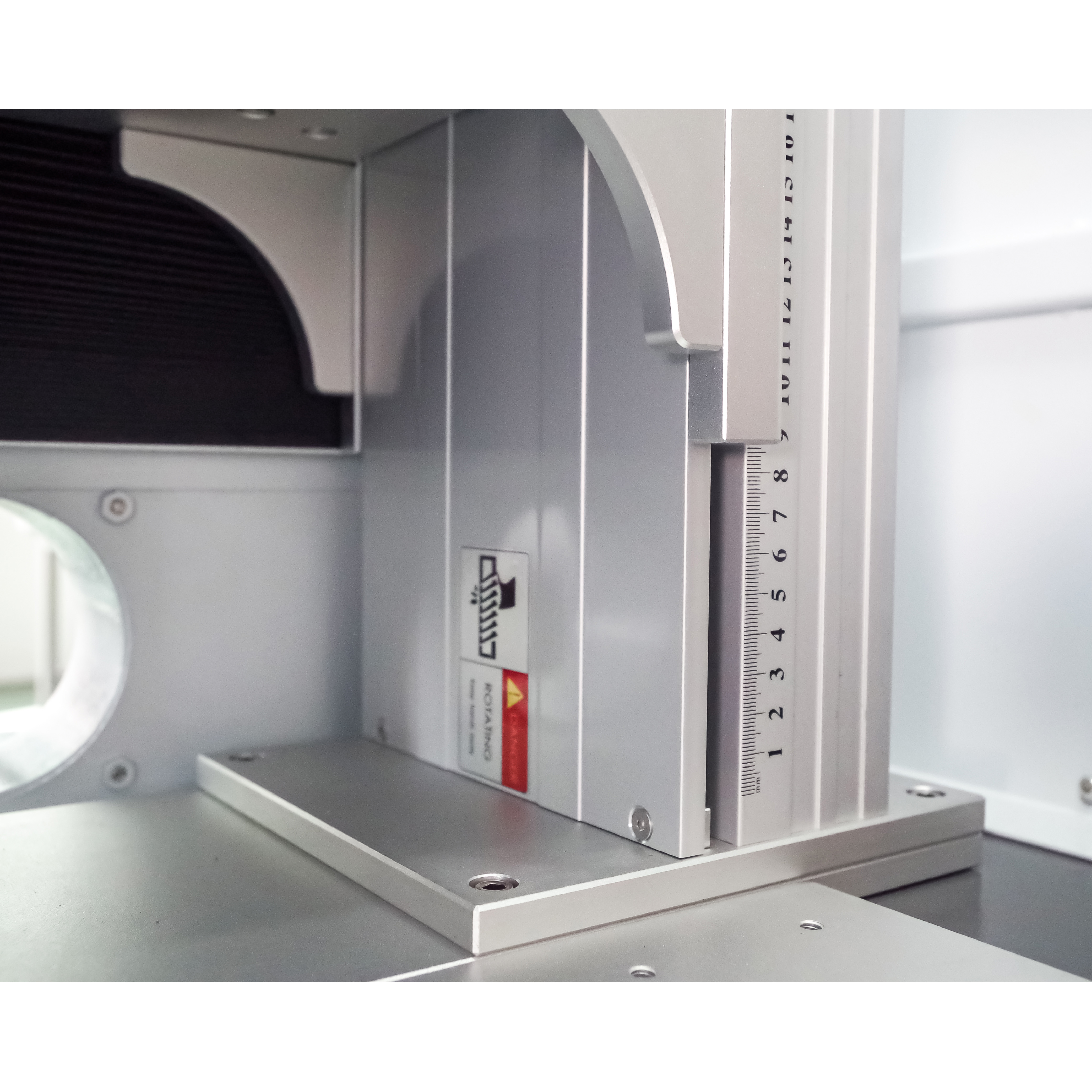

170mm width of z axis, more stable and strong.

主图_画板 1 副本 7

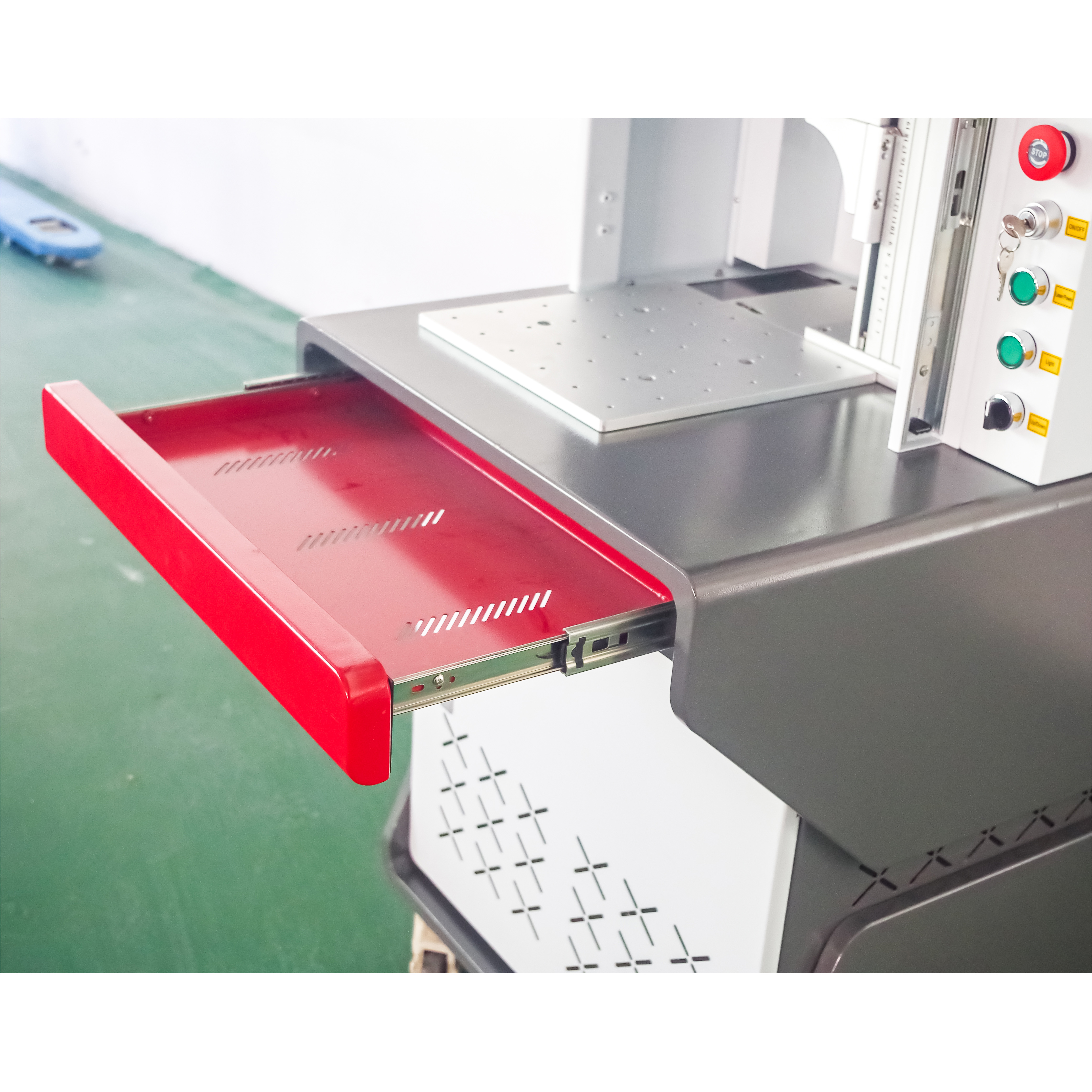

Storage drawer for place the keyboard or host computer / industrial computer

 主图_画板 1 副本 10

主图_画板 1 副本 5

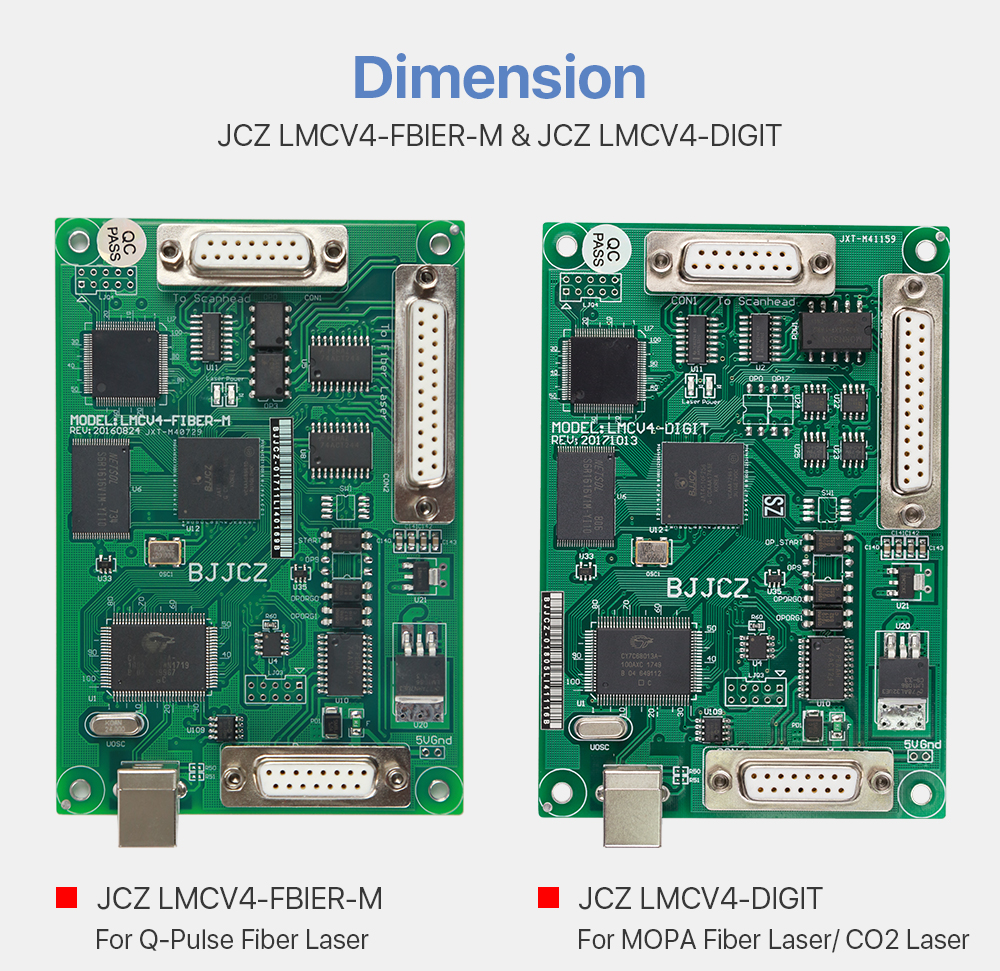

Genuine control system BJJCZ and free EZCAD software(you can install the EZCAD software on Windows7,Windows8,Windows10)

HTB1qUZOXvvsK1RjSspdq6AZepXaz

EZCAD software

333333333-1



Optional Accessories


82

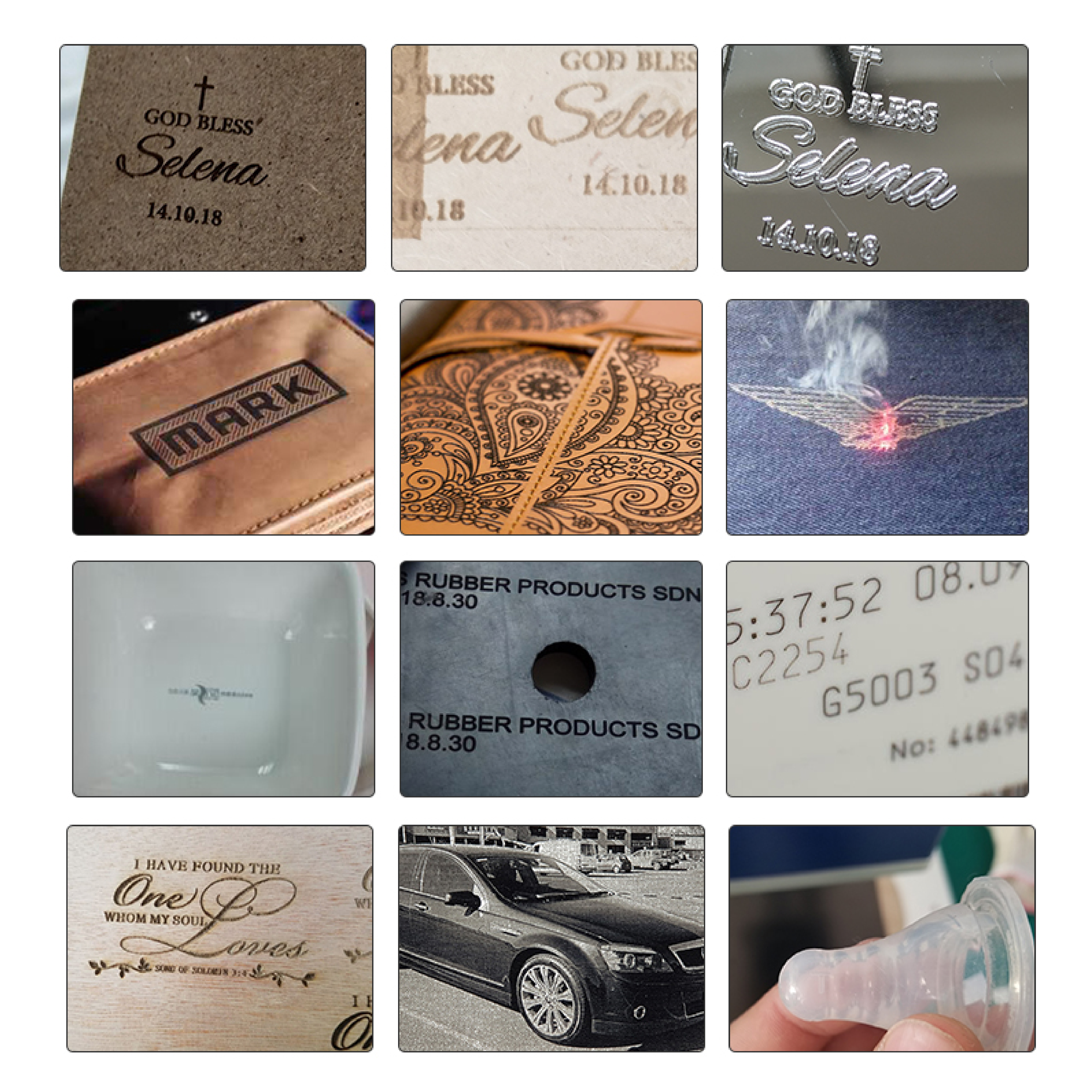

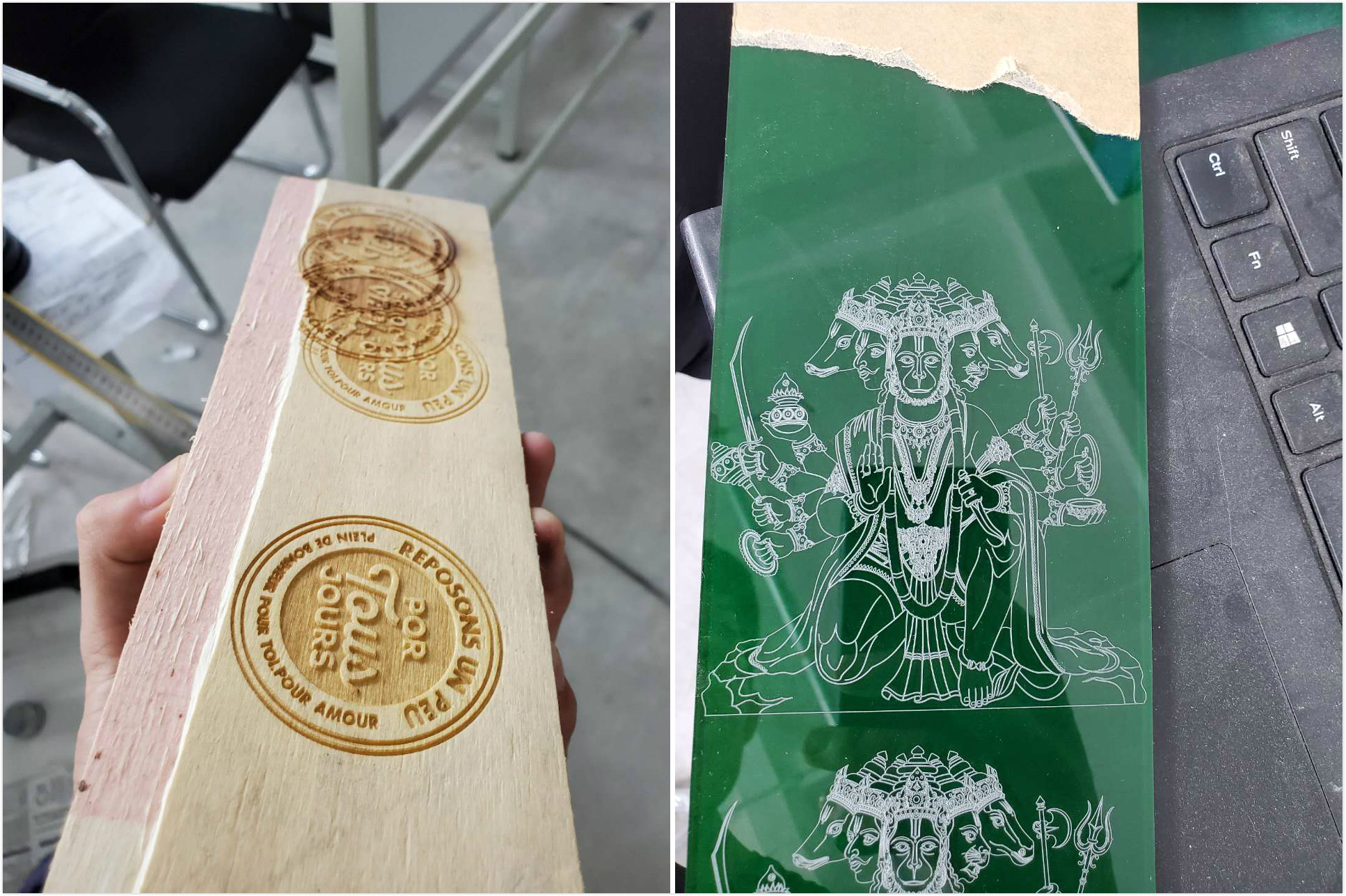

Sample Show

5588

999699

主图_画板 1 副本 5_画板 1


NOTE: This specification sheet is an example of 30w co2 laser marking machine.

Model

30W
Laser tubeChina DAVI (metal laser tube)
Laser wavelength10640nm

Laser output power

>30W

Cooling type

Air cooling

Marking Area

100mm×100mm  standard

Max working speed

8m/s

Min. Character size:

0.1mm

Repetition Accuracy

<8μrad

Supply voltage:

AC110V 60HZ / AC220V 50HZ  ±10%

Control software

EZCAD

Power consumption

≦700w
Machine weight120~140 KG


--We provide free YouTube operation videos and PDF English manuals.

--We have professional after-sales technicians who can assist through WeChat, Email, WhatsApp, Teamviewer.

--Before packing  in our factory, we do a 24-hour test. When you receive the machine, connect to the computer and you can use the laser directly.

--We Provide Free Ezcad Software.
