RF-UV-3W RF-UV-5W RF-UV-10W
RAY FINE
845611

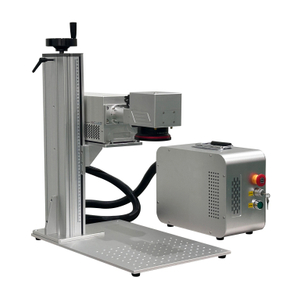

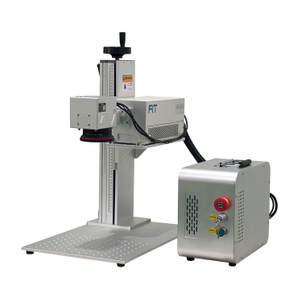

High precision enclosures closed 3w 5w 10w UV laser marking machine for PCB glass plastic metal with emergency stop button
Marked samples
Glass flat surface marking
food package marking
mobile phone charger
food package
PCB
| Technical Parameter | |||||
| Model | RF-UV-3W | RF-UV-5W | |||
| Fiber laser source | UV 355nm | UV 355nm | |||
| Power output | >3W | >5W | |||
| Beam quality | <1.2 | <1.2 | |||
| Pulse Energy(μJ) | >60 | >100 | |||
| Main board and control software | Genuine EZCAD (BJJCZ) which supports XP Win7 /8/10 32 and 64bits | ||||
| Max positioning speed | 8000mm/s | ||||
| Marking Area | 70×70/110×110/150×150/175×175/ 200×200/300×300mm(optional) | ||||
| Min. Character size | 0.2mm | ||||
| Frequency adjustable range | 30~150 KHZ | ||||
| Pulse Duration | <15ns | ||||
| Beam diameter | ~0.45mm | ||||
| Supply voltage | AC 110/220V±10%, 50/60Hz | ||||
| Power cable style | According to your request (Asian /European / American standard) | ||||
| How to focus | Double red dots positioning | ||||
| Cooling way | air | ||||
| Package dimension | 75x40x80cm | ||||
| Package gross weight | 60KGS | ||||
laser source
Optional part:
2D working table
3D working table
Rotary
smoke purifier
More detail request, please feel free to send email to us: sales05@rayfinetech.com, thank you :)
