RF-F-30W RF-F-50W RF-F-60W RF-F-80W RF-F-100W
RAY FINE
845611
JPT 20/30/50/60/80/100W Fiber Laser Marking Machine with Motorized X Y Z 3 Axis Big Working Area Table
*Protective acrylic installed on Galvo head, protect eyes being hurt.
*X Y motorized table to enlarge the working area, high efficiency.
*X Y Z separated button, convenient to operate by user.

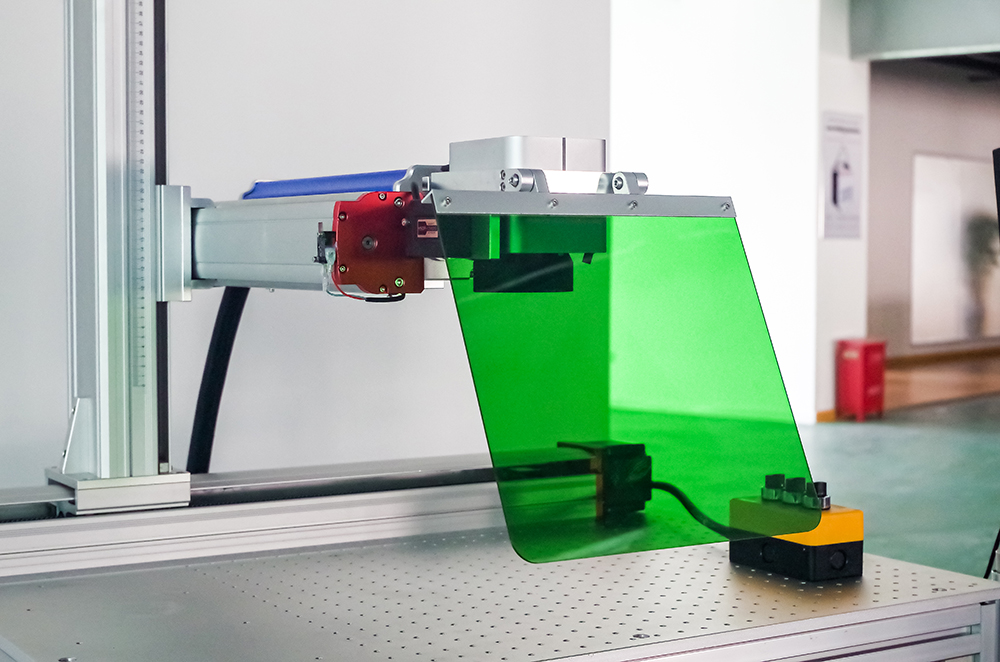

Protective acrylic

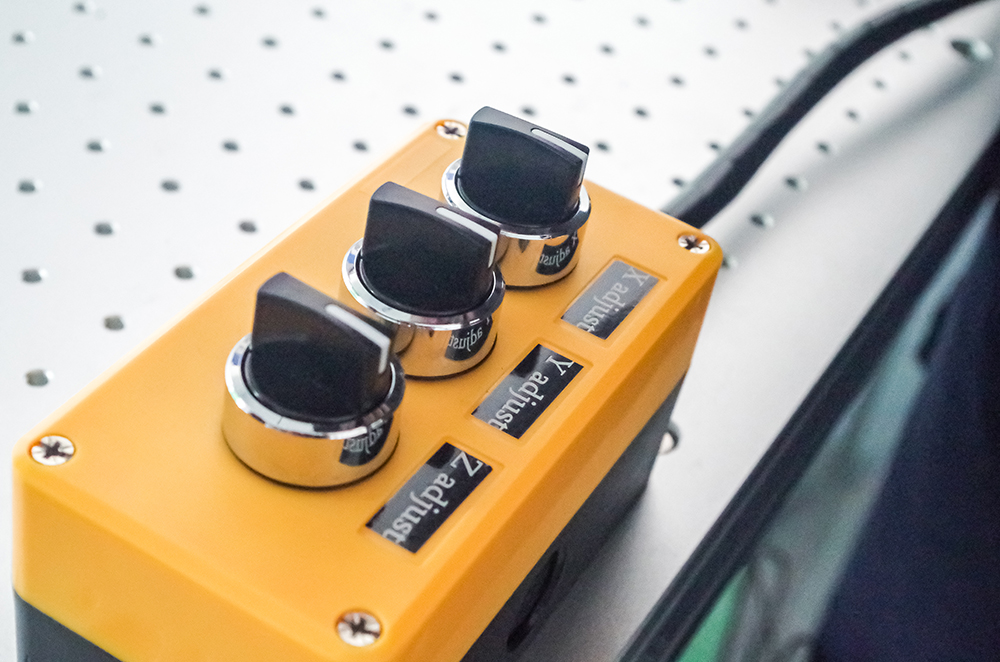

X Y Z motorized axis control button.
Technical Parameter | |||
Model | YJ-F-60W | YJ-F-80W | YJ-F-100W |
Fiber laser source brand | JPT | ||
Fiber laser source type | MOPA | ||
Output power | >60W | >80W | >100W |
Laser beam quality M2 | <1.8 | <1.8 | |
Max single pulse energy | 1.5MJ | 2MJ | 1.5MJ |
Pulse duration | 2-500NS | ||
Frequency | 1-4000khz | ||
Center Wavelength | 1064nm | ||
Cooling type | Air | ||
Marking Area | 70x70/110x110/200x200/300x300mm | ||
How to get focus | double red light | ||
marking Depth | 0-2mm | ||
Max positioning speed | 8000mm/s | ||
Min. Character size | 0.2mm | ||
Supply voltage | AC110V 60HZ / AC220V 50HZ | ||
Control program | EZCAD2 from BJJCZ | ||
Package size | 75*41*80cm | ||
Package weight | 65KGS | ||
Machine main parts
Newest digita galvo scanner head+F-theta lens Comes with double red light+Alarm Lamp
Whole machine body adopts the leading machining and oxidation process.
Motorized Z axis
For finding focus length before marking.
Samples:
Optional parts:
More detail request, please feel free to send email to us: sales05@rayfinetech.com, thank you :)
