20W 30W 50W 60W 80W 100W 120W
ray fine tech
845611

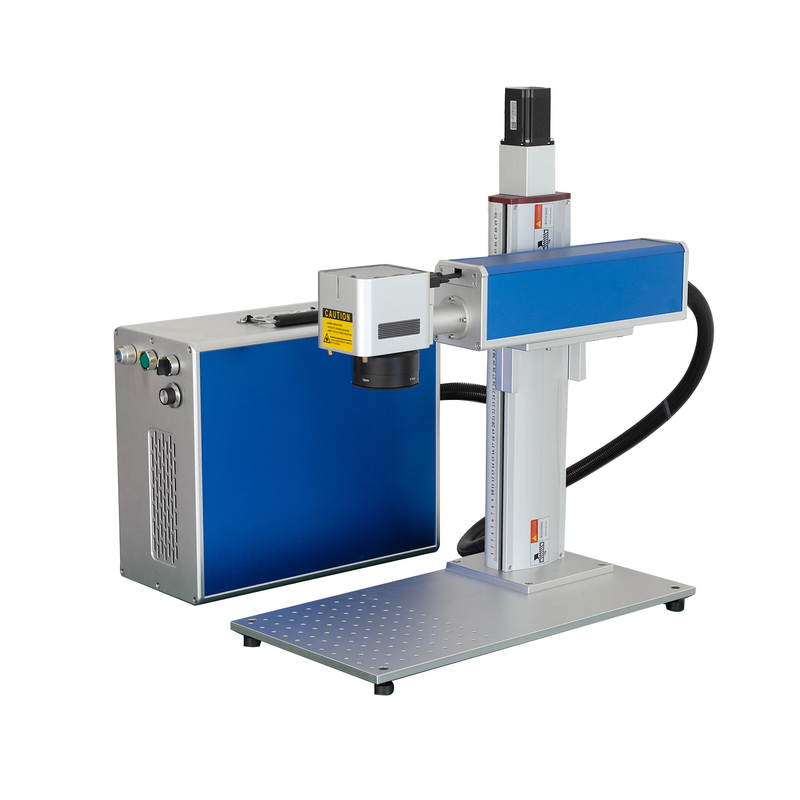

Motorized UP and DOWN
We installed a stepper motor on the machine's column, so we use a switch to control the machine UP / DOWN, which is convenient and fast
500mm height of motorized z aixs column with clear ruler
Digital Galvanometer (Galvo head)
*Double red dots easy to focus , they help you find the focal length
*Precise: Long time drift (work continuously for 8 hours) ＜0.3m Rad
JPT laser source （Fiber series and MOPA series）
*Fiber laser series is 20W 30W 50W , 1~600khz laser frequency, 200ns laser pulse width; MOPA series is 20W 30W 60W 80W 100W 120W, 1~4000khz laser frequency, 1~500ns laser pulse width. MOPA series is better, has stronger energy, and has a larger adjustment range.
*Stable working performance and a service life of more than 80,000 hours.
*JPT laser source come with smart cooling fan the fan only working when laser source over certain temparature, low noise.
Genuine control system BJJCZ and free EZCAD software（you can install the EZCAD software on Windows7，Windows8，Windows10）
EZCAD software
LASER MARKING MACHINE DATASHEET
| Machine name | laser marking machine |
| Laser power | 20W ~ 120W optional |
| Laser type and brand | fiber laser (JPT/RAYCUS/MAX) |
| Laser frequency | JPT fiber laser 1~600khz JPT mopa laser 1~4000khz |
Laser wavelength | 1064nm |
Marking area (optional) | 70X70mm 110x110mm 150x150mm 175x175mm 200x200mm 220x220mm 250x250mm 300x300mm |
| Marking depth | ＜1.5mm depend on engraving time |
| Marking speed | 7000mm/s |
| Minimum marking character | 0.1mm visible |
| Control software | EZCAD 2 |
| Control software support | Vector graphics / Bitmap / DXF and other file formats |
| Control software operation | Windows 7 / 8 / 10 |
| Machine work voltage | AC110V 60HZ, AC220V 50HZ ±10% |
| Machine power consumption | ＜700W |
| Machine cooling way | Air cooling |
*Packing box: plywood case, 790x410x750mm
*Clean and sanitize the machine
*Wrap the waterproof membrane
*Fill with foam
*Add fixed rope
-We provide free YouTube operation videos and PDF English manuals.
-We have professional after-sales technicians who can assist through WeChat, Email, WhatsApp, Teamviewer.
-Before packing in our factory, we do a 24-hour test. When you receive the machine, connect to the computer and you can use the laser directly.
-We Provide Free Ezcad Software.
We produce laser marking machine, laser Engraving Machine, laser cutting machine, laser welding machine, a variety of laser equipment. Types include fiber laser, CO2 laser, UV laser, 3D laser, MOPa laser. We look forward to working with you.
Sample show
