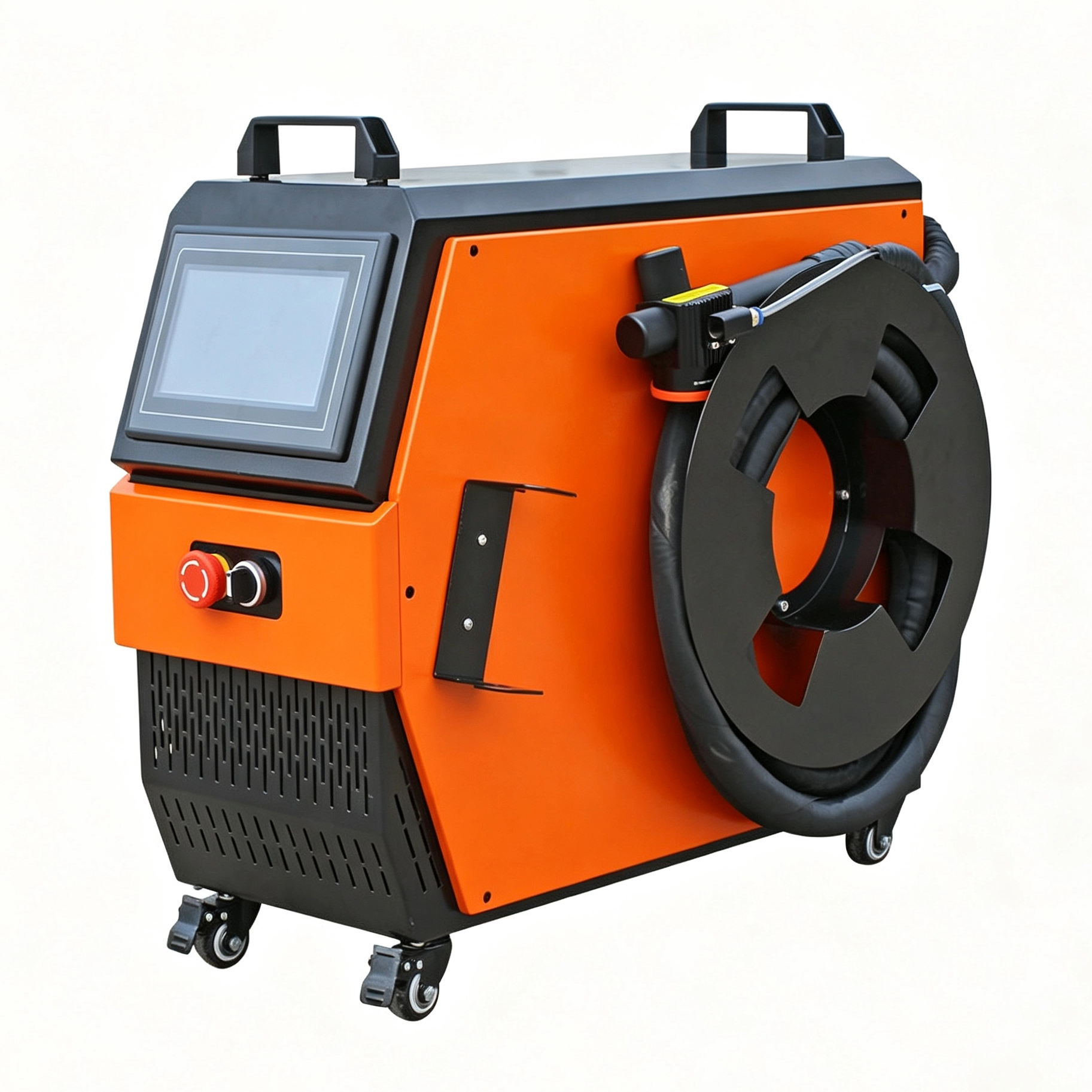

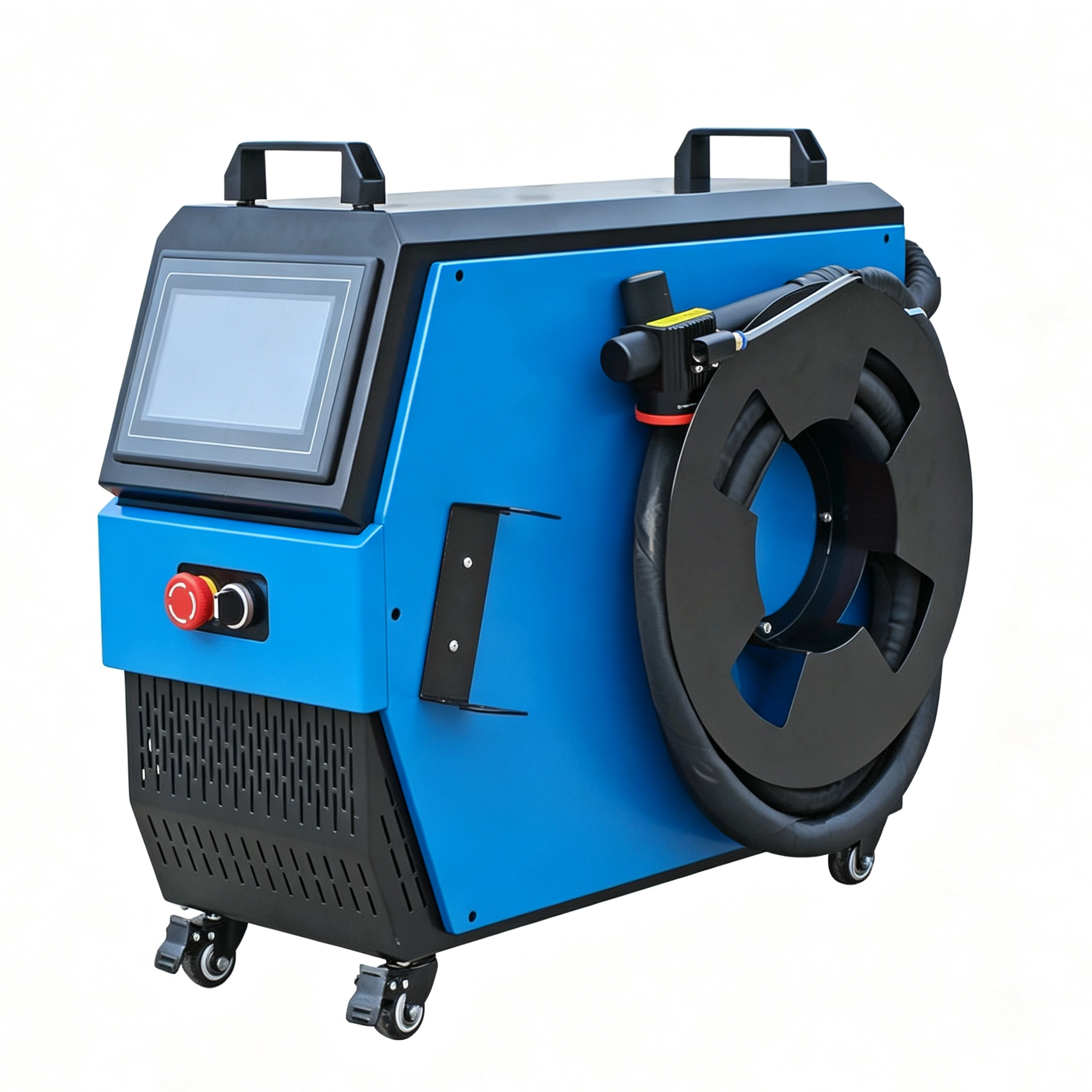

Air Cooling 300W 500W JPT Pulsed Handheld Laser Cleaning Machine

Share to:

Air Cooling 300W 500W JPT Pulsed Handheld Laser Cleaning Machine

Pulsed laser cause minimal damage to materials; portable and easy to move; the machine weighs only 23KG+; air-cooled design eliminates the need for industrial refrigeration units;

Availability:

Quantity:



Inquire Add to Basket

Model:
ES-300CL ES-500CL ES-1000CL

Product Description

Handheld Laser Cleaning Machine

Model: ES-CL

Laser Power: 300W, 500W, 1000W water cooling

Laser Source: JPT MOPA

Laser Wavelength: 1064nm

Maximum Pulse Energy (Customizable): 1.5mJ, 5mJ, 15mJ,50mJ

Cleaning width: Lens (110*110mm 130*130mm 160*160mm 200*200mm)

Power Adjustment Range: 0%-100%

Cooling Method: Air Cooling

Voltage: AC110V±10%/AC220V±10%

Total Power: <2KW

Operation Method: Handheld

Cable Length: 5 meters (10 meters customizable)

Cleaning Gun Weight: 0.8 kg

Gas Requirements: Air

Weight: 23KG

Machine Real Photos

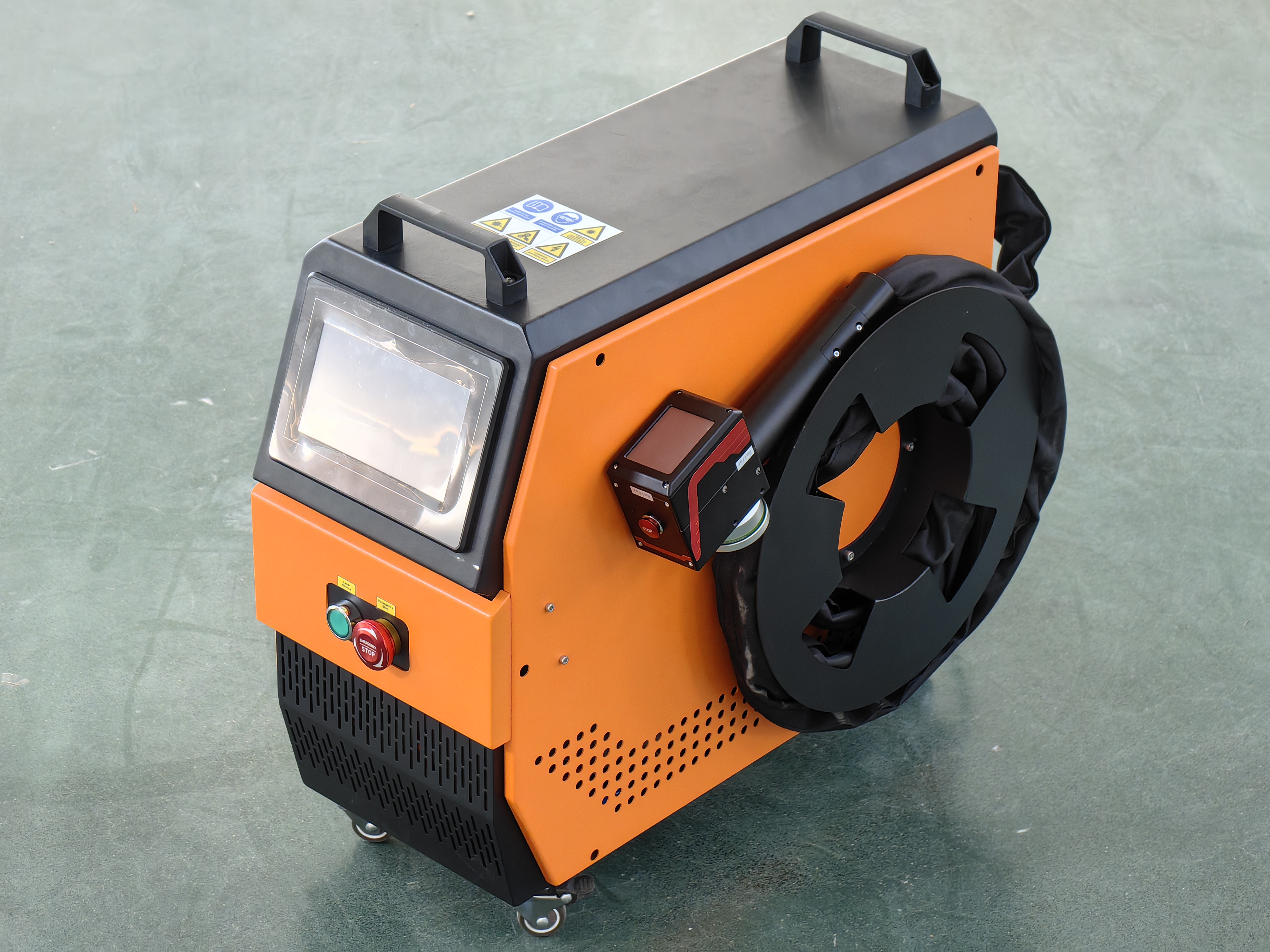

IMG_20260910_153629

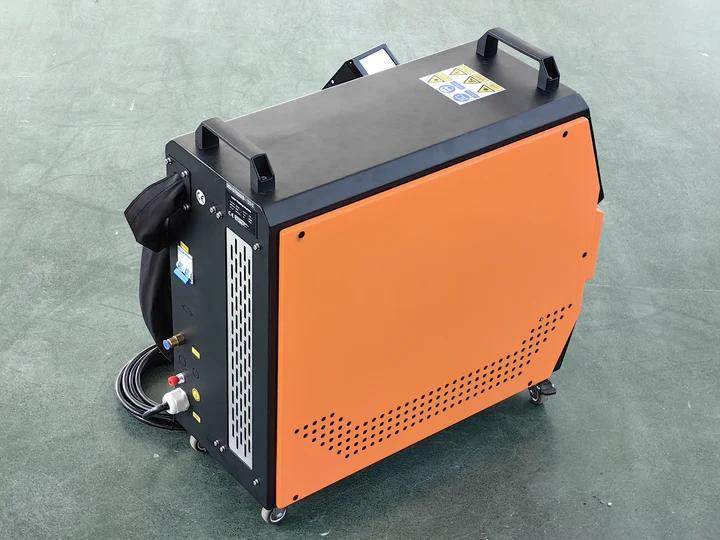

IMG_20260910_153509

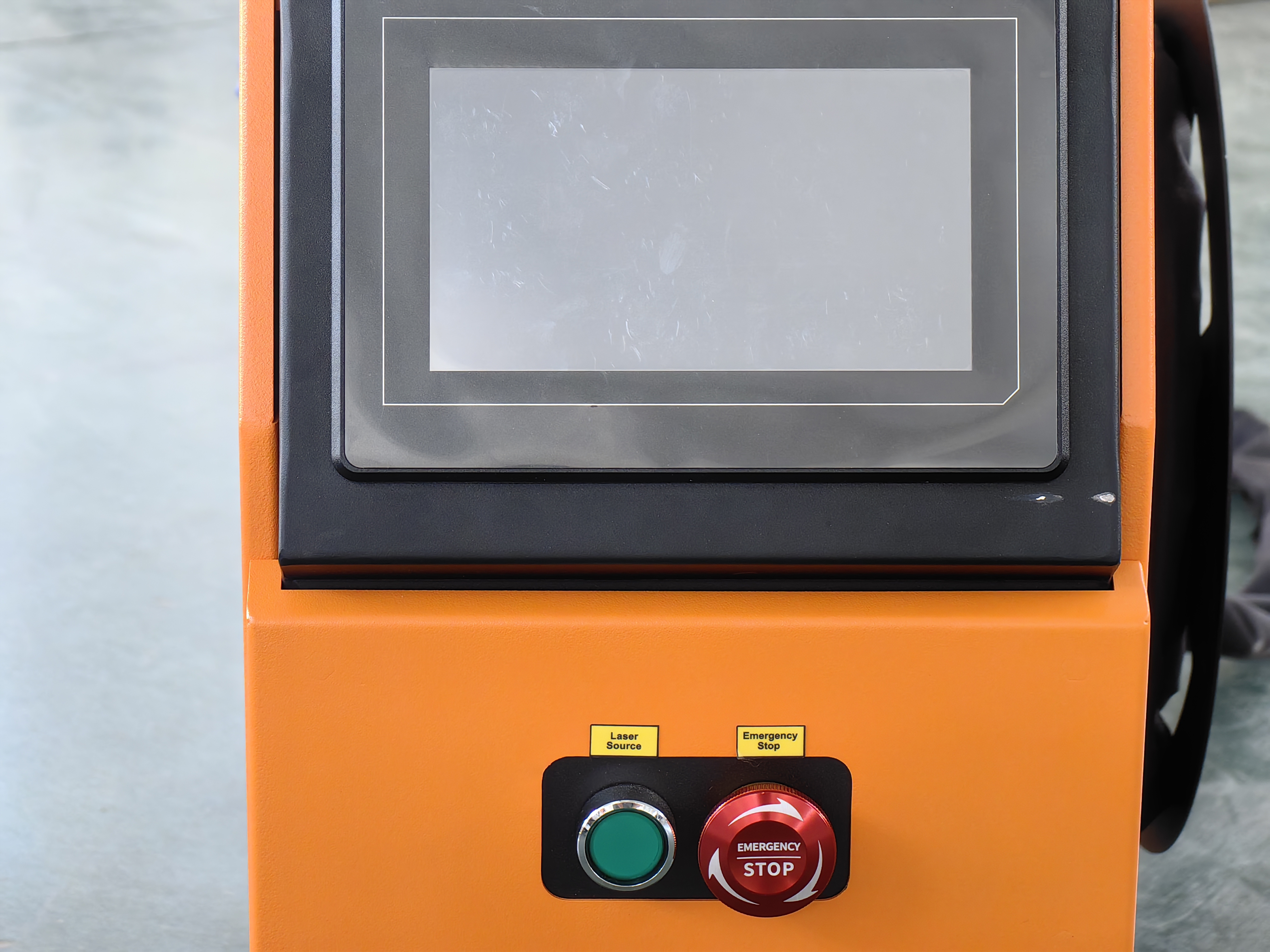

IMG_20260910_152004

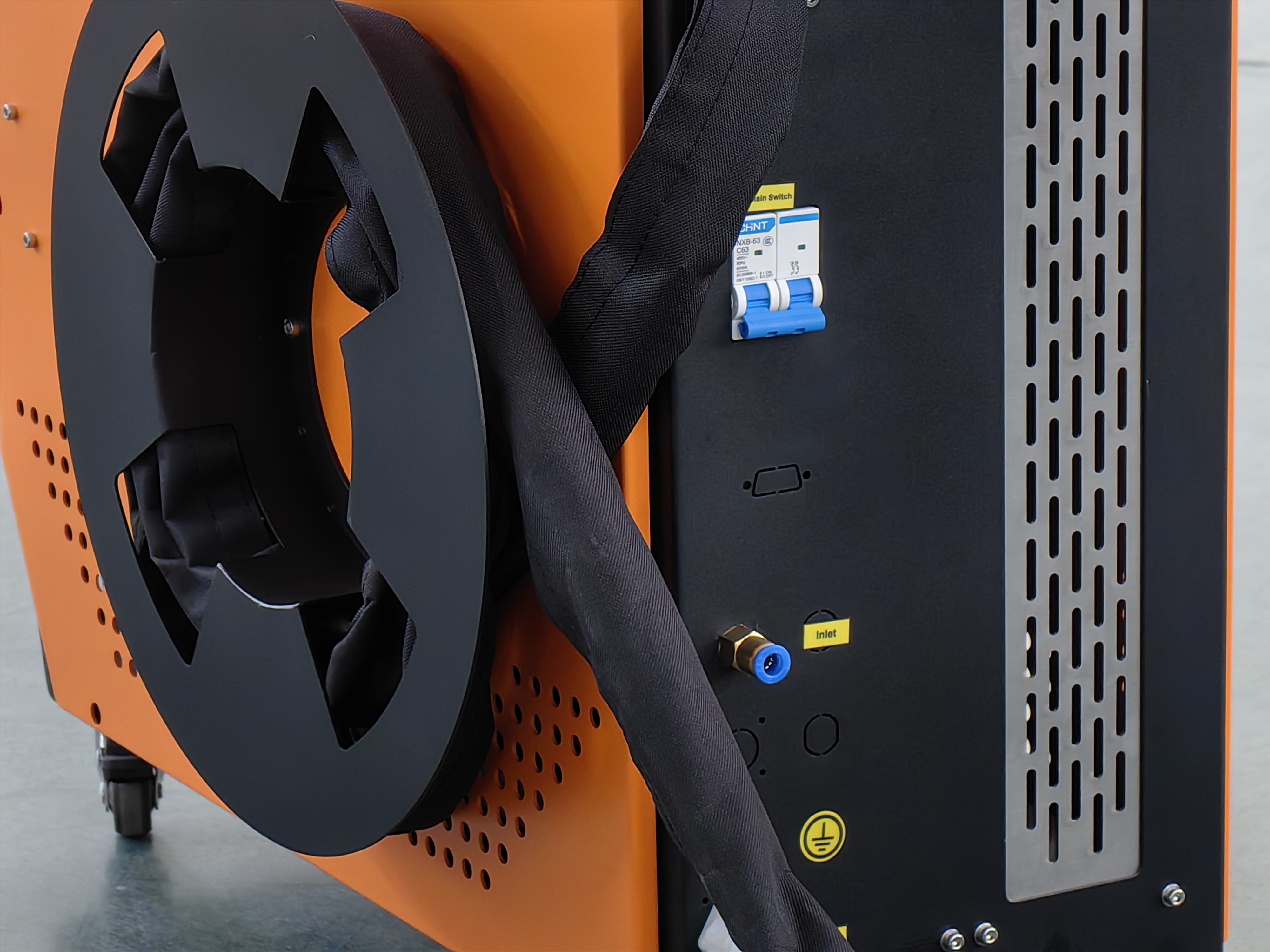

5 Meter cable with enclosed storage box (10 meters customizable)

IMG_20260910_151639

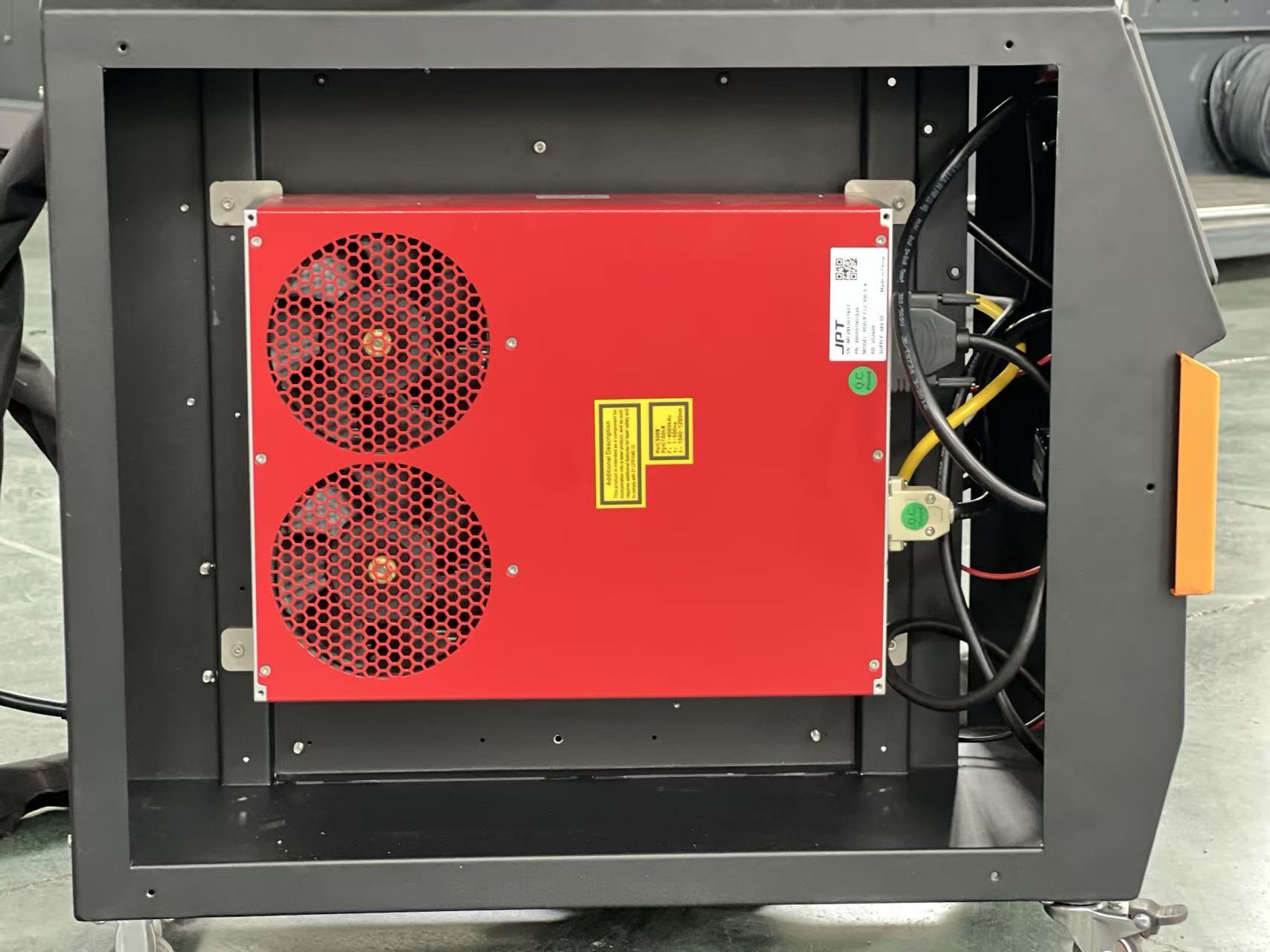

JPT MOPA laser source

微信图片_20260916165241_262_23

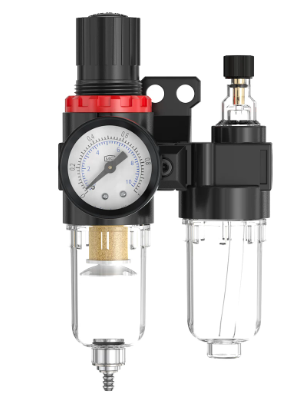

Oil-water separator filters moisture and impurities from the air, better protecting the internal lenses of the laser head.

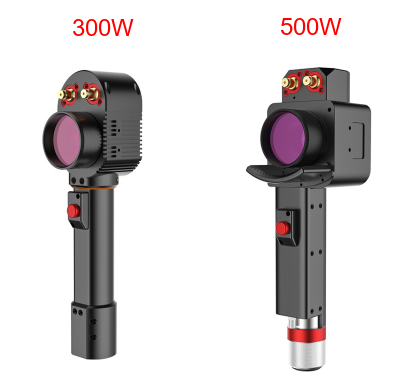

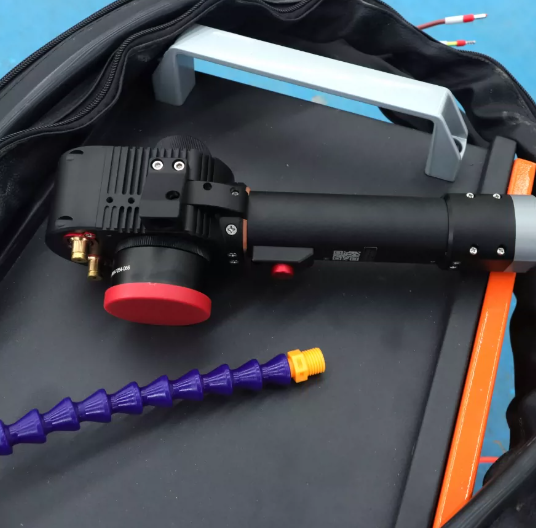

Lightweight handheld laser head with air blowing function and focus mount.

IMG_20260417_151822

Multiple cleaning patterns

Application

Metal paint removal, oil stain cleaning, rust removal, stone cleaning, high-precision mold cleaning, wood cleaning, artifact cleaning, Oxide layer cleaning, welding cleaning.
