Automatic Positioning Focus Fiber Laser Marking Machine Flying Laser Engraving Machines 20W 30W 50W 100W with Camera

5 0 Reviews
- Automatic identification positioning and marking
- Accurate calculation, smaller deviation

- It can cooperate with the conveyor belt to improve the working speed and efficiency
Availability:
Quantity:
  • 30W 50W 60W 100W

  • ray fine tech

  • 845611

Application advantage

The laser marking vision positioning system is to install eyes (industrial cameras) on the laser marking machine, so that the laser can accurately know the position information of the workpiece. When the position of the workpiece is deviated, the vision system can automatically correct the position information of the workpiece, so that The workpiece is machined correctly. After installing the system, the production capacity can be increased by 100%-300%, the labor cost can be reduced by 40%-60%, and the positioning accuracy can reach 0.05-0.15mm.

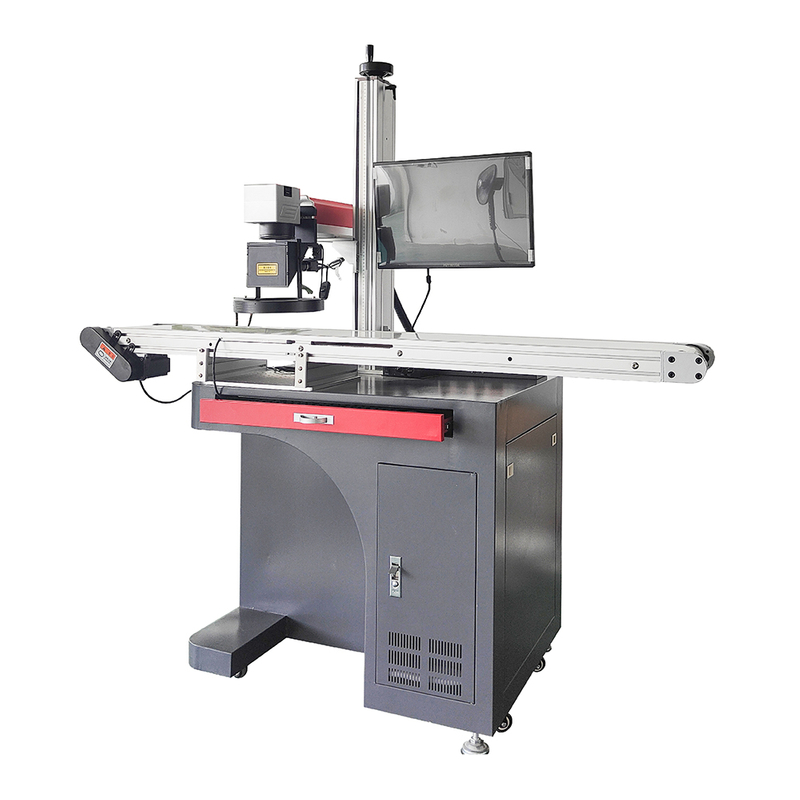

Machine Pictures

NOTE: The conveyor belt length and width support customization.

12


8

1配件


Machine Details

CCD  camera system

- camera pixels 12 million or 5 million (optional)

- camera response time 200 milliseconds

- camera accuracy 5 μ

20320246

20320251


RAYCUS & JPT fiber laser source (20W 30W 50W 60W 100W laser power optional)

- strong laser energy ability

- stable laser working

DSC03664

He2

Optional Accessories


82

Sample Show

k

h

69

9966887



NOTE: This specification sheet is an example of JPT 30w laser marking machine.

Model

30W
Laser wavelength1064nm

Laser output power

>30W

Cooling type

Air cooling

Marking Area

100mm×100mm  standard

Max working speed

6m/s

Laser beam quality M2

<1.8

Min. Character size:

0.1mm

Repetition Accuracy

<8μrad

Supply voltage:

AC110V 60HZ / AC220V 50HZ  ±10%

Control software

RUIDA system

Power consumption

≦1000w
Machine weight90~95 KG


We provide free YouTube operation videos and PDF English manuals.

We have professional after-sales technicians who can assist through WeChat, Email, WhatsApp, Teamviewer.

Before packing  in our factory, we do a 24-hour test. When you receive the machine, connect to the computer and you can use the laser directly.

We Provide Free Ezcad Software.





1配件
