CCD Vision Positioning 20W 30W 50W 60W 100W Fiber Laser Marking Machine with Conveyor Belt And Camera

- Automatic identification positioning and Automatic marking
- Accurate calculation, smaller deviation

- It can cooperate with the conveyor belt to improve the working speed and efficiency
Availability:
Quantity:
  • 30W 50W 60W 100W
  • ray fine tech
  • 845611

Application advantage of visual laser marking machine

- it is suitable for occasions with laser workload,difficult feeding positioning,simplify procedures,diverse workpieces and cpmplex surfaces. it is widely used in various industries.

- single person can complete the whole operation.


Machine Pictures

NOTE: conveyor belt length and width support customization.

20210203758


20210203_6

1配件


Machine Details


* split design,small machine size,convenient for DHL / FEDEX / TNT express delivery.


20210203_1107


*Ruida CCD  camera system

- camera pixels 13 million or 5 million (optional)

- camera response time 200 milliseconds

- camera accuracy 5 μ

20320246

20320251

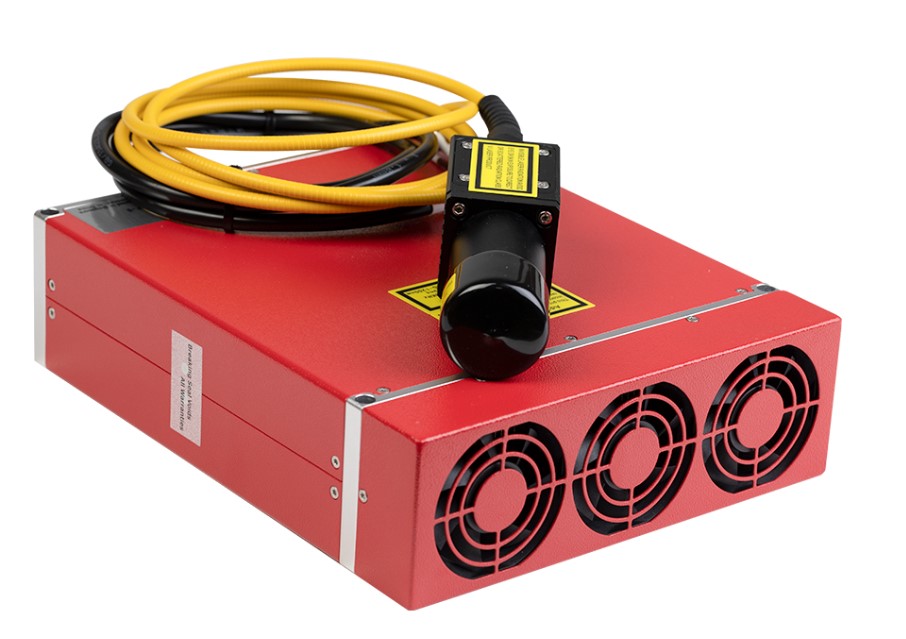

* JPT fiber laser source (20W 30W 50W 60W 100W laser power optional)

- strong laser energy ability

- stable laser working

JPT 白底


* High speed scanning head

5NC(9ZDBU6`(MOZI4WIO



Optional Accessories


82

Sample Show

k

h

69

9966887



NOTE: This specification sheet is an example of JPT 30w laser marking machine.

Model

30W
Laser wavelength1064nm

Laser output power

>30W

Cooling type

Air cooling

Marking Area

100mm×100mm  standard

Max working speed

6m/s

Laser beam quality M2

<1.8

Min. Character size:

0.1mm

Repetition Accuracy

<8μrad

Supply voltage:

AC110V 60HZ / AC220V 50HZ  ±10%

Control software

RUIDA system

Power consumption

≦700w
Machine weight45~50 KG


--We provide free YouTube operation videos and PDF English manuals.

--We have professional after-sales technicians who can assist through WeChat, Email, WhatsApp, Teamviewer.

--Before packing  in our factory, we do a 24-hour test. When you receive the machine, connect to the computer and you can use the laser directly.

--We Provide Free Ezcad Software.





1配件
