Dual Laser Head CO2 Laser Engraving Machine with Auto-focus And CCD Camera

power:
Availability:
Quantity:

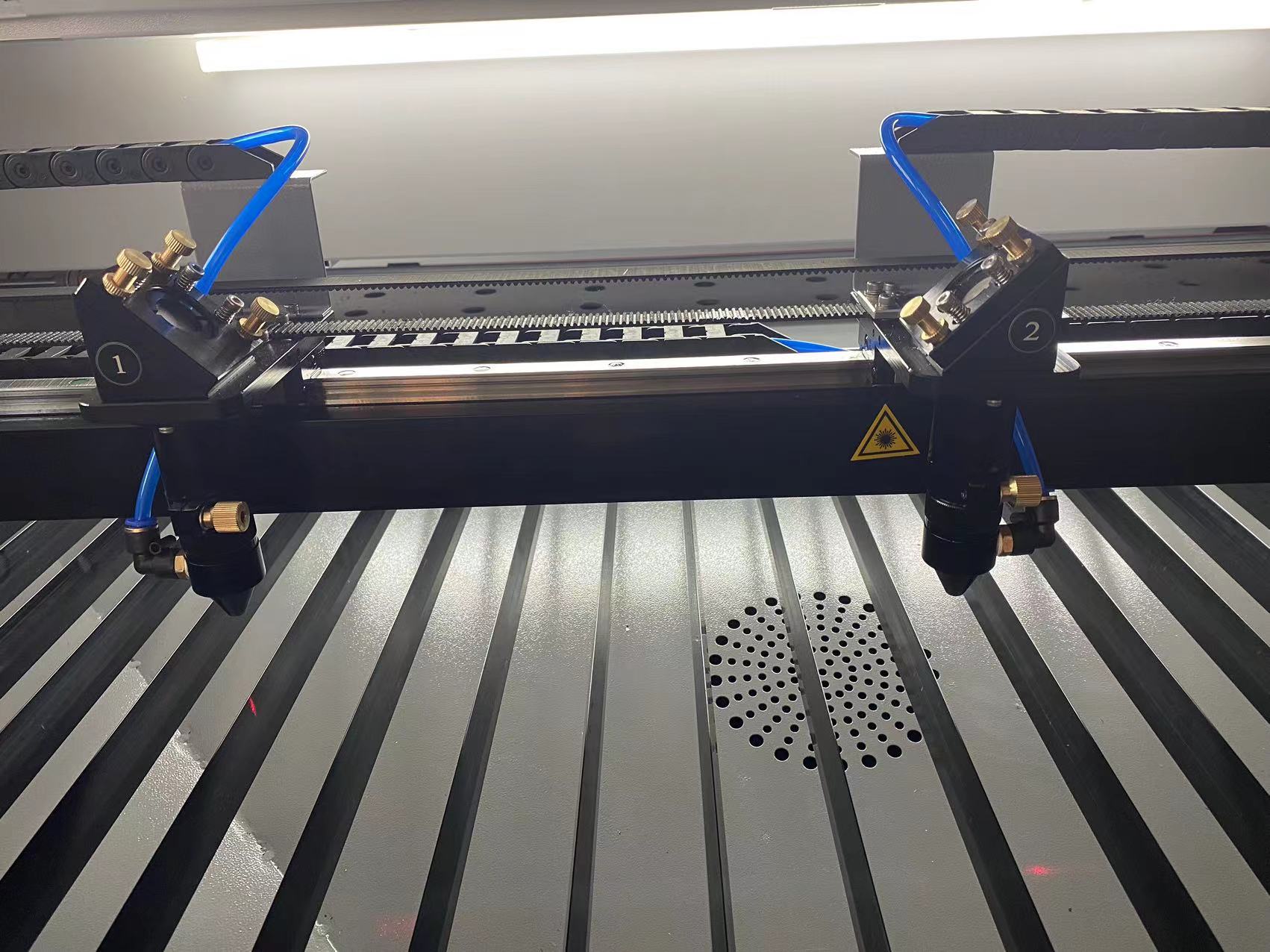

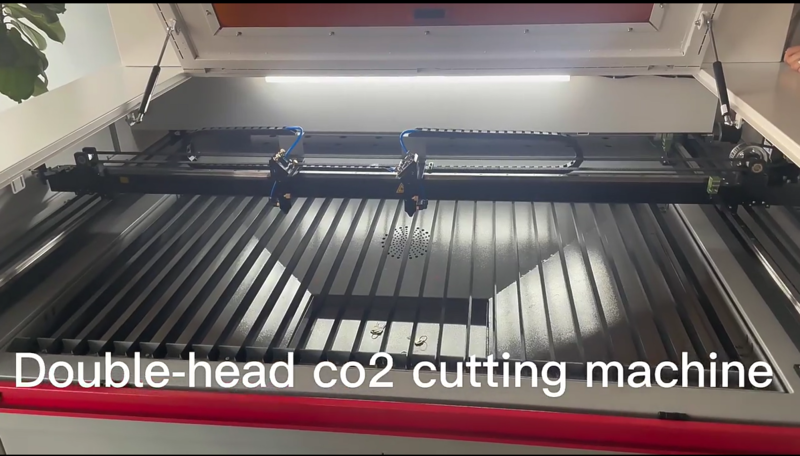

Double Head CO2 Laser Cutting Engraving Machine

Why choose dual head CO2 laser cutting machine?

Increased productivity: a dual-head CO2 laser cutting machine can cut two workpieces at the same time, doubling productivity compared to a single-head cutting machine. This is especially important for production lines that require a large number of cuts.

Cost Savings: Since the dual-head laser cutting machine can cut two workpieces at the same time, it can reduce the number of equipment and floor space, thus reducing the cost of equipment purchase and maintenance.

Good cutting quality: CO2 laser cutting technology has highly concentrated energy, which can achieve high precision and high quality cutting. The dual-head cutting machine can maintain stable cutting speed and quality during the cutting process, ensuring smooth cutting edges and reducing the need for subsequent processing procedures.

Diversified applications: the dual-head CO2 laser cutting machine is suitable for cutting a variety of materials, including acrylic, wood, plywood, paper, leather, and other non-metallic materials. Therefore, it has a wide range of applications in many industries, such as machinery manufacturing, automotive, electronics, furniture and so on.

DSC04654


DSC04666

Introduction


Model

RF-1610
Laser typeCO2 laser

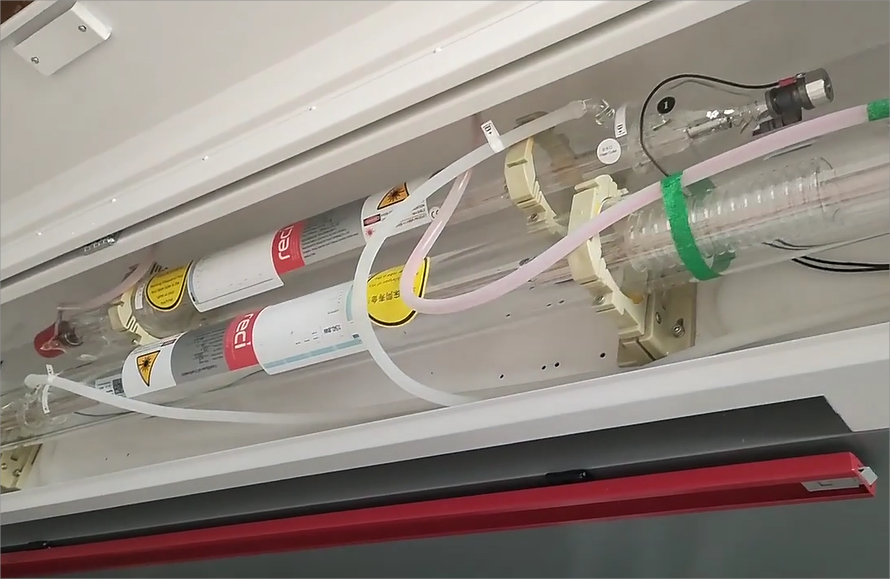

Laser tube

Glass tube

Cooling type

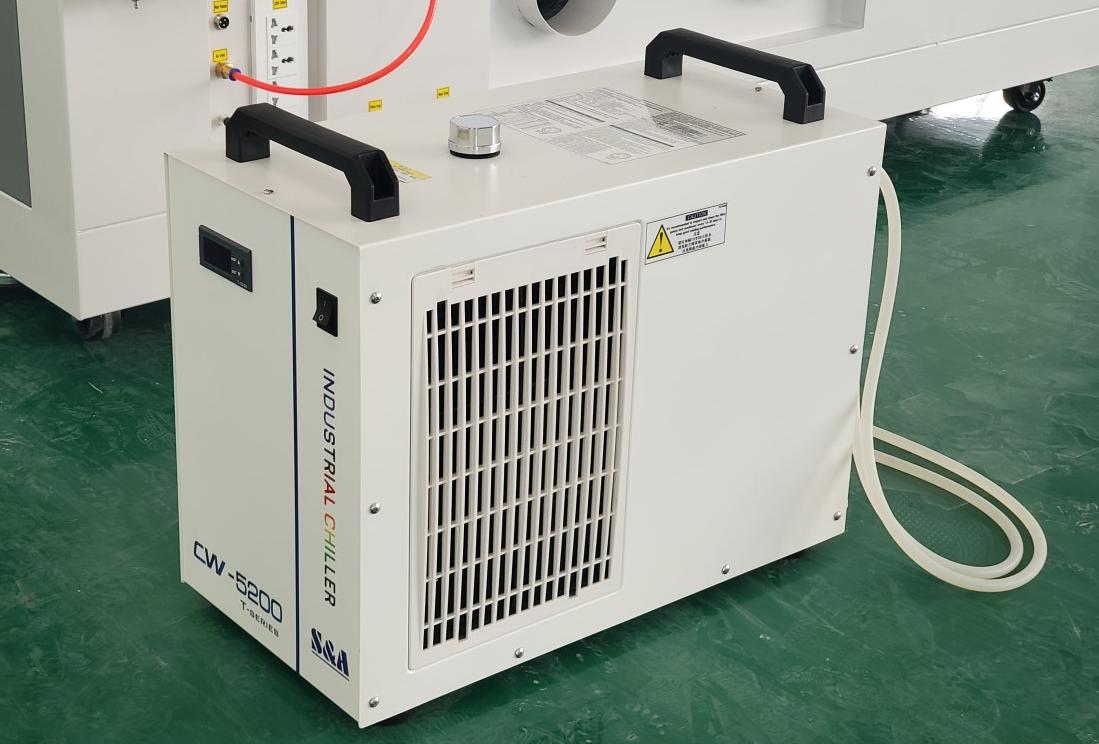

Water cooling industrial chiller

Working bed

1600 x 1000 mm

Laser power

75W+150W
Min shaping characterCharacter:1.5*1.5mm Letter: 0.7*0.7mm

Direct output

CorelDraw, AutoCAD, Photoshop, Laser CAD, Lightburn etc

Supply voltage

AC110V 60HZ  ±10%

AC220V 50HZ  ±10%

Control software

RDWORKSV8

Working table

Aluminum knife table+Honeycomb table
Certification

CE
