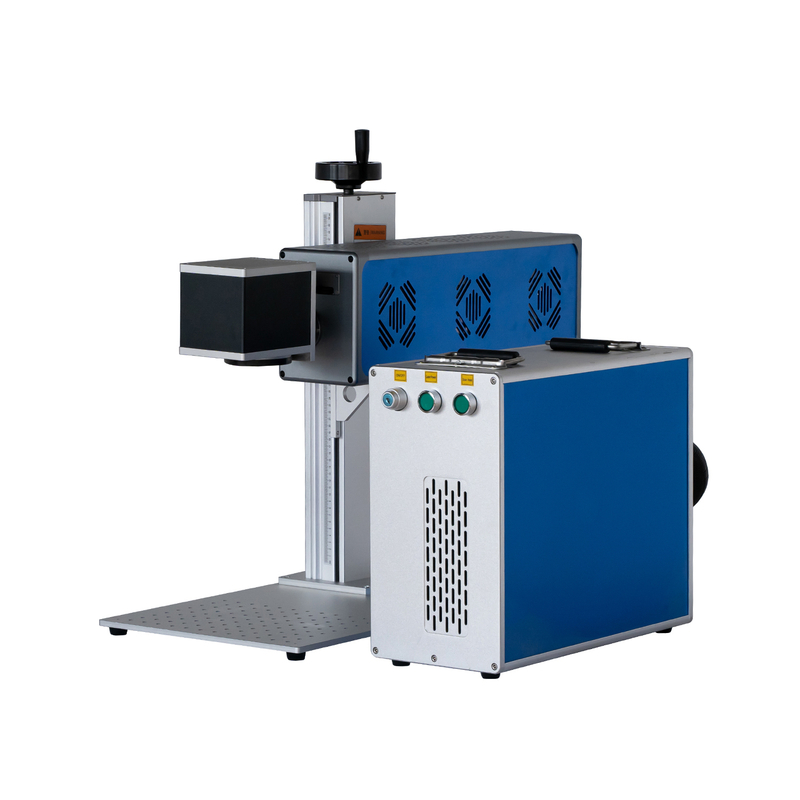

Portable China DAVI 30W 35W CO2 RF Laser Marking Engraving Machine

5 0 Reviews
* China famous brand metal tube laser source with fan cooling
* Affordable price with high cost performance
* Genuine BJJCZ control card with free EZCAD software
Availability:
Quantity:
Inquire Add to Basket

  • 30W 35W

  • ray fine tech

  • 845611

Machine pictures

主图_画板 1

1配件




主图_画板 1 副本Machine Details

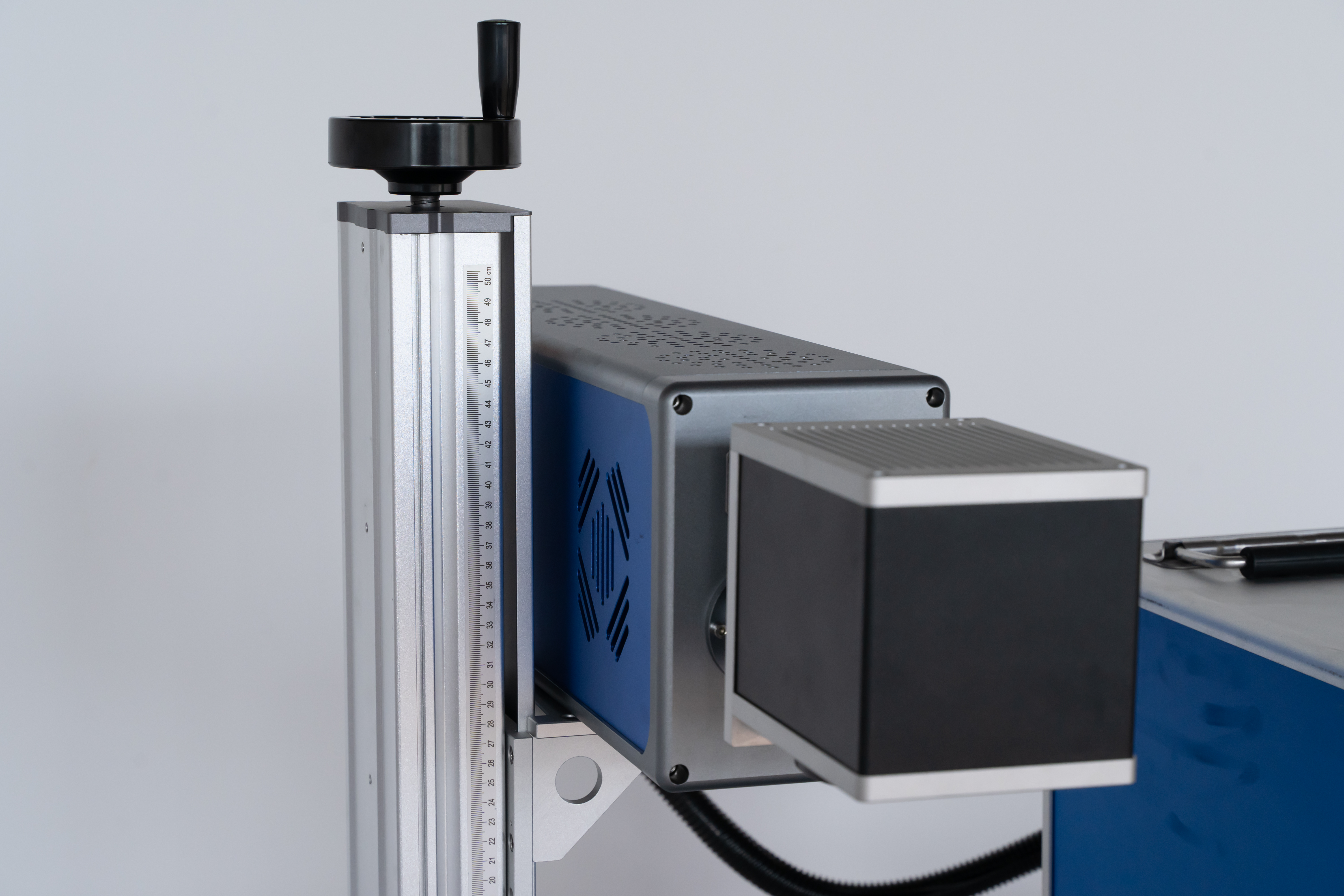

*500mm motorized column with clear ruler

DSC01416

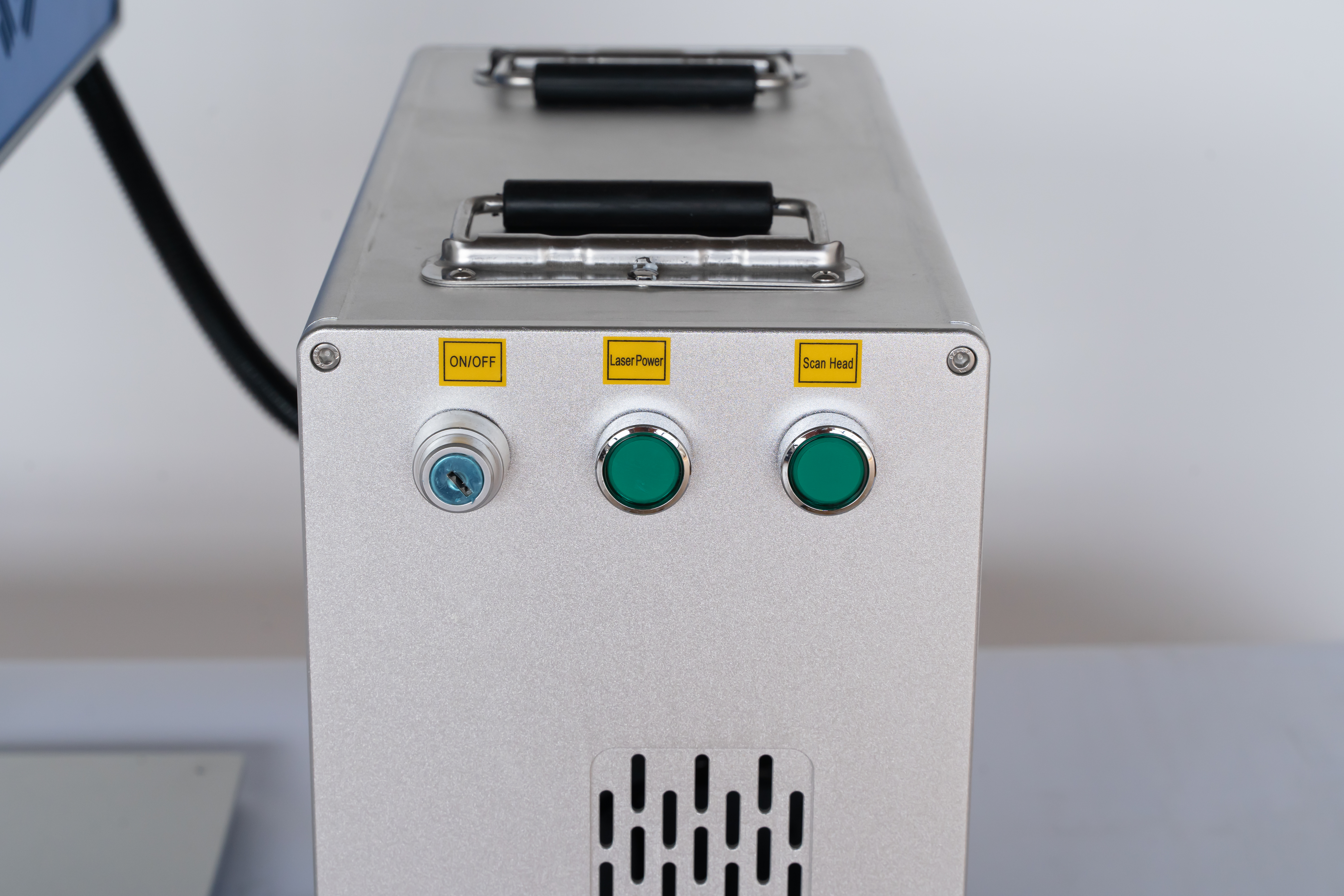

* control switch

DSC01408

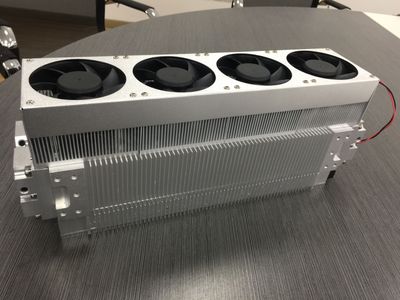

*Metal tube CO2 laser source. it have better precision than glass tube laser source.davi

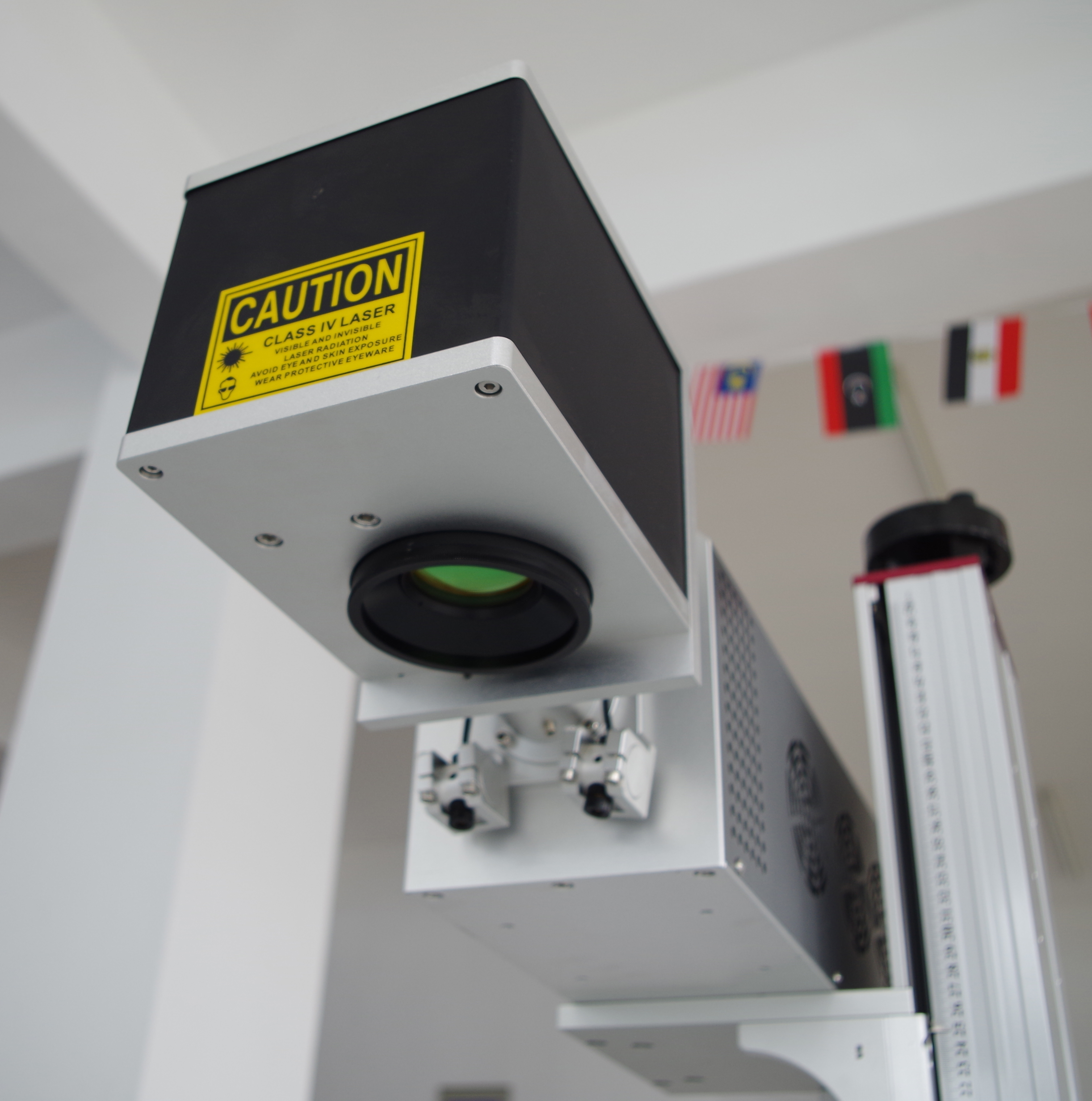

* SINO GALVO head （support install two double red lights help you find focus length）

IMGP5432


*BJJCZ EZCAD software


软件1

未标题-2

软件2

软件3


Optional Accessories


82

Sample Show

Wood ，Leather，Acrylic，Rubber，MDF board,  Plastic

999699


主图_画板 1 副本 5_画板 1


NOTE: This specification sheet is an example of JPT 30w co2 laser marking machine.

Model

30W
Laser wavelength10600nm

Laser output power

>30W

Cooling type

Air cooling

Marking Area

100mm×100mm  standard

Max working speed

6m/s

Laser beam quality M2

<1.8

Min. Character size:

0.1mm

Repetition Accuracy

<8μrad

Supply voltage:

AC110V 60HZ / AC220V 50HZ  ±10%

Control software

EZCAD

Power consumption

≦700w
Machine weight45~50 KG


--We provide free YouTube operation videos and PDF English manuals.

--We have professional after-sales technicians who can assist through WeChat, Email, WhatsApp, Teamviewer.

--Before packing  in our factory, we do a 24-hour test. When you receive the machine, connect to the computer and you can use the laser directly.

--We Provide Free Ezcad Software.
