Versatile Fiber Laser Marking Machine 30W-100W, Camera Equipped, Auto Conveyor Function

- Automatic identification positioning and marking
- Accurate calculation, smaller deviation
- Cooperate with the conveyor belt to improve the working speed and efficiency
Availability:
Quantity:
Inquire Add to Basket

  • 30W 50W 60W 100W

  • ray fine tech

  • 845611

Application advantage of visual laser marking machine

- It is suitable for occasions with laser workload，difficult feeding positioning，simplify procedures，diverse workpieces and cpmplex surfaces. it is widely used in various industries.

- Single person can complete the whole operation.

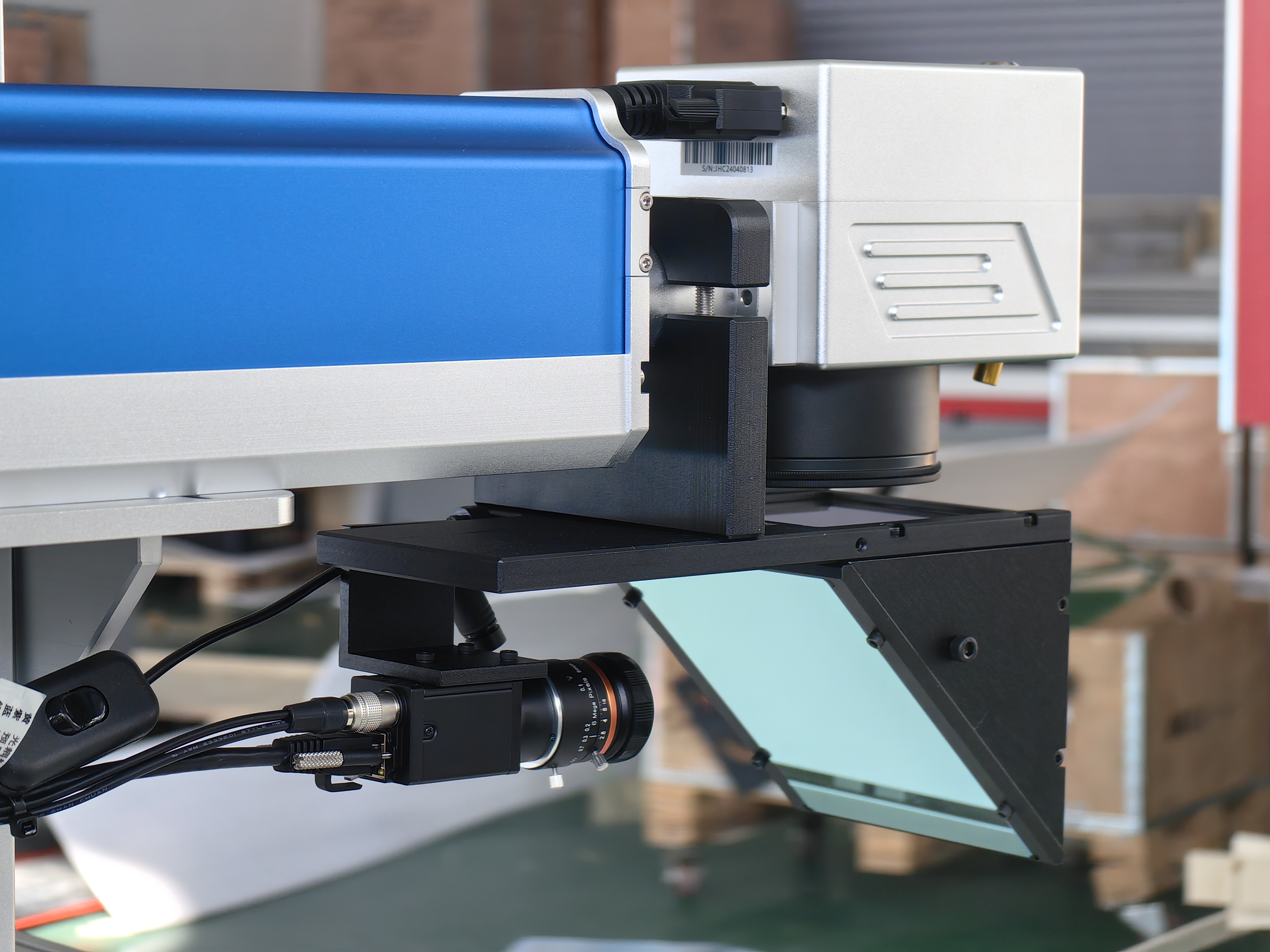

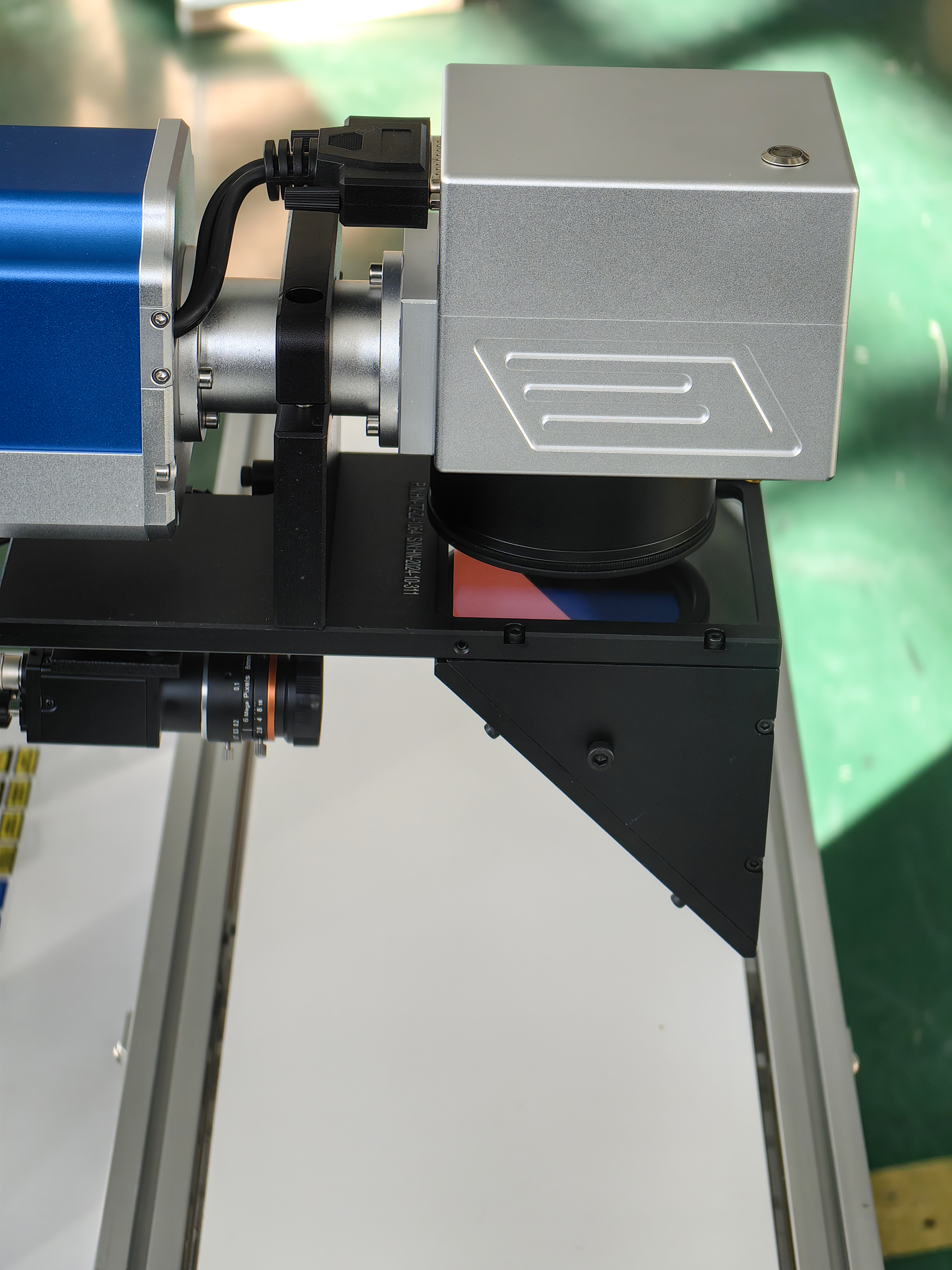

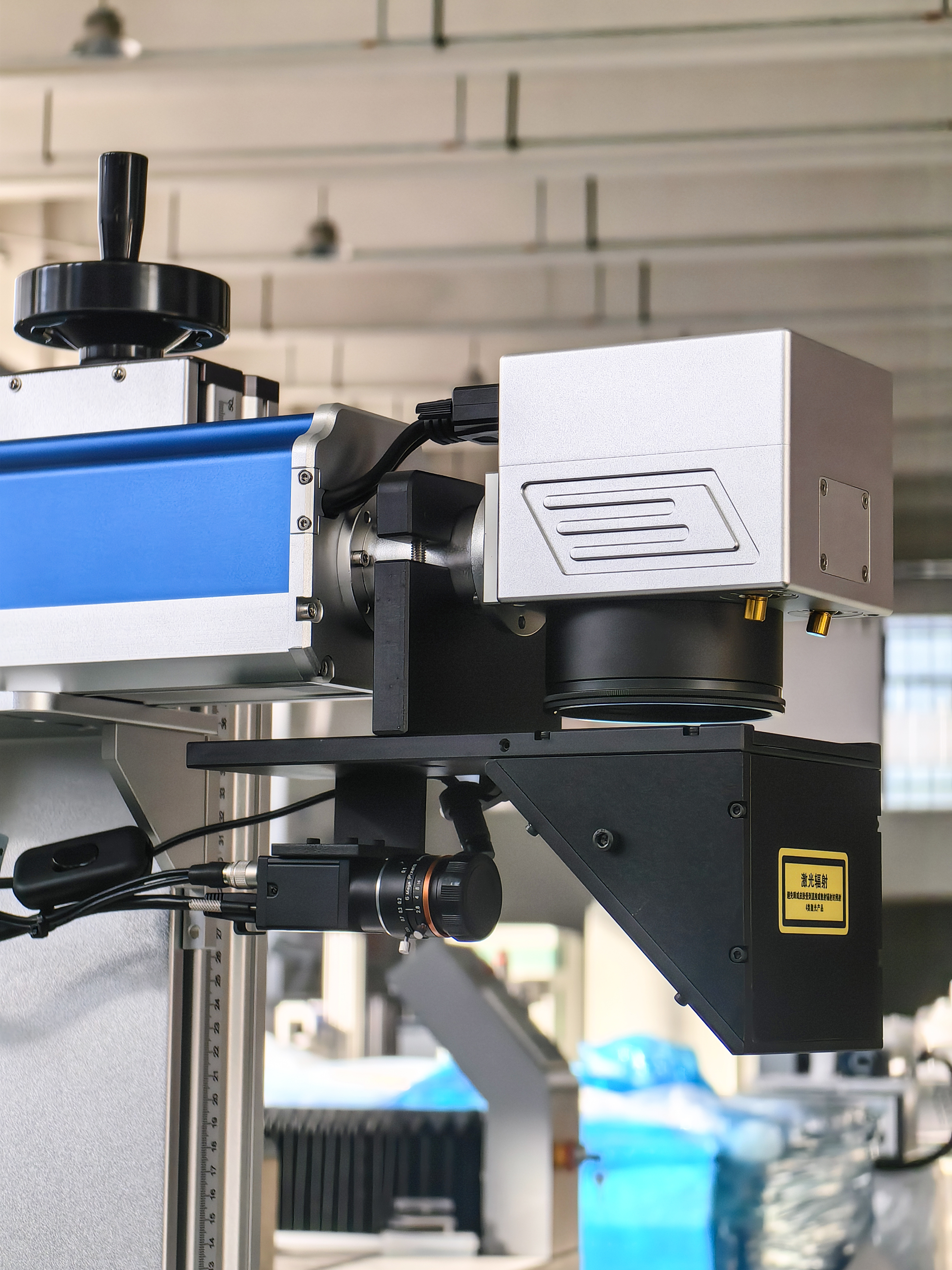

Machine Pictures

NOTE: conveyor belt length and width support customization.

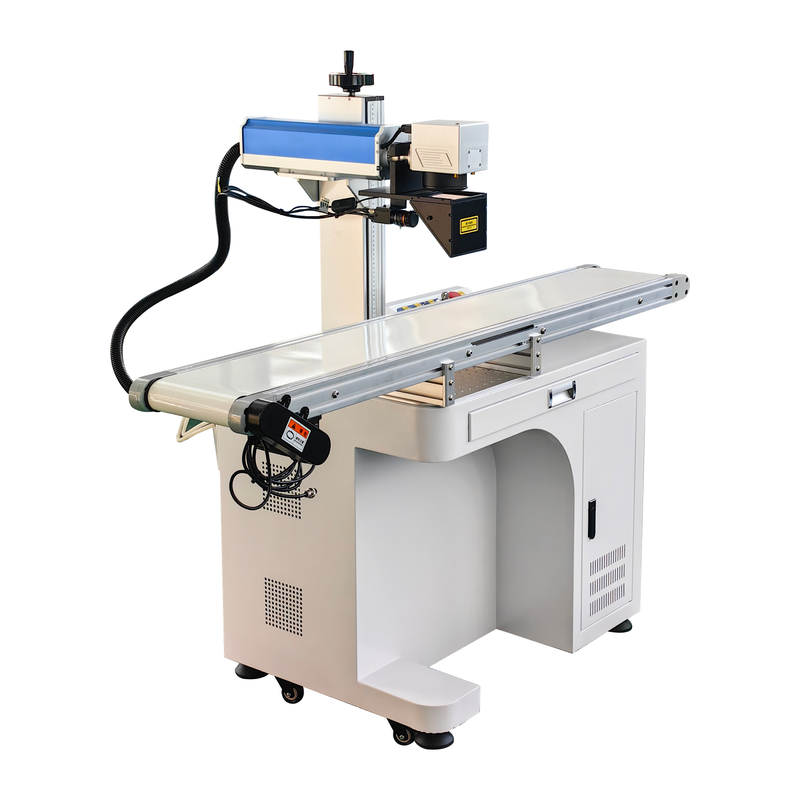

IMG_20250106_100137

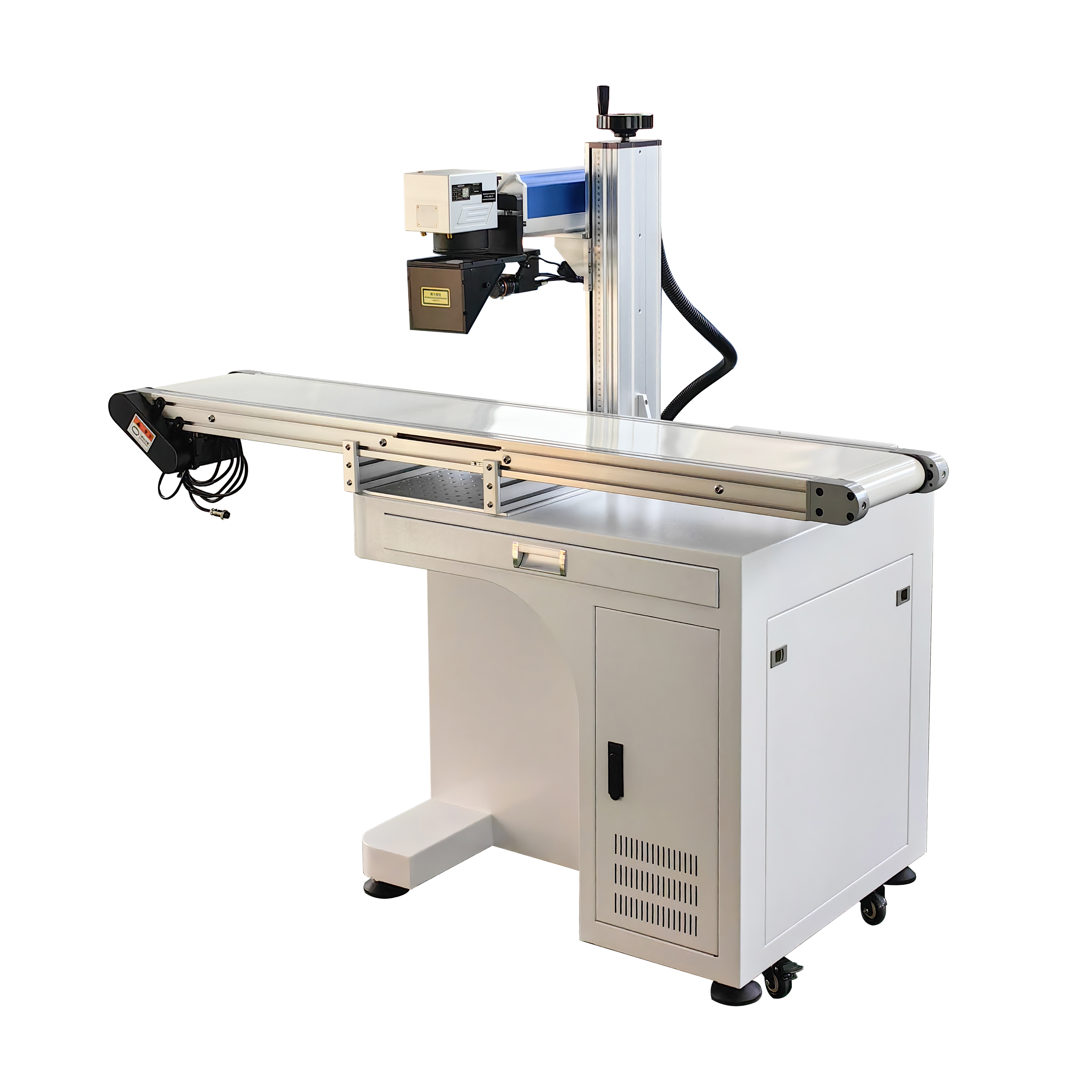

IMG_20250106_100254

1配件



Sample Show

k

h

69

9966887



NOTE: This specification sheet is an example of JPT 30w laser marking machine.

Model

30W
Laser wavelength1064nm

Laser output power

>30W

Cooling type

Air cooling

Marking Area

100mm×100mm  standard

Max working speed

6m/s

Laser beam quality M2

<1.8

Min. Character size:

0.1mm

Repetition Accuracy

<8μrad

Supply voltage:

AC110V 60HZ / AC220V 50HZ  ±10%

Control software

EZCAD system

Power consumption

≦700w
Machine weight45~50 KG


--We provide free YouTube operation videos and PDF English manuals.

--We have professional after-sales technicians who can assist through WeChat, Email, WhatsApp, Teamviewer.

--Before packing  in our factory, we do a 24-hour test. When you receive the machine, connect to the computer and you can use the laser directly.

--We Provide Free Ezcad Software.
