RF-1390
RAY FINE
845611

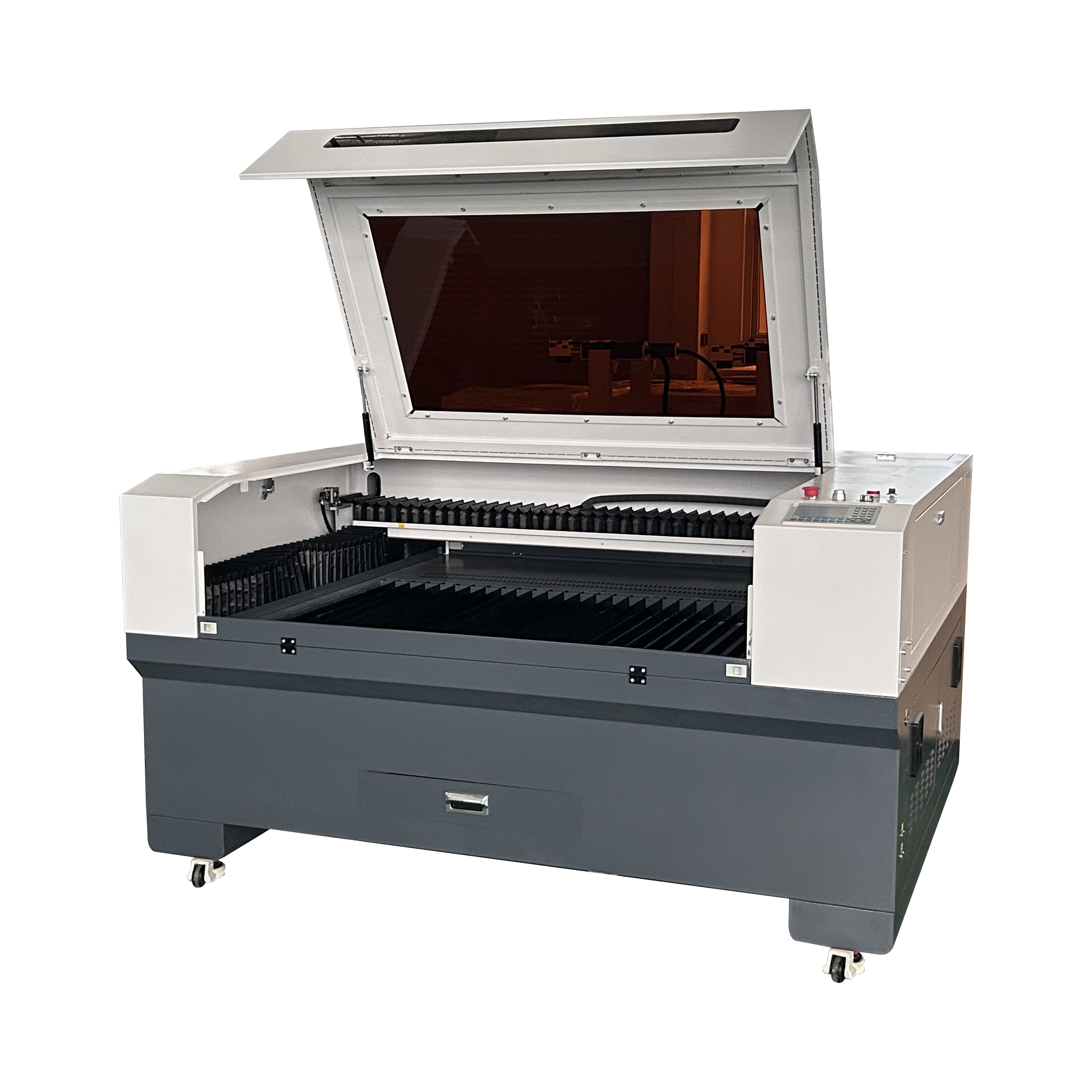

High Precision Ball Screw Transmission Co2 Laser Cutting Machine 300W 500W 600W
Advantages:
High Precision and Accuracy: C5 Ball screws provide exceptional positioning precision during motion control, ensuring accurate cuts with minimal deviation, which is critical for intricate designs and consistent quality.
Stability and Smooth Operation: This transmission system delivers stable movement even at high speeds, reducing vibrations and maintaining consistency during high-intensity cutting tasks.
Ease of Installation and Maintenance: With a simple linear structure, ball screw mechanisms facilitate straightforward setup and upkeep, minimizing downtime and operational disruptions.
Enhanced Durability and Reliability: Paired with advanced components from renowned brands, ball screws ensure long-term robustness and reduce the risk of mechanical failure.

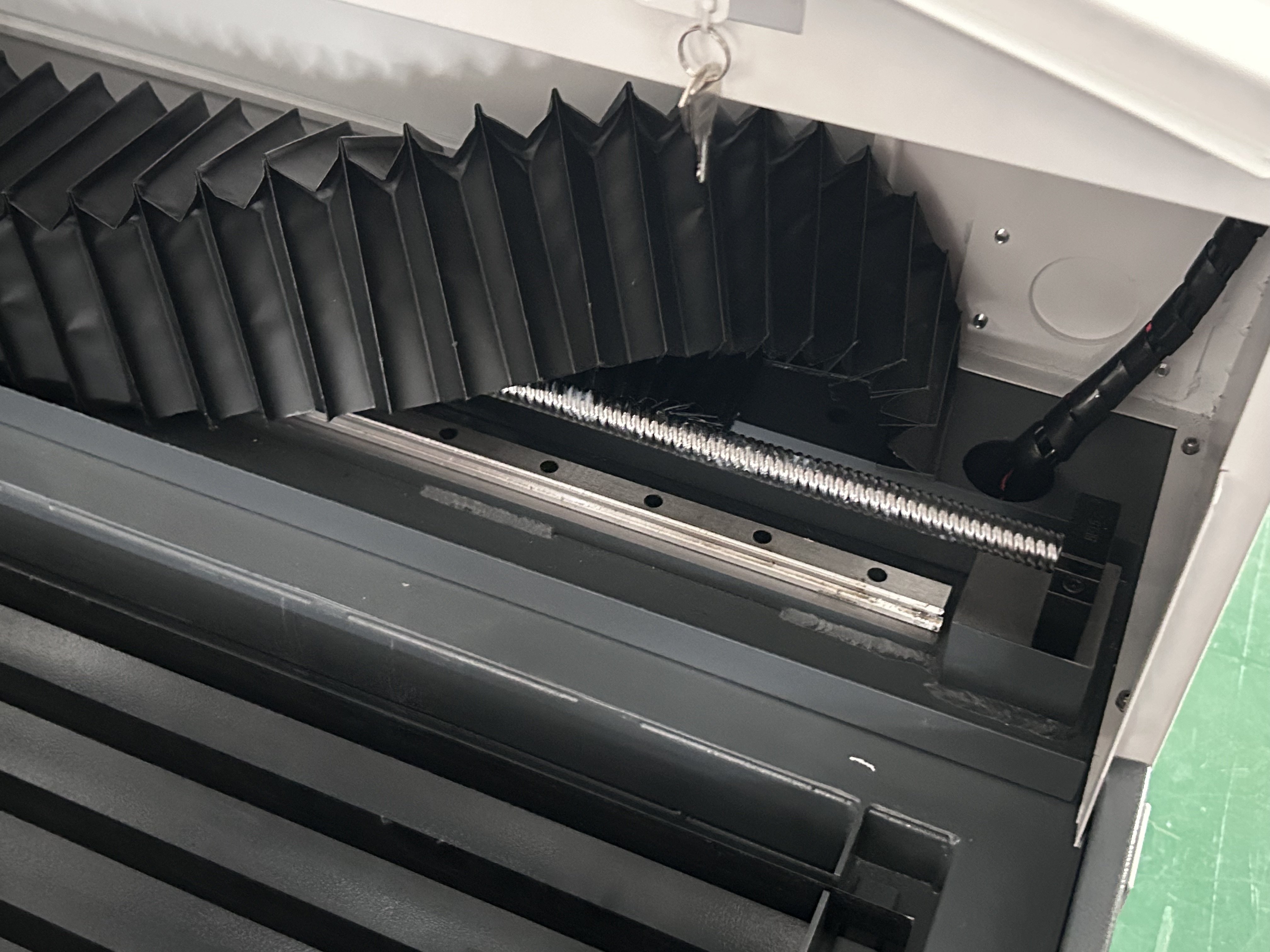

C5 Ball screw+Linera rail +Dust cover
Woven/Embroidered Labels: Automated contour cutting of woven labels and embroidered patches with ±0.1mm accuracy, compensating for fabric deformation
Garment Components: Cutting multi-layer fabrics (e.g., leather, synthetic textiles) for shoes, bags, and clothing with sealed edges
Roll Material Processing: Continuous cutting of printed textile rolls with automatic registration mark detection
Acrylic/Plastic Signage: Precision cutting of acrylic letters, logos, and braille signs using vision-based alignment to avoid manual positioning812.
Display Components: Creating intricate backlit panels and decorative elements from wood or composite materials
Leather Goods: Custom-cutting wallets, belts, and accessories without mechanical contact, preserving material integrity
Wooden Models/Toys: Producing architectural models, puzzles, and art pieces from plywood or MDF with complex geometries
Luxury Packaging: Cutting dielines for custom boxes and structural prototypes with zero setup time
Sample Development: Rapid iteration of textile or paper packaging designs for small-batch production
STEAM Projects: Enabling students to cut educational models (e.g., topographic maps, mechanical parts) from wood/acrylic
Artistic Creations: Facilitating DIY jewelry, home decor, and personalized gifts using vision-assisted alignment
Technical parameter
| Model | RF-1390 | |||
| Focus lens | USA imported D20mm/FCL63.5mm | |||
| Power supply | AC220/110V±10% 50/60hz | |||
| Working area | 1300*900mm | |||
| Laser heads quantity | 1 | |||
| Laser power | 300/500/600W(optional) | |||
| Max moving speed | 1000mm/s | |||
| Laser energy control | by LCD panel or software | |||
| Working table | Aluminum Blade | |||
| Locating precision | <0.01mm | |||
| Min shaping character | letter 0.2mm, Chinese 0.2mm | |||
| Operating temperature | -5℃-35℃ | |||
| Resolution ratio | 4500dpi | |||
| Control program | RDWORKS | |||
| Data transfer interface | USB | |||
| System environment | Win7/8/10/11 | |||

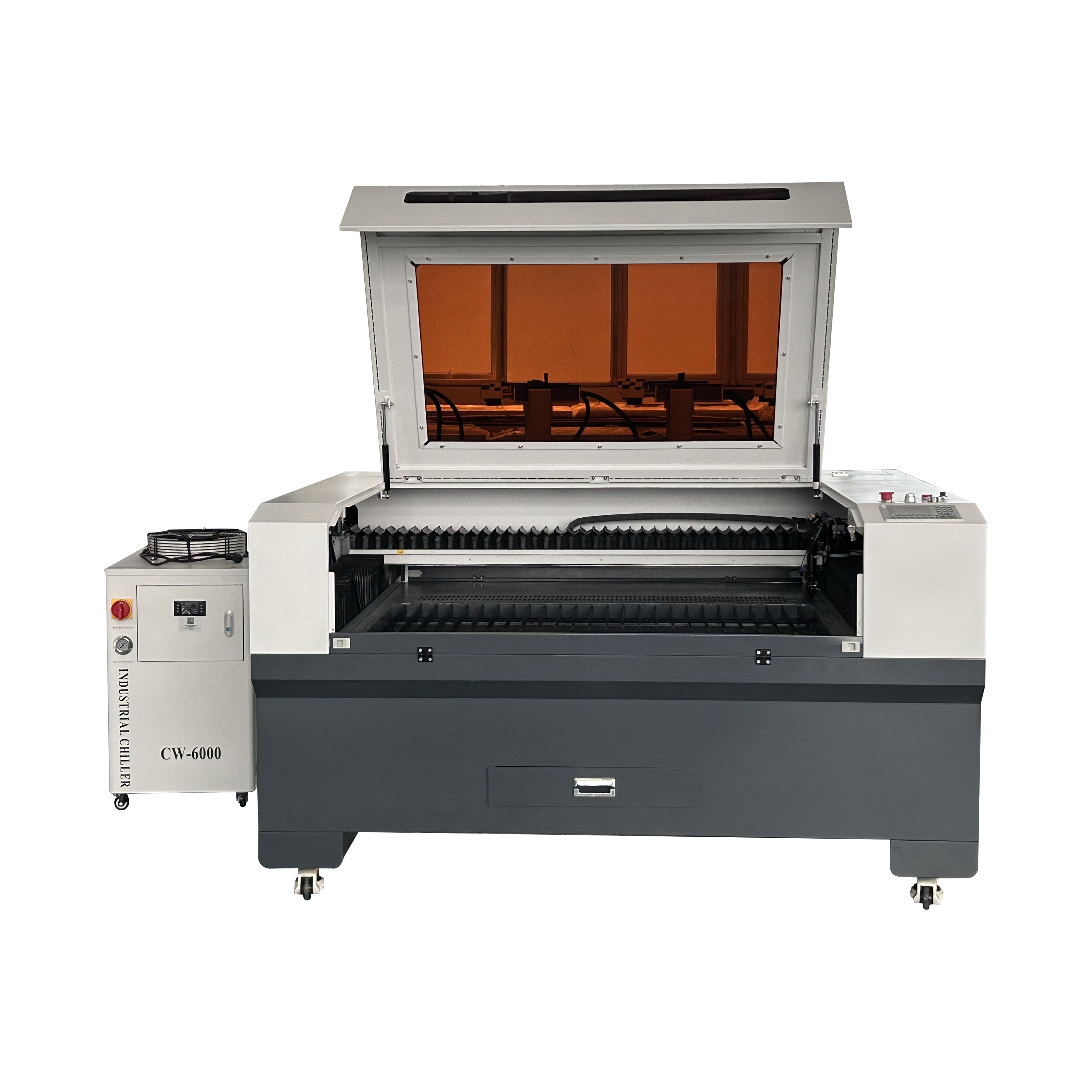

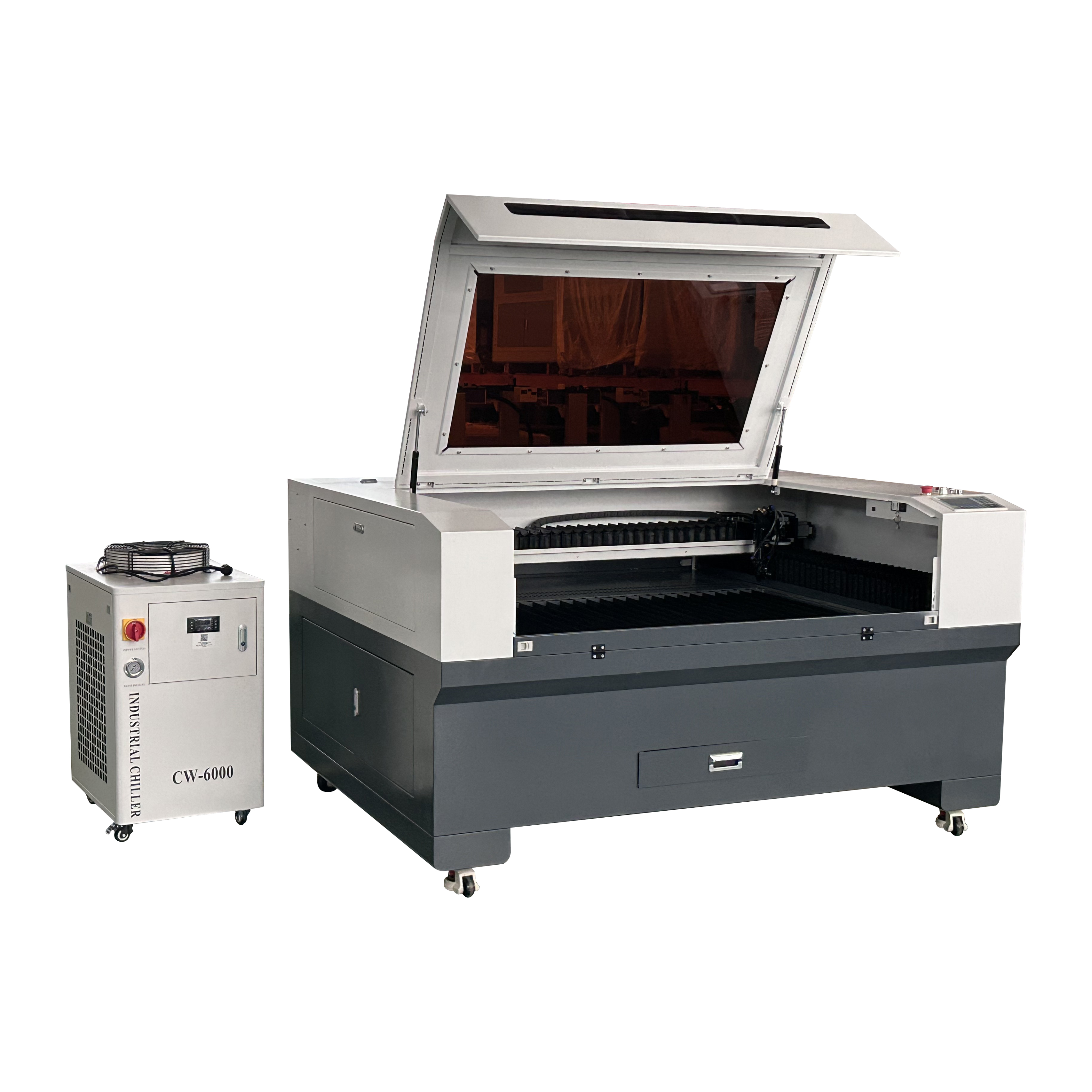

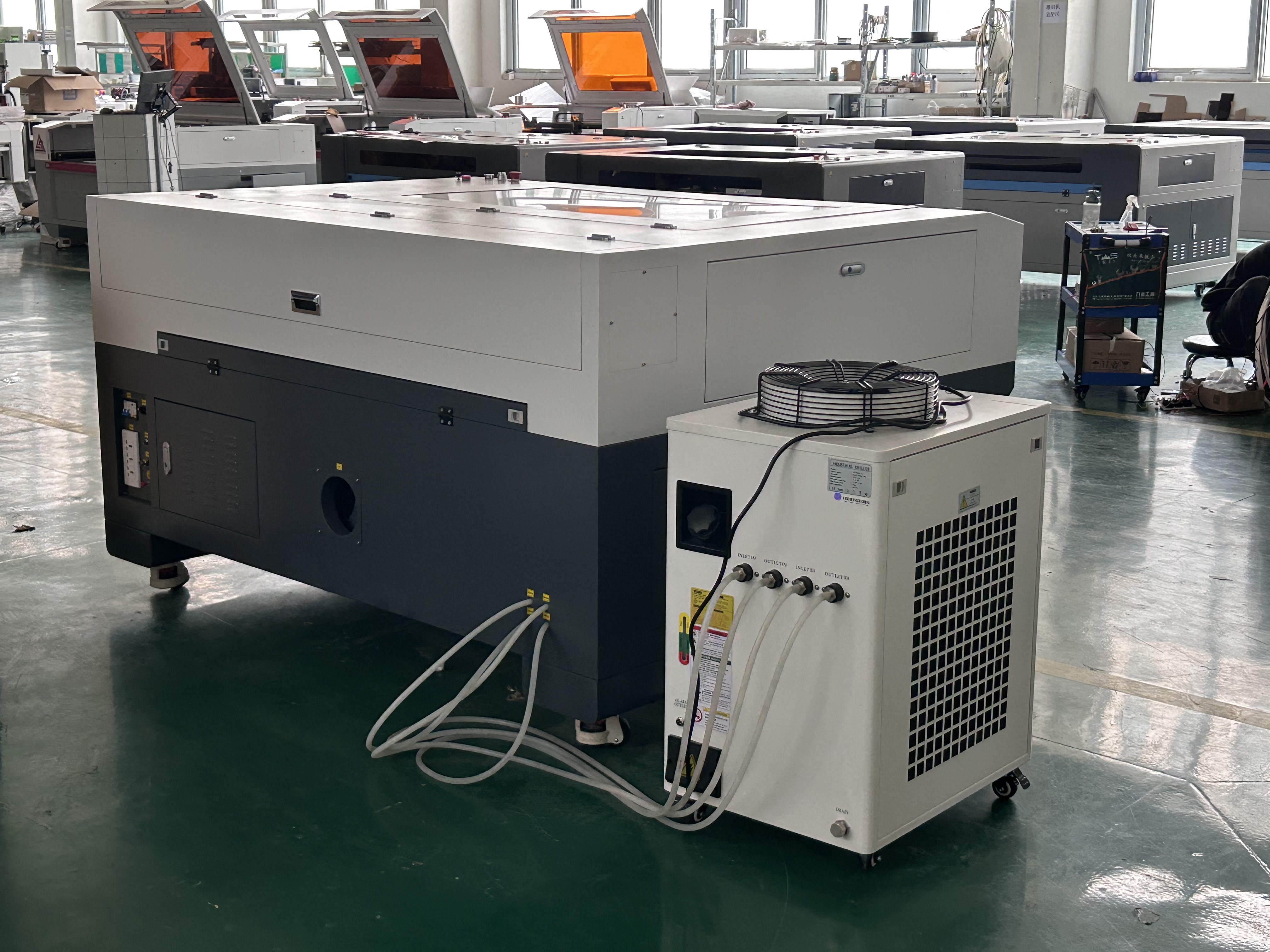

| Cooling way | Chiller CW5200 with protection system | |||
| Graphic format supported | The file which CorelDraw, Photo shop, Auto-CAD can identify | |||
| Compatible software | CorelDraw, Auto-CAD etc. | |||
| Cutting thickness | 0-25 mm (depends on different materials) | |||
| Color separation | Separation of cutting up to 256 colors | |||
| Red dot pointer | yes | |||
| Open door safety | yes | |||
| Packing | Plywood | |||
| Net weight | 450kgs | |||
| gross weight | 500kgs | |||
More question, please send email to us, sales05@rayfinetech.com, thank you :)
