RF-1310
RAY FINE
845611

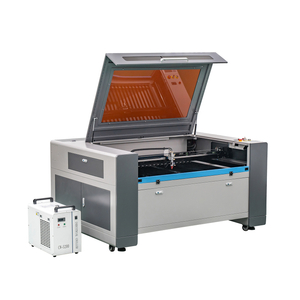

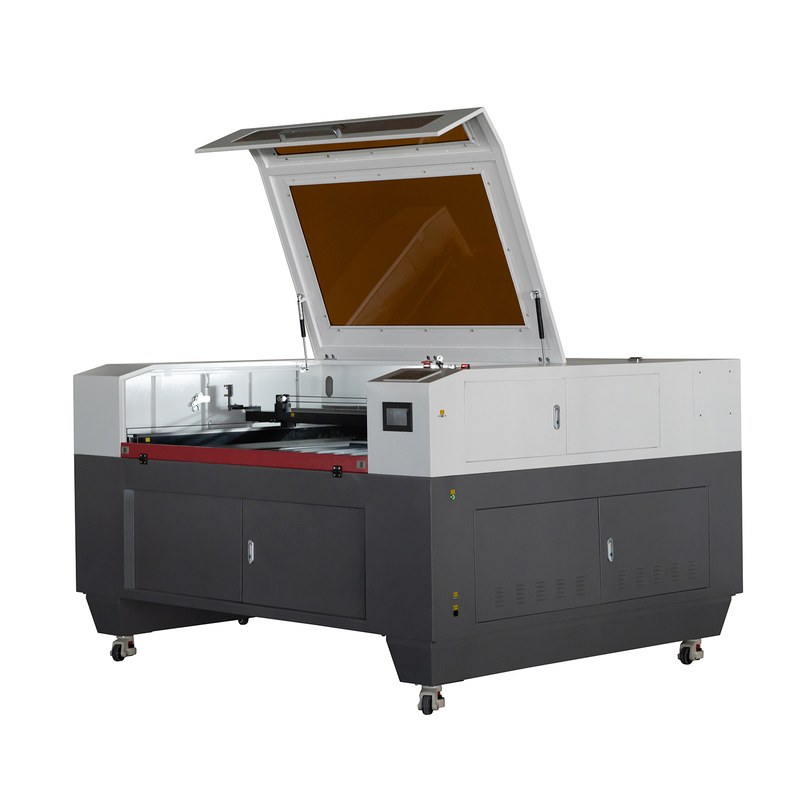

Co2 Mixed Hybrid Metal Cutter Metal And Non Metal Laser Cutting Machine Co2 for Stainless Steel Wood Plywood Acrylic
| Model | YJ-CO2-1310 | |||
| Focus lens | USA imported D20mm/FCL63.5mm | |||
| Power supply | AC220/110V±10% 50/60hz | |||
| Working area | 1300*1000mm | |||
| Laser heads quantity | 1 | |||
| Laser power | 180-300W(optional) | |||
| Max moving speed | 500mm/s | |||
| Laser energy control | by LCD panel or software | |||
| Working table | Fixed Aluminum blade | |||
| Locating precision | <0.01mm | |||
| Min shaping character | letter 0.5mm, Chinese 0.5mm | |||
| Operating temperature | -5℃-35℃ | |||
| Resolution ratio | 4500dpi | |||
| Control program | RDWORKS | |||
| Data transfer interface | USB | |||
| System environment | Win7/8/10 | |||
| Cooling way | Chiller CW6000 with protection system | |||
| Graphic format supported | The file which CorelDraw, Photo shop, Auto-CAD can identify | |||
| Compatible software | CorelDraw, Auto-CAD etc. | |||
| Cutting thickness | 0-25 mm (depends on different materials) | |||
| Color separation | Separation of cutting up to 256 colors | |||
| Red dot pointer | yes | |||
| Open door safety | yes | |||
| Packing | Plywood | |||
| Net weight | 380kgs | |||
| gross weight | 480kgs | |||
Machine details
It has good air tightness and can withstand higher gas pressure during metal cutting,there is a Z-axis transmission part, which can move up and down to accurately track the focus position.
Laser power supply
Control panel
Yongli laser tube
Other brand optional
X axis 25mm linear rail
CW6000 water chiller
Inquiry to sales05@rayfinetech.com, thank you :)
