1390 Series CO2 Laser Cutting Machine 90W-300W for Multiple Materials

1. Famous laser tube RECI / YONGLI / EFR, long working life
2. Ruida control system and stable
3. Upgraded and improved machine details, optional installation of alarm lights, door protection system, thicker machine frame
Availability:
Quantity:
  • RF-1390

  • RAYFINE

  • 845611

CO2 Laser Cutting Engraving Machine


CO2 Laser cutting engraving machine suitable for a variety of materials, such as acrylic, plexiglass, leather, plastic, wood, density board, rubber and non-metal. Especially cutting acrylic and cutting density board, engraving wood, engraving plastic.


1300*900mm (51.2*35.4 in) laser cutting engraving machine  with  75W/90W/100W/130W/150W/300W

DSC04654


DSC04666



DSC04667


DSC04668




Details Specification


DSC04672

Ruida control panel

DSC04670

New Laser head

DSC04643

High quality linear rail and motor system


DSC04673

CO2 glass laser tube

DSC04675

Motorized up down lifting table

DSC03766

Industrial chiller



Optional Parts Service

DSC03712

Rotary 1

DSC03716

Rotary 2

82





CCD camera


Free accessories

微信截图_20240219134015

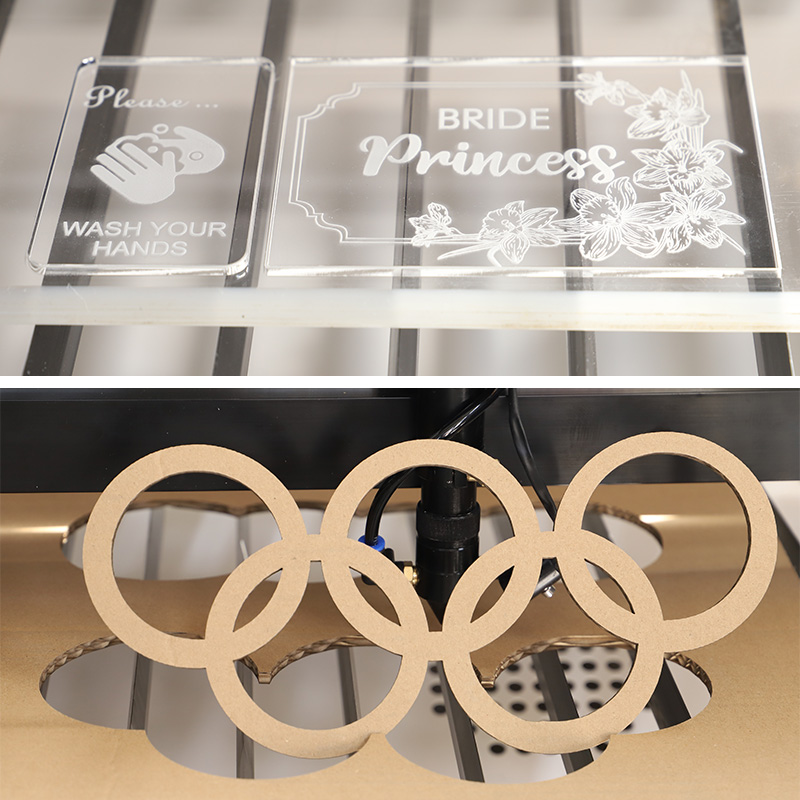

Application

Wood ,Leather,Acrylic,Rubber,MDF board,  Plastic, NON-METALS

screenshot_2025-04-27_14-46-39

Chinese-e




Model

RF-1390
Laser typeCO2 laser

Laser tube

RECI/YONGLI/EFR

Cooling type

Water cooling industrial chiller

Working bed

1300 x 900 mm

Max engraving speed

0~600mm/s    Depends on laser power and material thickness

Max cutting speed0~400mm/s     Depends on laser power and material thickness

Cutting thickness

0~30 mm          Depends on laser power and material thickness

Min. Character size:

1 x 1mm

Direct output

CorelDraw, AutoCAD, Photoshop, Laser CAD, Lightburn etc

Supply voltage:

AC110V 60HZ  ±10%

AC220V 50HZ  ±10%

Control software

RDWORKSV8

Power consumption

≦1300w
Machine weight

300 KG
