RF-F
RAYFINE
845611
Fiber laser source （RAYCUS or JPT, JPT better than RAYCUS）
*Stable working performance and fiber laser source the service life of more than 80,000 hours.
*JPT laser source come with smart cooling fan the fan only working when laser source over certain temparature, lower noise.
*JPT laser source is better in frequency range and pulse width, making the shading more delicate, of course more expensive.
JPT
RAYCUS

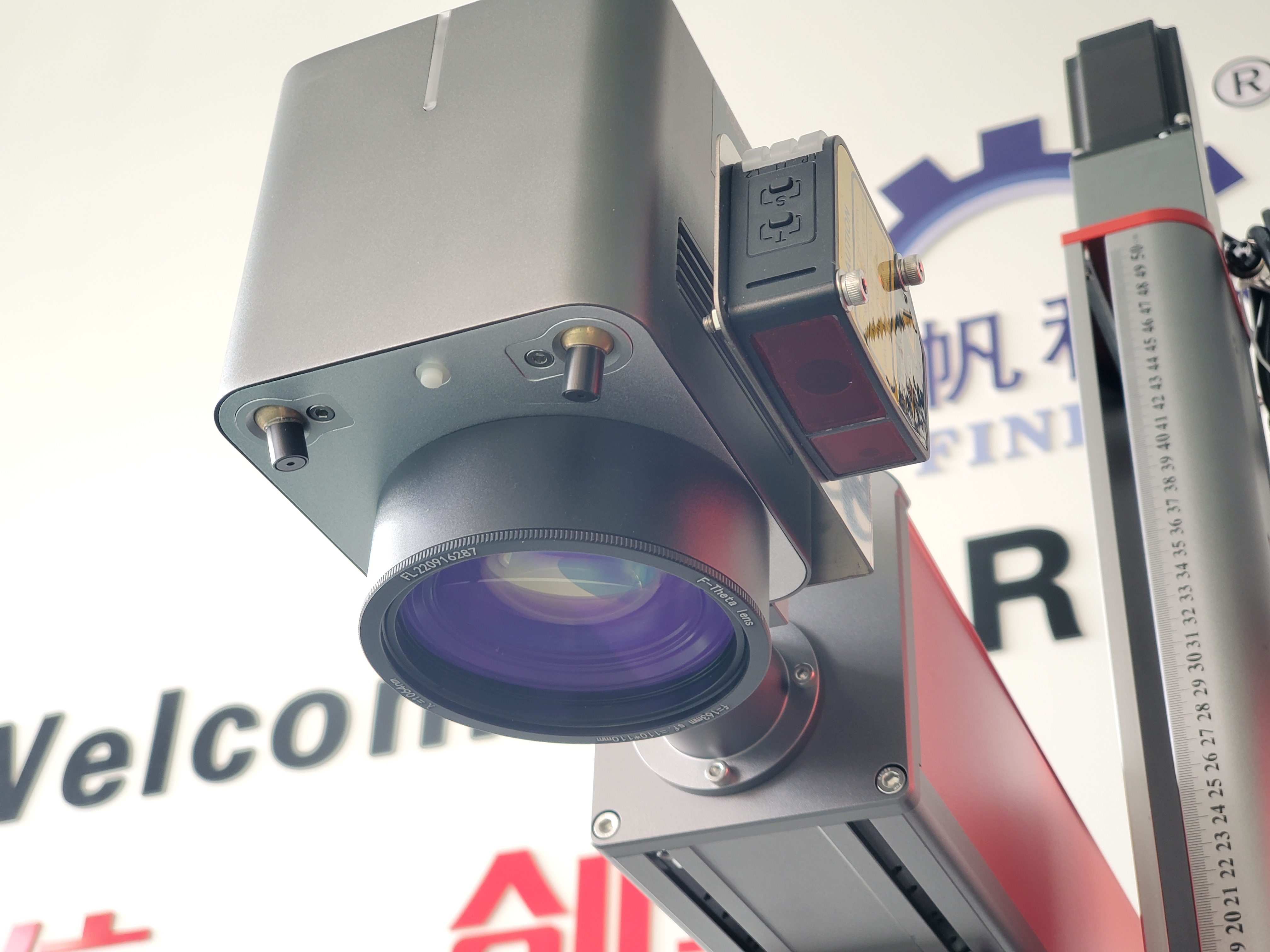

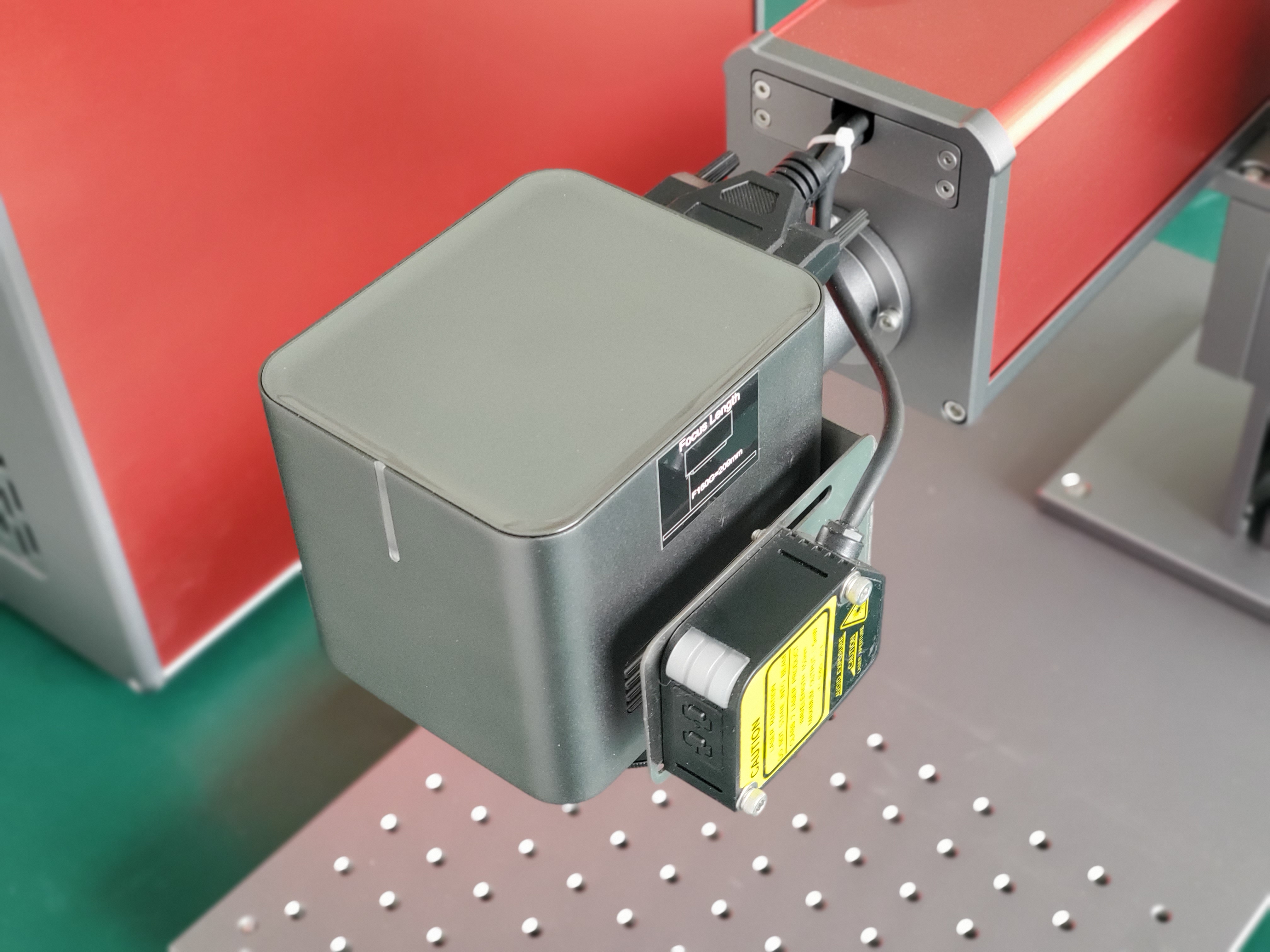

High Speed Galvo Digital Galvanometer
*Double red dots easy to focus , they help you find the focal length
*Precise: Long time drift (work continuously for 8 hours) ＜0.3m Rad
F-theta lens (marking area)：we have 70mm, 110mm, 150mm, 175mm, 200mm, 220mm,300mm even 400mm.

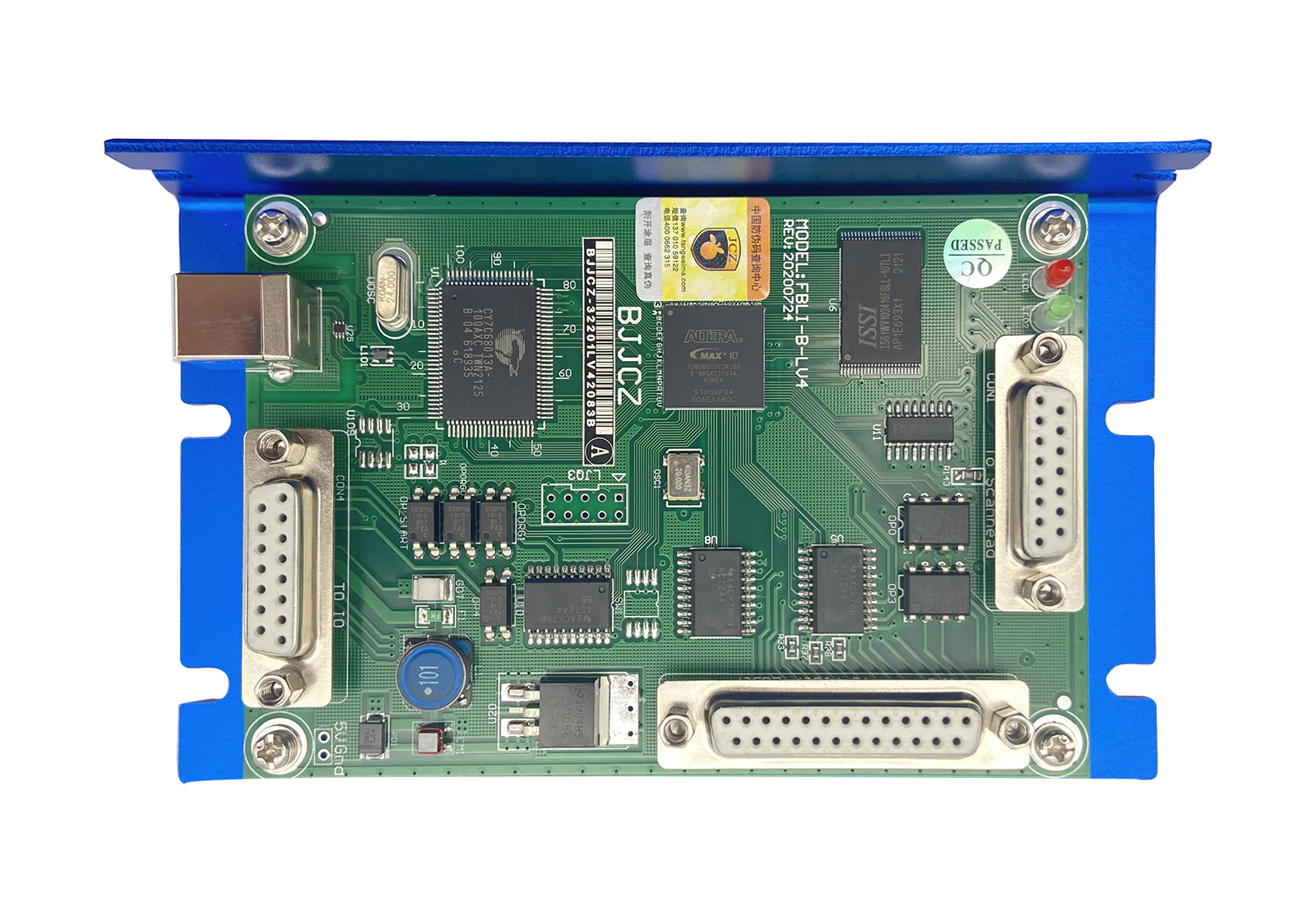

Genuine control card BJJCZ and free EZCAD software（you can install the EZCAD software on Windows computer )
High quality power supply and working stable

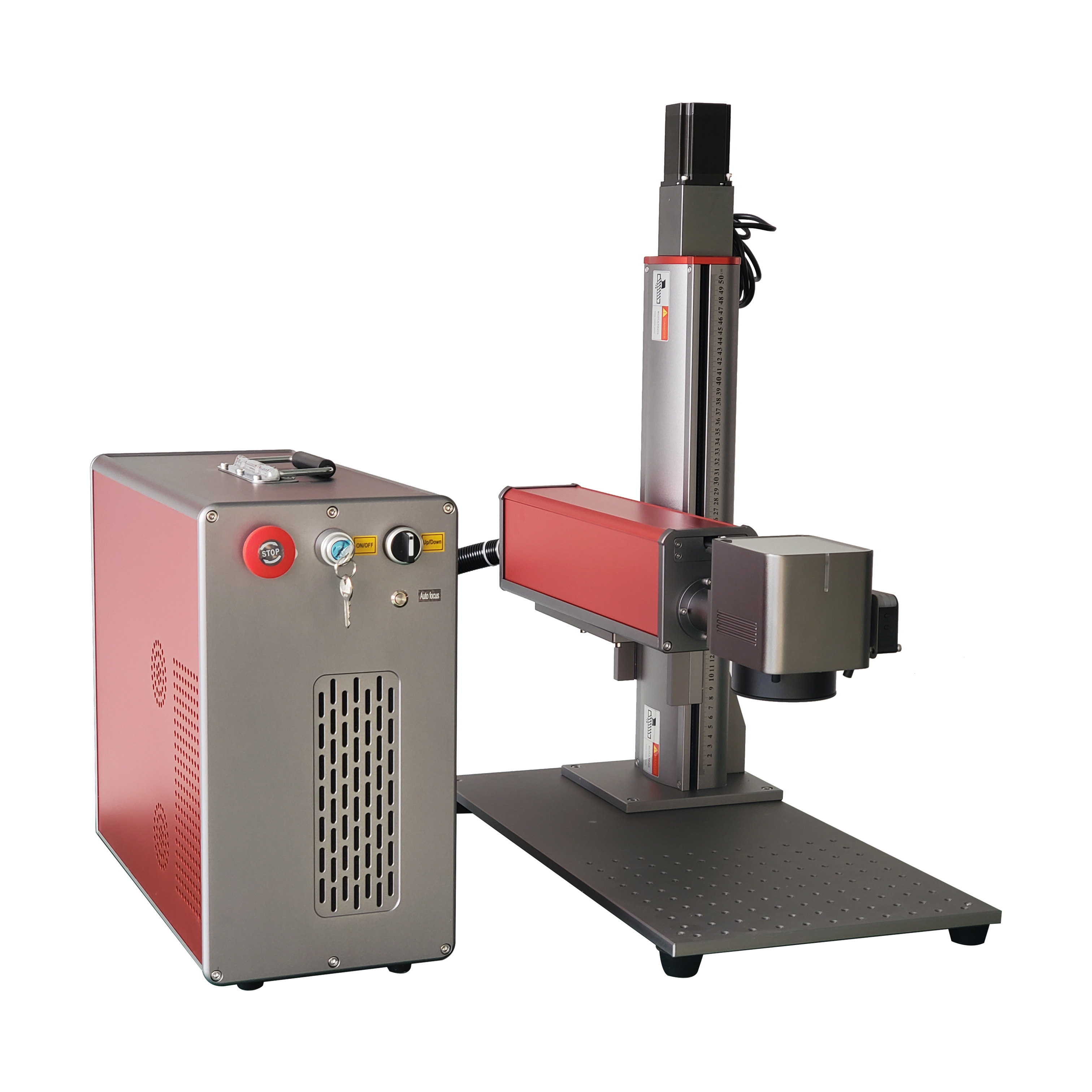

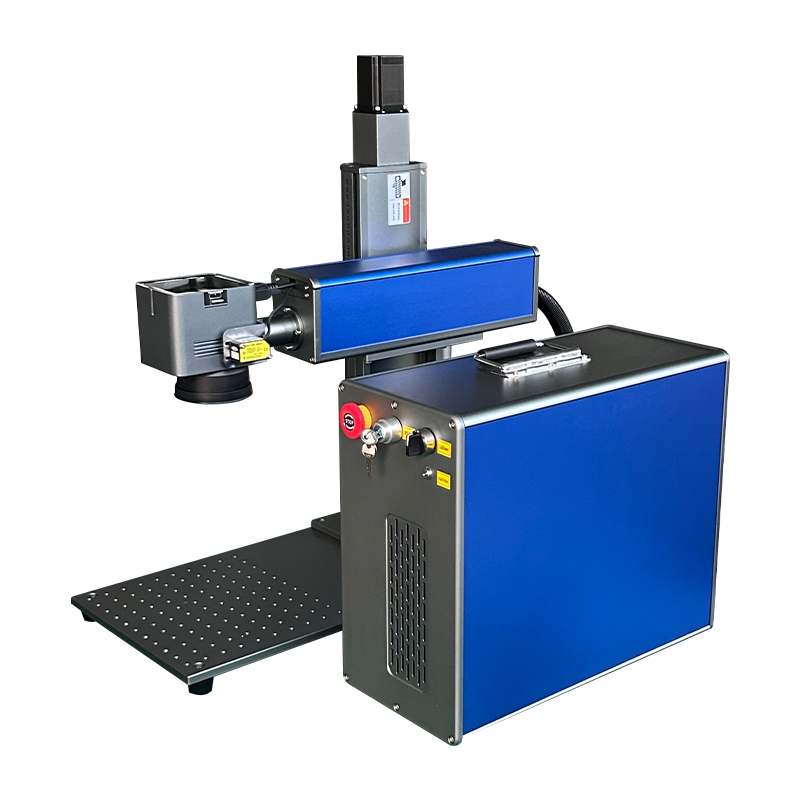

LASER MARKING MACHINE DATASHEET
| Machine name | laser marking machine |
| Laser power | 20W ~ 200W |
| Laser type and brand | fiber laser (JPT/RAYCUS) |
| Laser frequency | RAYCUS fiber laser 30~60 or 50~100khz JPT fiber laser 1~600khz JPT mopa laser 1~4000khz |
Laser wavelength | 1064nm |
Marking area (optional) | 70X70mm 110x110mm 150x150mm 175x175mm 200x200mm 220x220mm 250x250mm 300x300mm |
| Marking depth | ＜2.0mm depend on engraving time |
| Marking speed | 7000mm/s |
| Minimum marking character | 0.1mm visible |
| Control software | EZCAD 2 lite |
| Control software support | Vector graphics / Bitmap / DXF and other file formats |
| Control software operation | Windows 7 / 8 / 10 |
| Machine work voltage | AC110V 60HZ, AC220V 50HZ ±10% |
| Machine power consumption | ＜700W |
| Machine cooling way | Air cooling |
*Packing box: plywood case, 790x410x750mm
*Clean and sanitize the machine
*Wrap the waterproof membrane
*Fill with foam
*Add fixed rope
-We provide free YouTube operation videos and PDF English manuals.
-We have professional after-sales technicians who can assist through WeChat, Email, WhatsApp, Teamviewer.
-Before packing in our factory, we do a 24-hour test. When you receive the machine, connect to the computer and you can use the laser directly.
-We Provide Free Ezcad Software.
We produce laser marking machine, laser Engraving Machine, laser cutting machine, laser welding machine, a variety of laser equipment. Types include fiber laser, CO2 laser, UV laser, 3D laser, MOPa laser. We look forward to working with you.
Sample show: Metal surface marking, plastic surface marking, metal deep engraving, metal cutting, metal cleaning, metal drilling.
