RF-F-200W RF-F-300W RF-F-350W
RAY FINE
845611

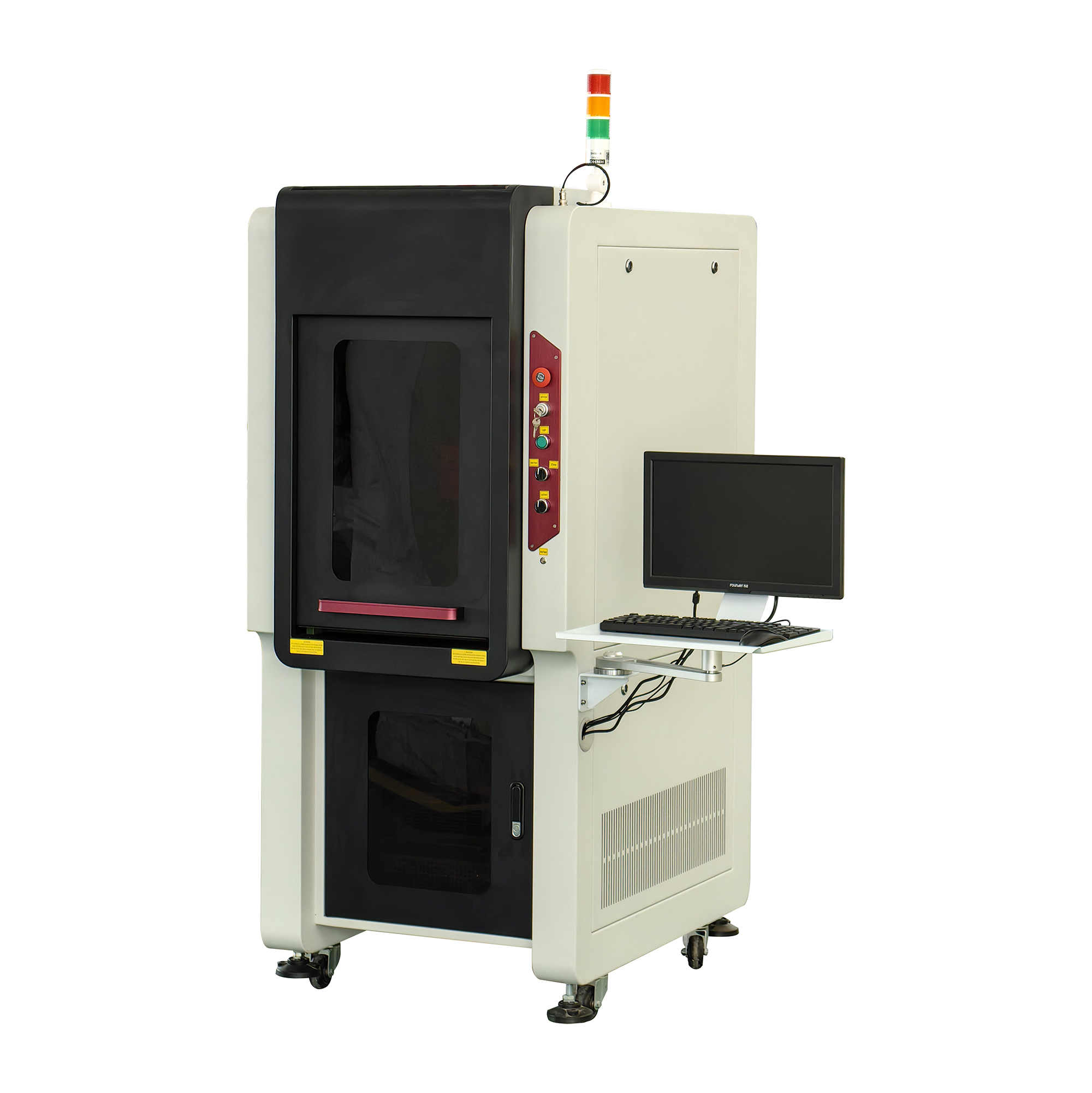

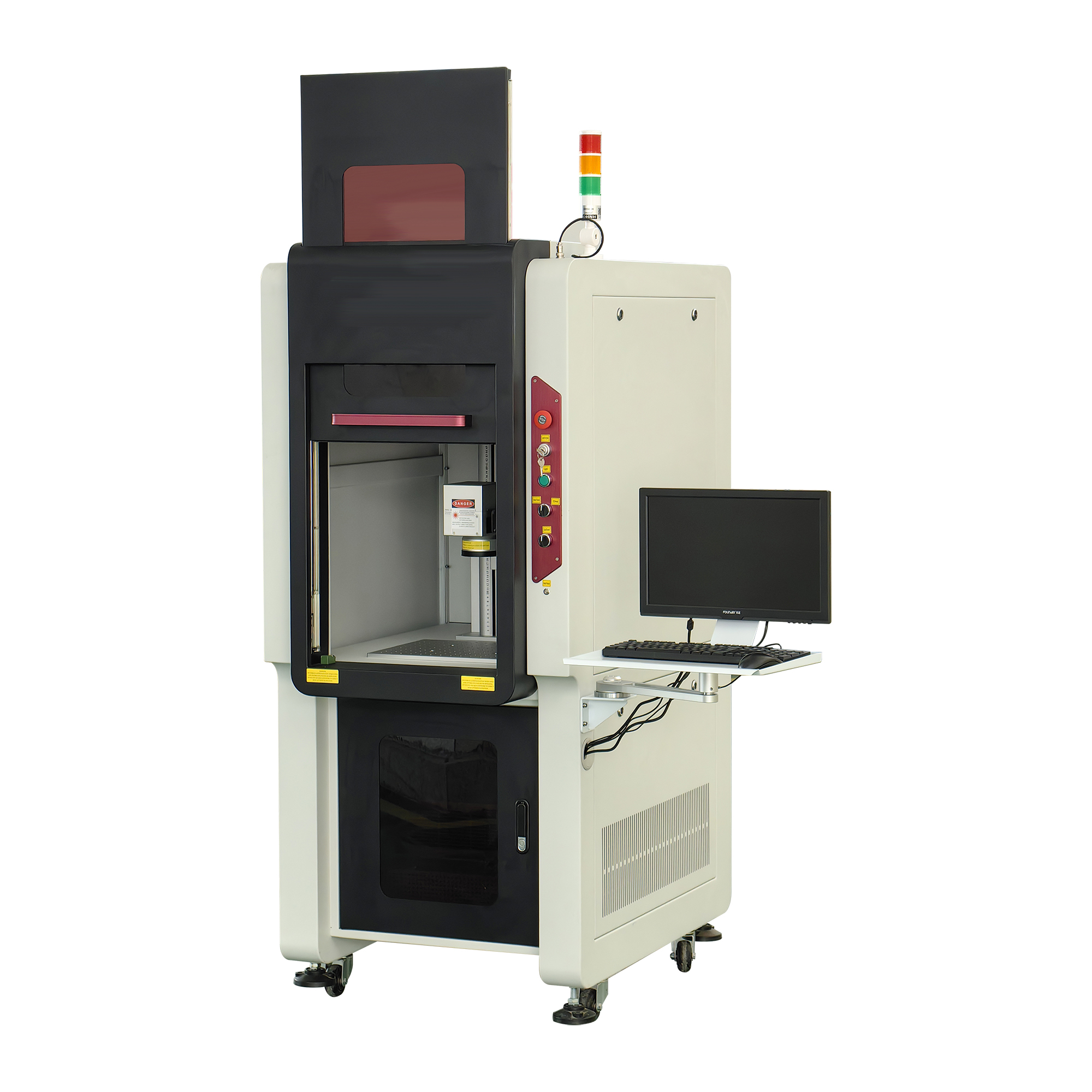

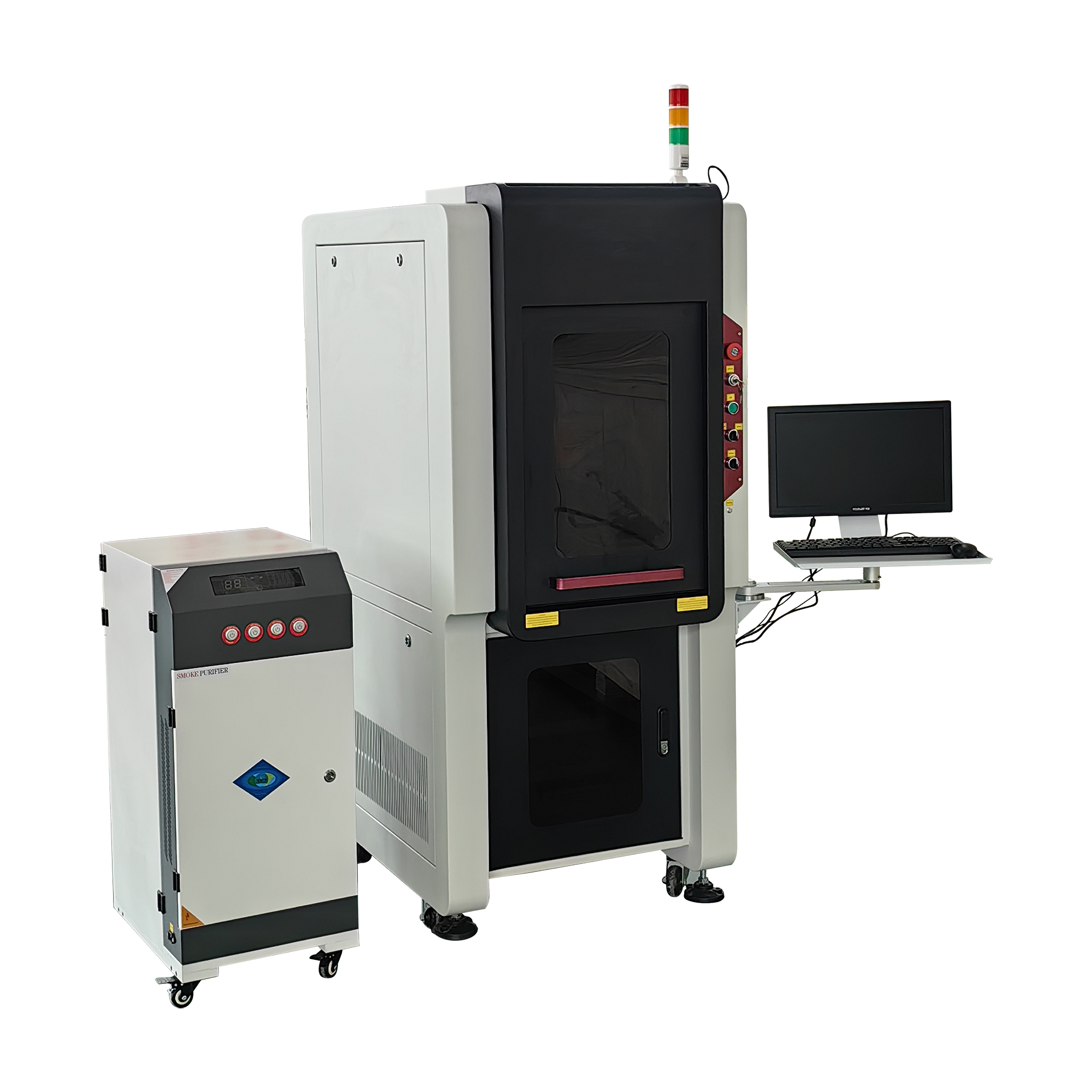

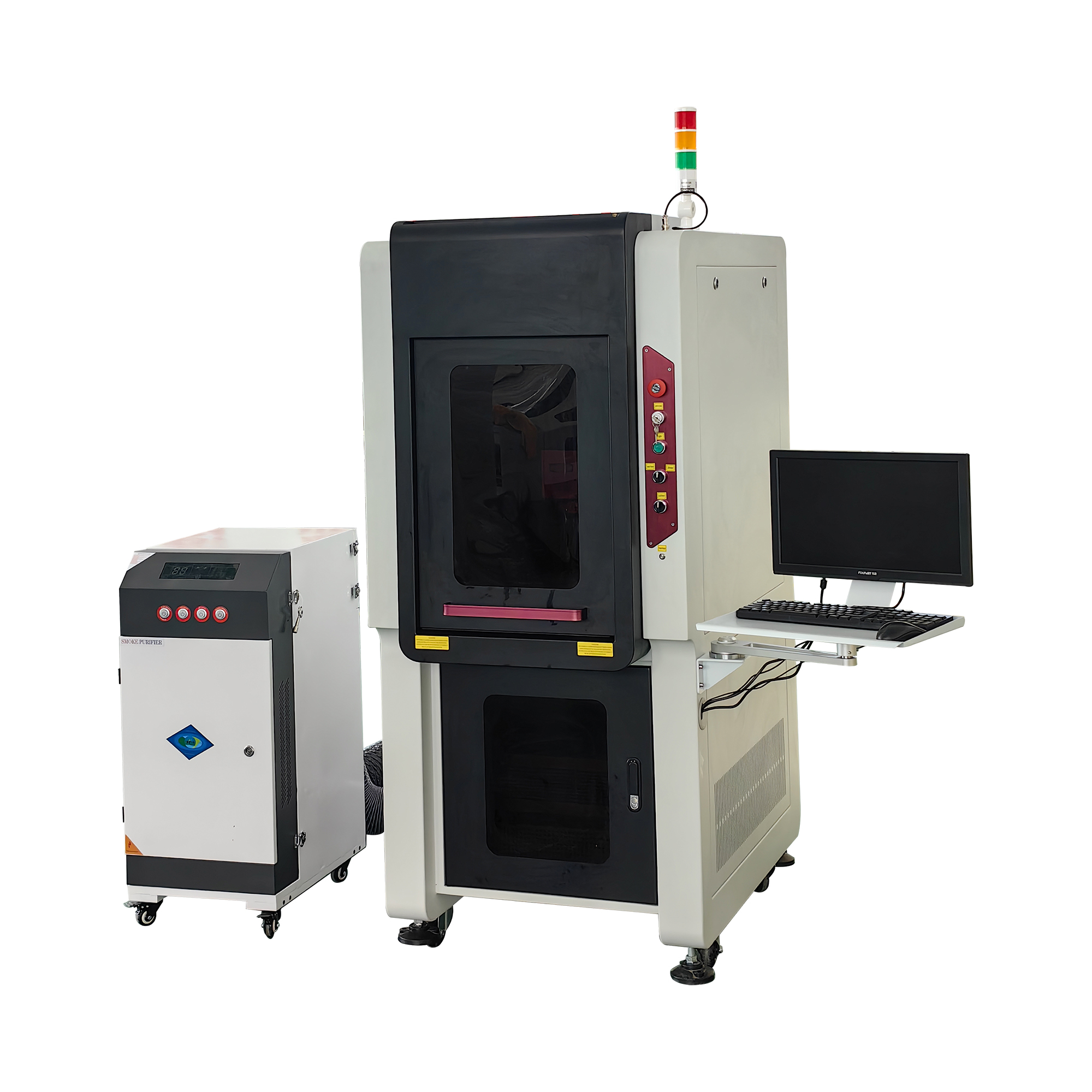

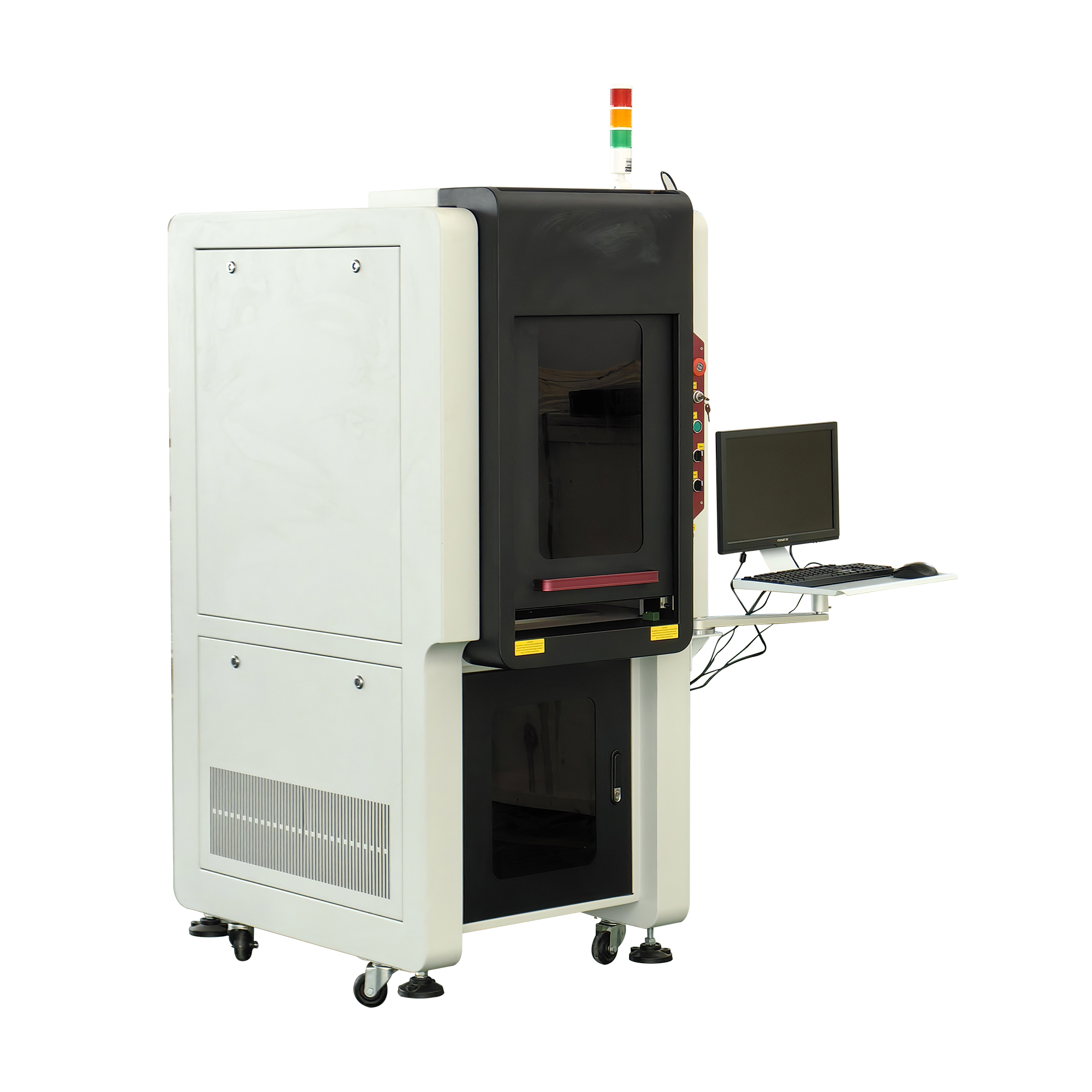

Full closed 200W 300W 350W fiber laser engraving machine, Galvo fiber laser cutting machine
Customized Galvo head for big power

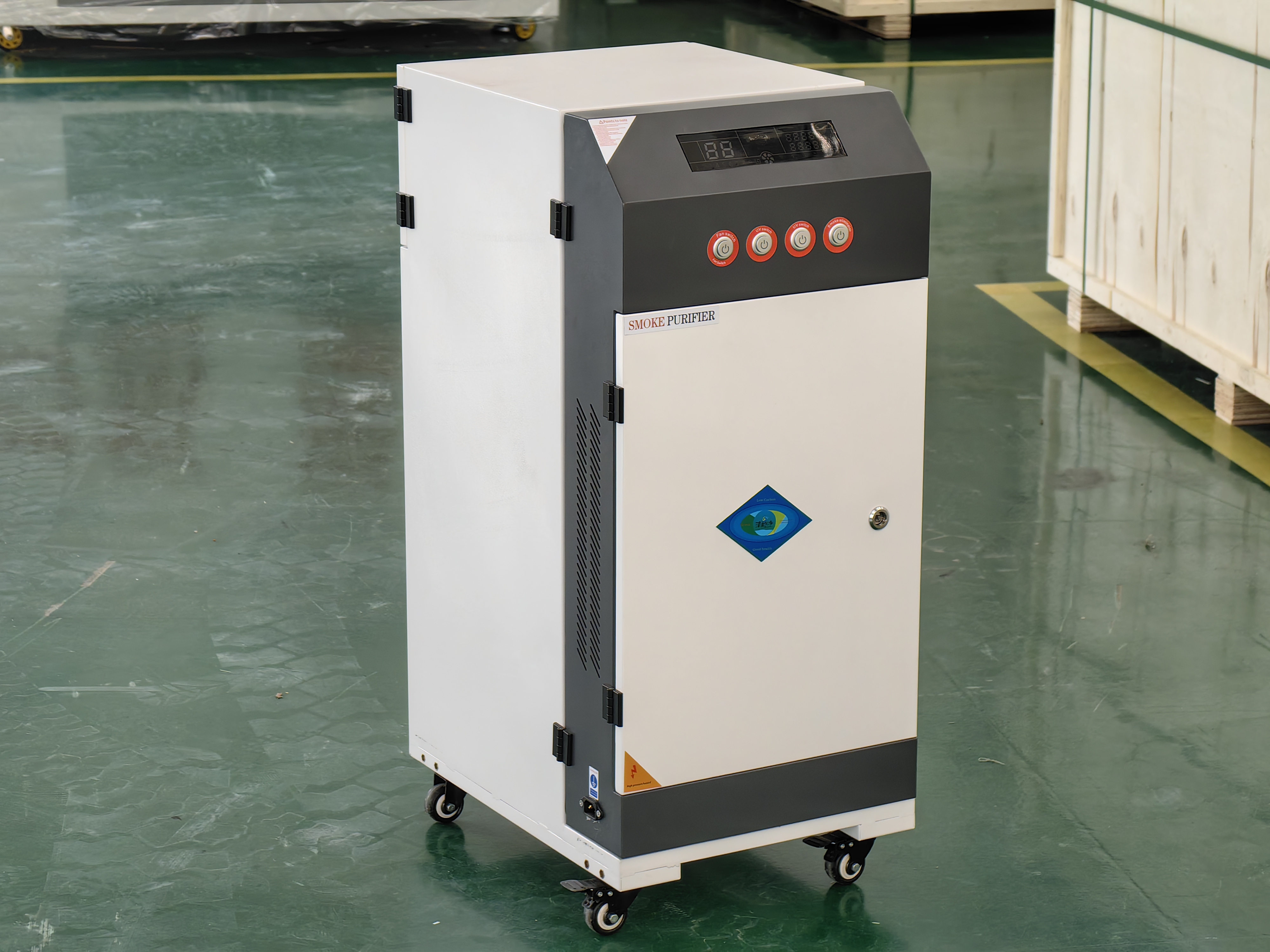

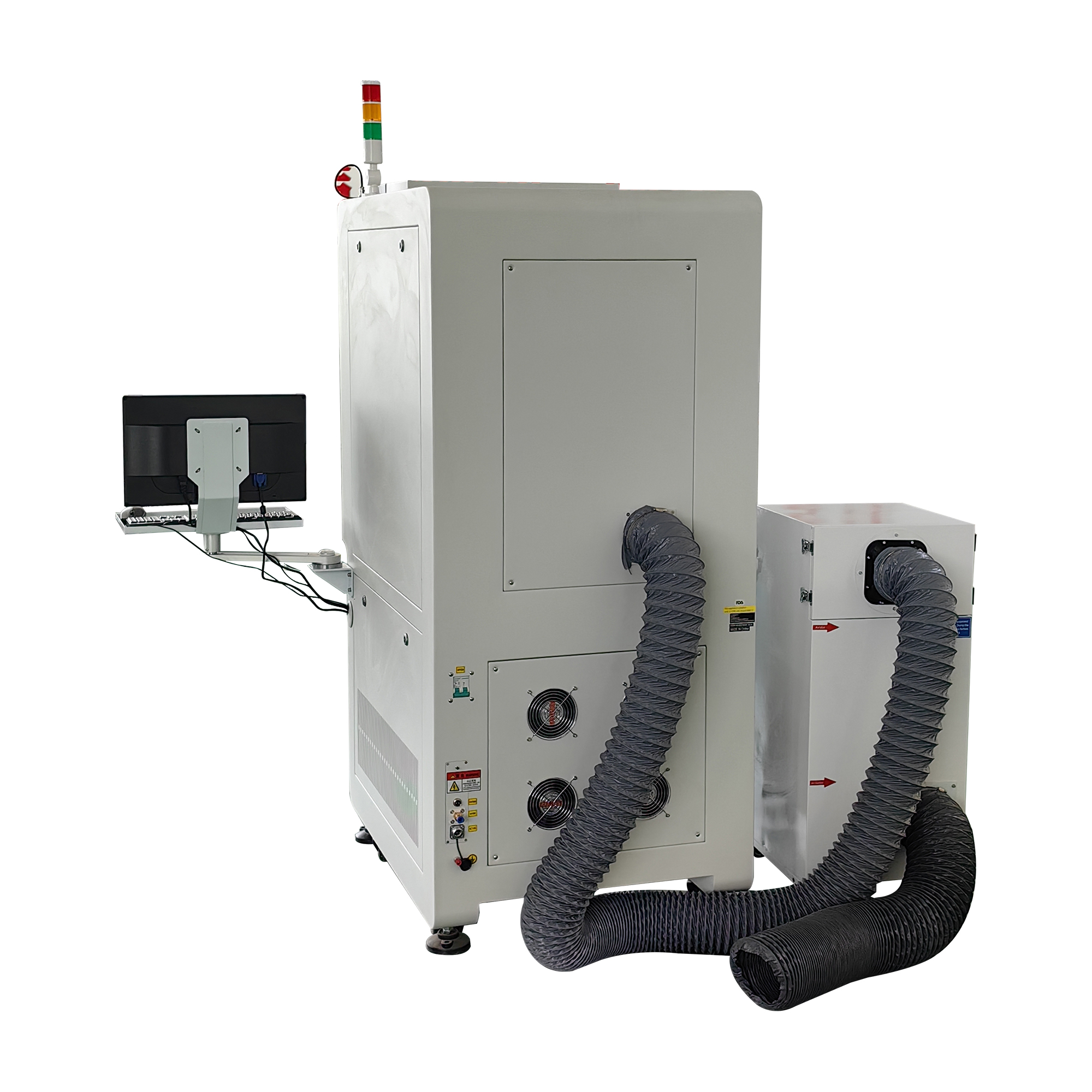

Air blowing system, when the laser start to work, it can work automatically
Technical Parameter
| Model | RF-F-200W | RF-F-300W | RF-F-350W |
| Fiber laser source brand | JPT | ||
| Fiber laser source type | MOPA | ||
| Output power | >200W | >300W | >350W |
| Max single pulse energy | 1.5MJ | 2.3MJ | 2.3MJ |
| Laser beam quality M2 | <1.8 | <1.8 | |
| Pulse duration | 2-500ns | 2-500ns | |
| Frequency | 1-4000khz | 1-4000khz | 1-4000khz |
| Center Wavelength | 1064nm | ||
| Cooling type | Air | ||
| Marking Area | 70x70/110x110/200x200/300x300mm | ||
| How to get focus | double red light | ||
| marking Depth | 0-2mm | ||
| Max positioning speed | 8000mm/s | ||
| Min. Character size | 0.2mm | ||
| Supply voltage | AC110V 60HZ / AC220V 50HZ | ||
| Control program | EZCAD2 from BJJCZ | ||
| Package size | 94 x74x106cm | ||
| Package weight | 130kgs | ||
Processed samples
More information, please feel free to contact: sales05@rayfinetech.com, thank you.
