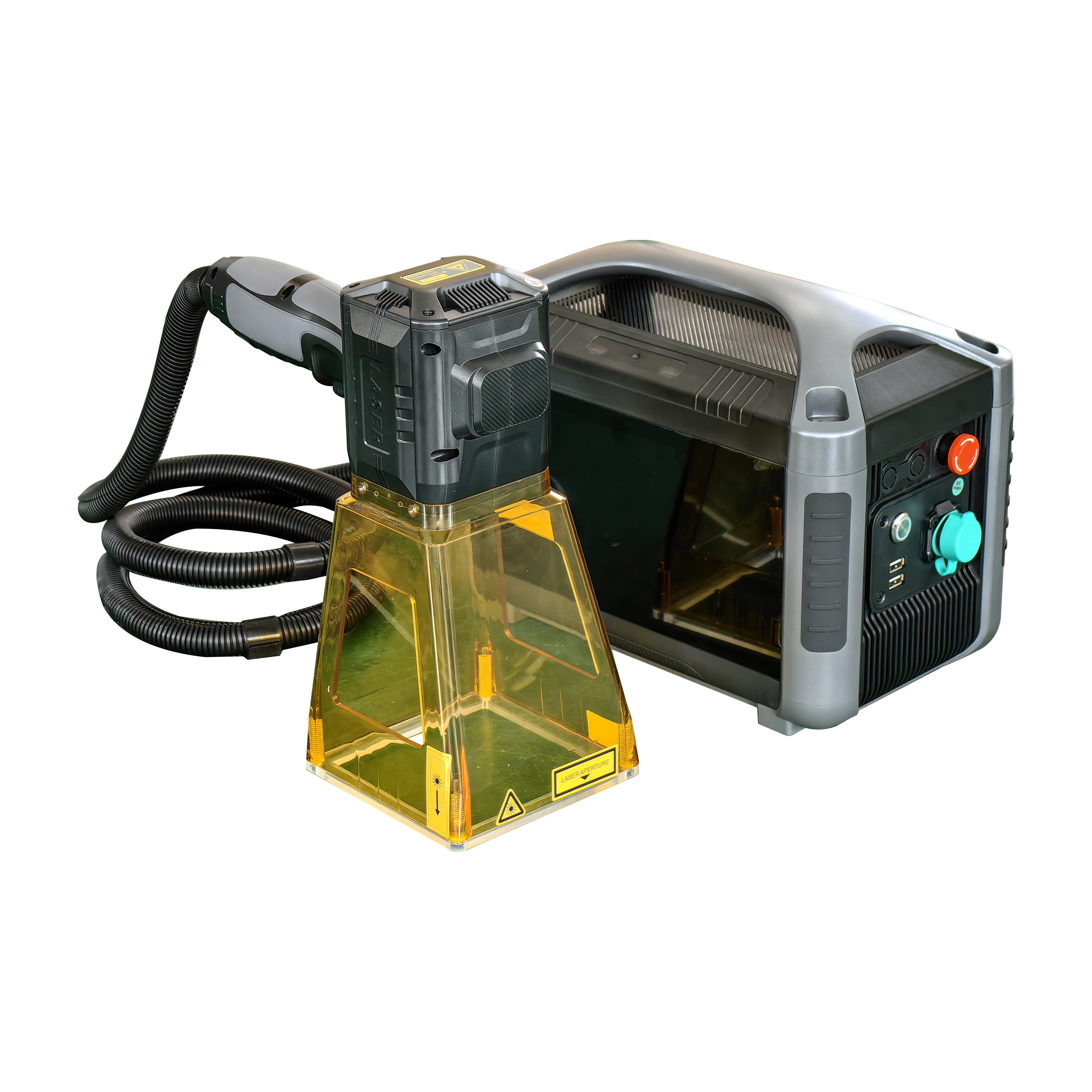

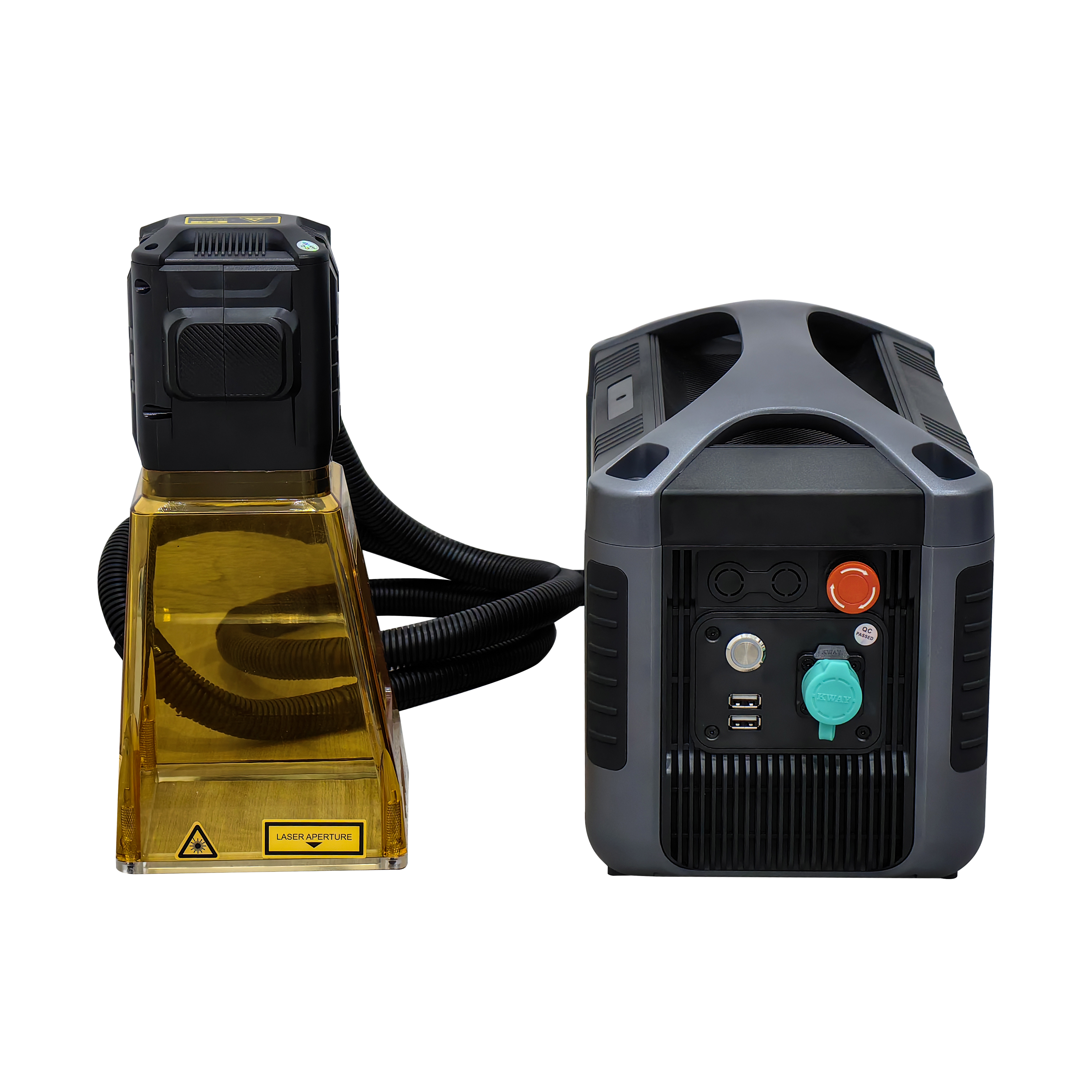

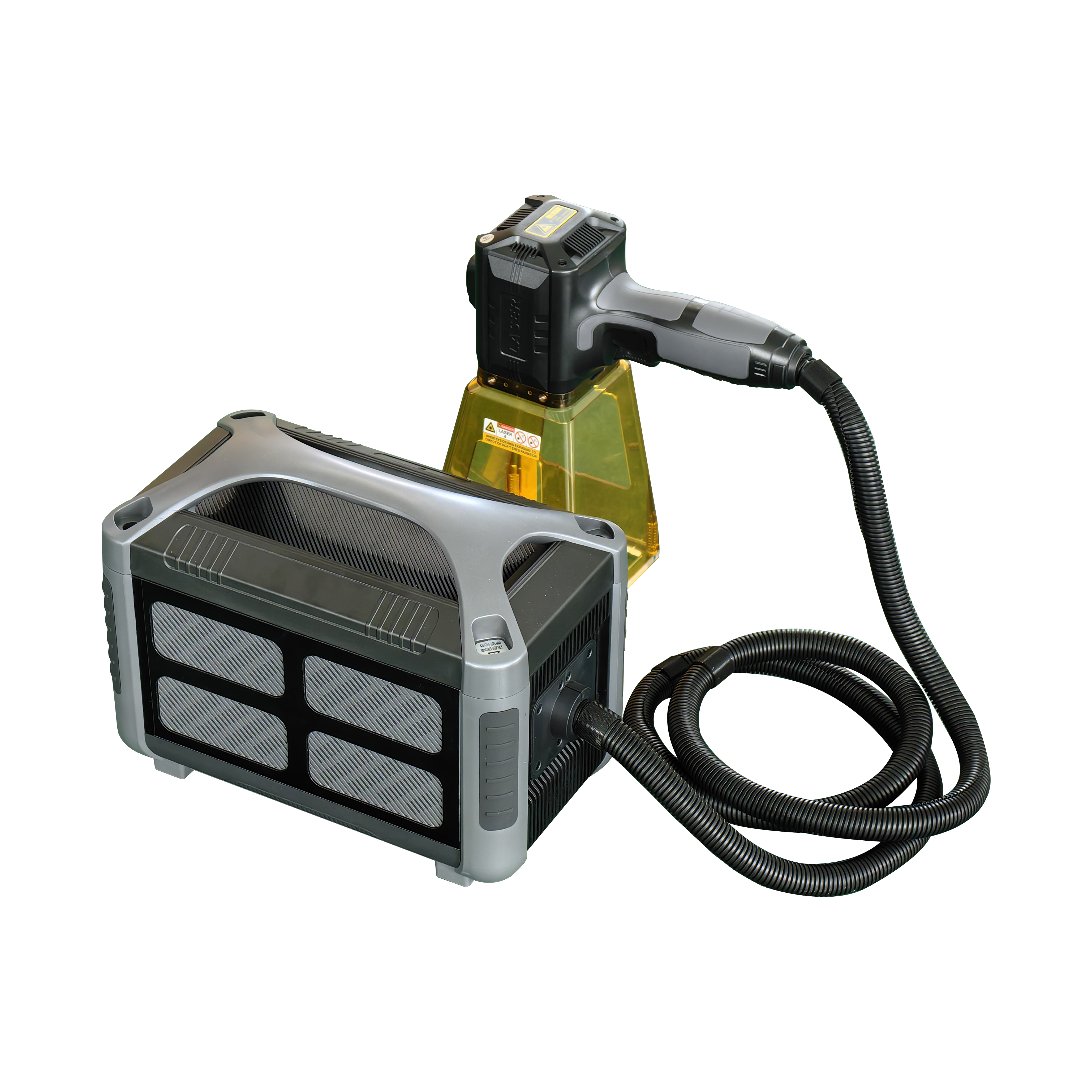

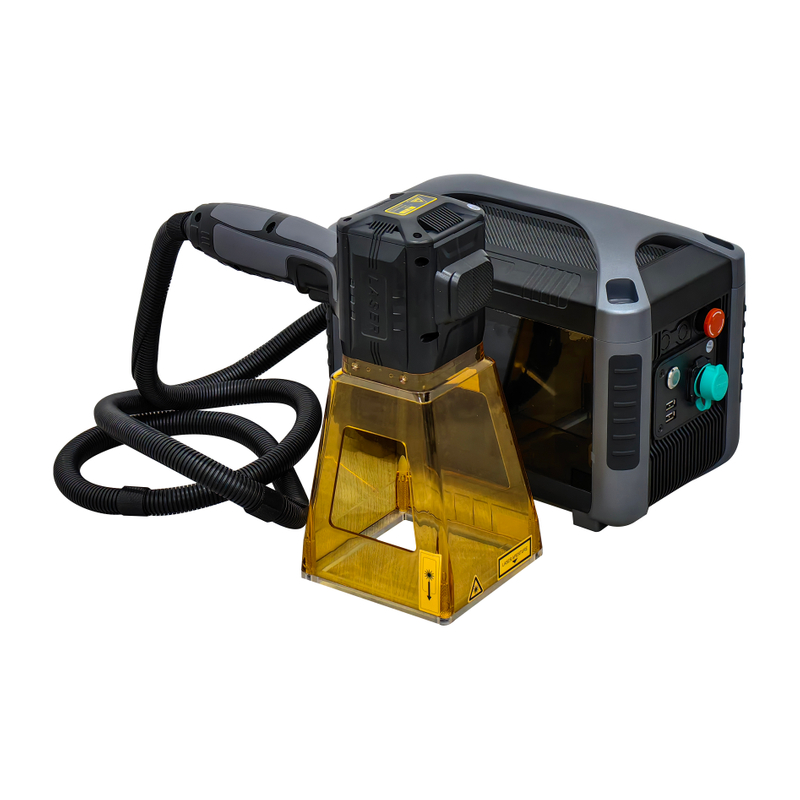

20W 30W 50W Portable Handheld Laser Marking Machine
Fiber laser is widely used in marking metal and non-metallic plastics and other materials.
LASER MARKING MACHINE DATASHEET
| Machine name | Laser Marking Machine |
| Laser power | 20W 30W 50W |
| Laser type and brand | fiber laser |
Laser wavelength | 1064nm |
Marking area (optional) | 70 x 70 mm 110 x 110 mm |
| Marking depth | ＜1.0mm depend on engraving time |
| Marking speed | 7000mm/s |
| Master control | integrate motherboard，8-inch capacitor fully bonded to the screen |
| Operating system | Linux system |
| Line width | 0.03mm |
| Repeatable position accuracy | 0.01mm |
| Targeting method | red light position，focusing |
| Font | Chinese and English，numbers，other standard fonts |
| File format | BMP,DXF,HPGL,JPEG,PLT |
| Bar code | CODE39, CODE128, CODE126, QR |
| Power supply | 110V /220V - lithium 216wh |
| Power consumption | 145-250W |
| Total weight | 6-6.8KG |
Direct carton packaging or customized wooden box packaging, please contact me.
-We provide free YouTube operation videos and PDF English manuals.
-We have professional after-sales technicians who can assist through WeChat, Email, WhatsApp, Teamviewer.
-Before packing in our factory, we do a 24-hour test. When you receive the machine, connect to the computer and you can use the laser directly.
