RF-UV
RAYFINE
# Uv laser have high laser accuracy, low energy, and low damage to materials
Note: Due to different production batches, there will be a small error in the measurement size
# Specifications
Model | RF-UV-3W RF-UV-5W |
Marking area (F-theta-lens) | 70*70mm 100*100mm 150*150mm 175*175mm 200*200mm |
Marking character | 0.02mm |
Laser wavelength | 355nm |
Laser power | ＞3W@30khz ＞5W@30khz |
Laser beam quality | ≤1.2 |
Control software | EZCAD 2 lite |
Cooling way | Air cooling |
Working temperature | -5~35℃ |
Power supply | AC110V 60HZ ±10% AC220V 50HZ ±10% |
Machine weight | 40 KG |
Warranty | 18 months |

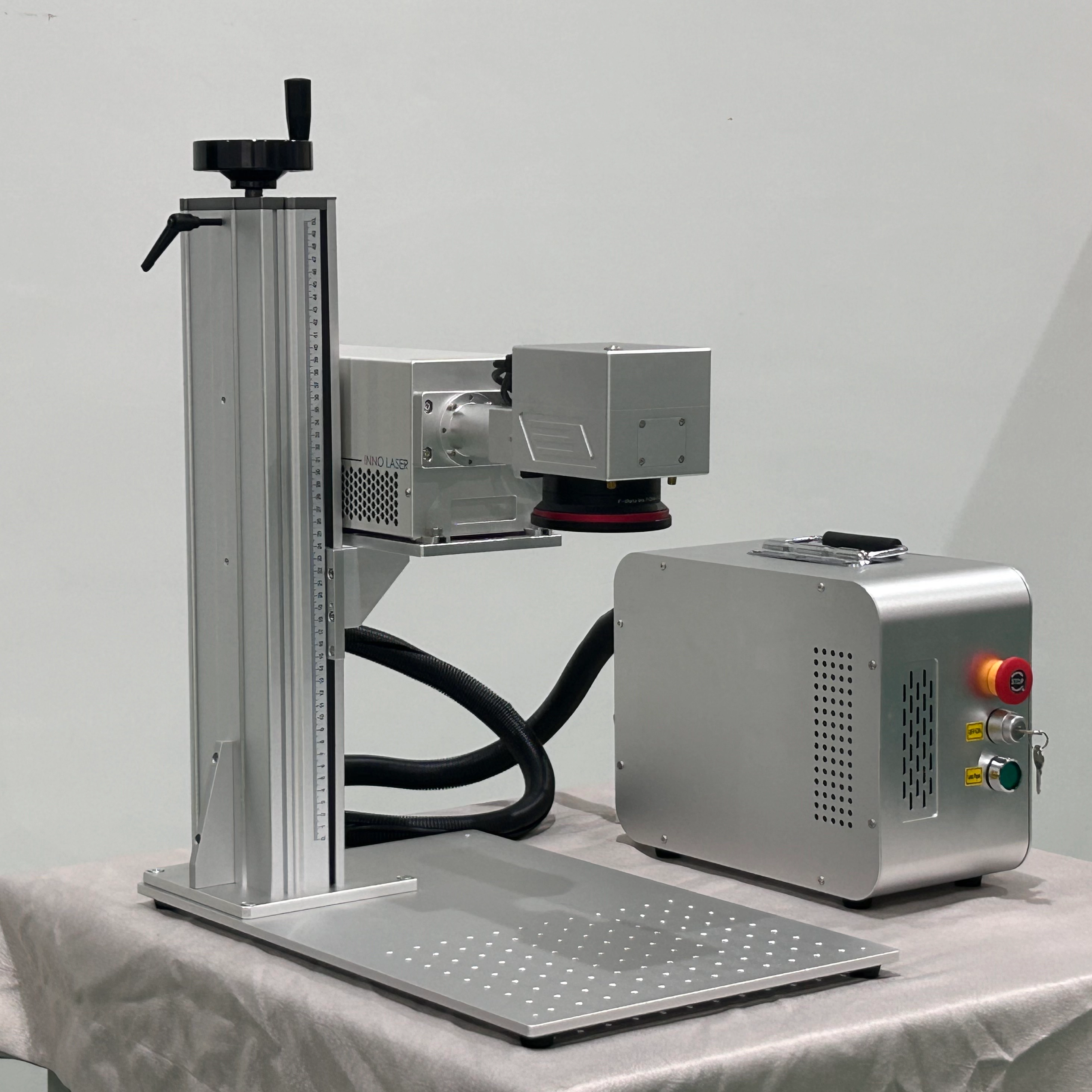

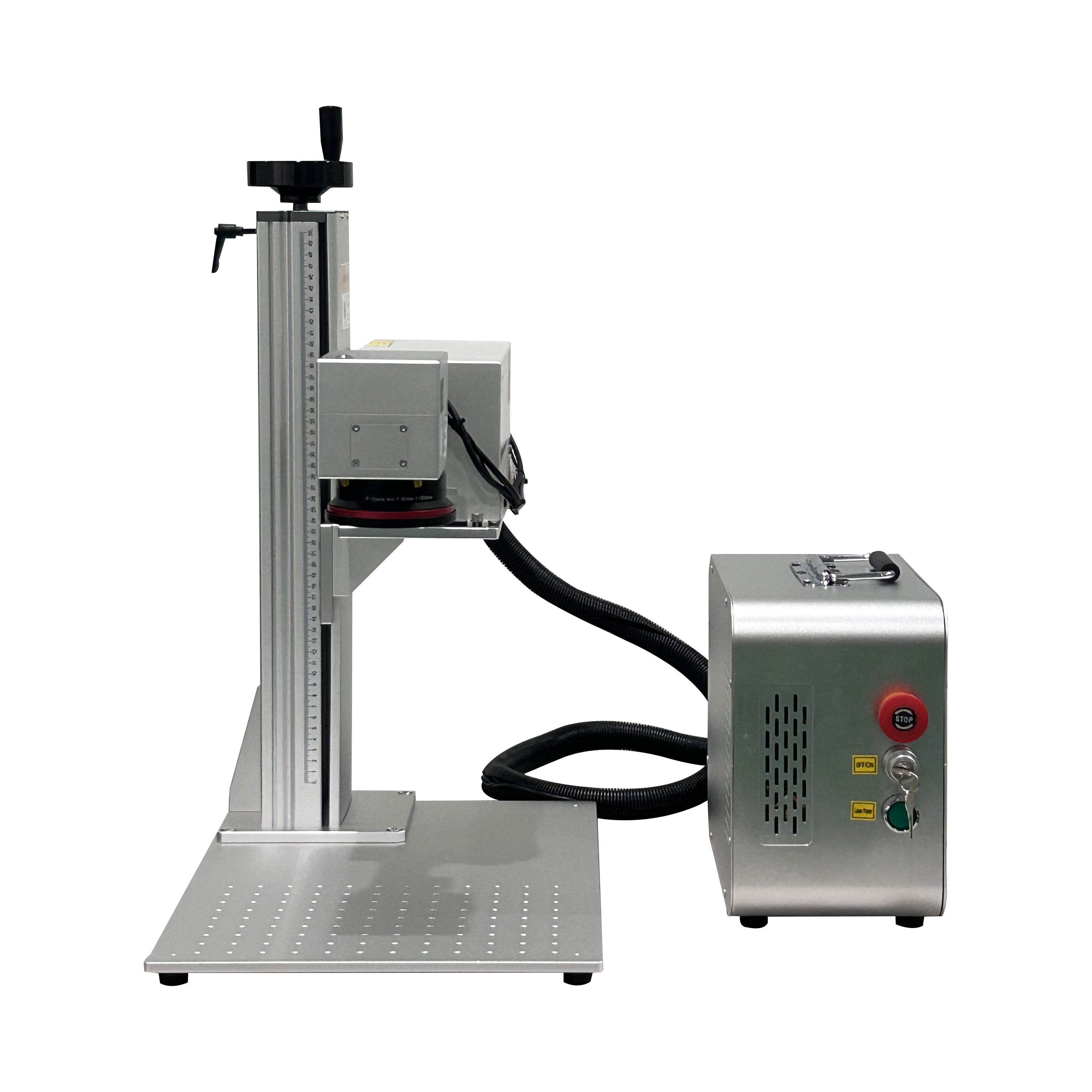

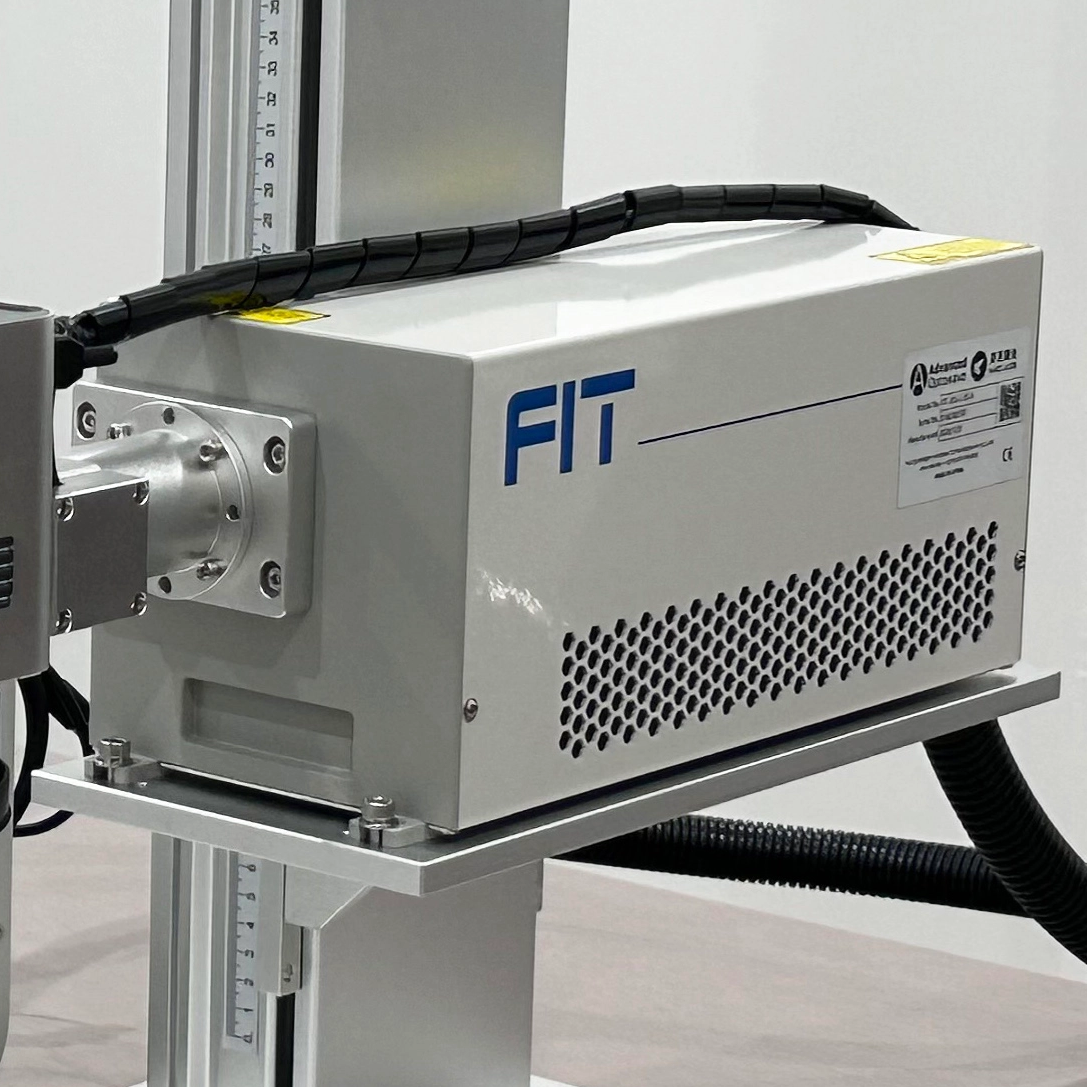

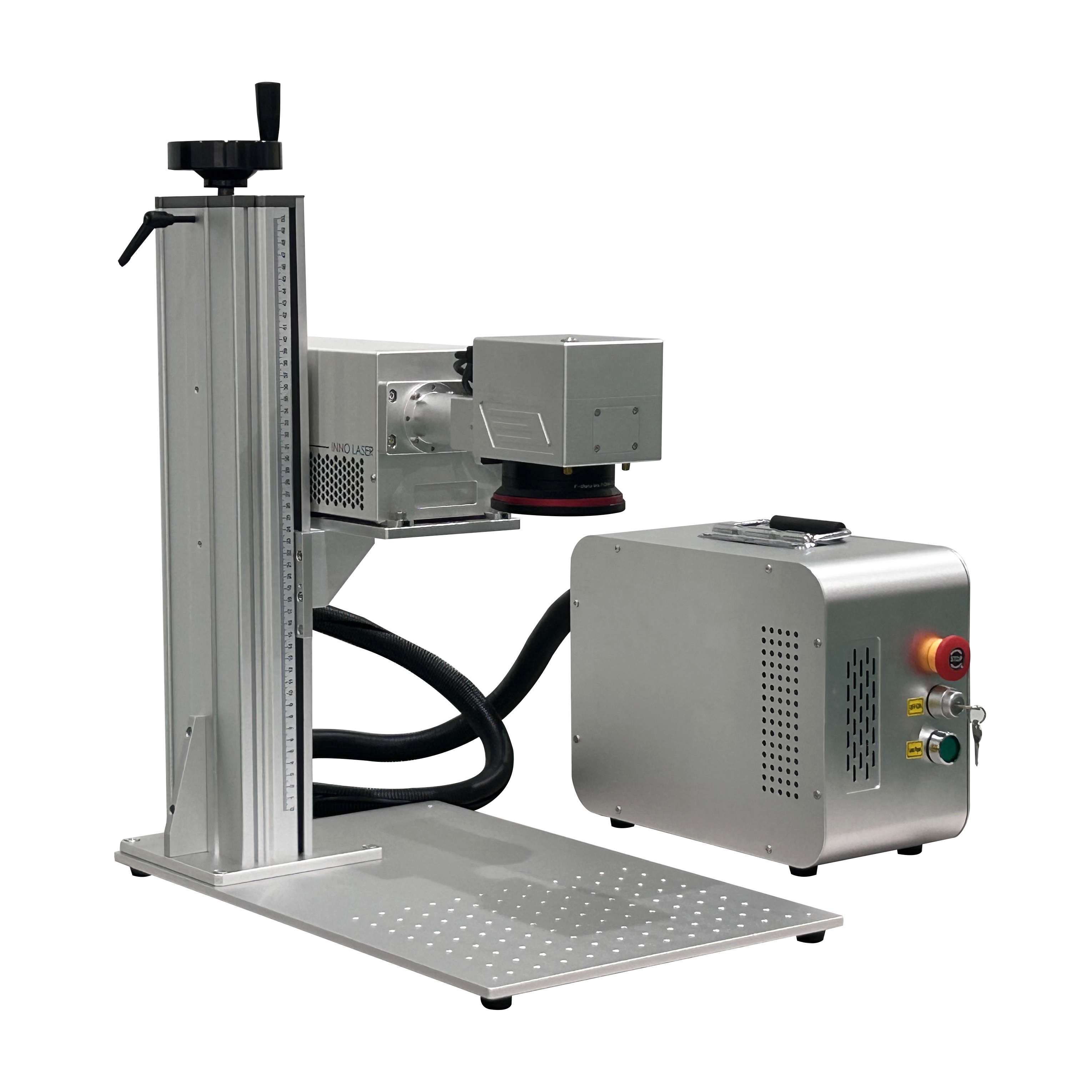

# Machine pictures
# UV laser marking sample show：
# Uv laser have high laser accuracy, low energy, and low damage to materials
Note: Due to different production batches, there will be a small error in the measurement size
# Specifications
Model | RF-UV-3W RF-UV-5W |
Marking area (F-theta-lens) | 70*70mm 100*100mm 150*150mm 175*175mm 200*200mm |
Marking character | 0.02mm |
Laser wavelength | 355nm |
Laser power | ＞3W@30khz ＞5W@30khz |
Laser beam quality | ≤1.2 |
Control software | EZCAD 2 lite |
Cooling way | Air cooling |
Working temperature | -5~35℃ |
Power supply | AC110V 60HZ ±10% AC220V 50HZ ±10% |
Machine weight | 40 KG |
Warranty | 18 months |
# Machine pictures
# UV laser marking sample show：
