1500W 2000W 3000W Max Raycus Jpt Handheld Laser Welding Machine with Metal Cleaning Cutting Welding

Application: Metal welding cutting cleaning
Power:
1500W
2000W
3000W
Availability:
Quantity:
Inquire Add to Basket

  • ES-1500 / 2000 / 3000 CL

  • RAY FINE TECH


Handheld laser welding machine with wire feeding machine

lQDPJxC2HJUVPAfNDmfNDmawoToprm5zbMkGpptDf5VSAA_3686_3687

lQDPKGbqddcjXAfND8vND8uwx7tUwPeUf98GpptDf5VSAg_4043_4043


Famous Fiber Laser Source and industrial chiller，water cooling

微信截图_20240108105353

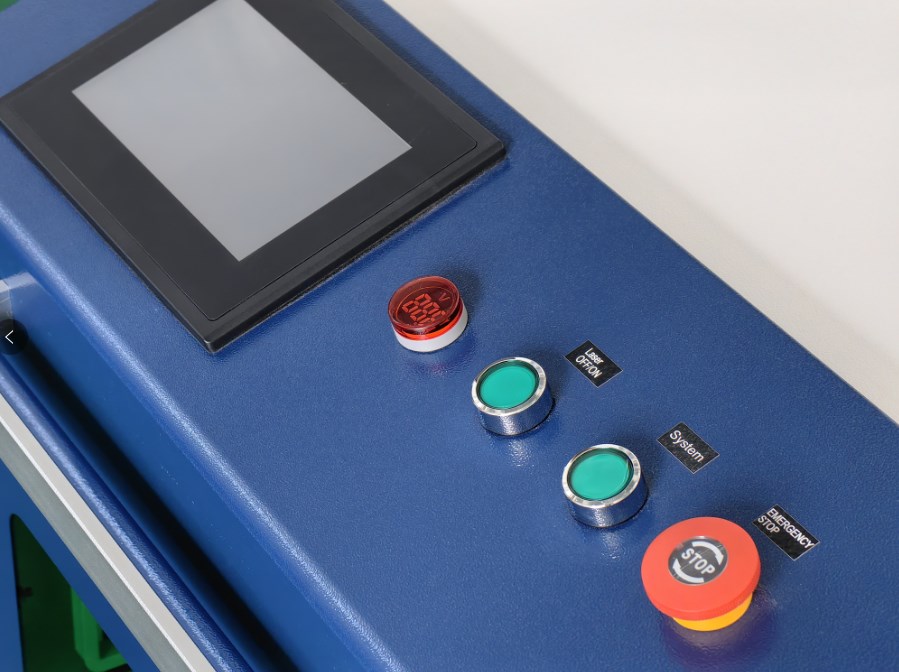

Touch Screen Control Panel, support many language

Dingtalk_20240816092904


Hand Laser Head and Spare Copper Nozzles

20220208_102257

ee


Technical Parameters

Model
 ES-1500CL , ES-2000CL, ES-3000CL, ES-6000CL
Laser type

CW Fiber laser
Laser wavelength 1064 -1080nm
Laser source  RAYCUS/MAX/JPT/BWT
Protective gas air/argon/nitrogen
Hand line length 9 meter
Industrial chiller Distilled water or Purified water
Wire  0.8/1.0/1.2/1.6mm
Machine power supply 220V/380V
Consumables Mainly protective lens/focusing lens/collimating lens/copper nozzle/etc.


Automatic Wire Feeder. (we alsocan produce have 2.0mm!)

- Dual drive more stable

- Touch screen, Digital design and simple setting
- Support various welding wires with diameters of 0.8/1.0/1.2/1.6mm

Working environment temperature: 10~40

Working environment humidity: < 70

Maximum weight of supporting wire: 25KG

Maximum supporting wire diameter: 1.6mm

Adjustable parameters: wire feeding speed

6666

Packing

IMGP6464

Free accessories

IMGP6470

Foams Protective Films

IMGP6474

Plywood case

IMGP6481 Nail and rope fixation


Welding Samples

41

样品

2525
